Fire Suppression Manifold: Notes

NOTE: LH side shown in the illustration, RH side similar.

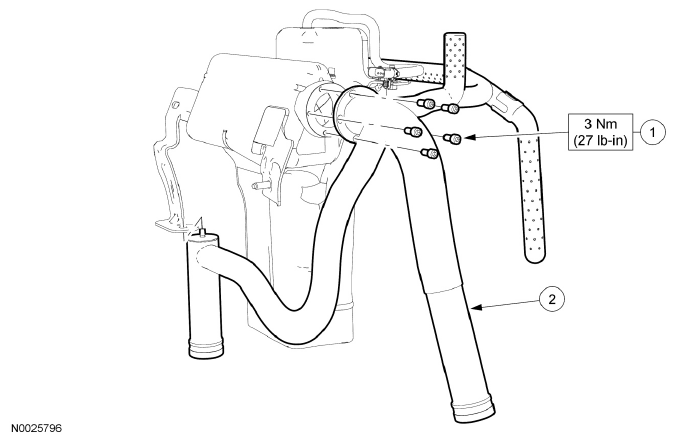

Fig 1: Fire Suppression Manifold Replacement Components With Torque Specifications
G07771510Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Fire suppression manifold bolts (5 required) (part of 19H280/19H281)
2 19H280/19H281 Fire suppression manifold (RH/LH)
