Lighting Control Module (LCM)
Lighting Control Module (LCM)
DTC Charts

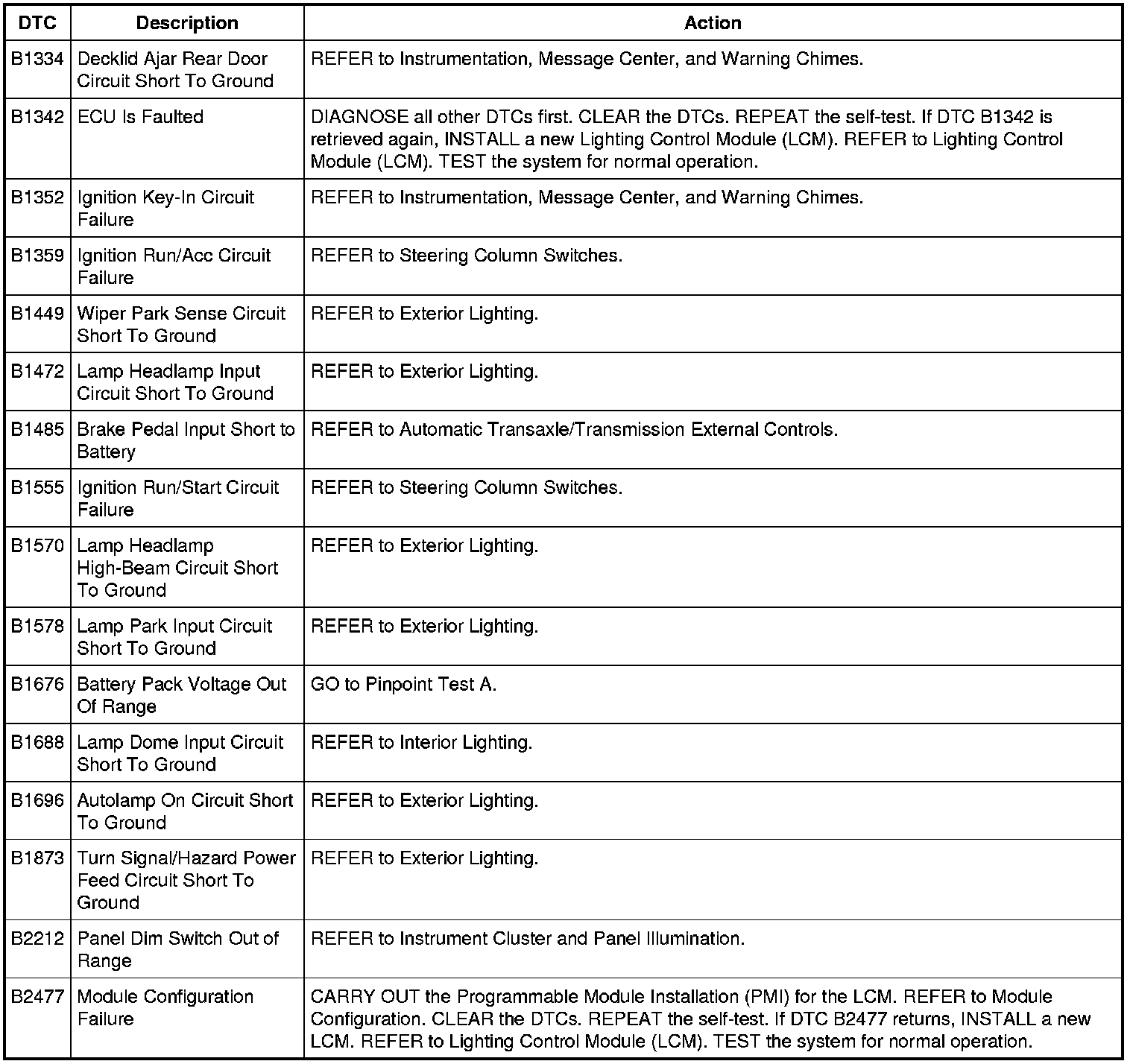

Lighting Control Module (LCM) DTC Chart
