Keyless Entry Key-Pad: Service and Repair

Keyless Entry Keypad

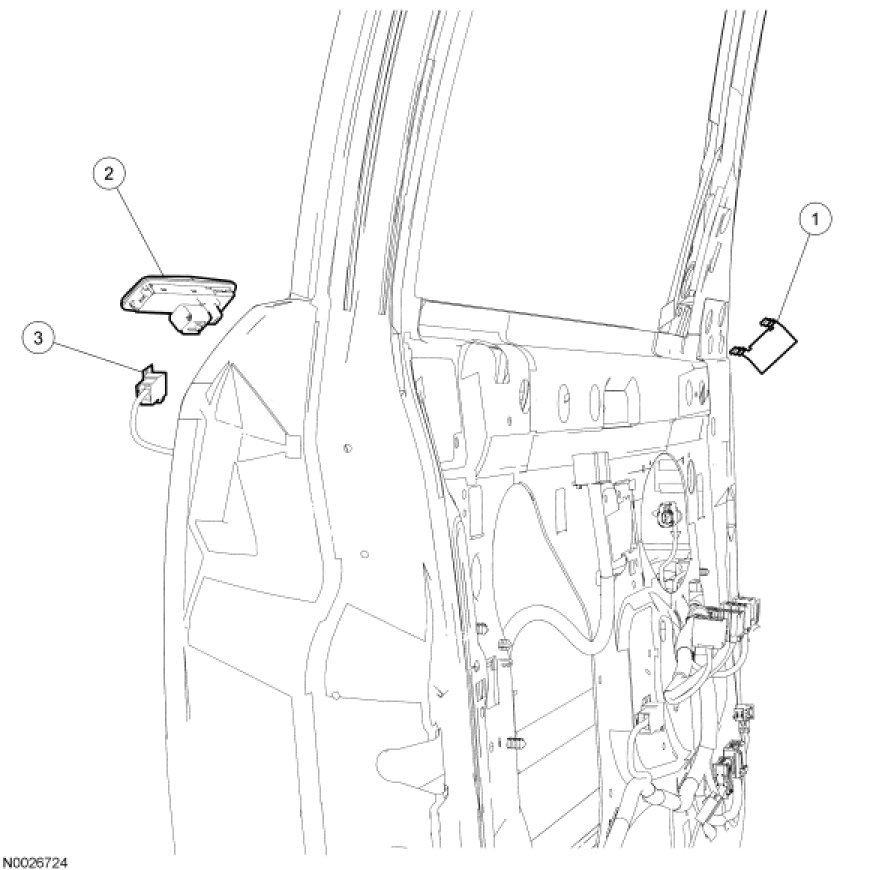

Removal and Installation

1. Remove the LH front door trim panel. For additional information, refer to Interior Trim and Ornamentation Door Trim Panel - Front.

2. Position the watershield aside.

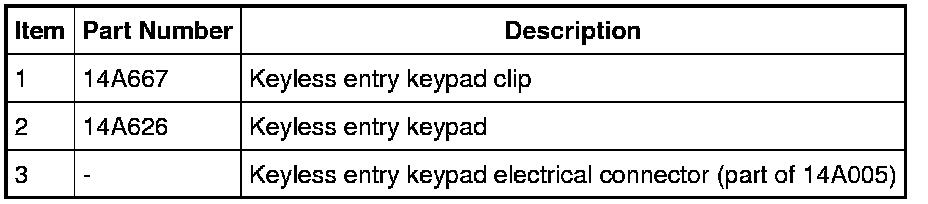

3. Remove the clip and the keyless entry keypad.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
