Ford
>>
2011
>>
Crown Victoria V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

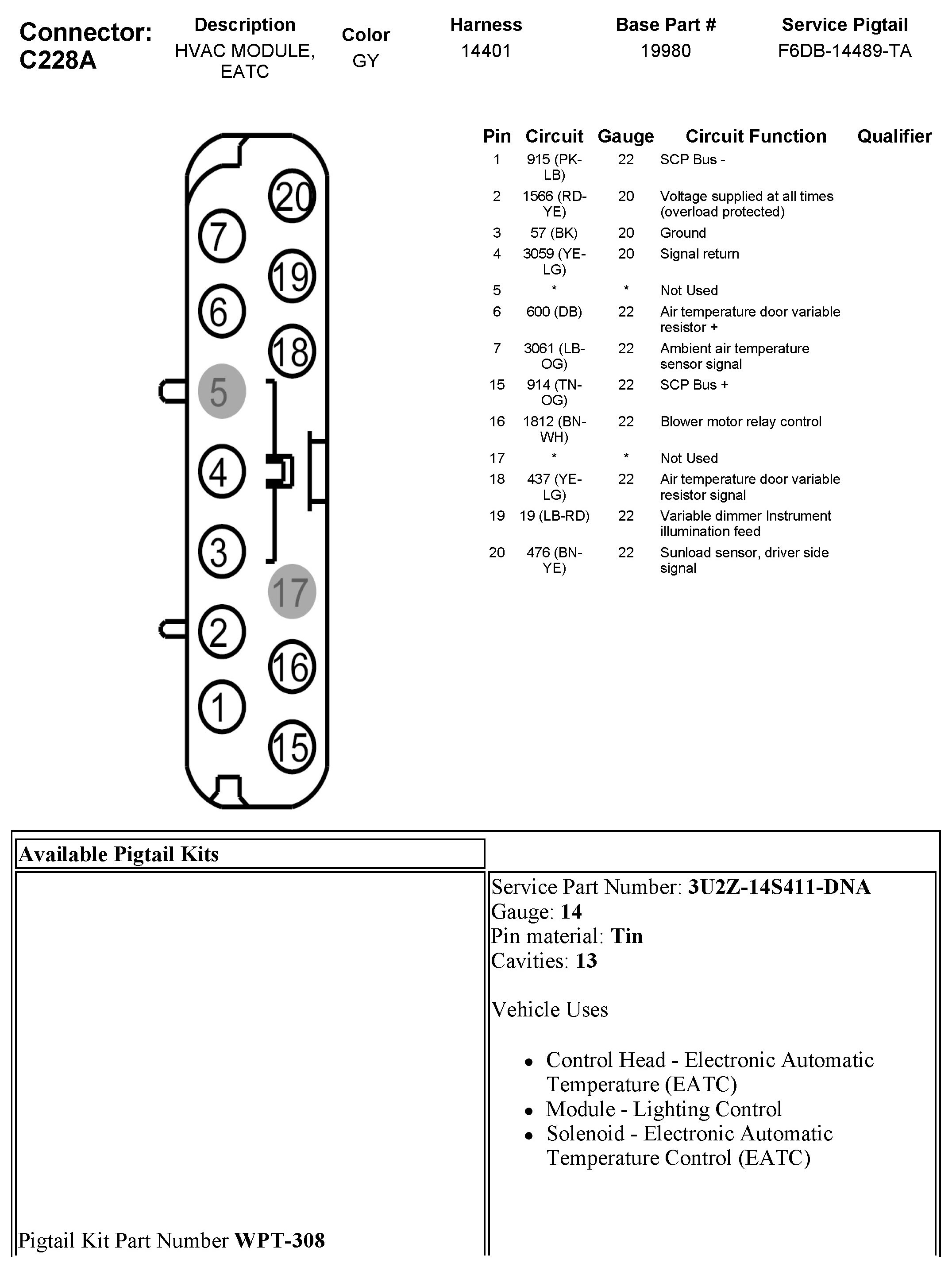

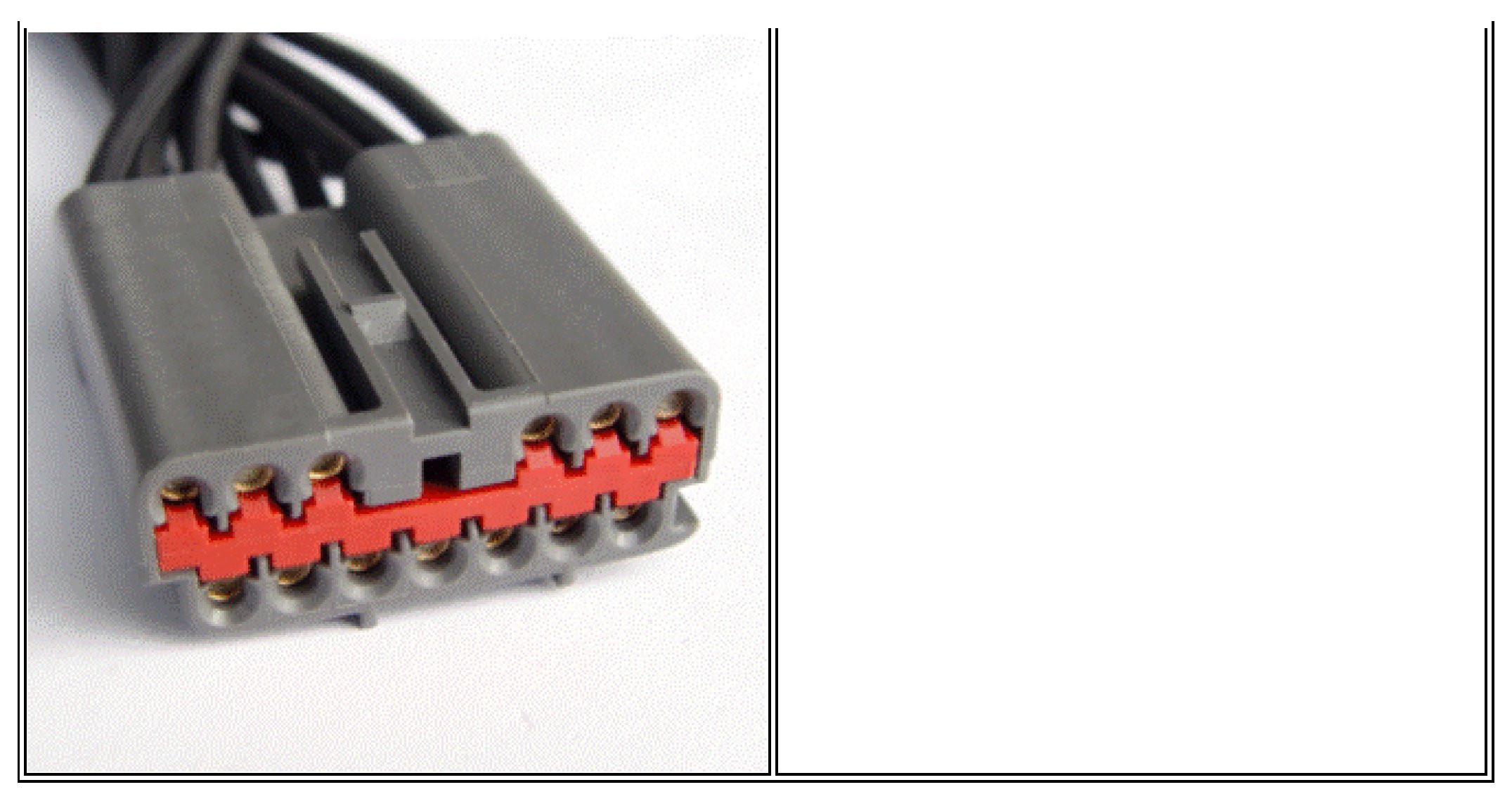

C228A HVAC Module, EATC
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
C228A HVAC Module, EATC
