Seat Back

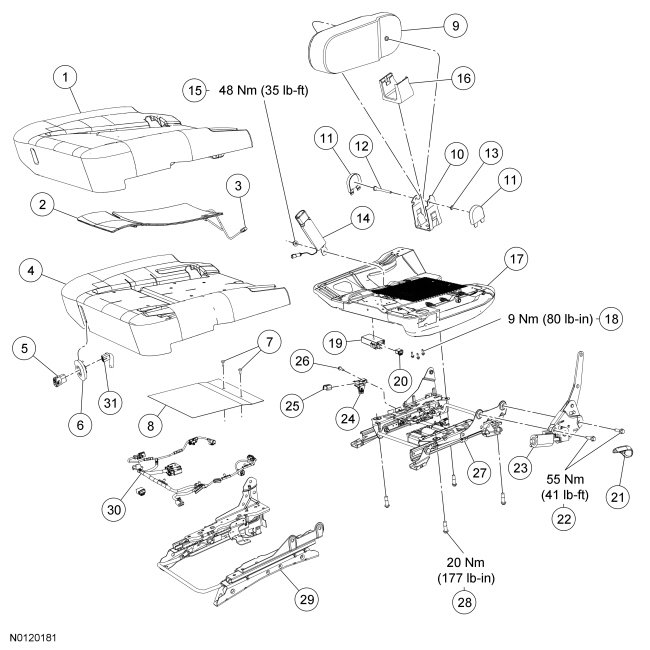

Seat - Exploded View, Front

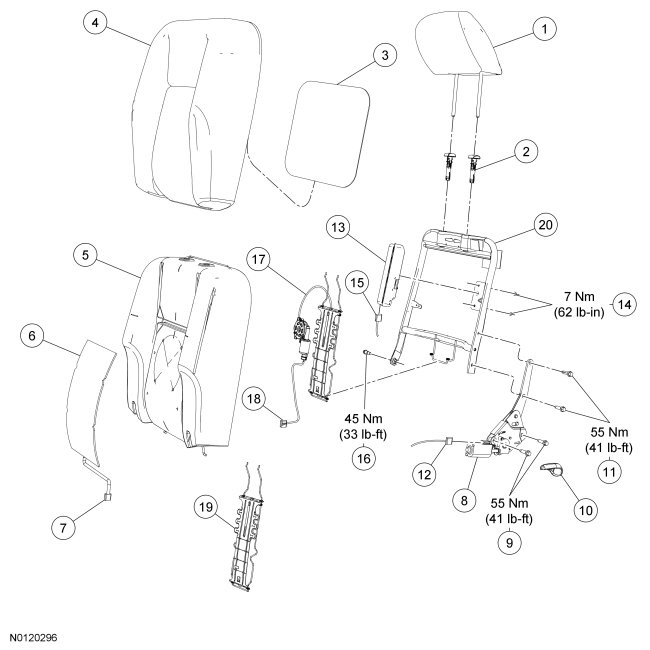

Front Seat Backrest

NOTE: Driver seat shown, passenger similar.

NOTE: Fifty percent seat shown, 40 percent similar.

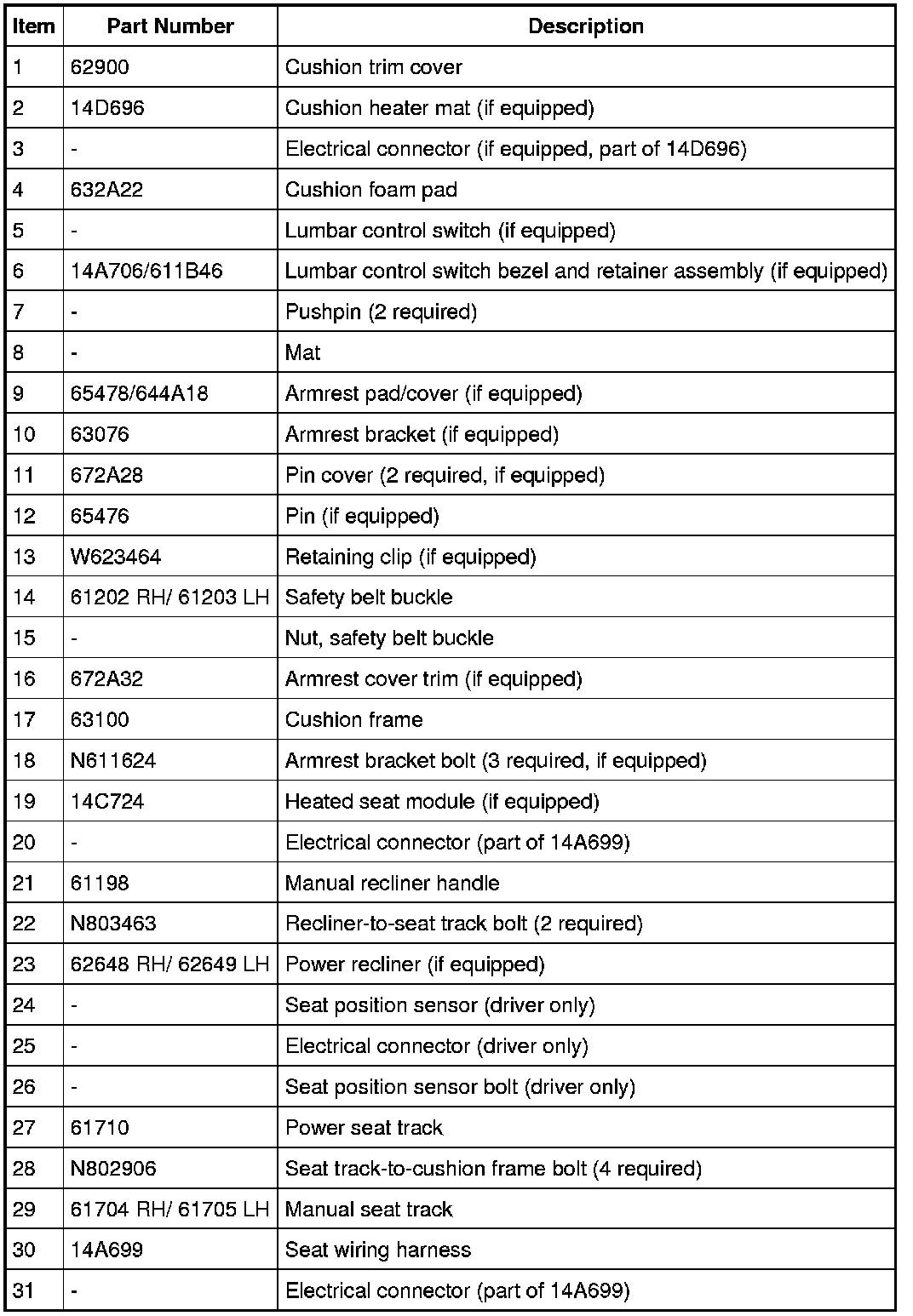

Driver cushion

NOTE: Driver seat shown. For disassembly and assembly of the passenger seat cushion, refer to Occupant Classification Sensor procedure in Supplemental Restraint System Service and Repair.

NOTE: Front 50 percent seat shown, 40 percent similar.
