Cruise Control Deactivator Switch

Cruise Control Deactivator Switch













Removal

1. NOTICE: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

NOTE: Make sure the master cylinder reservoir cap is secure before carrying out this procedure.

NOTE: Do not allow any foreign matter to enter the master cylinder port once the deactivator switch is removed.

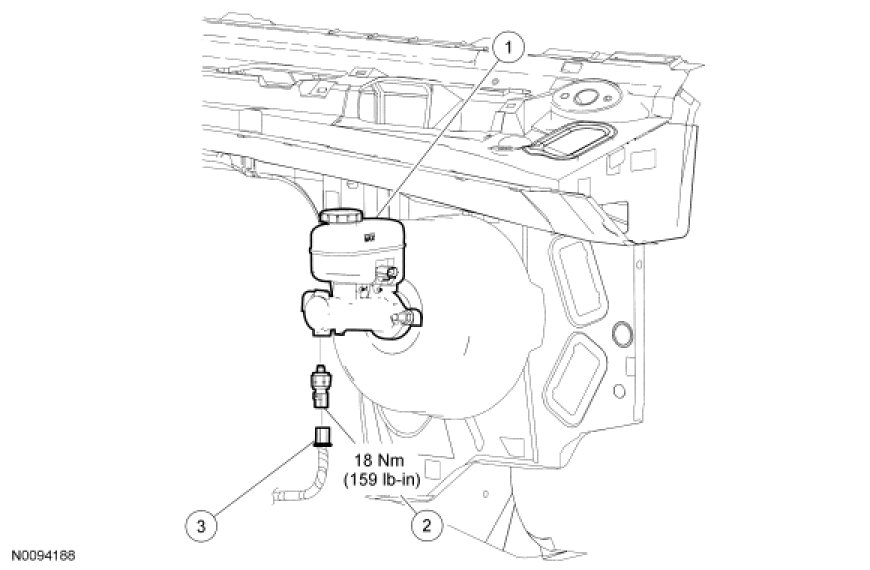

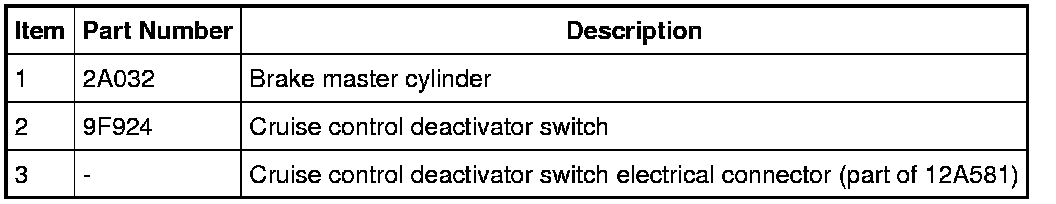

Remove the cruise control deactivator switch.

- Disconnect the electrical connector.

Installation

1. NOTICE: Do not allow brake fluid to contact the electrical connector. Failure to follow this instruction may result in damage to the electrical connector or wiring.

Install the cruise control deactivator switch.

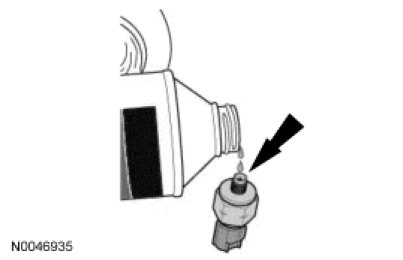

- Add a few drops of brake fluid to the fluid port on the threaded side of the switch before installing it.

- Tighten to 18 Nm (159 lb-in).

- Connect the electrical connector.





2. Check the master cylinder fluid level and adjust as necessary.
