Climate Control Assembly

Climate Control Assembly









Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Panel and Console Instrument Cluster Finish Panel.

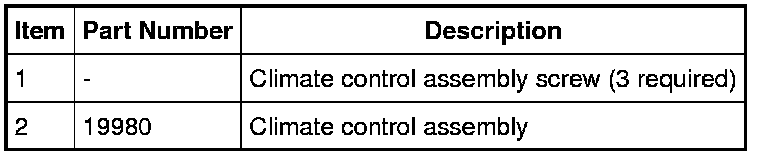

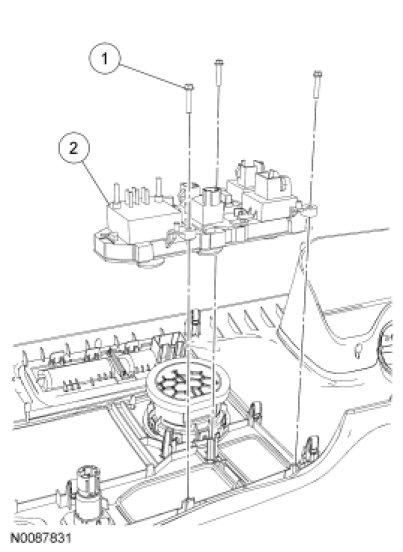

2. Remove the 3 climate control assembly screws.

3. Remove the climate control assembly.

4. To install, reverse the removal procedure.
