Suspension System - General Information

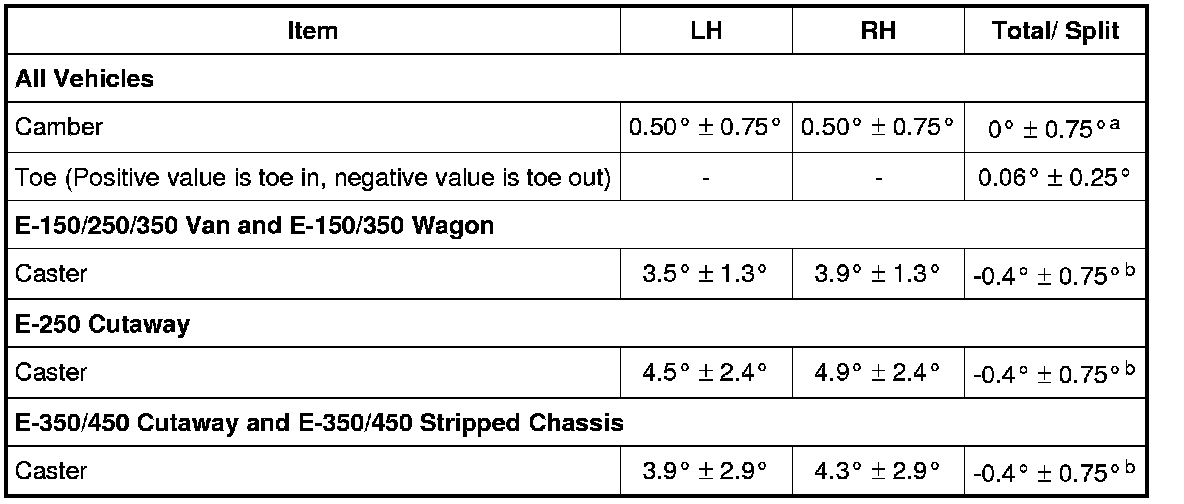

Alignment Specifications





a Camber Total/Split = LH Camber - RH Camber
b Caster Total/Split = LH Caster - RH Caster

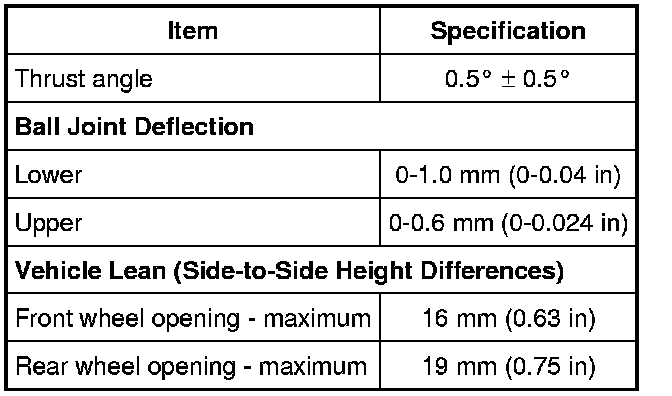

General Specifications

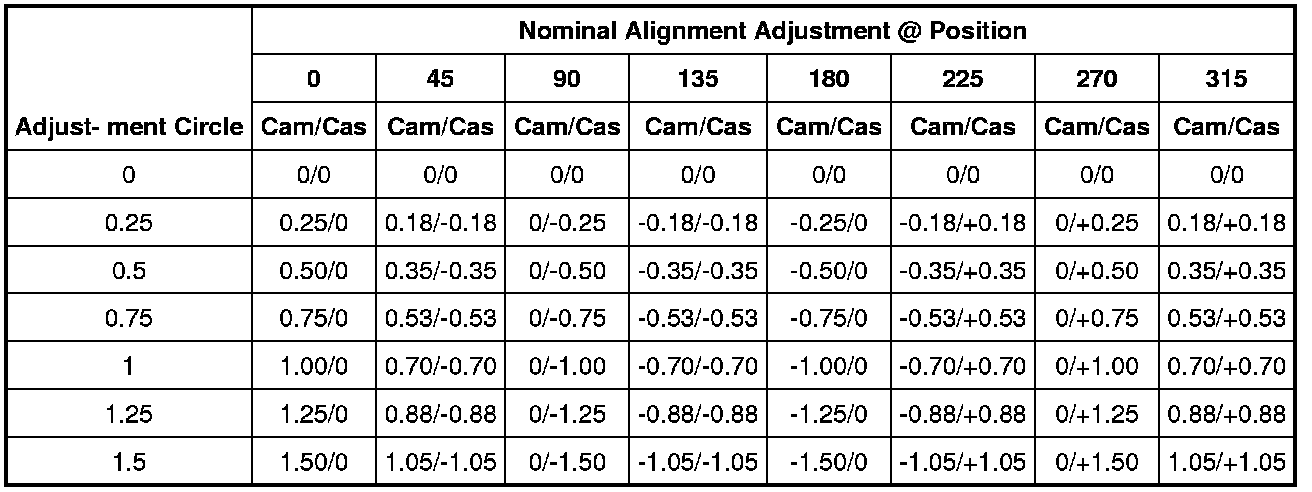

Camber/Caster Service Adjusters

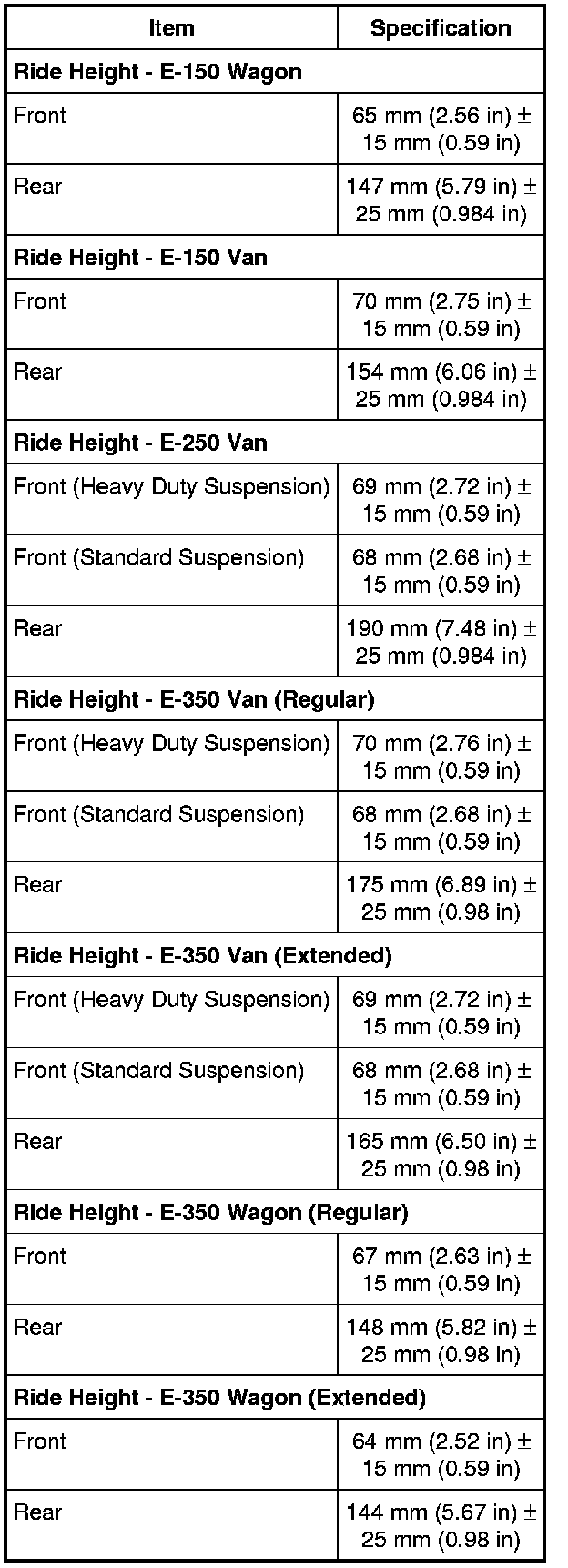

Ride Height





Measurements listed at curb load. Curb load is defined as "full service fluids, full fuel tank(s), no passengers and no cargo".

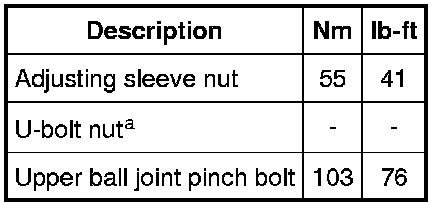

Torque Specifications





a Refer to the procedure.
