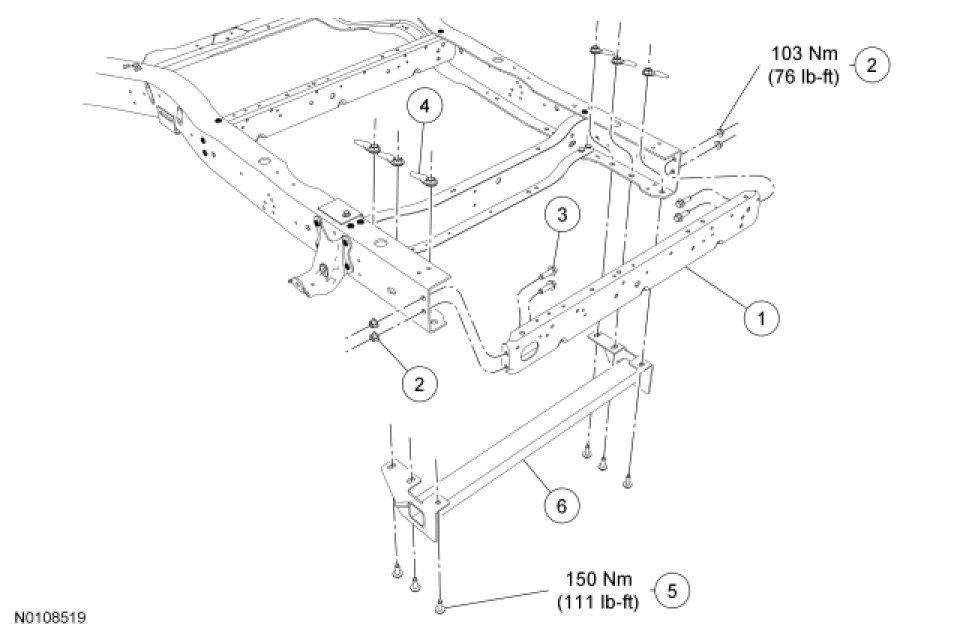

Crossmember - Exploded View

Crossmember - Exploded View

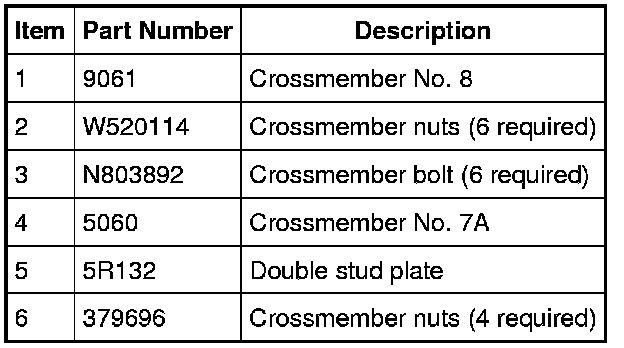

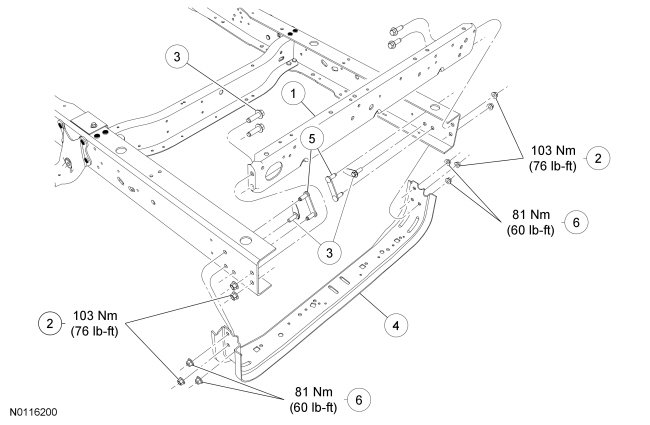

Rear Suspension Crossmember and Aft-of-Fuel Tank Crossmember - 3505.2 mm (138 in) and 158 in Wheelbase

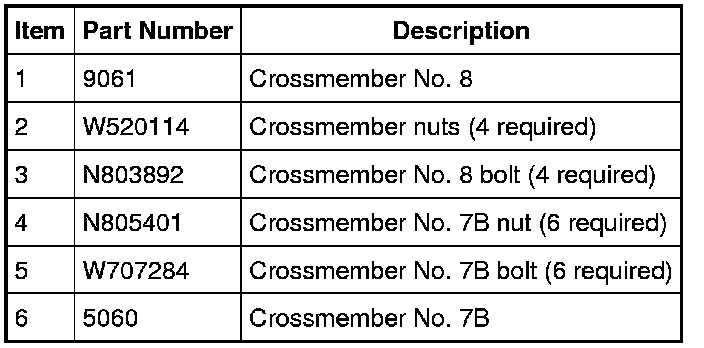

Rear Suspension Crossmember and Aft-of-Fuel Tank Crossmember - 176 in Wheelbase

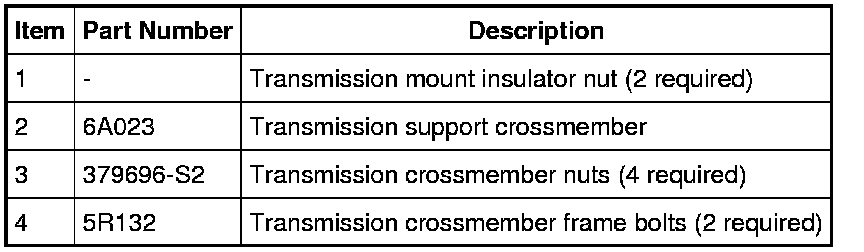

Transmission Support Crossmember

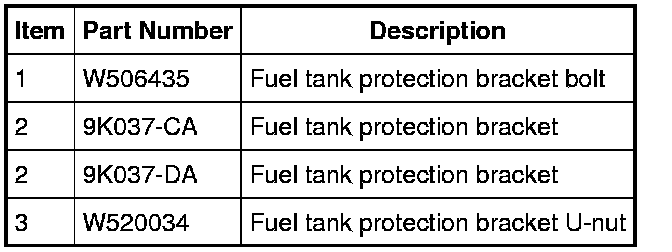

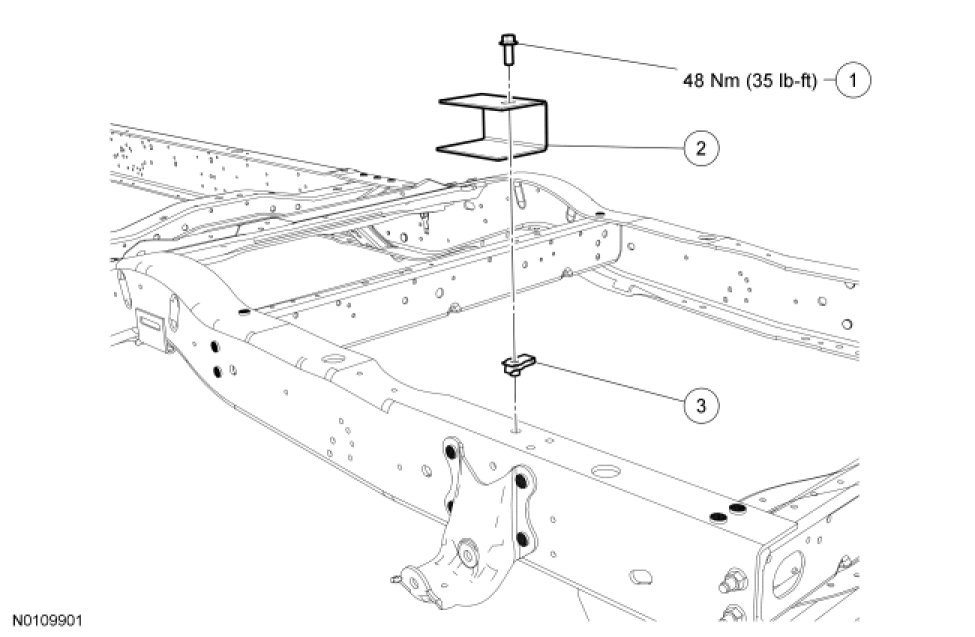

Fuel Tank Protection Bracket - Upper

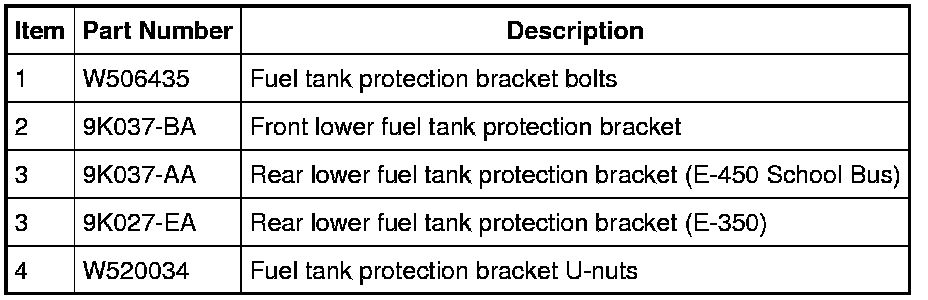

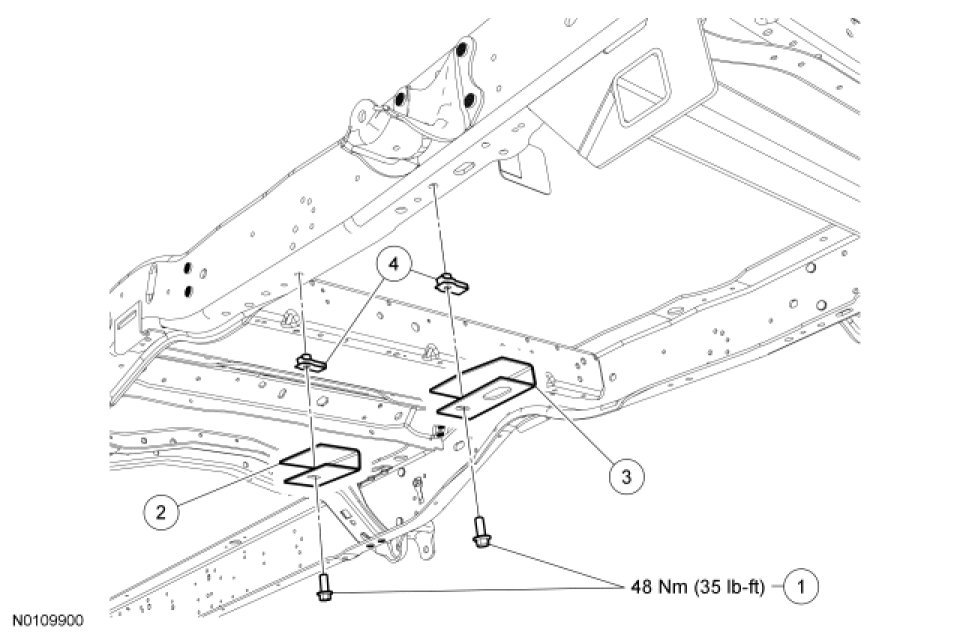

Fuel Tank Protection Brackets - Lower









Removal and Installation

1. For additional information on the transmission support crossmember, refer to Transmission Support Crossmember Transmission Support Crossmember.

2. For information on rivet replacement, refer to Rivet Replacement Rivet Replacement.

3. For information on the fuel tank protection brackets, refer to Fuel Tank Protection Bracket Fuel Tank Protection Bracket.
