Refrigerant Oil

Item Motorcraft(R) PAG Refrigerant Compressor Oil YN-12-D
Specification WSH-M1C231-B
Fill Capacity (vehicles without auxiliary systems) 237 ml (8 fl oz)

Item Motorcraft(R) PAG Refrigerant Compressor Oil YN-12-D
Specification WSH-M1C231-B
Fill Capacity (vehicles with auxiliary systems) 473 ml (16 fl oz)

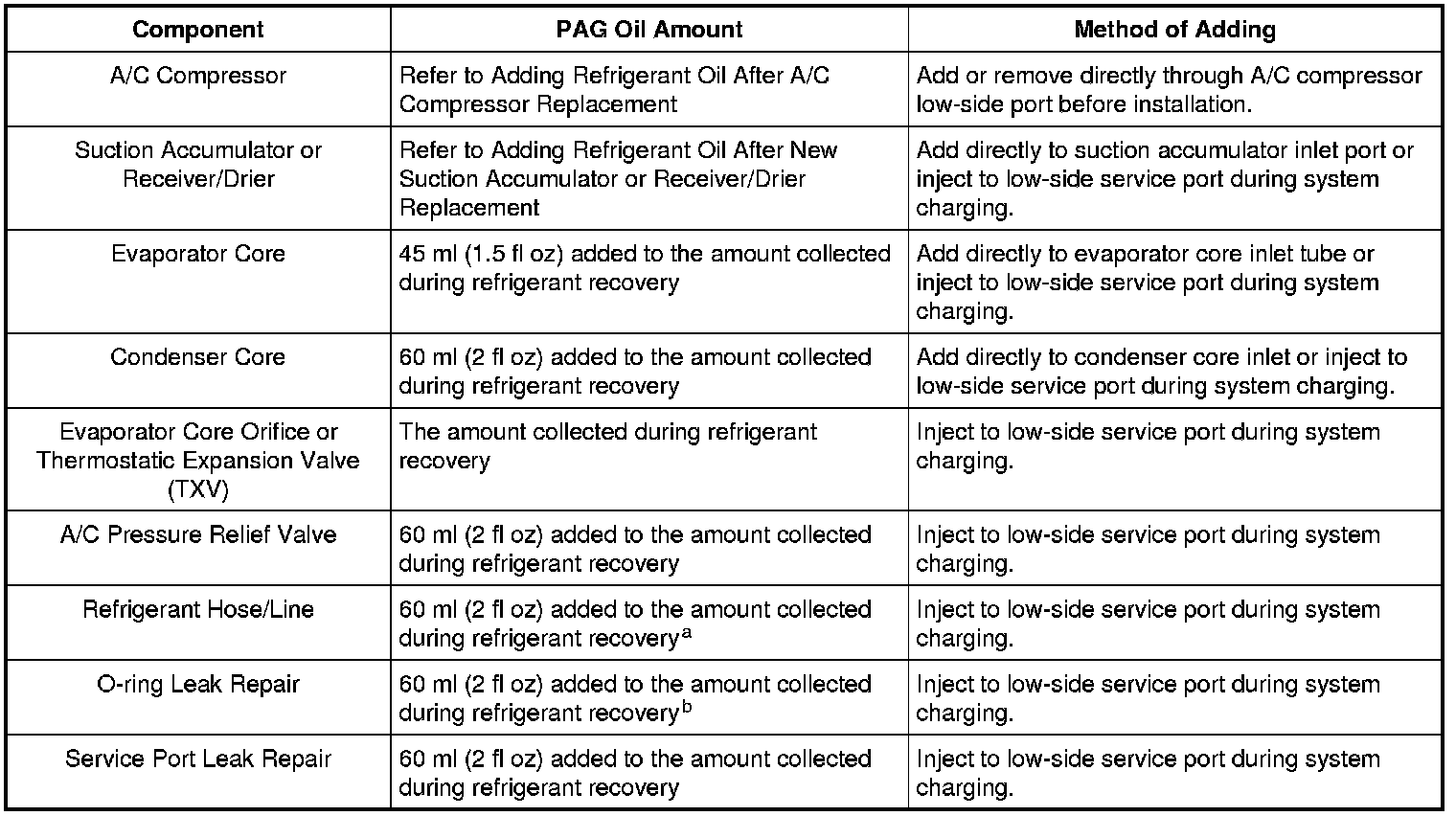

a If an excessive amount of PAG oil is lost due to a hose rupture/separation or other damage, the total system PAG oil capacity must be added.
b The amount specified may be used for one or multiple O-ring leak repairs. Do not multiply the PAG oil amount by the number of O-ring leaks being repaired.
