Temperature Control Switch

Temperature Control Switch

Removal and Installation

1. Remove the climate control assembly. For additional information, refer to Climate Control Assembly Climate Control Assembly.

2. Remove the temperature control switch knob.

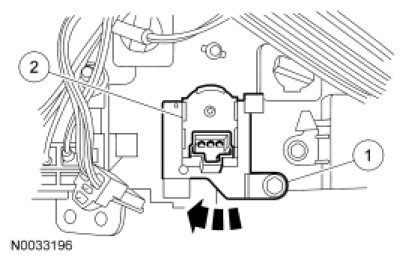

3. Remove the temperature control switch.

1. Remove the screw.

2. Remove the temperature control switch.





4. To install, reverse the removal procedure.
