Audio Control Module (ACM)

Audio Control Module (ACM)

NOTE: Edge shown, MKX similar.











Removal and Installation

1. NOTE: Module configuration is required when a new ACM is being installed.

Upload the ACM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Module Configuration Programming and Relearning.

2. Remove the Front Controls Interface Module (FCIM). Refer to Front Controls Interface Module (FCIM) Front Controls Interface Module (FCIM).

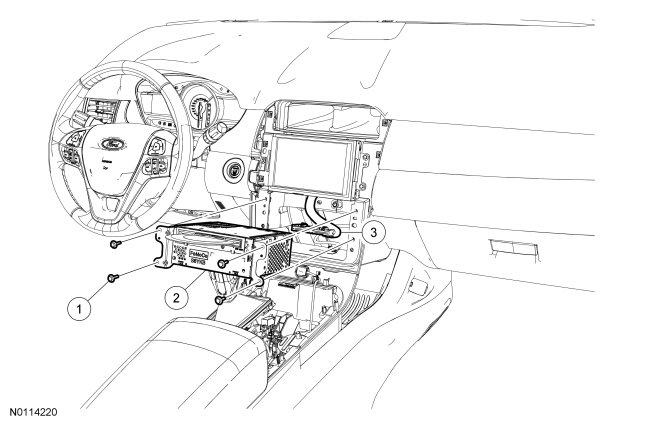

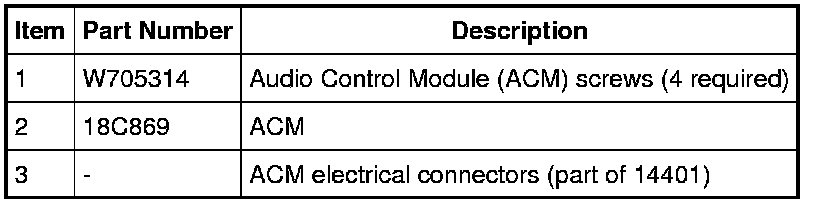

3. Remove the 4 screws and slide the ACM out.
- Disconnect the electrical connectors and the antenna cable connectors.

4. To install, reverse the removal procedure.
- Download the configuration information to the ACM. For additional information, refer to PMI in Module Configuration Programming and Relearning.
