Test FB: Power Take Off (PTO)
PINPOINT TEST FB: POWER TAKE OFF (PTO)

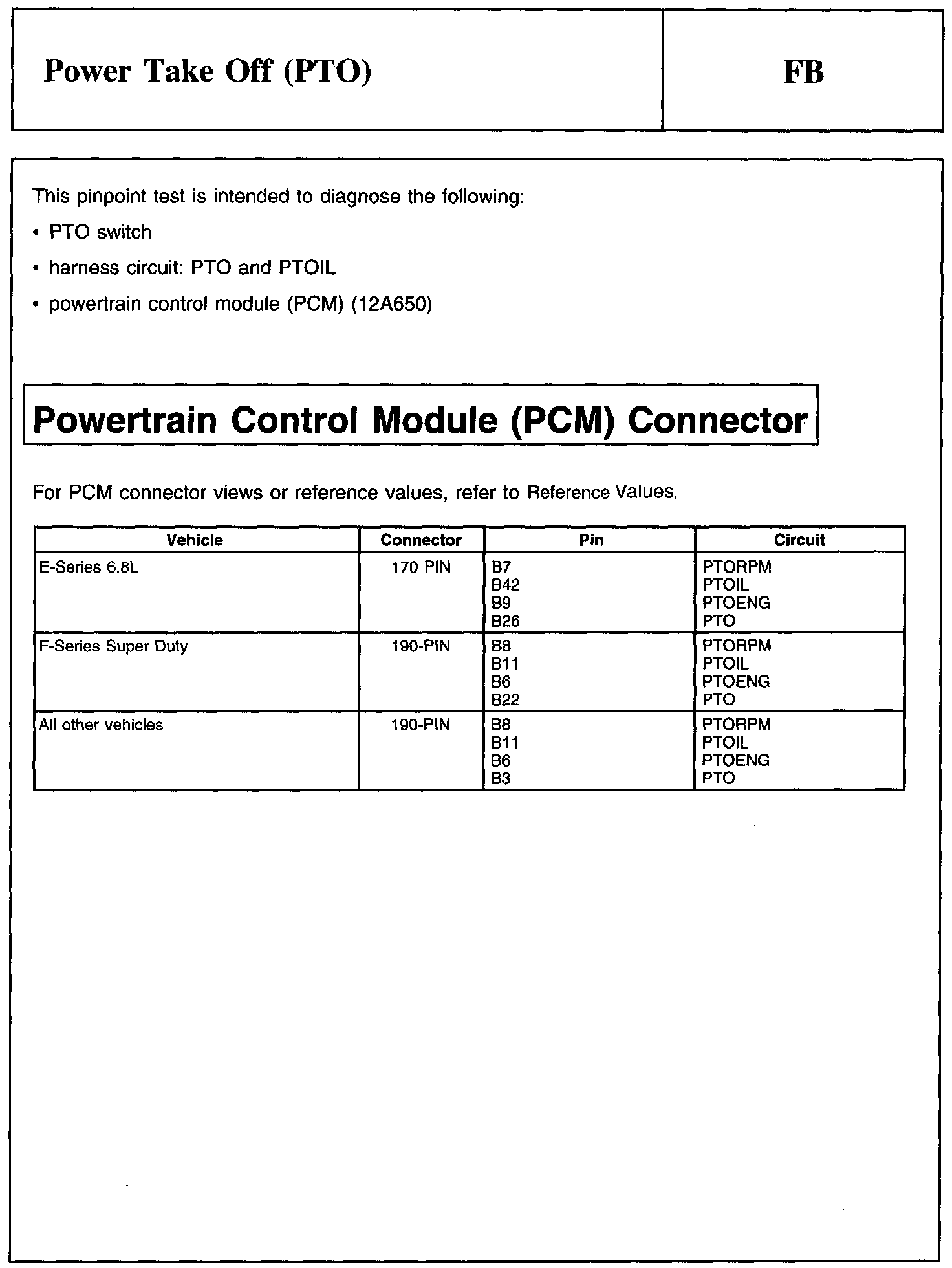

Powertrain Control Module (PCM) Connector:

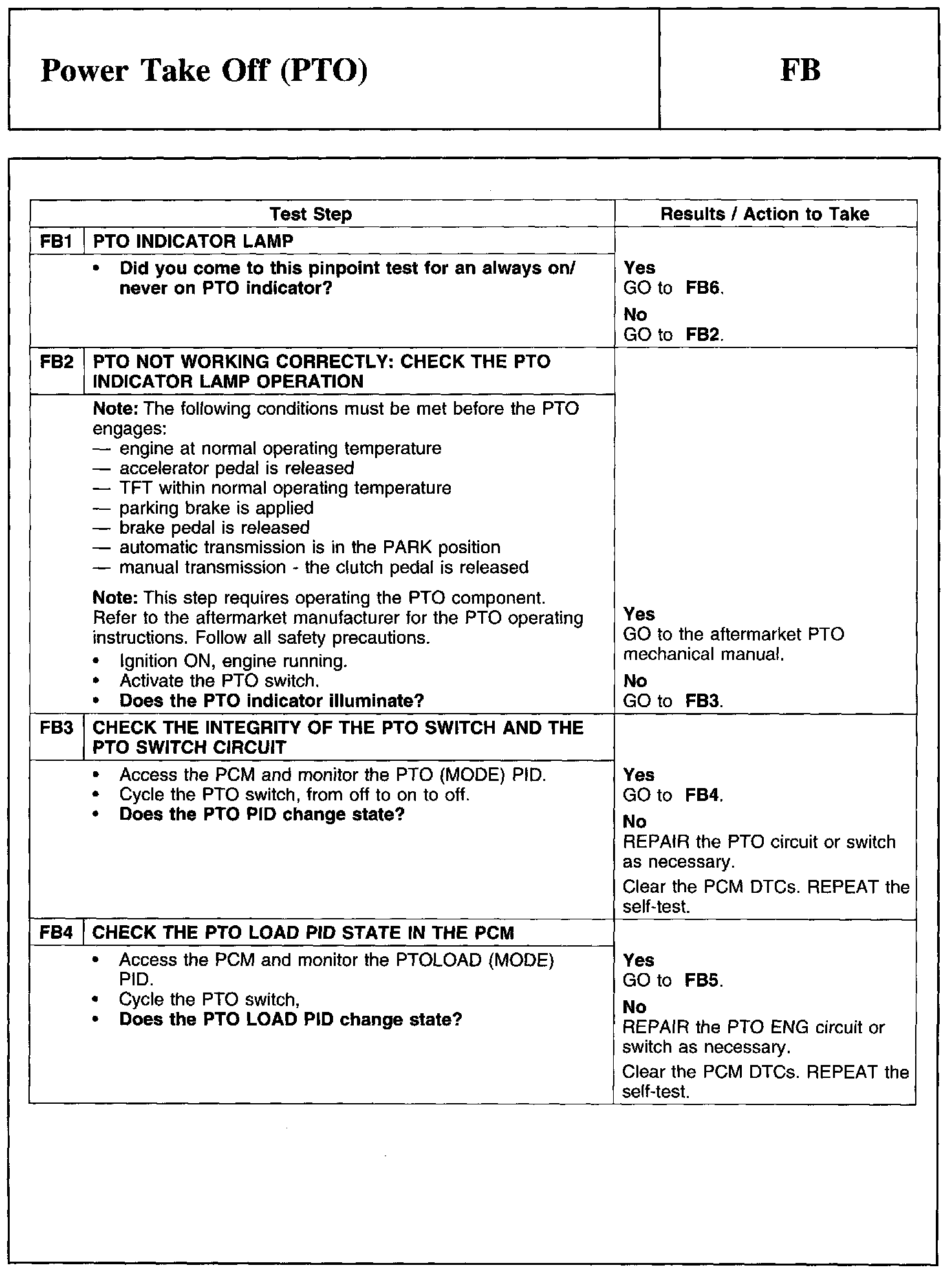

FB1-FB4:

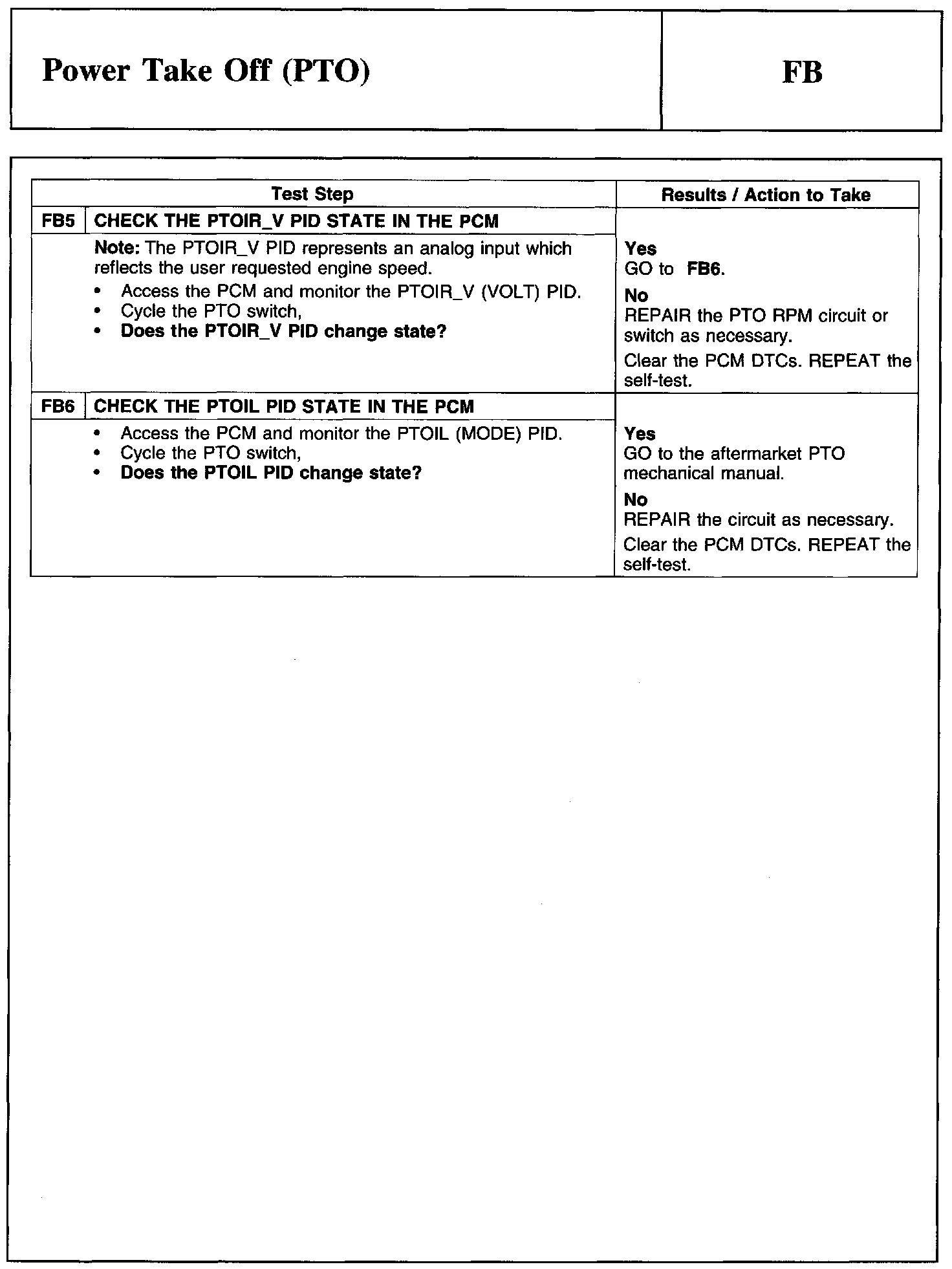

FB5-FB6:
