Brake Lamp: Service and Repair

Rear Lamp Assembly

Edge










MKX









Removal and Installation

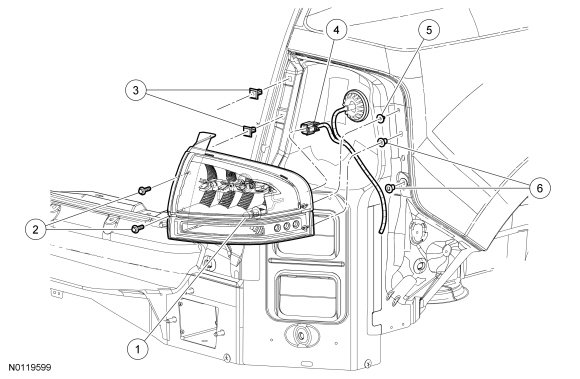

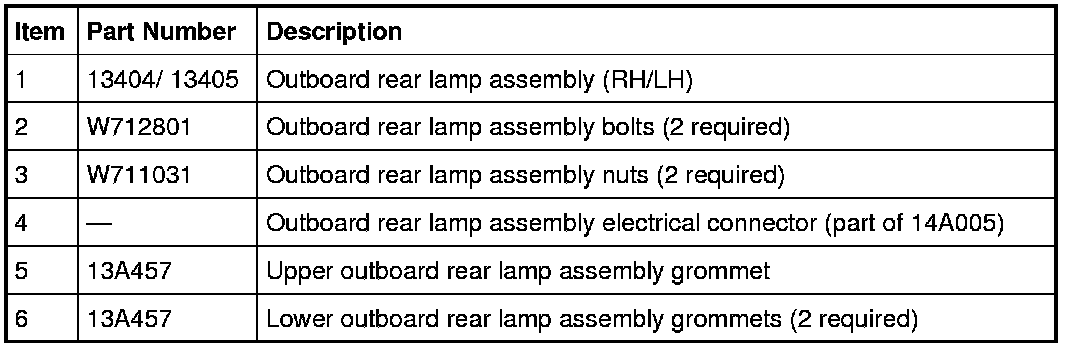

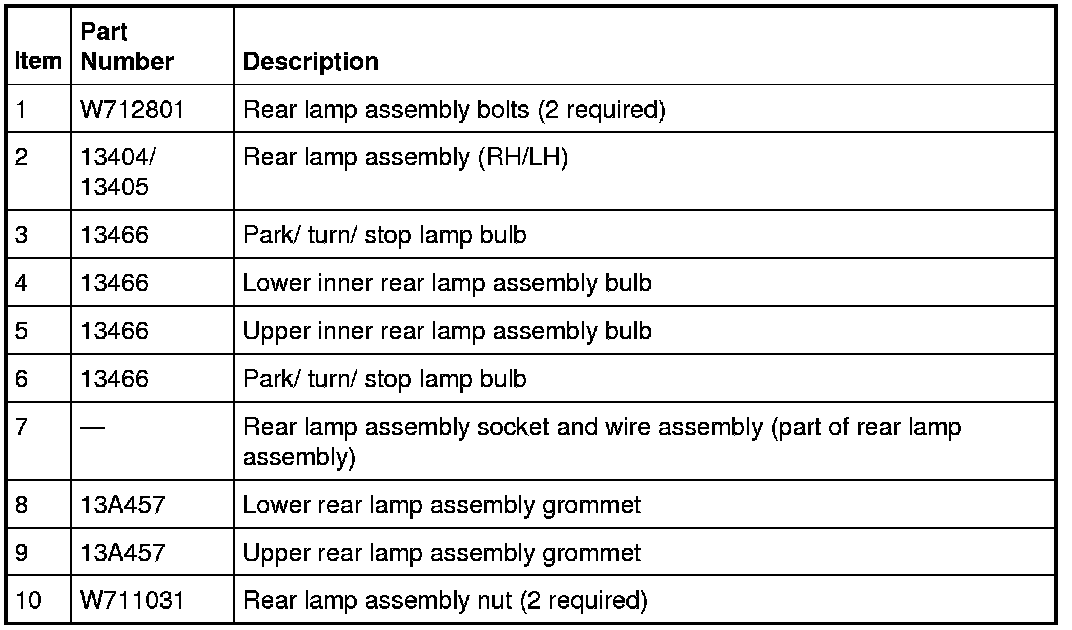

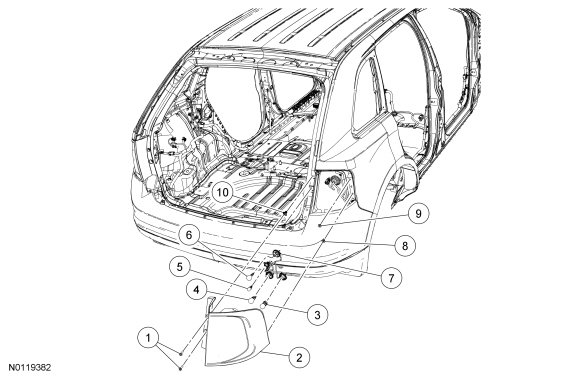

1. Remove the 2 rear lamp assembly bolts.

2. NOTE: The rear lamp assembly is held in place by snap-type retainers.
Pull rear lamp assembly straight rearward to disconnect and remove the rear lamp assembly.

- Disconnect the rear lamp assembly electrical connector.


3. To install, reverse the removal procedure.
- An audible click should be heard when the rear lamp assembly is fully seated to the quarter panel.
