Test DL: Cylinder Head Temperature (CHT) Sensor

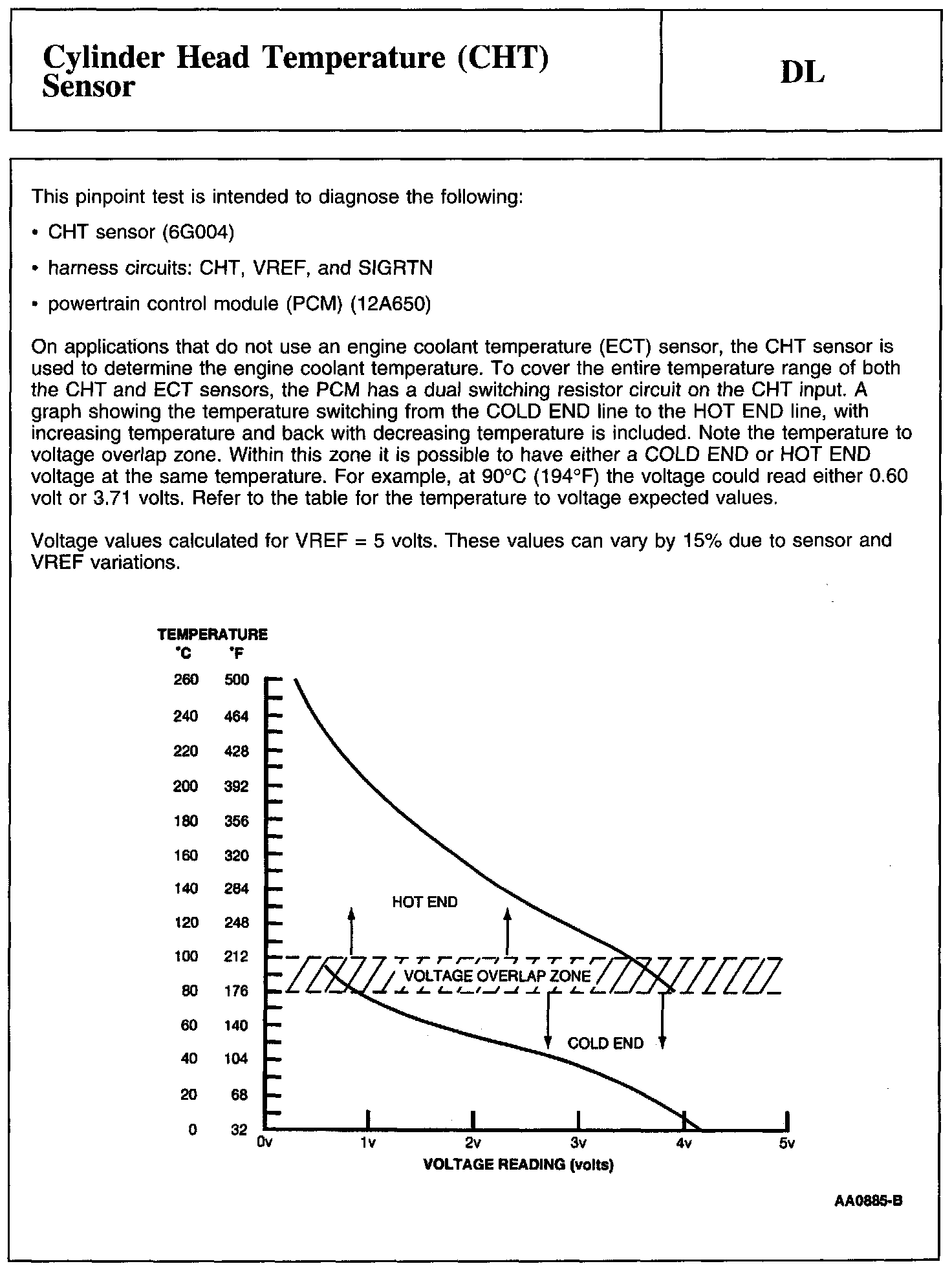

Graph:

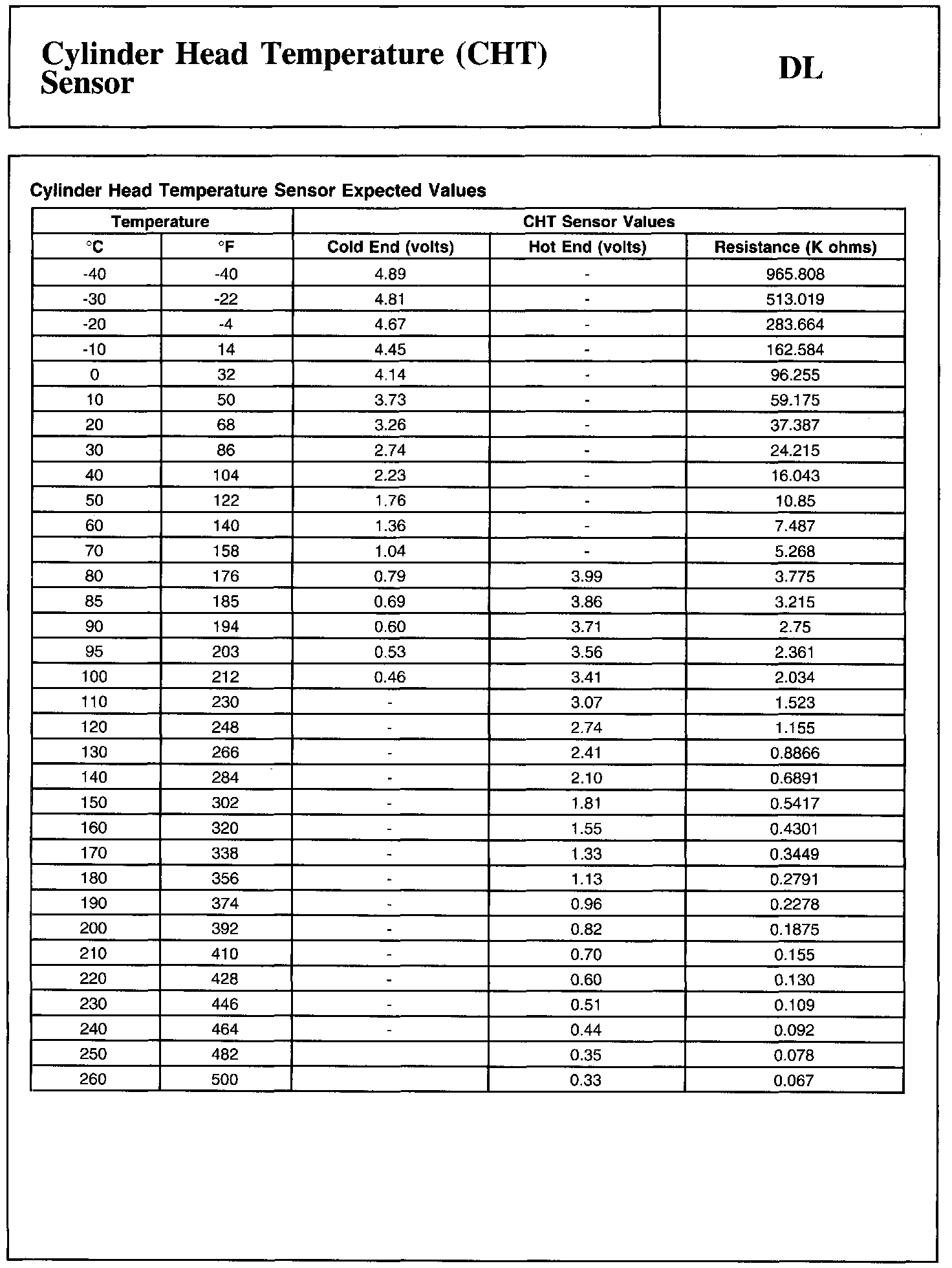

Cylinder Head Temperature Sensor Expected Values:

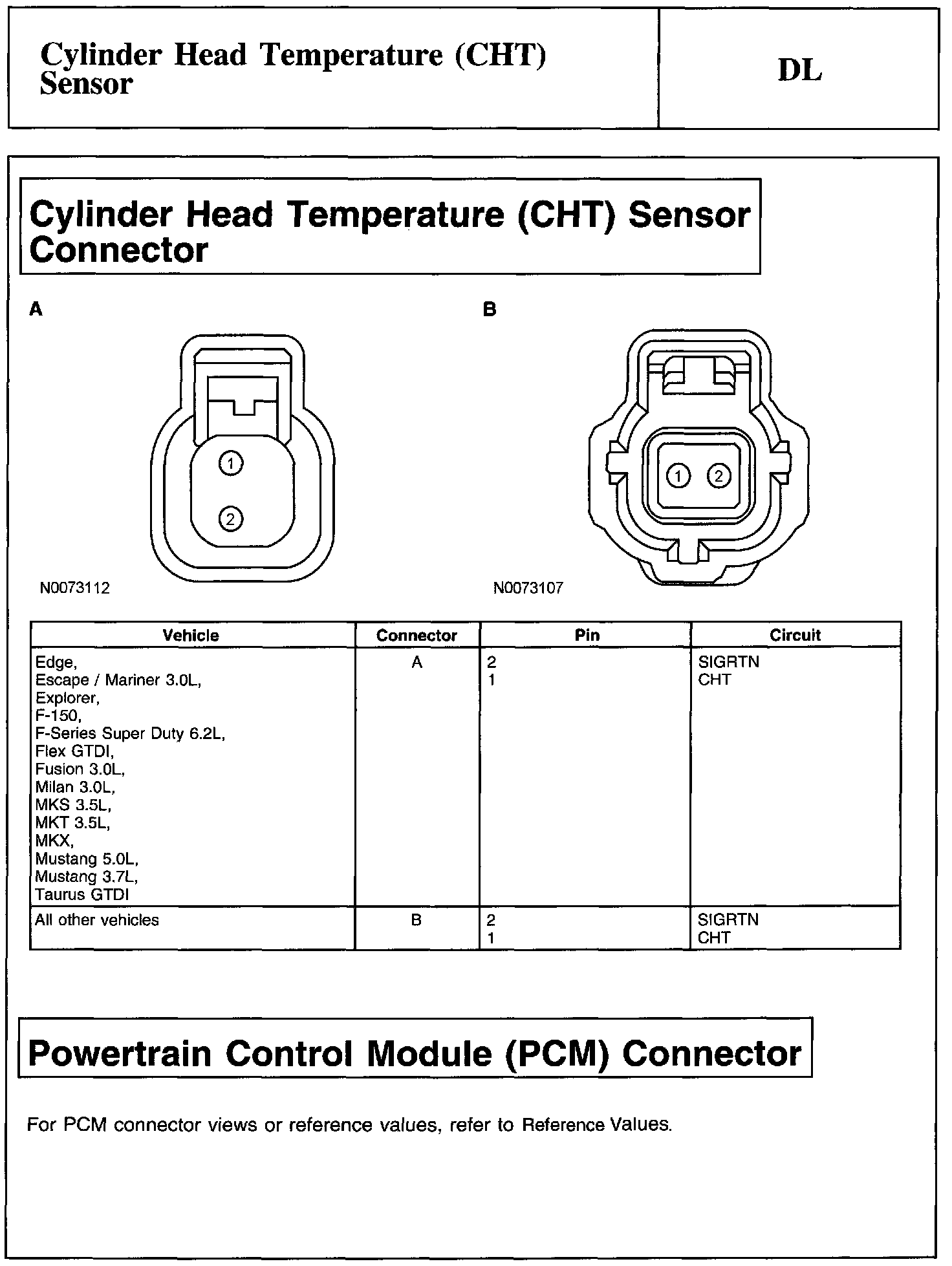

Cylinder Head Temperature (CHT) Sensor Connector And Powertrain Control Module (PCM) Connector:

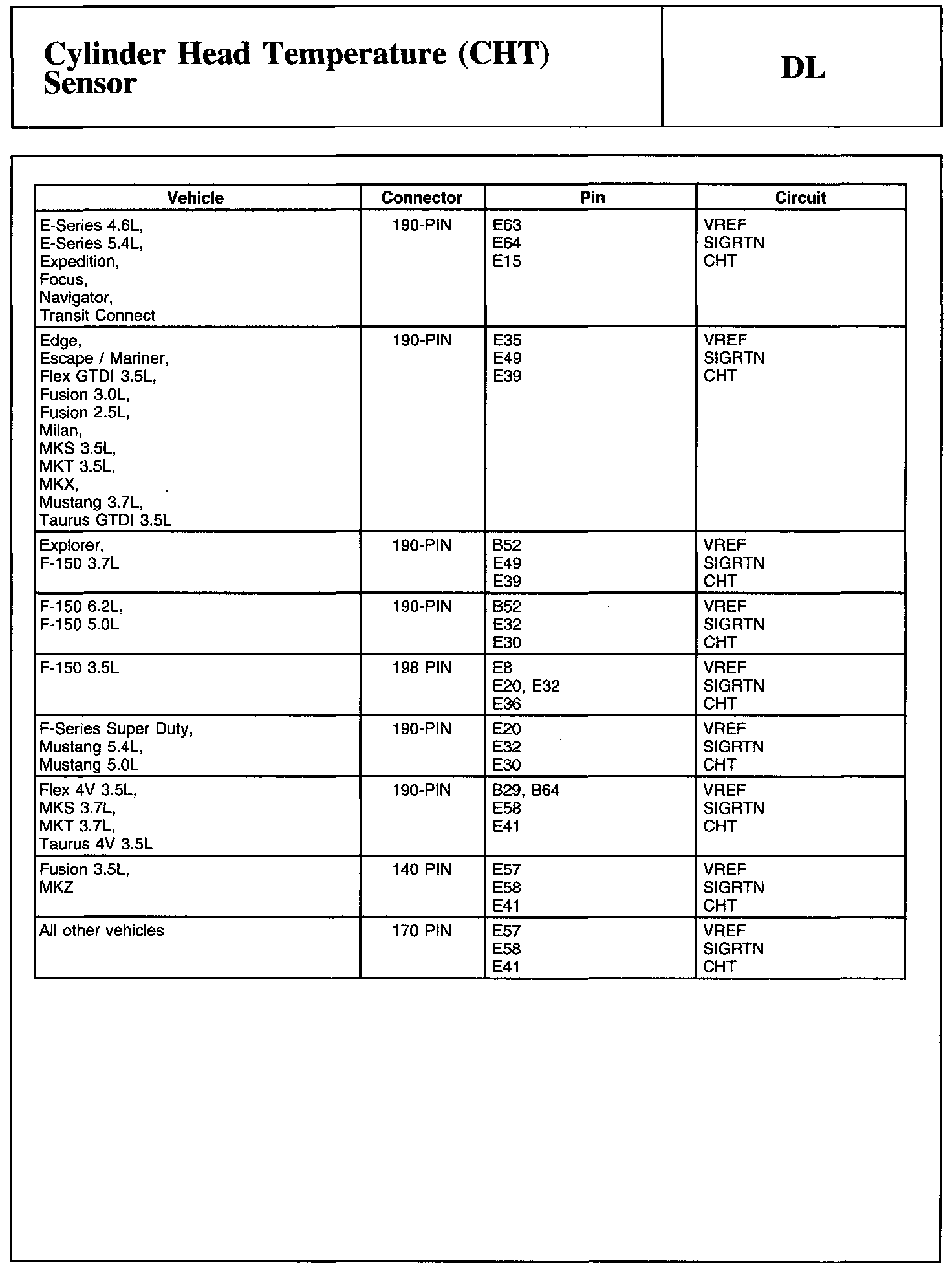

Powertrain Control Module (PCM) Connector:

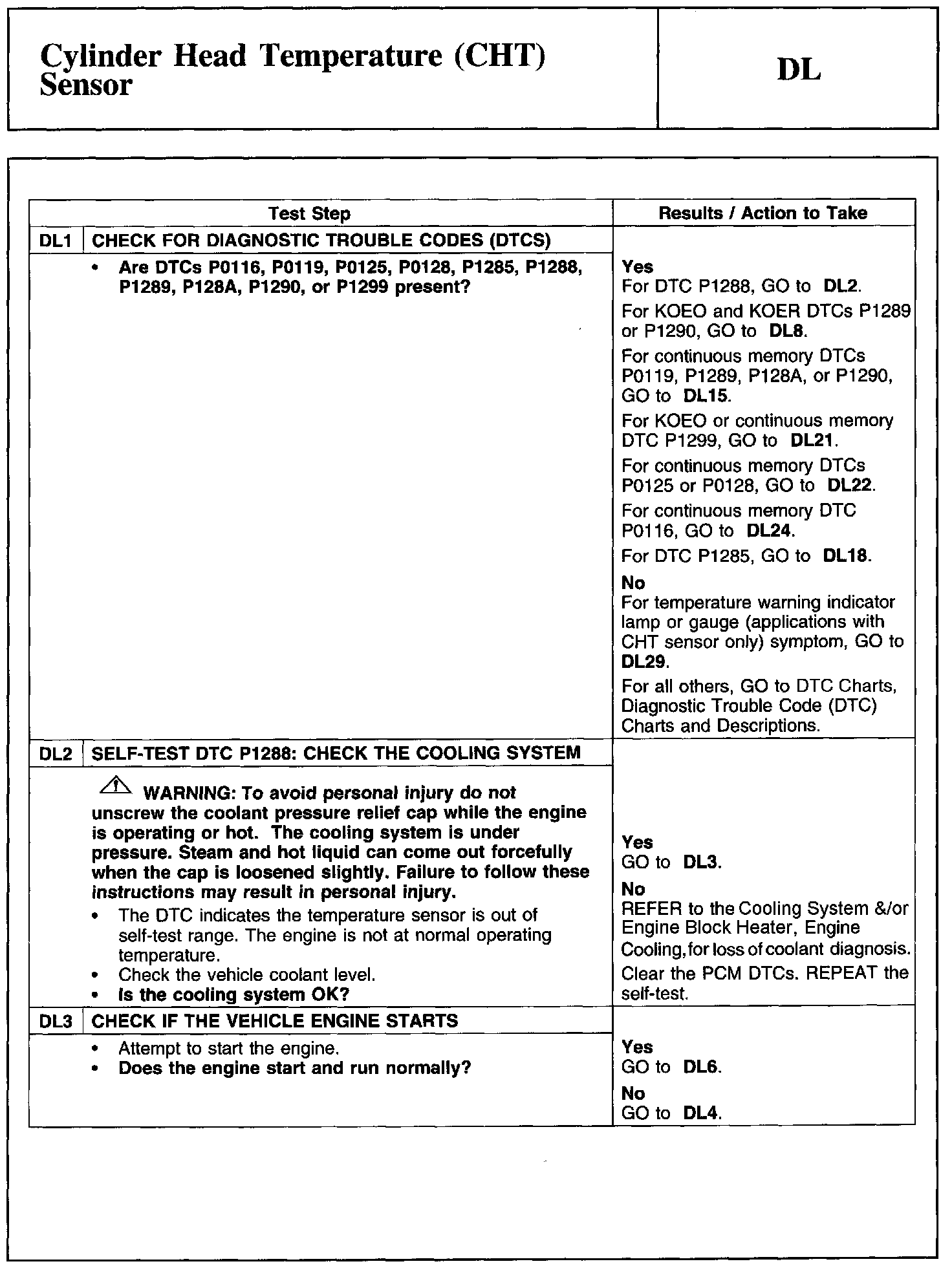

DL1-DL3:

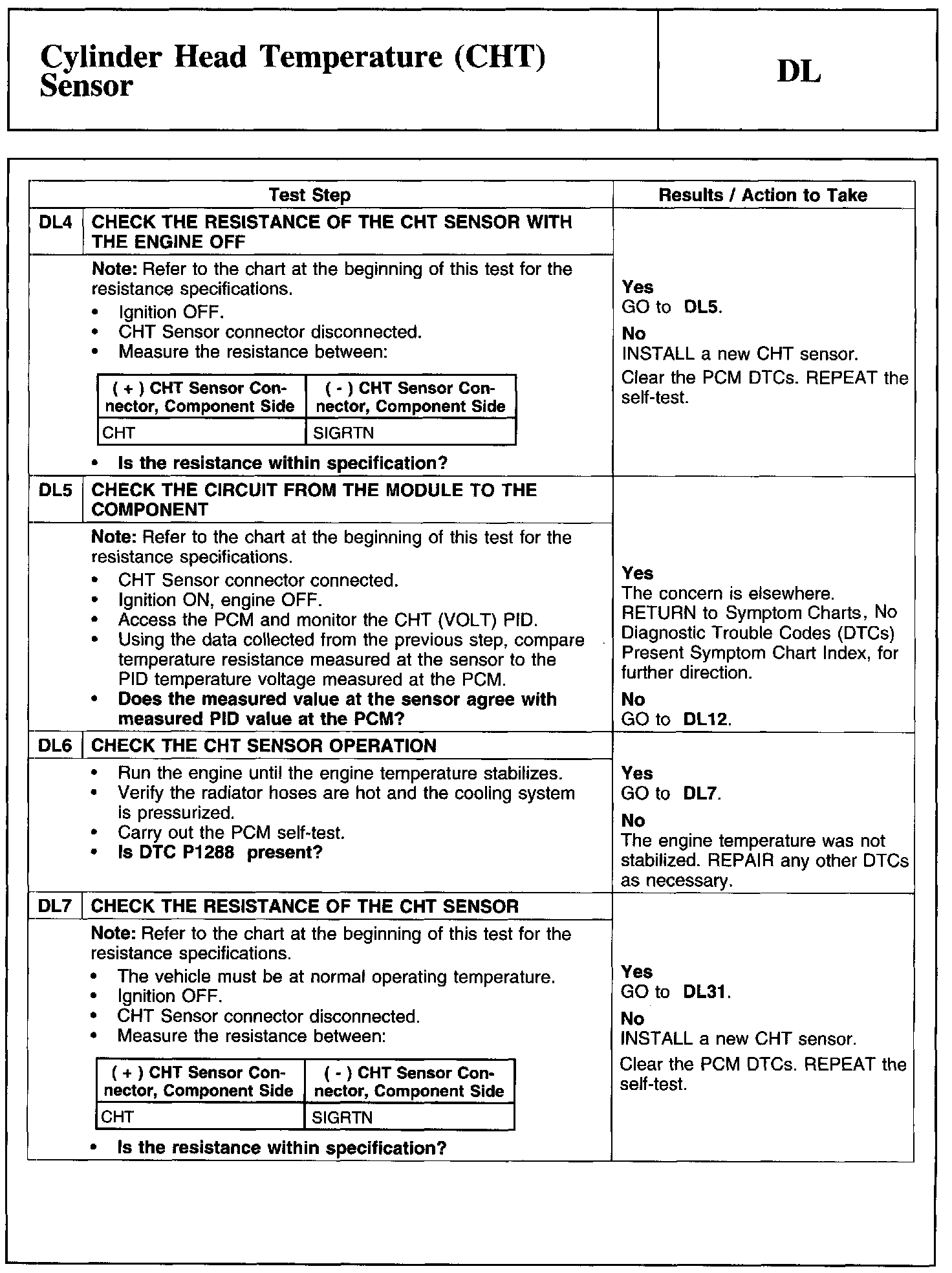

DL4-DL7:

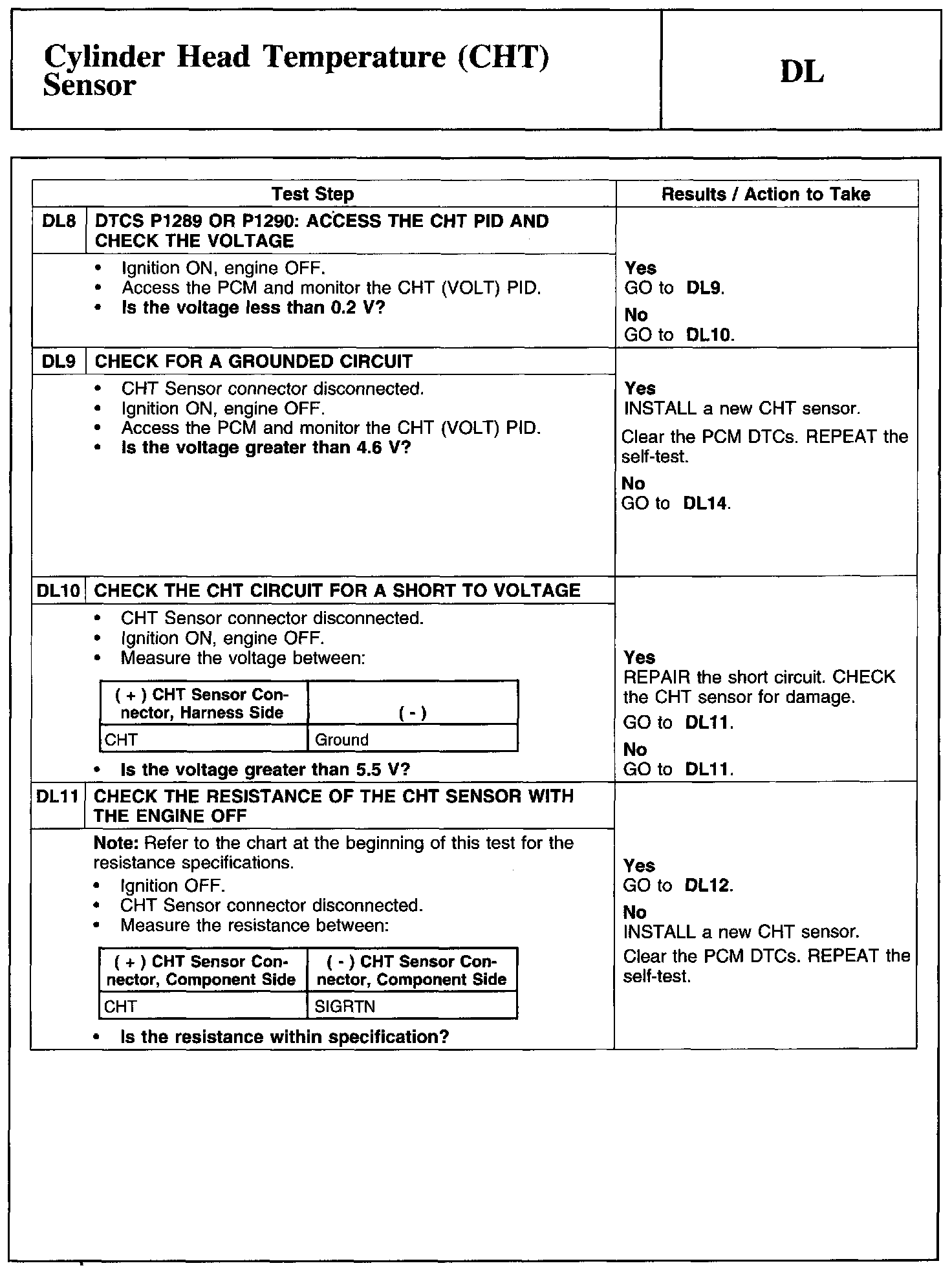

DL8-DL11:

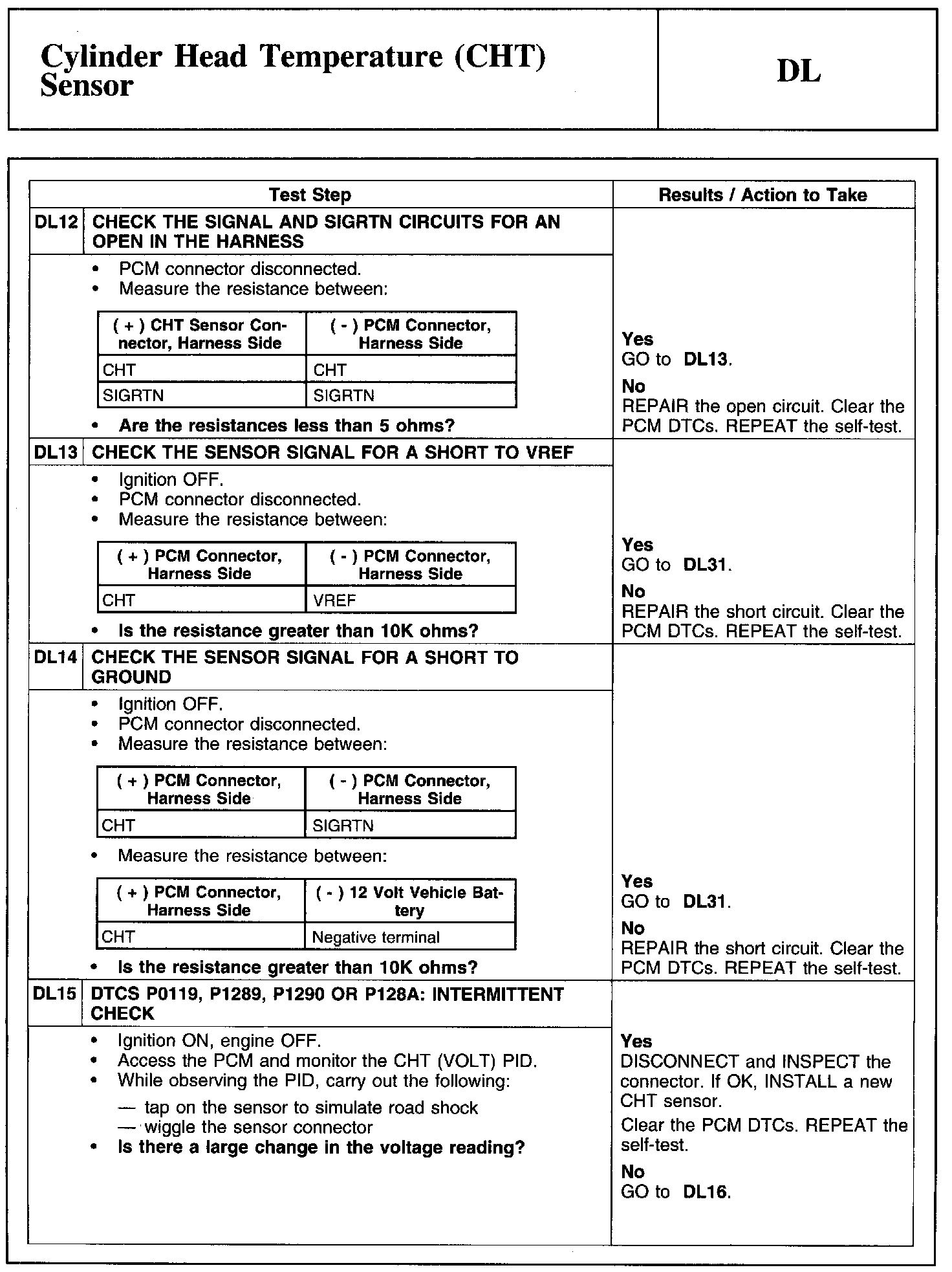

DL12-DL15:

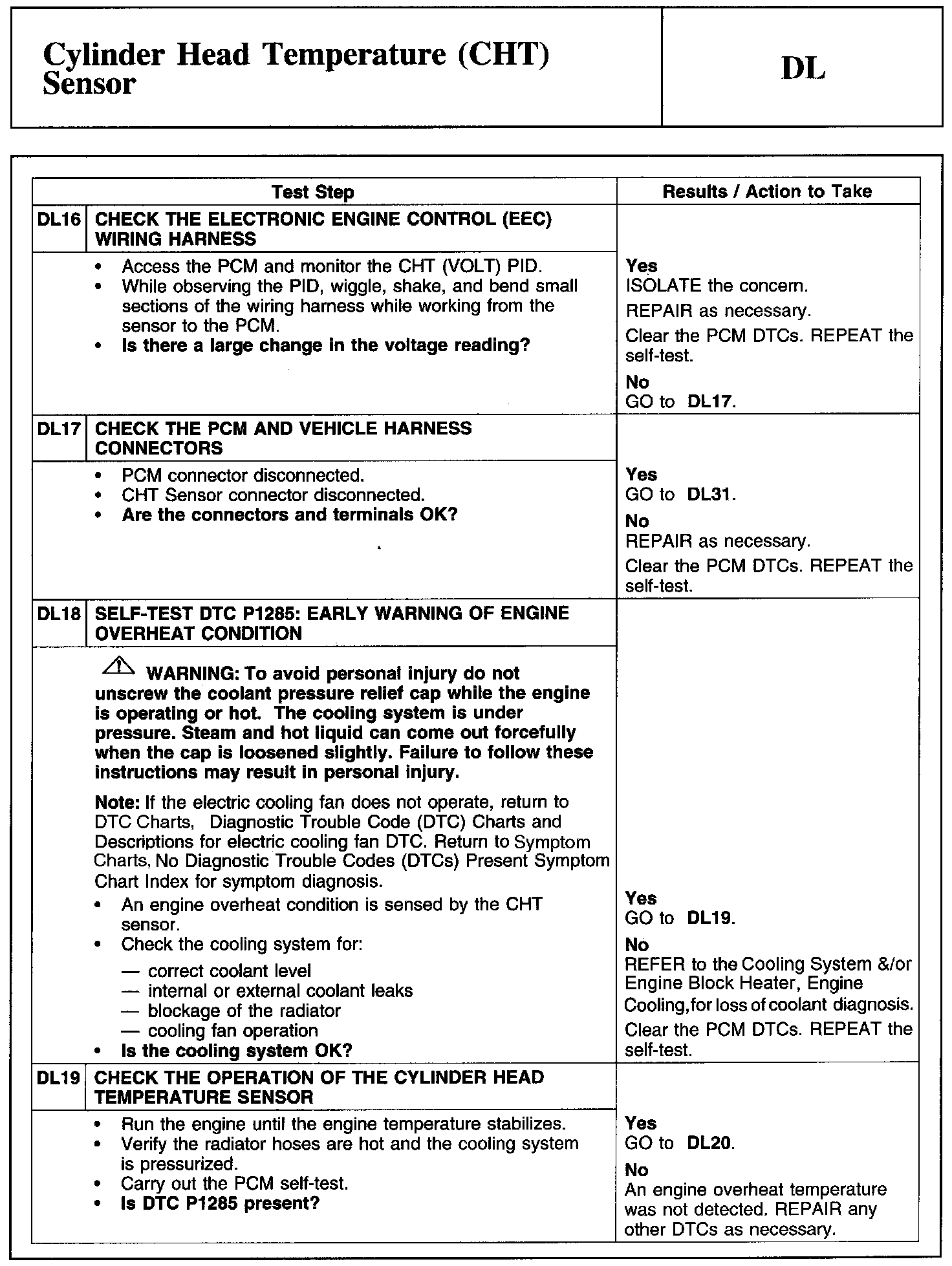

DL16-DL19:

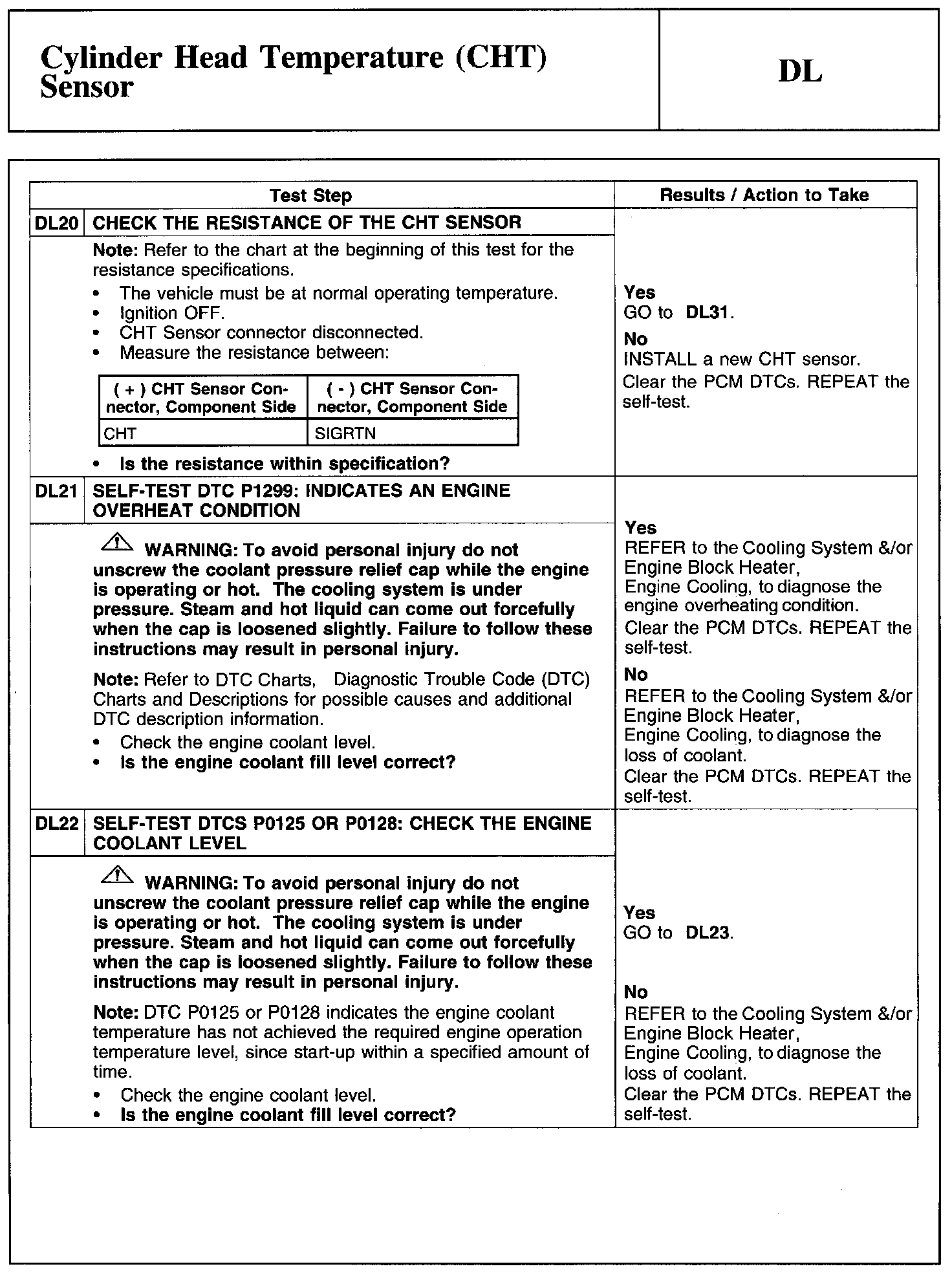

DL20-DL22:

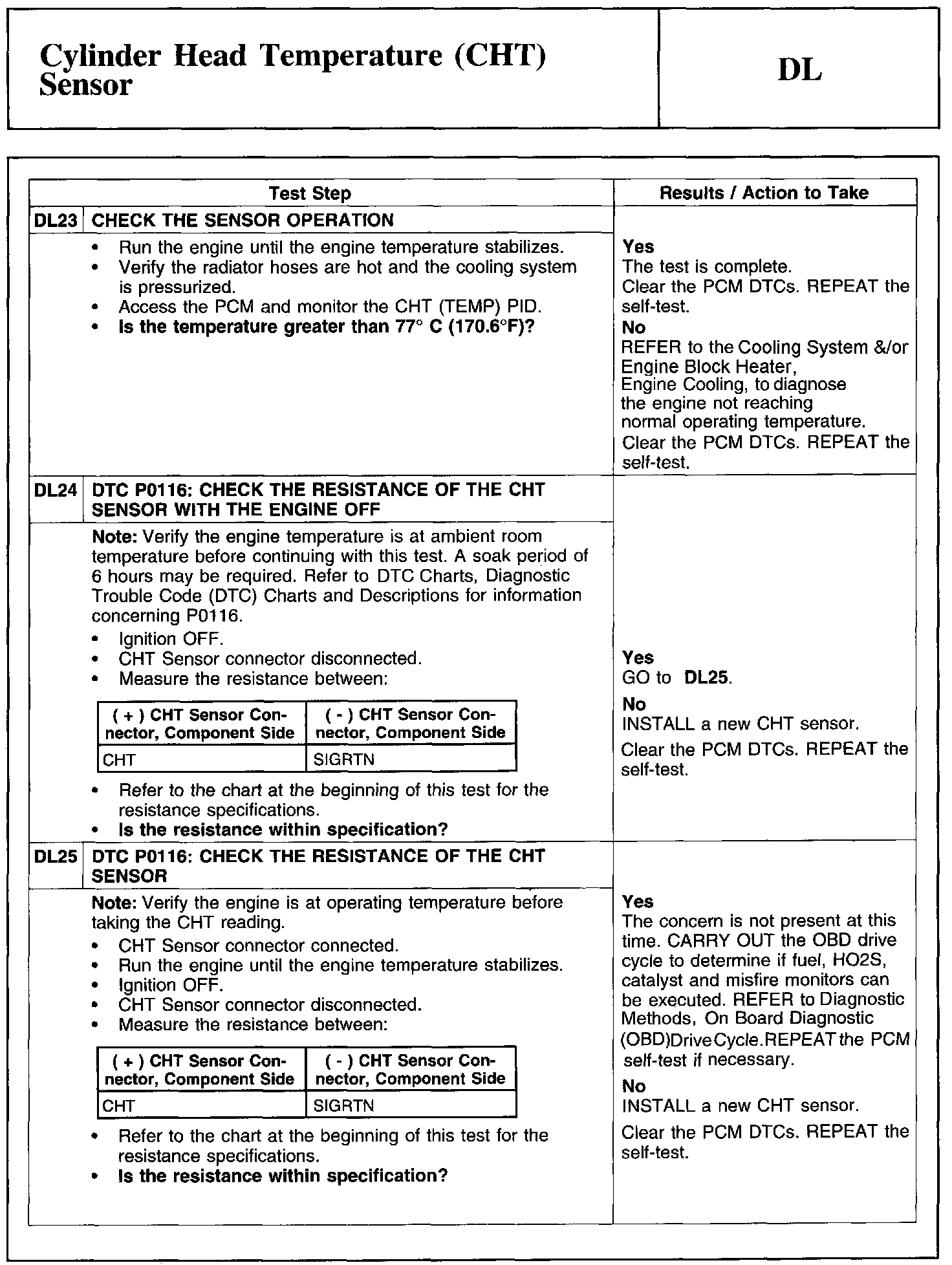

DL23-DL25:

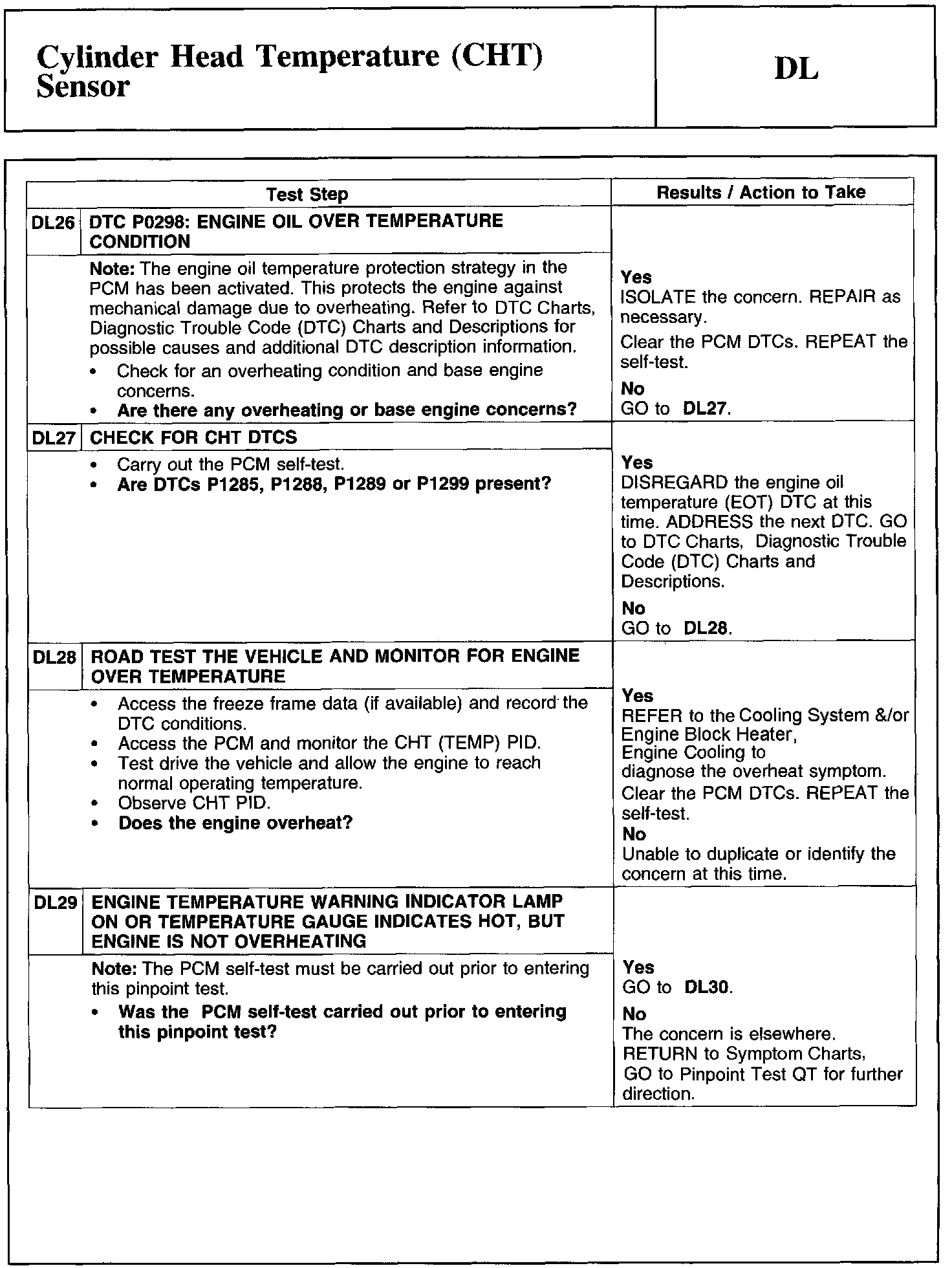

DL26-DL29:

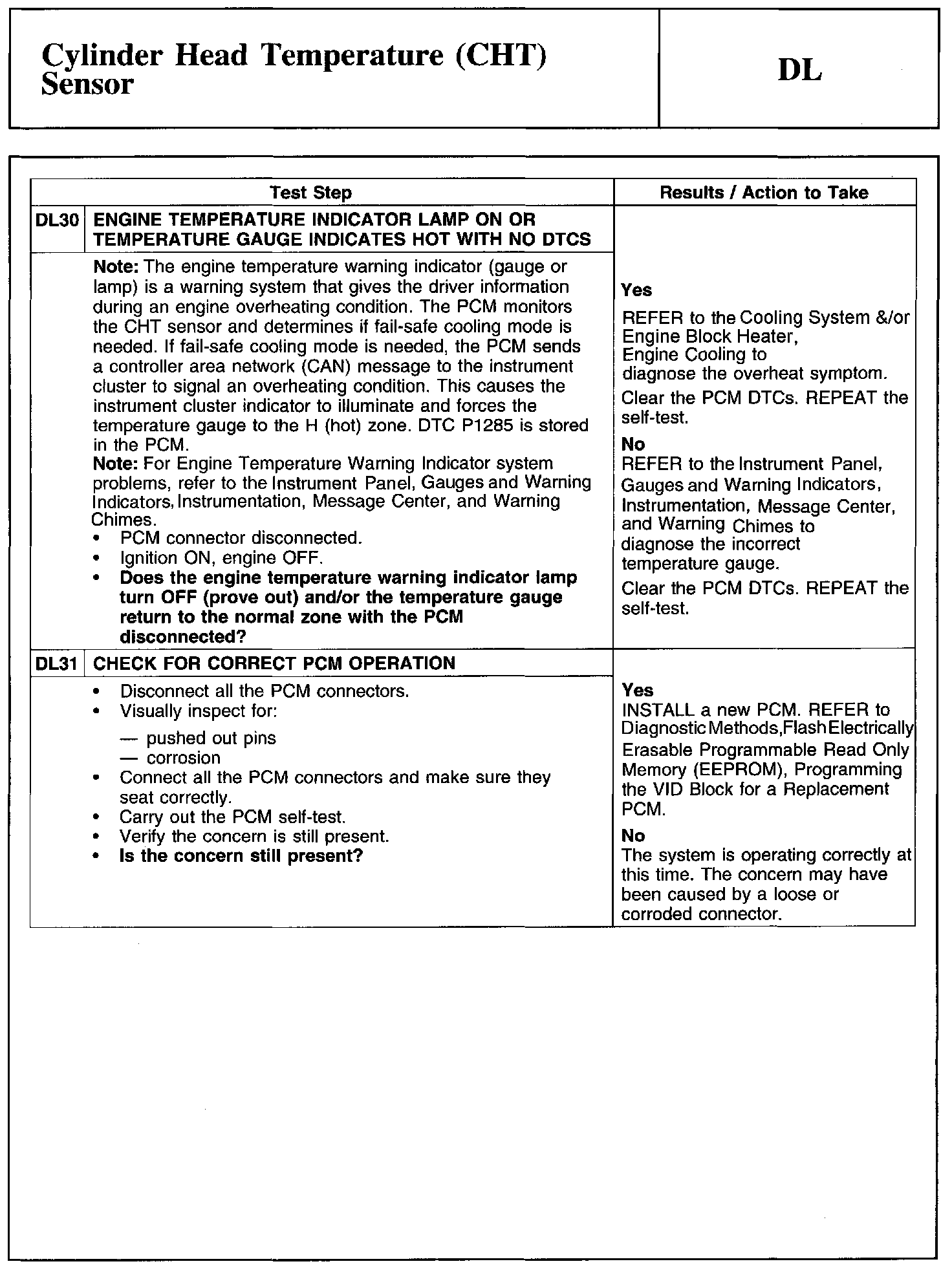

DL30-DL31:
