Steering Column Control Switch

Steering Column Control Switch

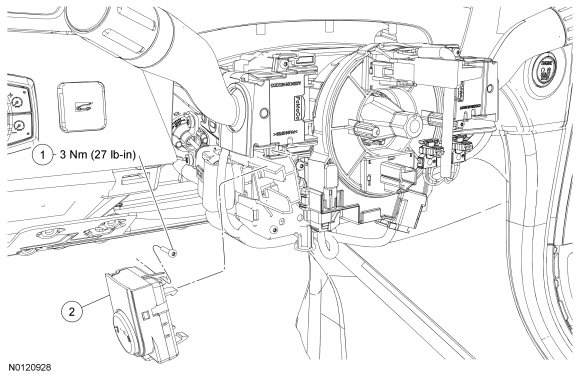

NOTE: Steering wheel removed for clarity.









Removal and Installation

1. Remove the steering column shrouds.

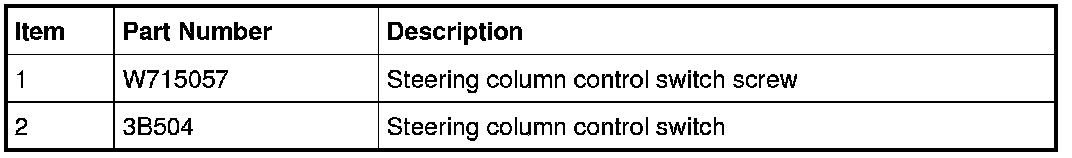

2. Turn the steering wheel 90 degrees to the left, remove the steering column control switch screw.
- To install, tighten to 3 Nm (27 lb-in).


3. Remove the steering column control switch.

4. To install, reverse the removal procedure.
