Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

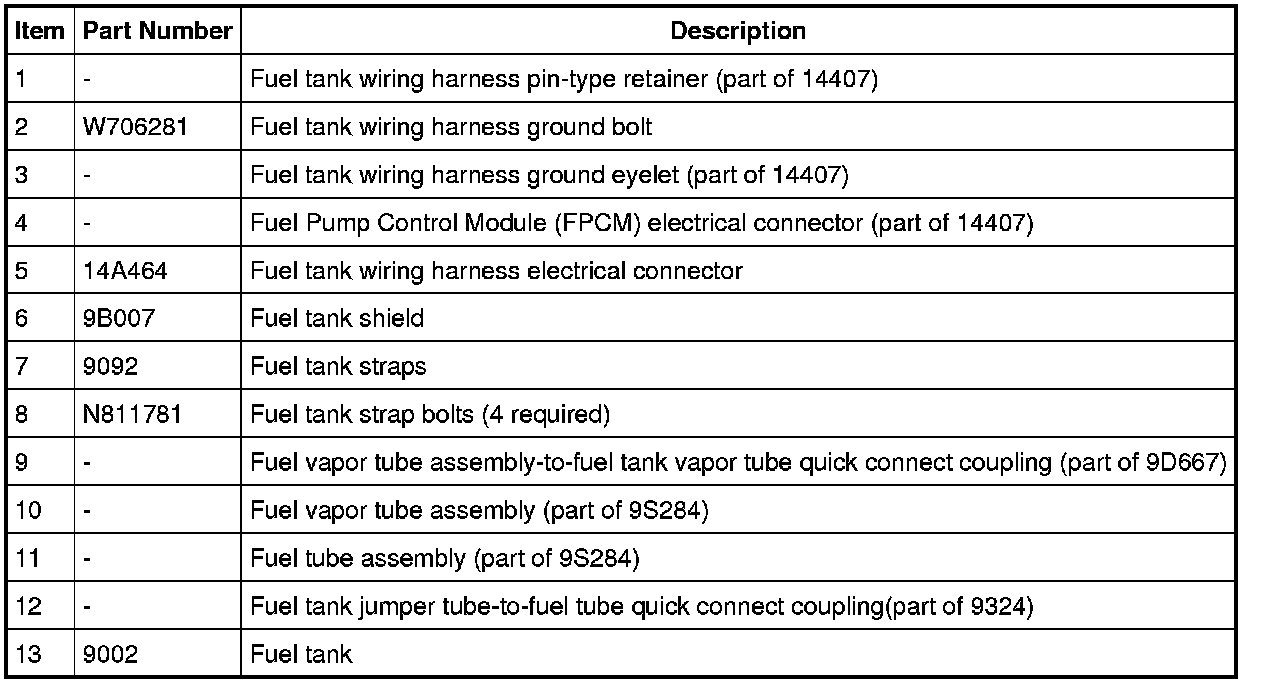

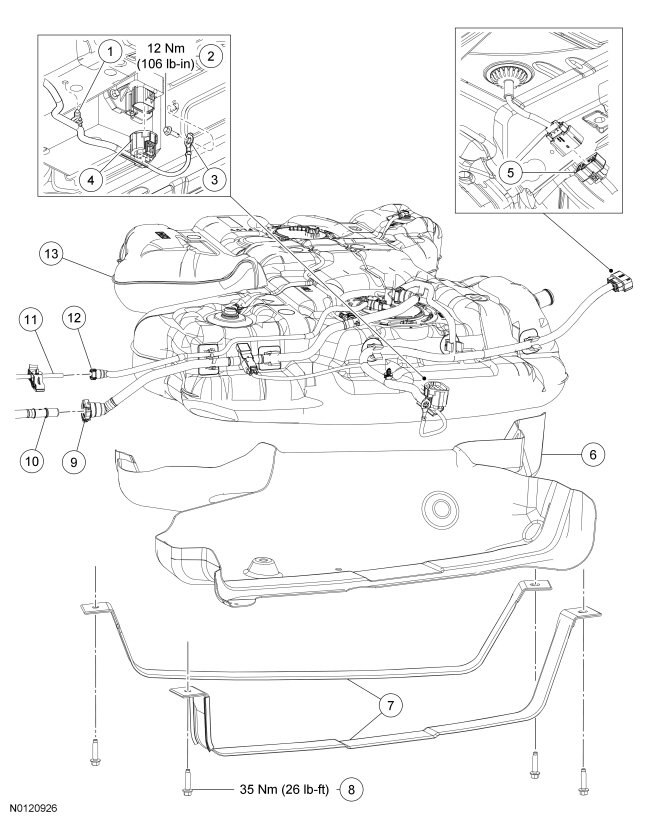

Fuel Tank and Fuel Lines Connections

NOTE: All-Wheel Drive (AWD) fuel tank shown, Front Wheel Drive (FWD) fuel tank similar.

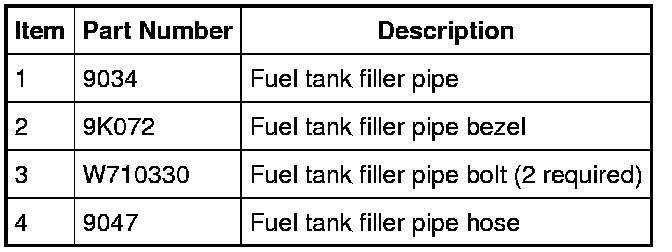

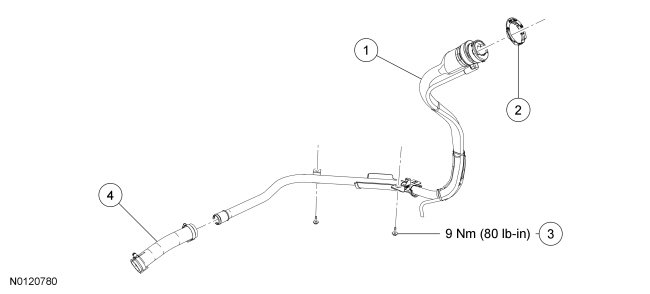

Fuel Tank Filler Pipe Assembly
