Exterior Lighting Module: Service and Repair

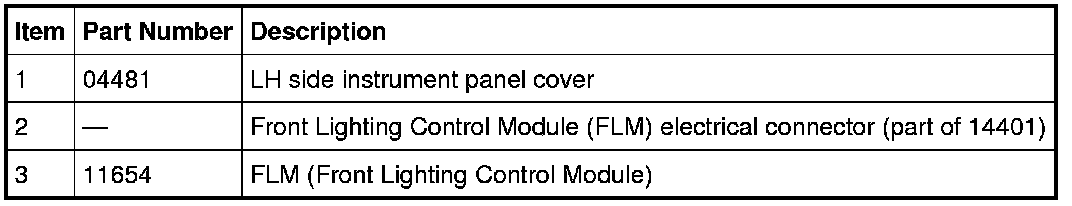

Front Lighting Control Module (FLM)

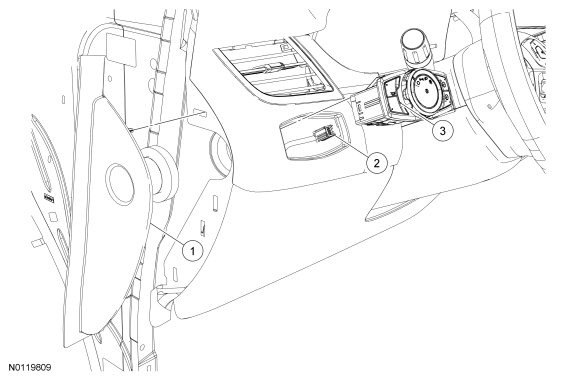

1. Using a suitable non-marring tool, work around the outer edge of the FLM (Front Lighting Control Module) to release the clips and pull the FLM (Front Lighting Control Module) out through the front finish panel.
- Disconnect the electrical connector.


2. To install, reverse the removal procedure.
