Variable Camshaft Timing (VCT) Oil Control Solenoid
NOTE:
The LH and/or RH valve cover must be removed to service the Variable Camshaft Timing (VCT) oil control solenoid. For additional information, refer to
ENGINE - 3.5L
for 3.5L engines or
ENGINE - 3.7L
for 3.7L engines.
NOTE:
The VCT
oil control solenoid bolt must be tightened in 2 stages.
- Stage 1: Tighten to 8 Nm (71 lb-in)
- Stage 2: Tighten an additional 20 degrees.

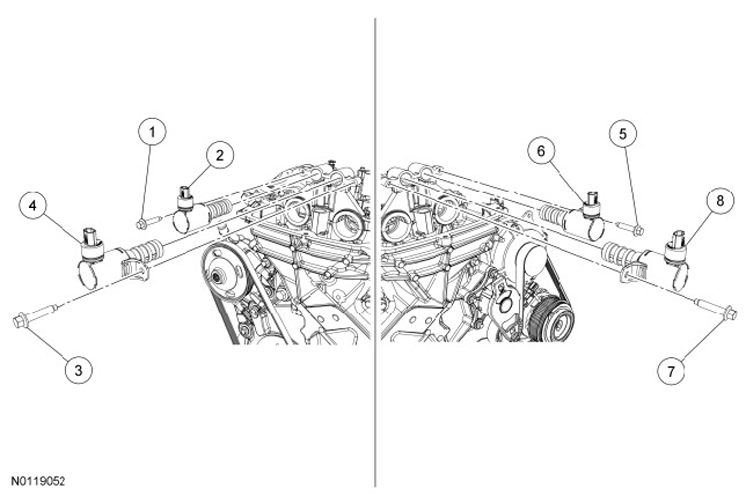

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500215 | RH exhaust Variable Camshaft Timing (VCT) oil control solenoid bolt |
| 2 | 6B280A | RH exhaust VCT oil control solenoid |
| 3 | W500215 | RH intake Variable Camshaft Timing (VCT) oil control solenoid bolt |
| 4 | 6B280A | RH intake VCT oil control solenoid |
| 5 | W500215 | LH exhaust Variable Camshaft Timing (VCT) oil control solenoid bolt |
| 6 | 6B280A | LH exhaust VCT oil control solenoid |
| 7 | W500215 | LH intake Variable Camshaft Timing (VCT) oil control solenoid bolt |
| 8 | 6B280A | LH intake VCT oil control solenoid |
