Heated Steering Wheel Module (HSWM): Notes

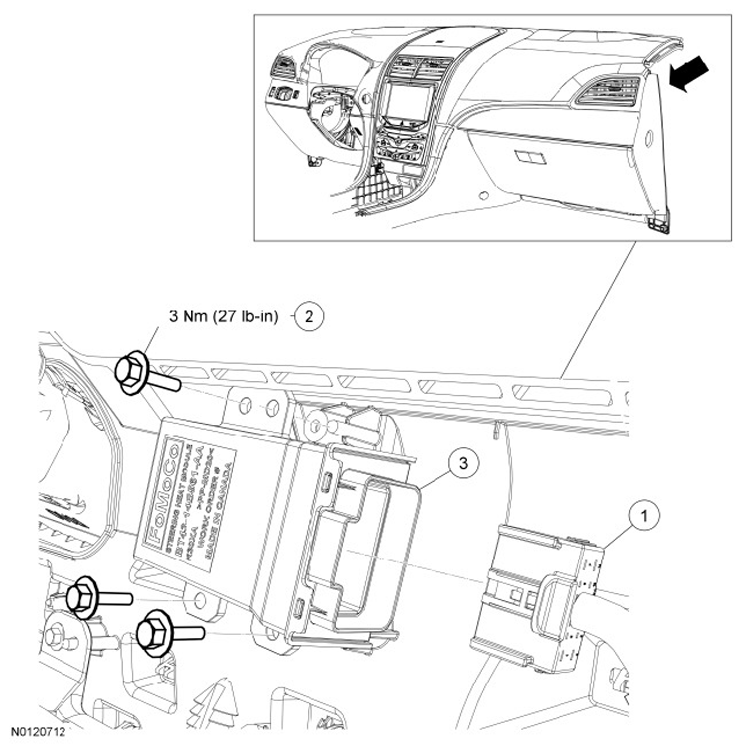

Fig 1: Heated Steering Wheel Module (HSWM) Screws With Torque Specifications
G07397707Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Heated Steering Wheel Module (HSWM) electrical connector (part of 14401)
2 W707607 HSWM  screws (3 required)
3 14B561 HSWM
