Steering Column Shroud: Notes

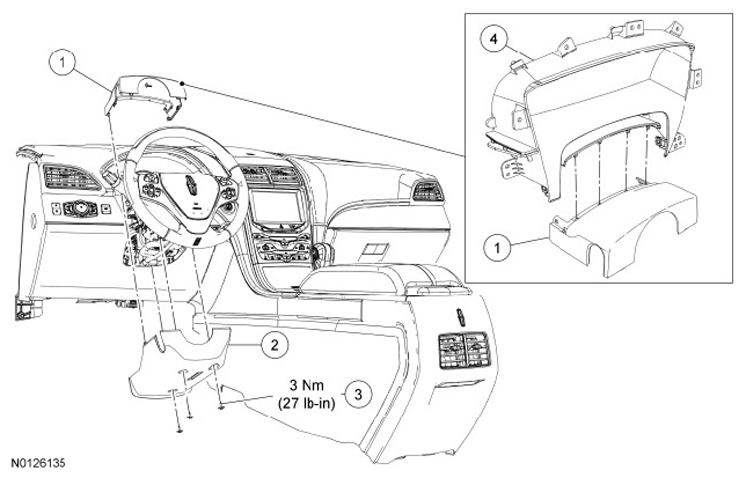

Fig 1: Exploded View Of Steering Column Shroud With Torque Specifications
G07397709Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 3530 Upper steering column shroud
2 3530 Lower steering column shroud
3 W710485 Lower steering column shroud screw (3 required)
4 - Instrument Panel Cluster (IPC) opening trim (part of 044F58)
