Memory Set Switch: Notes

NOTE: MKX shown in illustration, Edge similar.

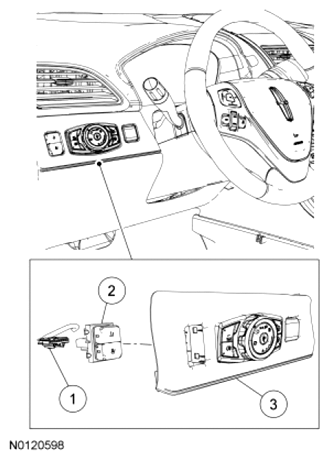

Fig 1: Locating Electrical Connector, Memory Set Switch And Left Trim Panel
G07403165Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Electrical connector (part of 14401)
2 14776 Memory SET switch
3 044A91 Left trim panel
