Body Control Module (BCM)
NOTE:
For component location, see appropriate OEM COMPONENT LOCATIONS
article.

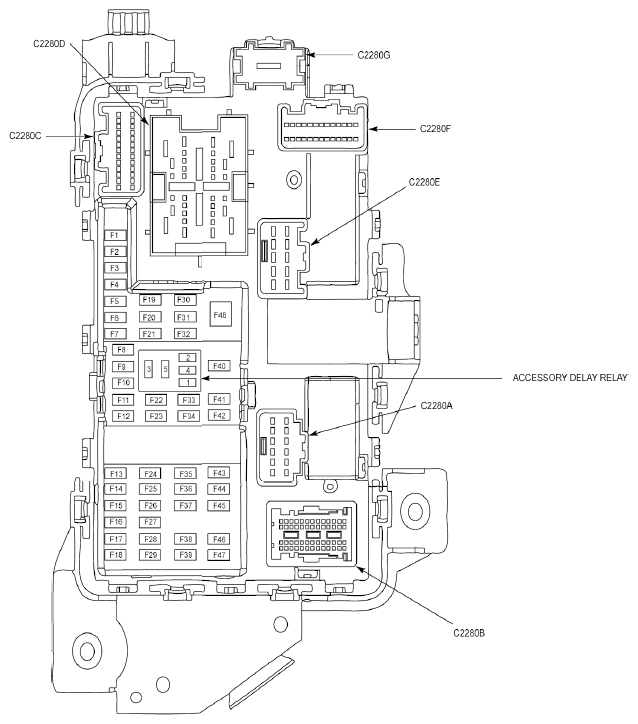

BODY CONTROL MODULE (BCM) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ACCESSORY DELAY RELAY |
BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, driver side front |
| F2 | 15 | Not used |
| F3 | 30 | Power window motor, passenger side front |
| F4 | 10 | Battery saver relay |
| F5 | 20 | Subwoofer |
| F6 | 5 | Tire Pressure Monitor (TPM) module |
| F7 | 7.5 | Power seat switch, left, Driver Seat Module (DSM), Exterior rear view mirror switch |
| F8 | 10 | Not used |
| F9 | 10 | Liftgate/Trunk Module (LTM) |
| F10 | 10 | Wiper relay, Rear washer relay, Run/Acc relay |
| F11 | 10 | Instrument Panel Cluster (IPC), Head Up Display (HUD) module |
| F12 | 15 | Puddle lamps, Scuff plate lamps, Interior lighting, Backlighting |
| F13 | 15 | Right front park/turn lamps - turn lamp, Right stop/turn trailer tow lamp relay - turn lamp, Lamp assembly, right rear |
| F14 | 15 | Left front park/turn lamps - turn lamp, Left stop/turn trailer tow lamp relay - turn lamp, Lamp assembly, left rear |
| F15 | 15 | High mounted stoplamp, Stoplamp relay, Auto dimming interior mirror unit, Lamp assemblies, rear |
| F16 | 10 | Right headlamp - low beam |
| F17 | 10 | Left headlamp - low beam |
| F18 | 10 | Rear seat release relay, Passive anti-theft transceiver, Powertrain Control Module (PCM), Keyless entry keypad (w/o IA), Start/Stop switch (with IA), Brake shift interlock |
| F19 | 20 | Audio Digital Signal Processing (DSP), Audio amplifier |
| F20 | 20 | Door lock actuators |
| F21 | 10 | Not used |
| F22 | 20 | Horn |
| F23 | 15 | Remote Function Actuator (RFA) module, Front Lighting Control Module (FLM), Steering Column Control Module (SCCM) |
| F24 | 15 | Data Link Connector (DLC), Steering Column Control Module (SCCM) |
| F25 | 15 | Liftgate release relay |
| F26 | 5 | Global Positioning System Module (GPSM) |
| F27 | 20 | Remote Function Actuator (RFA) module |
| F28 | 15 | Ignition switch (w/o IA), Start/Stop switch (with IA) |
| F29 | 20 | Audio Control Module (ACM), Front Control Interface Module (FCIM) Accessory Protocol Interface Module (APIM) (with SYNC), Front Control/Display Interface Module (FCDIM) (w/o SYNC) |
| F30 | 15 | Parking lamp trailer tow relay, Headlamps Front park/turn lamps, Auxiliary Parking lamps |
| F31 | 15 | Brake Pedal Position (BPP) switch (Not used) |
| F32 | 15 | Door lock switches, Roof opening motor assembly, Power window motors Auto-dimming interior mirror unit. Window adjust switches |
| F33 | 10 | Not used |
| F34 | 10 | Heated seat module, left rear, Side obstacle detection control modules, Parking Aid Module (PAM), Video camera |
| F35 | 5 | Head Up Display (HUD) module (with adaptive cruise control) |
| F36 | 10 | Heated steering wheel module |
| F37 | 10 | Air inlet mode door actuator |
| F38 | 10 | Not used |
| F39 | 15 | Headlamps - high beam |
| F40 | 10 | Lamp assemblies, rear, License plate lamps, Illuminated liftgate appliques |
| F41 | 7.5 | Restraints Control Module (RCM), Occupant Classification System Module (OCSM) |
| F42 | 5 | Floor shifter |
| F43 | 10 | Not used |
| F44 | 10 | Not used |
| F45 | 5 | Not used |
| F46 | 10 | HVAC module |
| F47 | 15 | Fog lamps |
| F48 | 30c, b, | Master window adjust switch, Window adjust switch, passenger side |
