Power Steering Pump: Installation

All vehicles

Position the power steering pump and install the 3 bolts.
- Tighten to 25 Nm (18 lb-ft).
Position the pressure line and install the new pressure line clamp plate bolt.
- Tighten to 26 Nm (19 lb-ft).
Connect the power steering pump supply hose and secure the clamp.
Using the a suitable jack, raise the rear of the subframe.
Install the 2 middle subframe nuts.
- Tighten to 150 Nm (111 lb-ft).

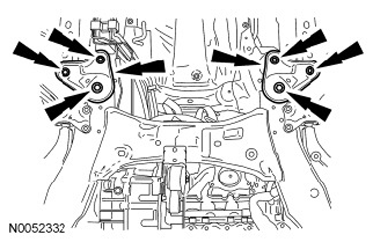

  Fig 1: Locating Middle Subframe Nuts
  Courtesy of FORD MOTOR CO.
Install the 2 nuts, 4 bolts and the subframe support brackets.
- Tighten the nuts to 150 Nm (111 lb-ft).
- Tighten the bolts to 103 Nm (76 lb-ft).

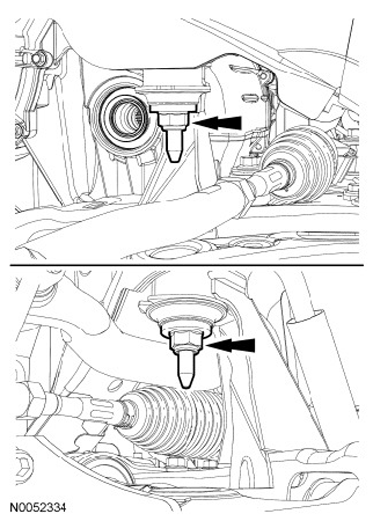

  Fig 2: Locating Subframe Support Brackets Bolts And Nuts
  Courtesy of FORD MOTOR CO.
All-Wheel Drive (AWD) vehicles
Position the driveshaft and install the 4 bolts.
- Tighten to 70 Nm (52 lb-ft).
All vehicles
Remove the bolt and nut and the upper guide component of the Stretchy Belt Installer Tool.

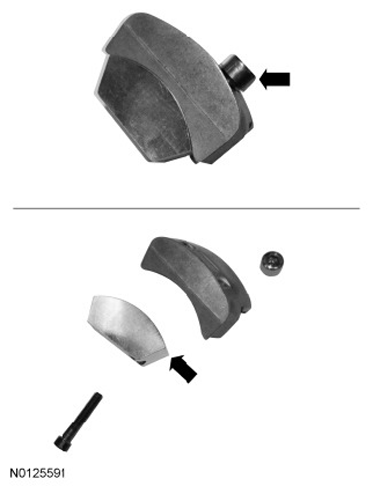

Fig 3: Locating Upper Guide Component Of Stretchy Belt Installer Tool, Bolt And Nut
Courtesy of FORD MOTOR CO.
Install the bolt and nut back onto the Stretchy Belt Installer Tool finger tight.

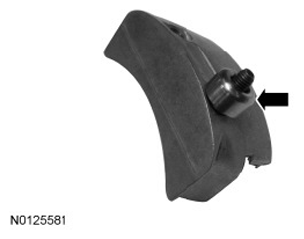

Fig 4: Locating Nut Onto Stretchy Belt Installer Tool Finger Tight
Courtesy of FORD MOTOR CO.
Position the power steering pump belt on the crankshaft pulley.

NOTE: After installation, make sure the power steering pump belt is correctly seated on the crankshaft and power steering pump pulleys.

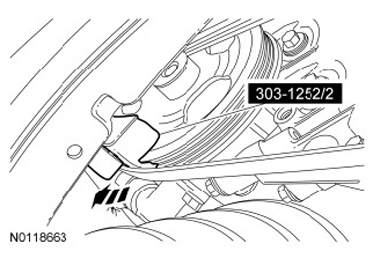

Fig 5: Installing Power Steering Pump Belt

Courtesy of FORD MOTOR CO.

Position the power steering pump belt around the Stretchy Belt Installer Tool and the power steering pump pulley. Make sure the power steering pump belt is engaged with the power steering pump pulley and rotate the crankshaft clockwise to install the power steering pump belt.
Install the RH inner fender splash shield. For additional information, refer to FRONT END BODY PANELS
Fill the power steering system. For additional information, refer to STEERING SYSTEM
