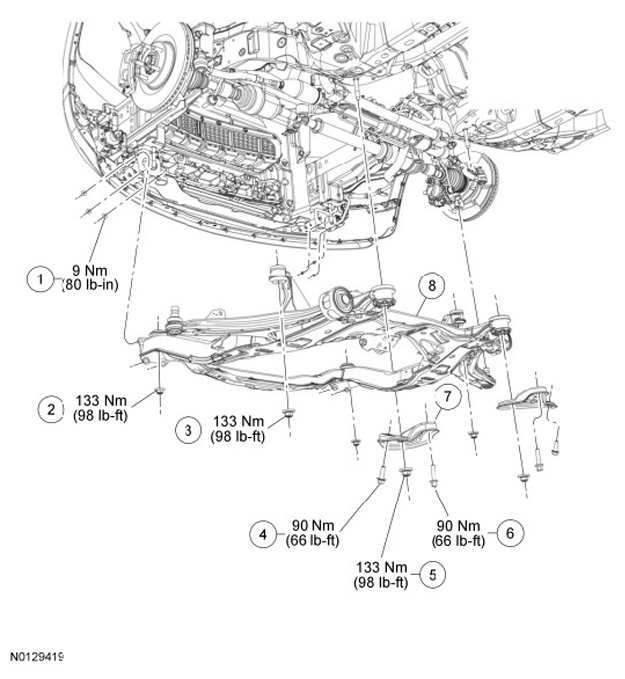

Front Subframe
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W705277 | Front lower bumper-to-subframe washer nut (6 required) |
| 2 | W712858 | Forward subframe nuts (2 required) |
| 3 | W712858 | Middle subframe nuts (2 required) |
| 4 | W712733 | Subframe bracket bolts (2 required) |
| 5 | W712858 | Subframe bracket nuts (2 required) |
| 6 | W708748 | Subframe bracket bolts (2 required) |
| 7 | 3B154 | Subframe bracket (2 required) |
| 8 | 5C145 | Front subframe |
