Steering Column Motor - Tilt: Notes

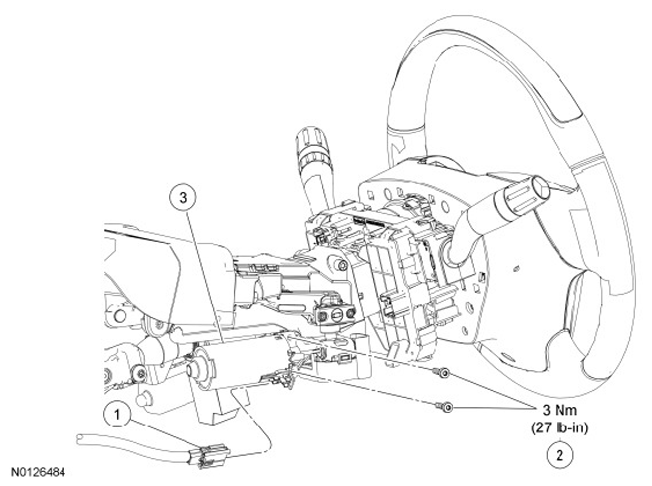

Fig 1: Steering Column Tilt Motor, Screws And Connectors With Torque Specifications
G07397704Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Steering column tilt motor electrical connector (part of 14401)
2 W790120 Steering column tilt motor screws (2 required)
3 3D538 Steering column tilt motor
