Fuel Pump Control Module: Notes

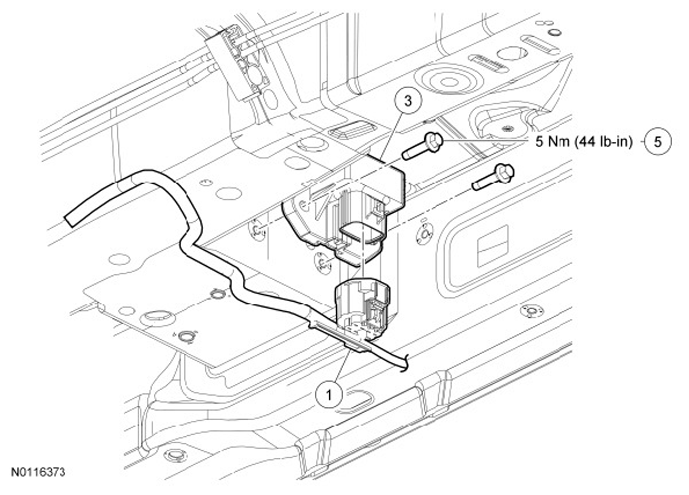

Fig 1: Exploded View Of Fuel Pump Control Module With Torque Specifications
G07399094Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Fuel Pump Control Module (FPCM) electrical connector (part of 14407)
2 W505256 FPCM  bolt (2 required)
3 9345 FPCM
