Home
>>
Ford
>>
2011
>>
Escape 2WD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
>>
C1458A Transaxle Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

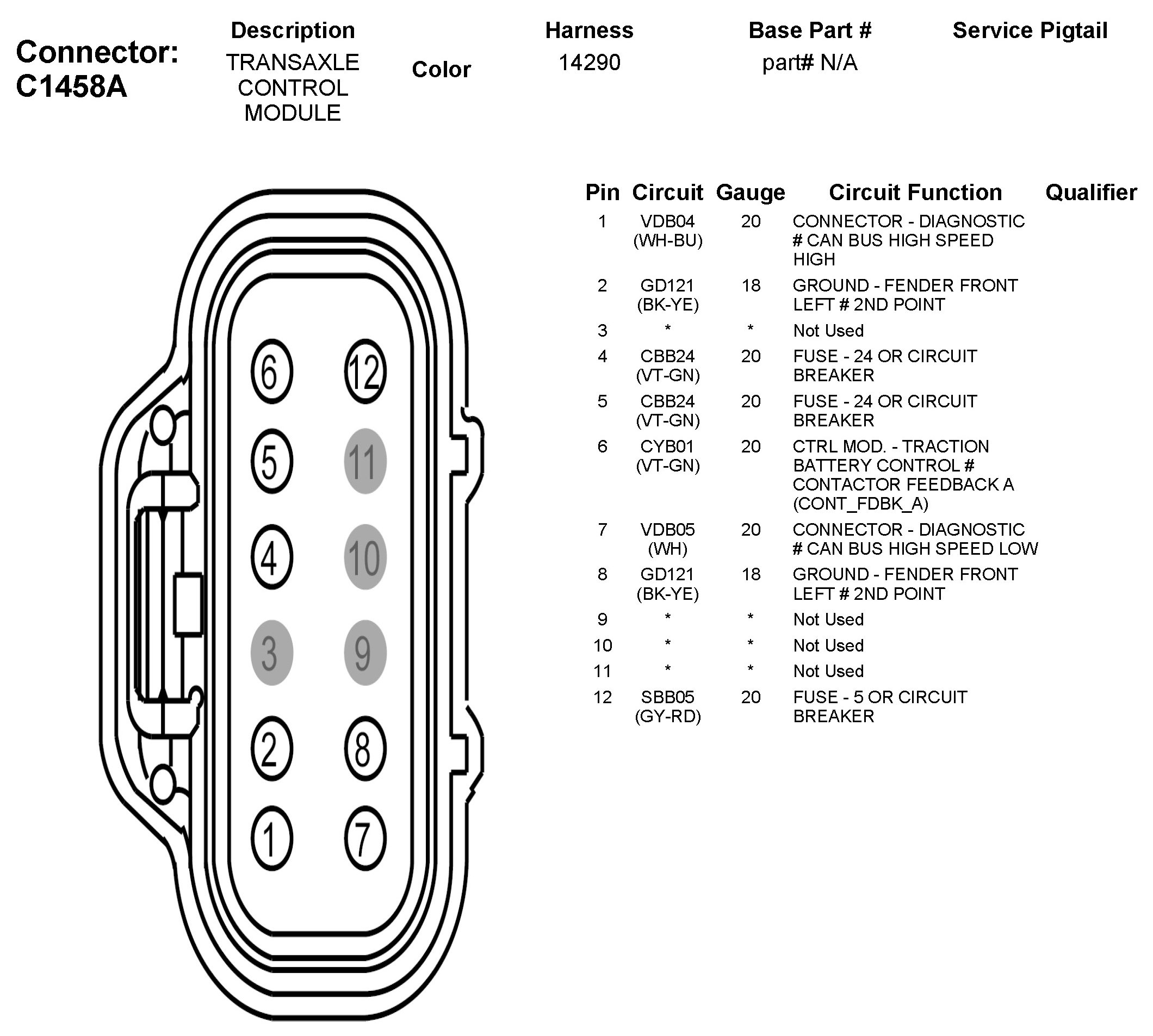

C1458A Transaxle Control Module
