Air Filter Element




Intake Air System Components - Exploded View

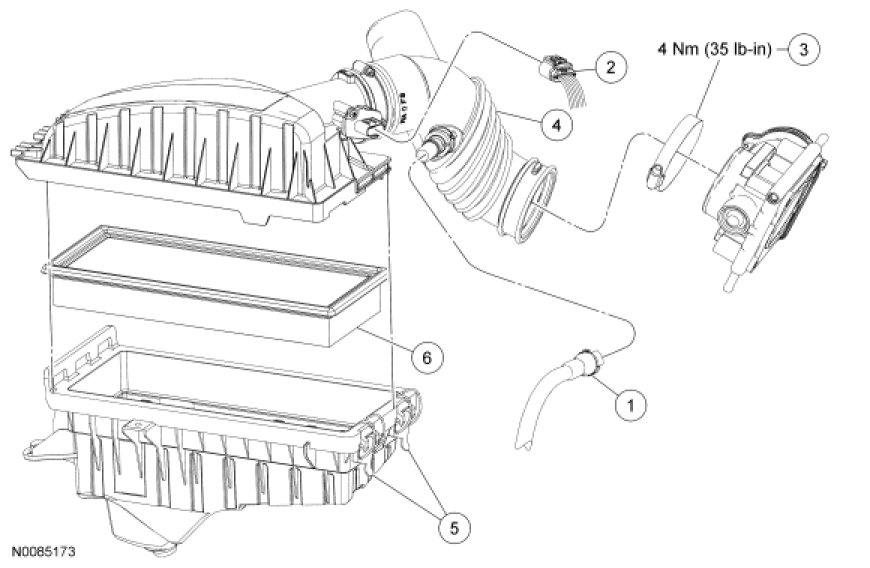

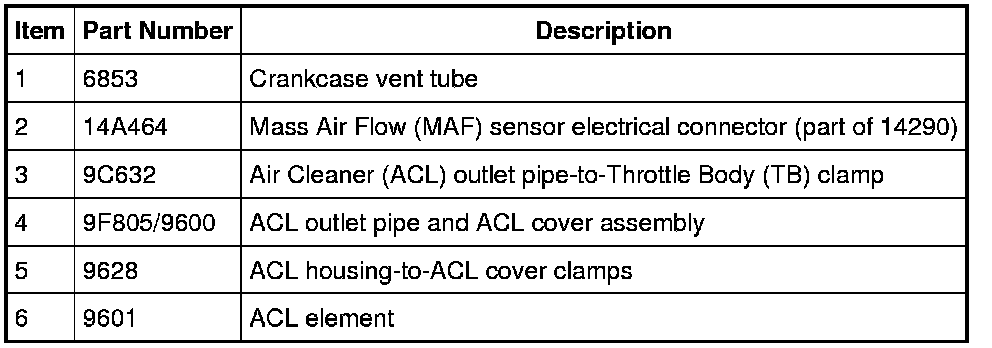

Air Cleaner (ACL) Assembly and Outlet Pipe

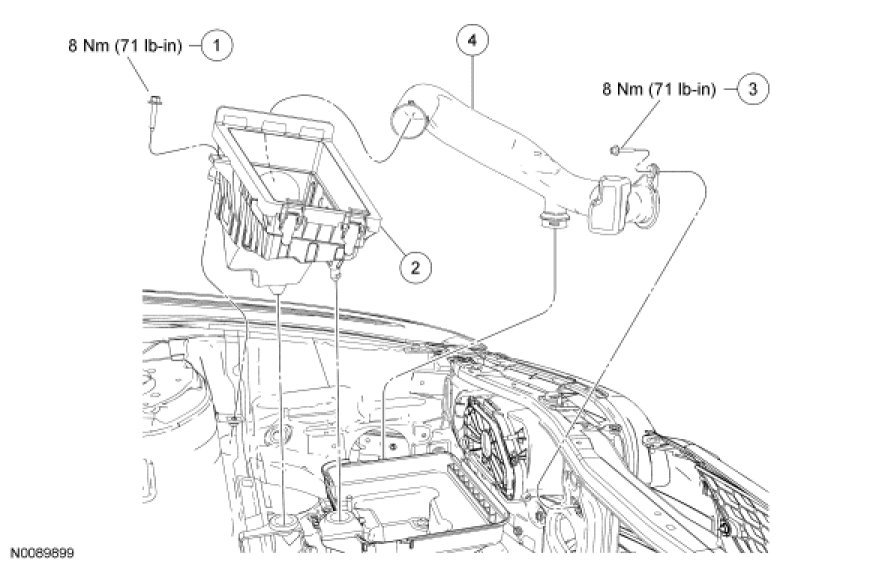

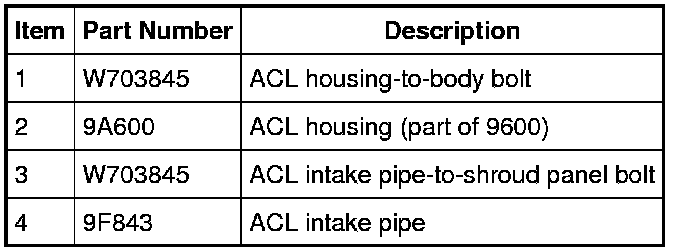

Air Cleaner (ACL) Intake Pipe

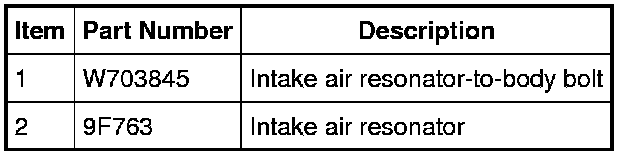

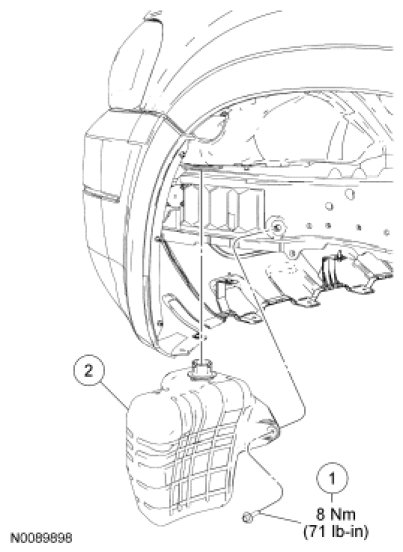

Intake Air Resonator
