Climate Control System

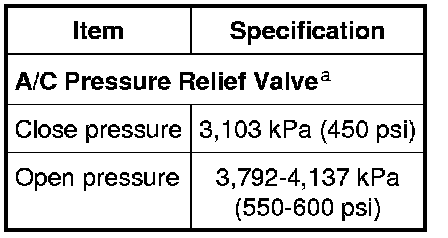

General Specifications





a Manifold gauge set pressures may vary slightly depending on the distance between the service gauge port valve and the A/C pressure relief valve, the A/C cycling switch or the pressure cutoff switch location.

NOTE: The specifications apply to hybrid vehicles only. For non-hybrid specifications, refer to Climate Control System - General Information and Diagnostics Specifications.
