Test HD: Misfire Detection Monitor

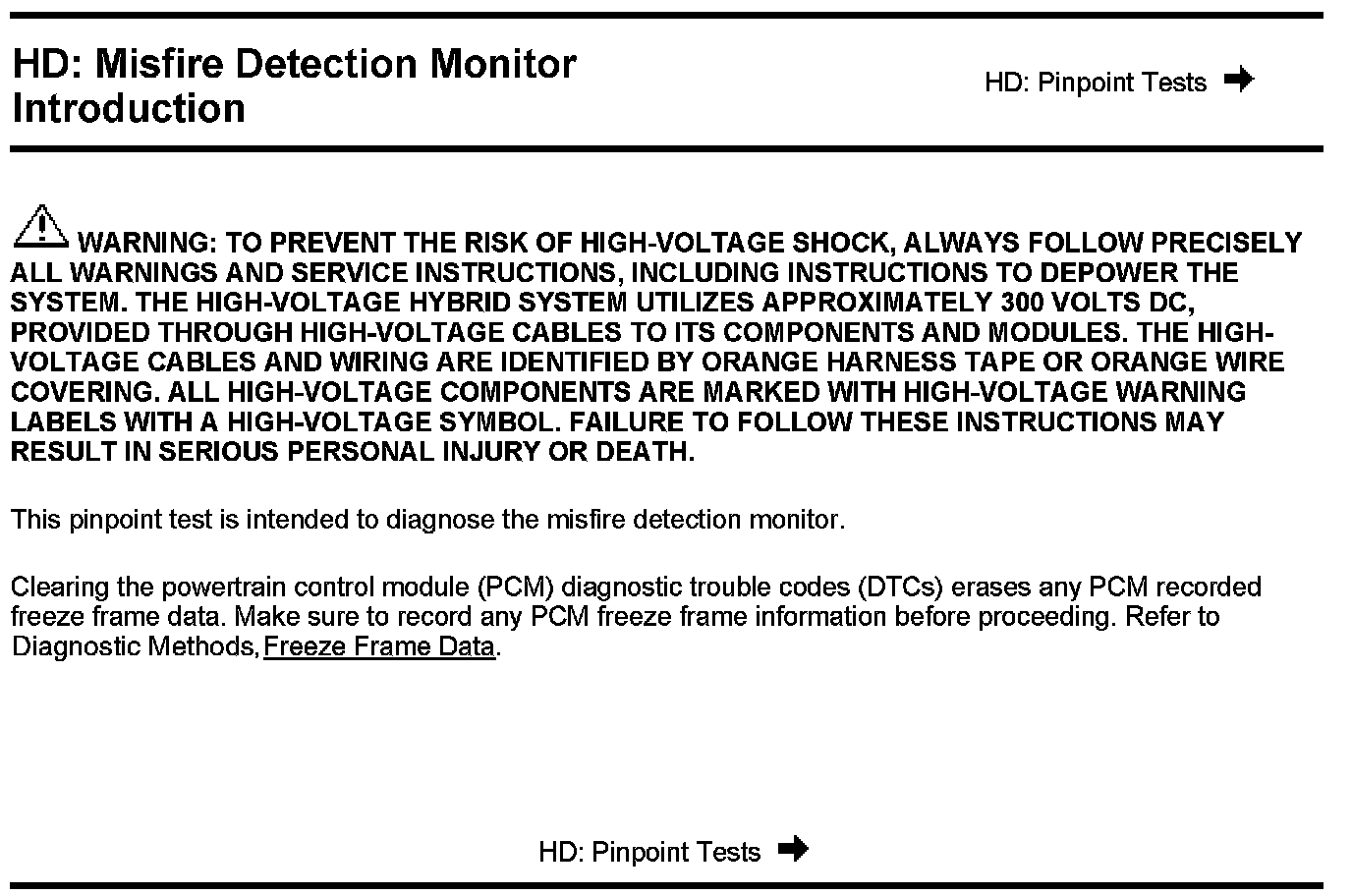

PINPOINT TEST HD: MISFIRE DETECTION MONITOR
Warning:

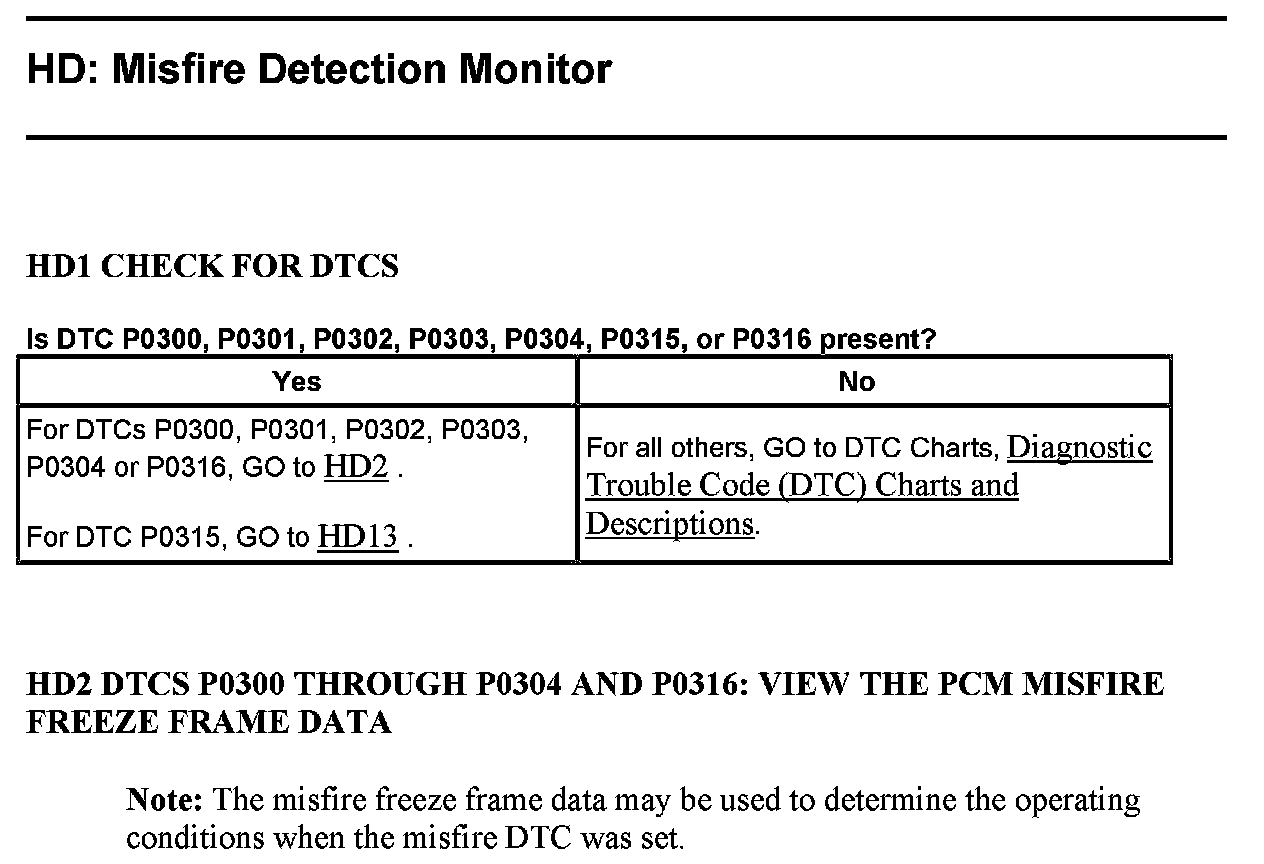

HD1-HD2:

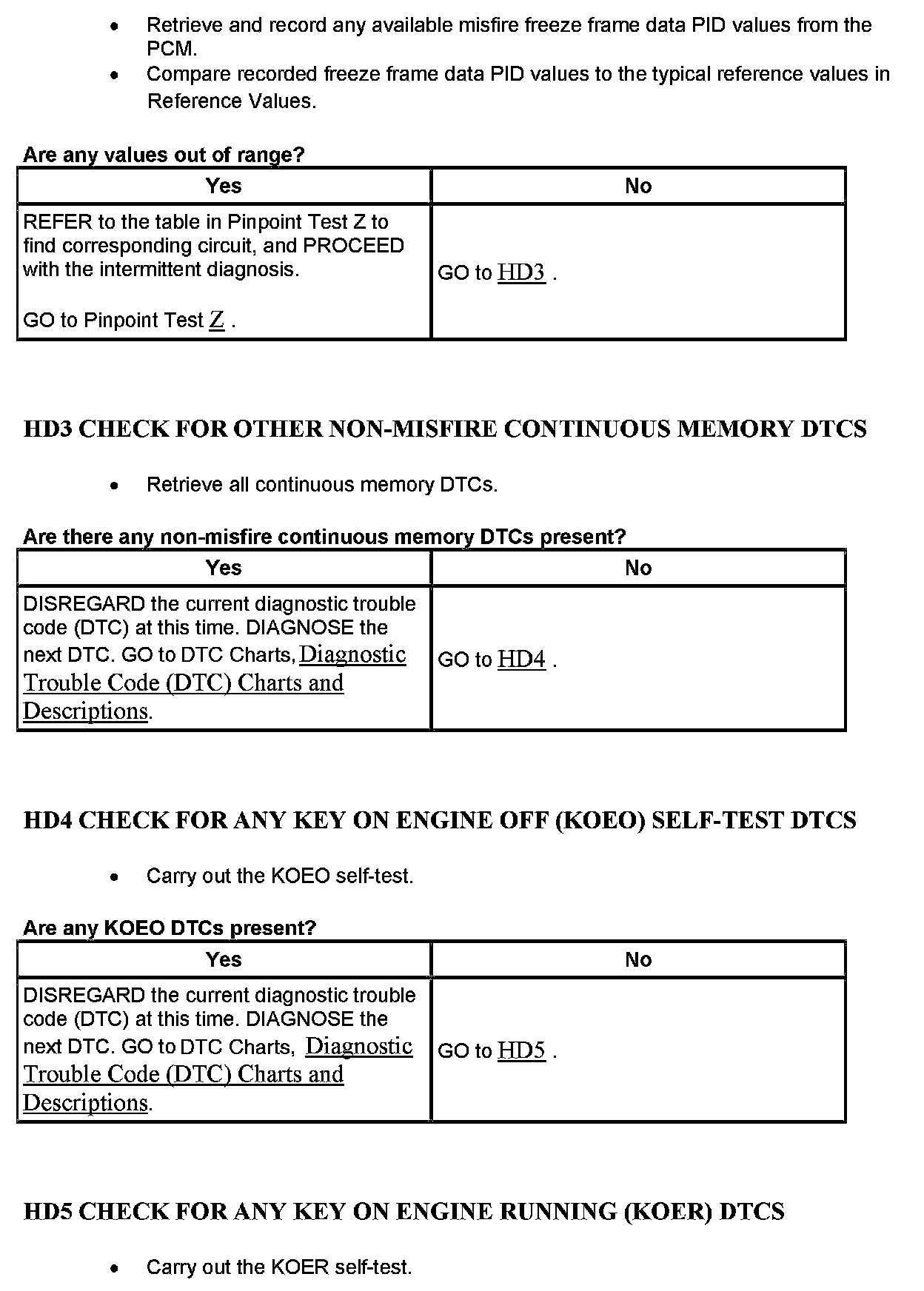

HD2-HD5:

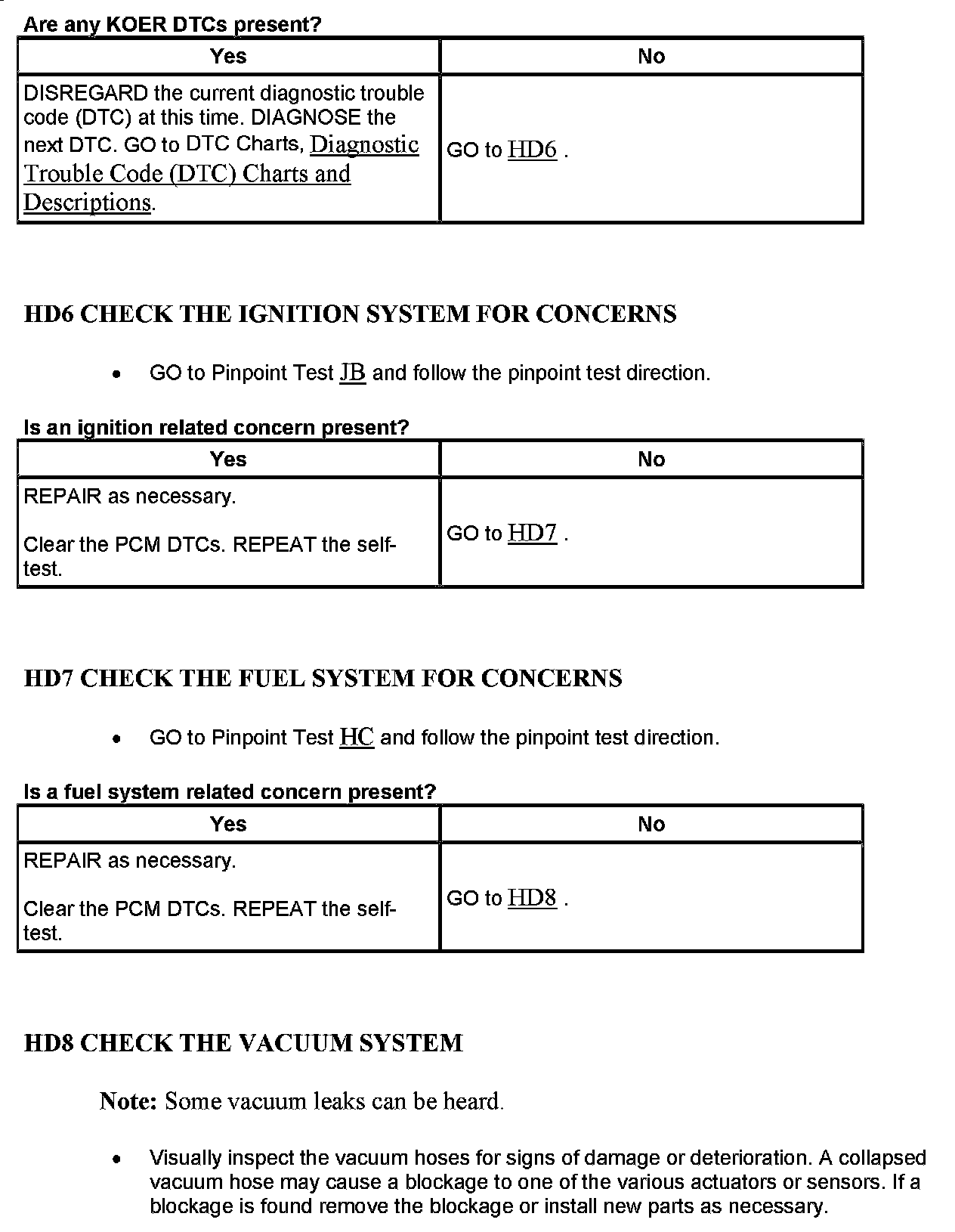

HD5-HD8:

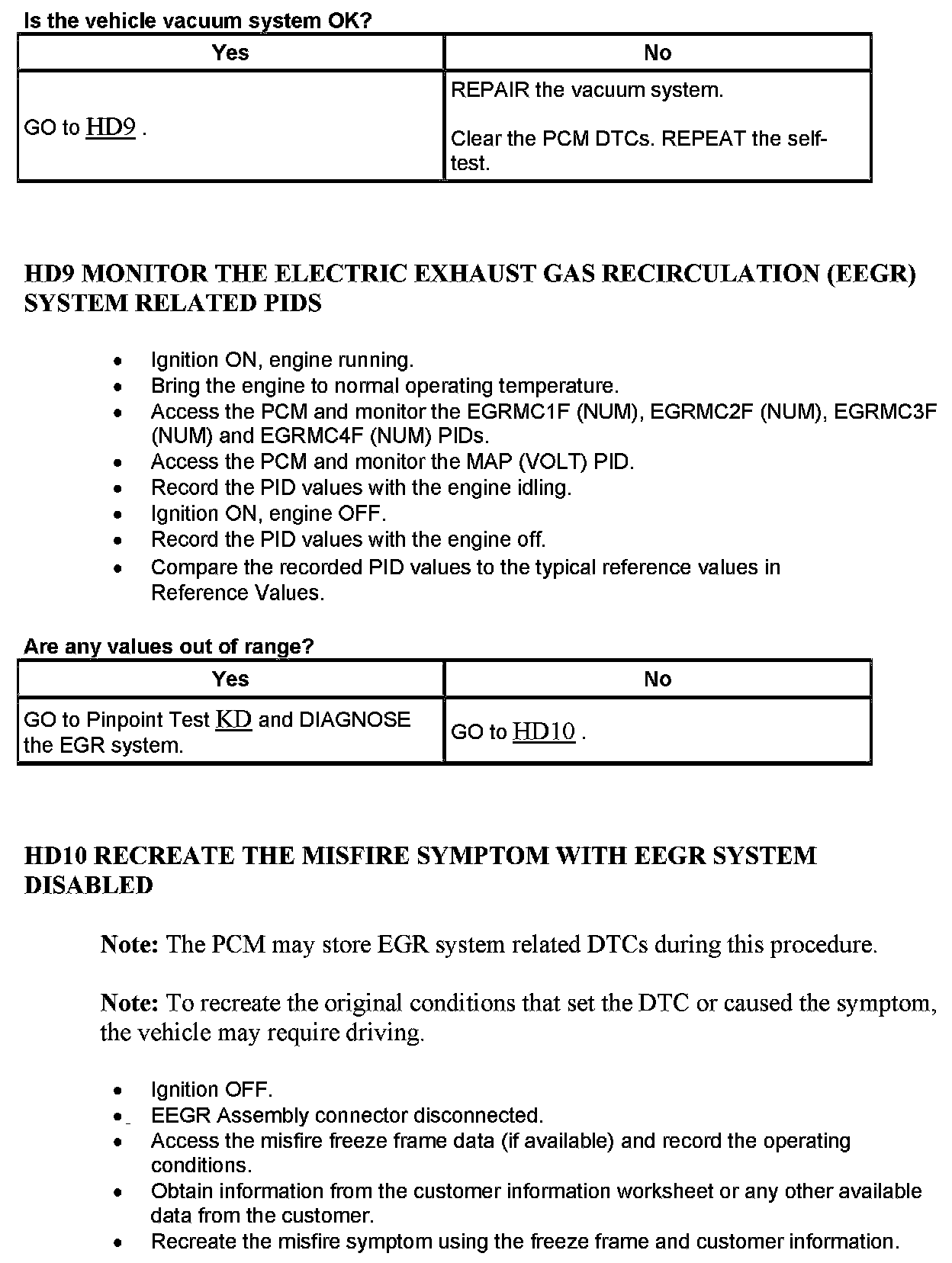

HD8-HD10:

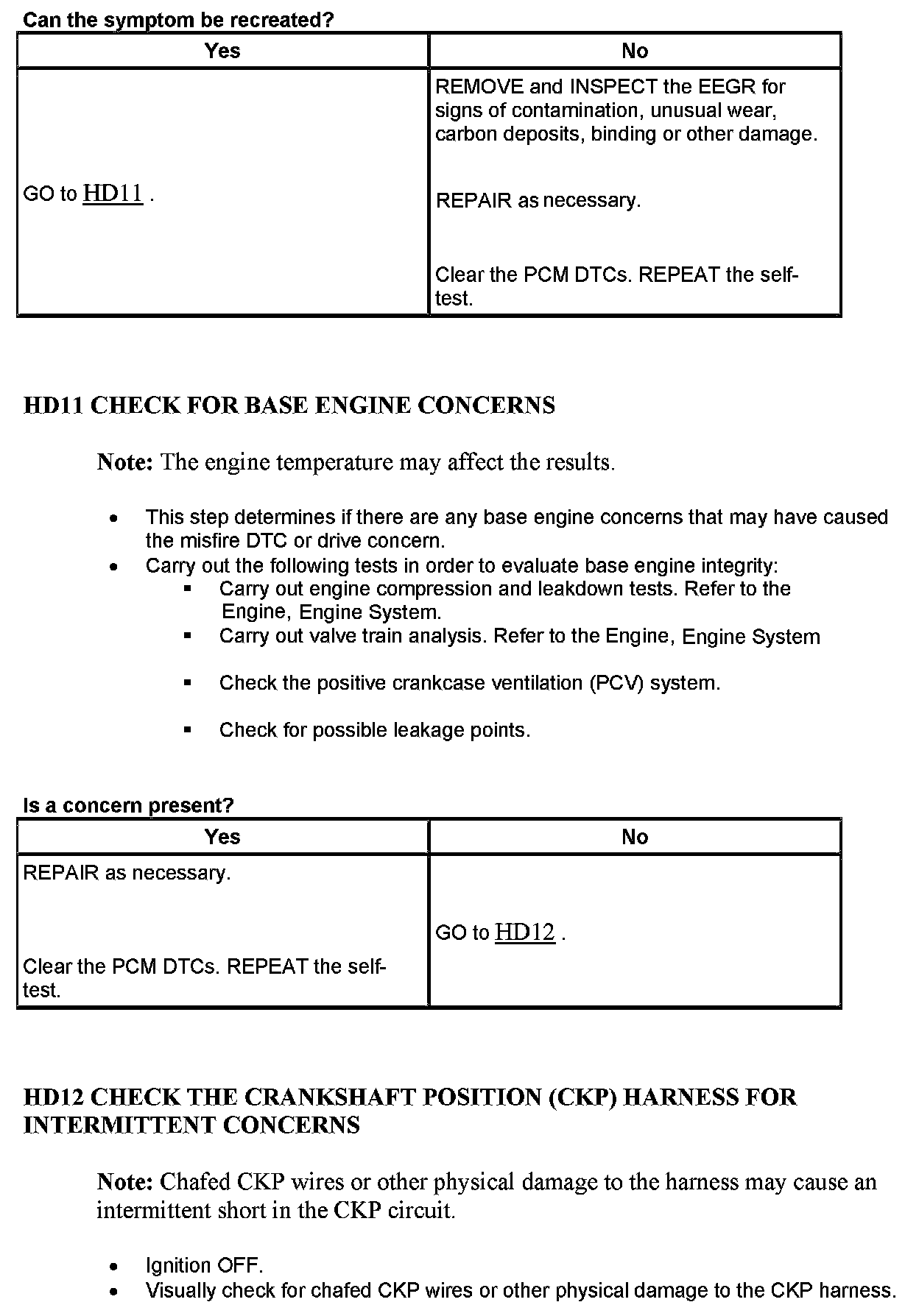

HD10-HD12:

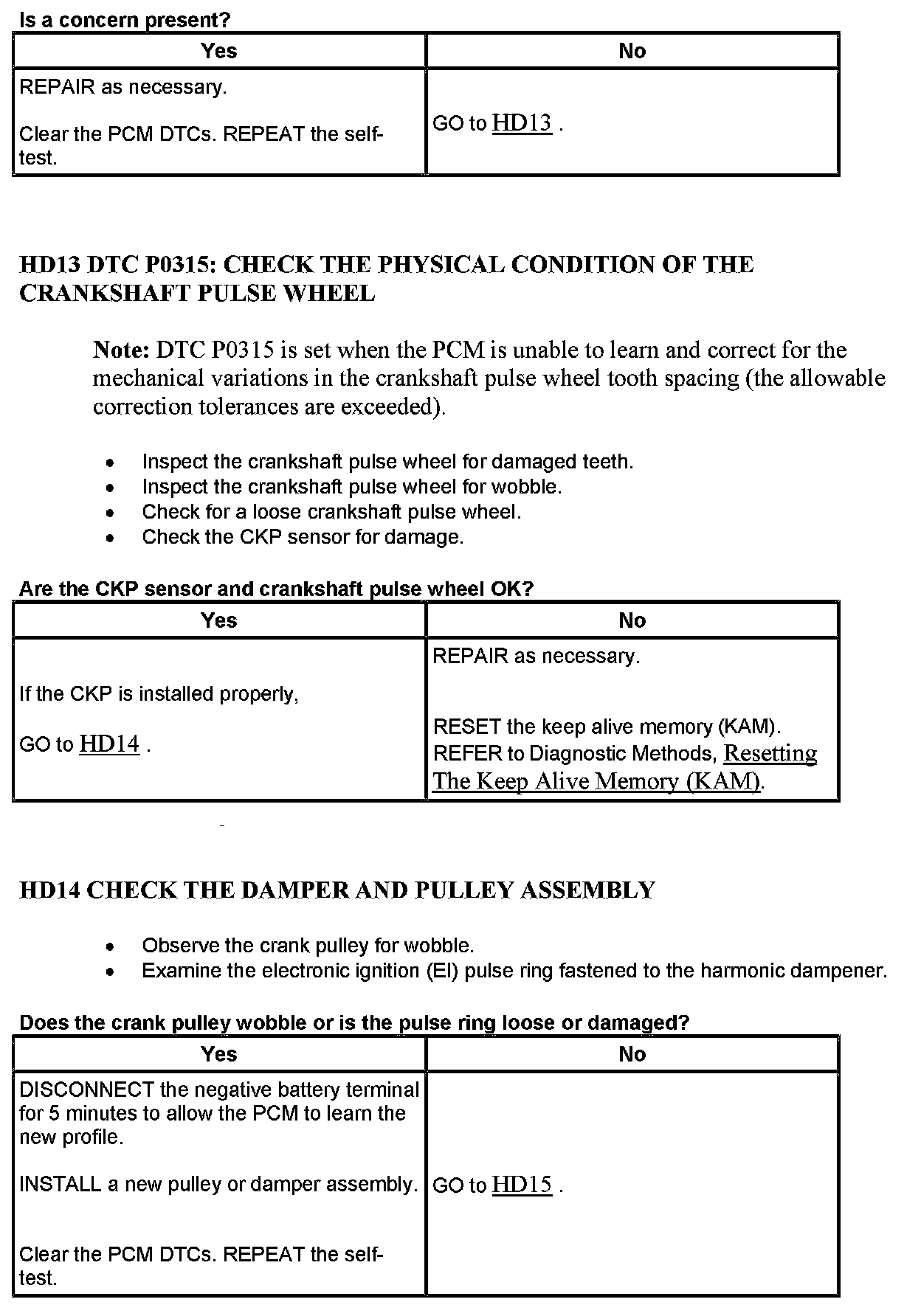

HD12-HD14:

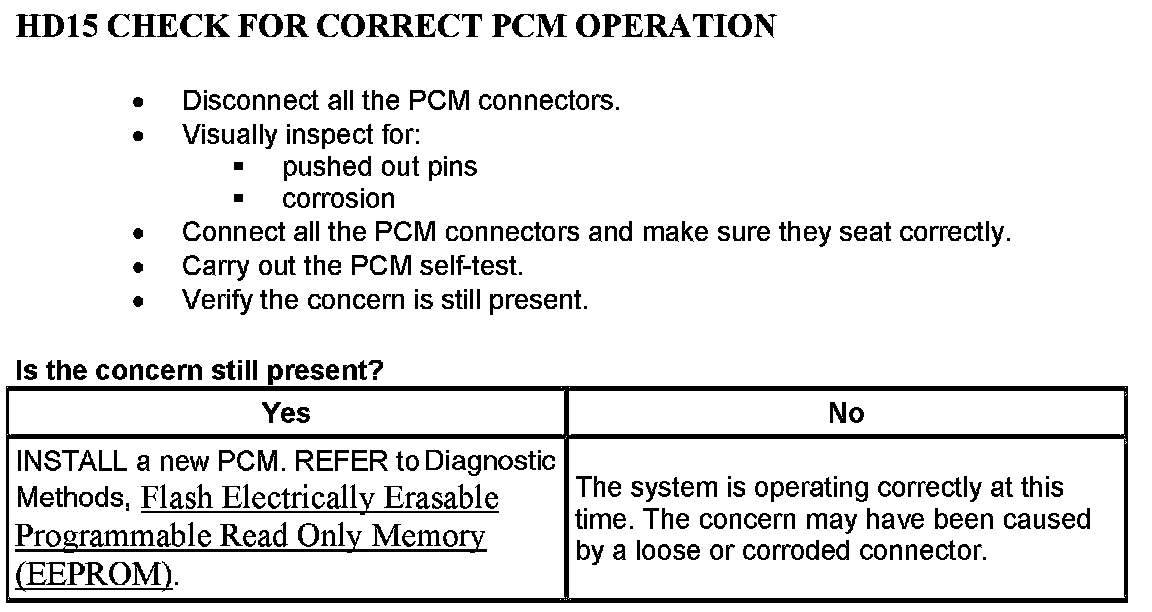

HD15:
