Test QA: Unable To Activate Self-Test/Network Communication Error

PINPOINT TEST QA: UNABLE TO ACTIVATE SELF-TEST/NETWORK COMMUNICATION ERROR

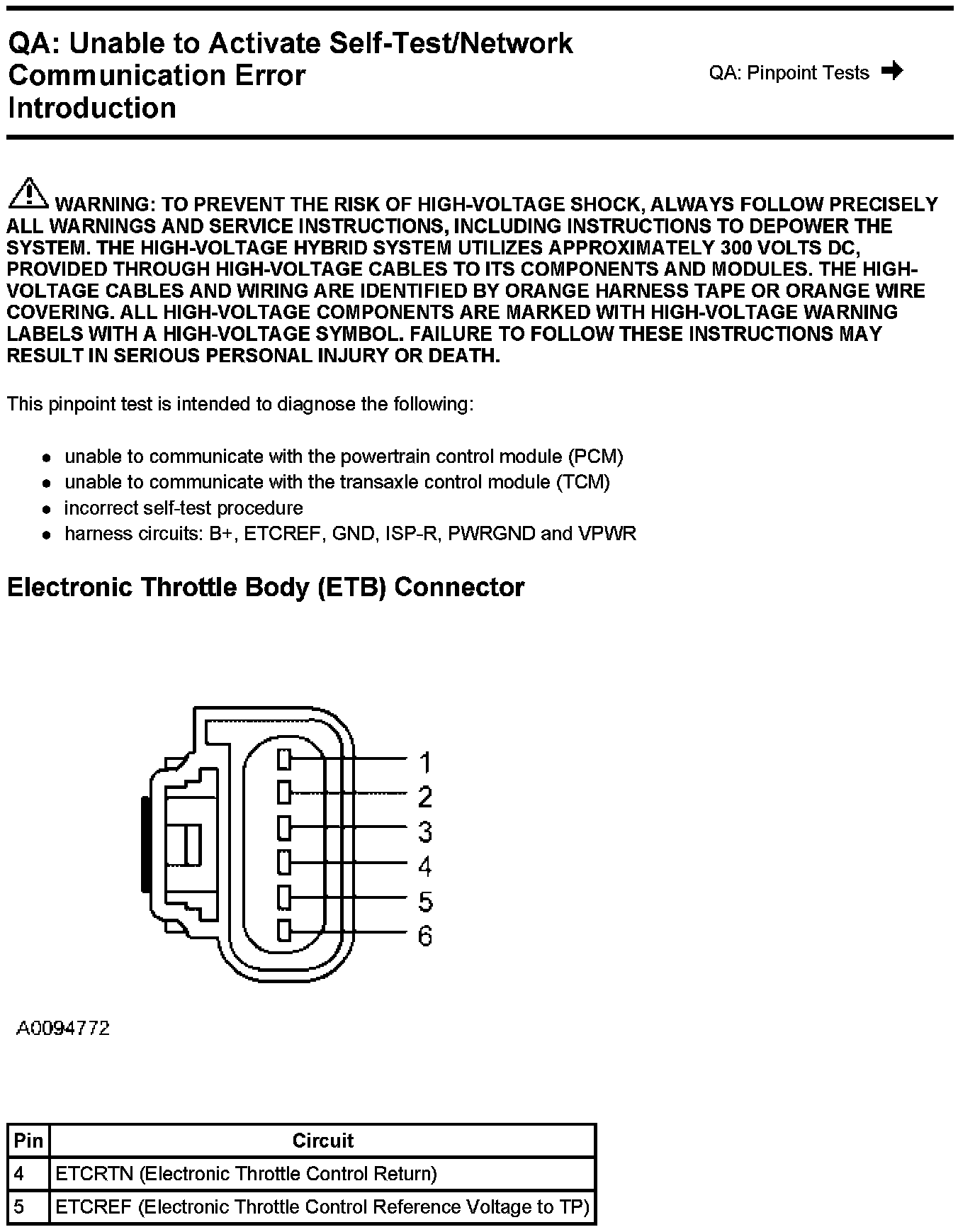

Warning And Electronic Throttle Body (ETB) Connector:

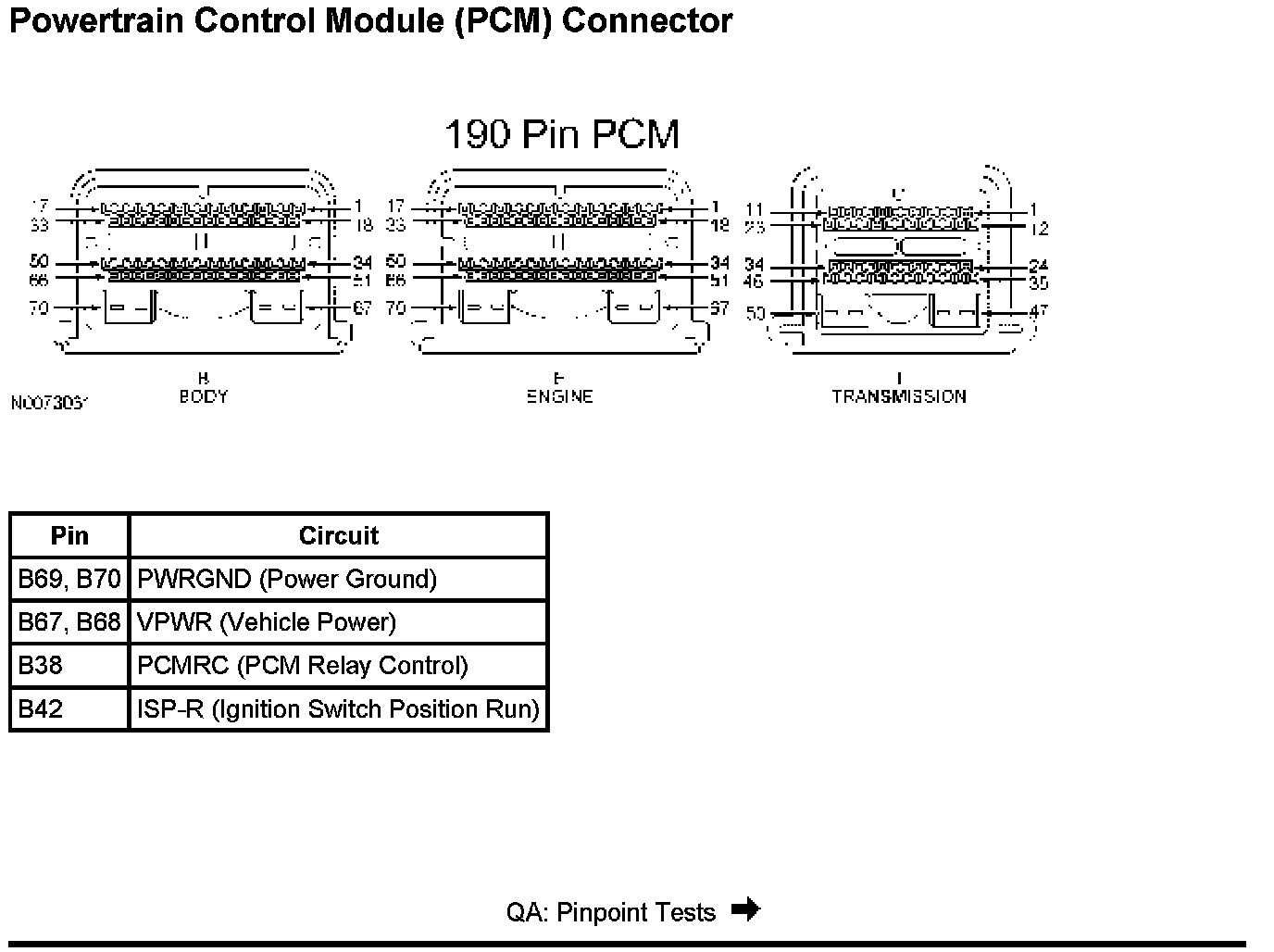

Powertrain Control Module (PCM) Connector:

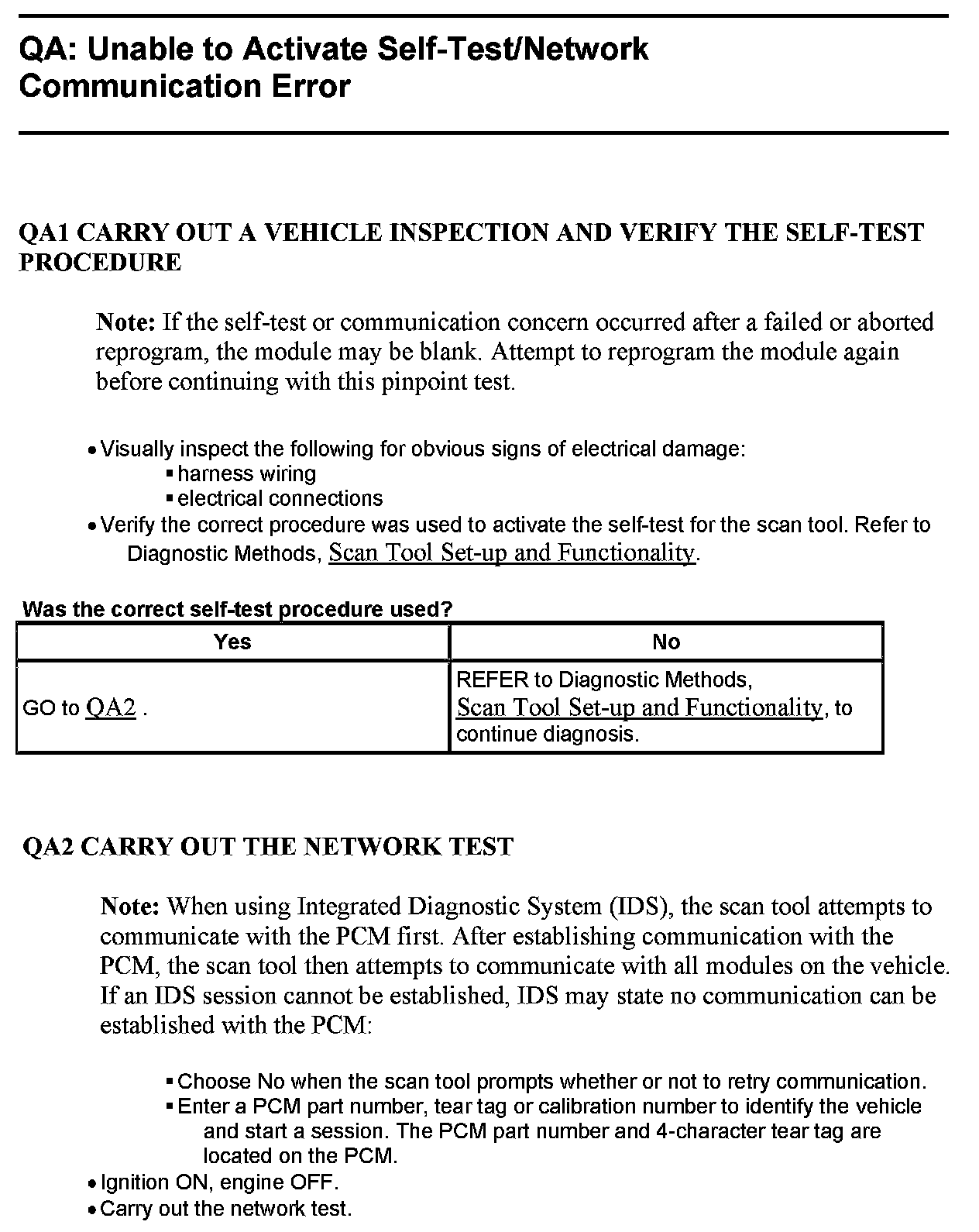

QA1-QA2:

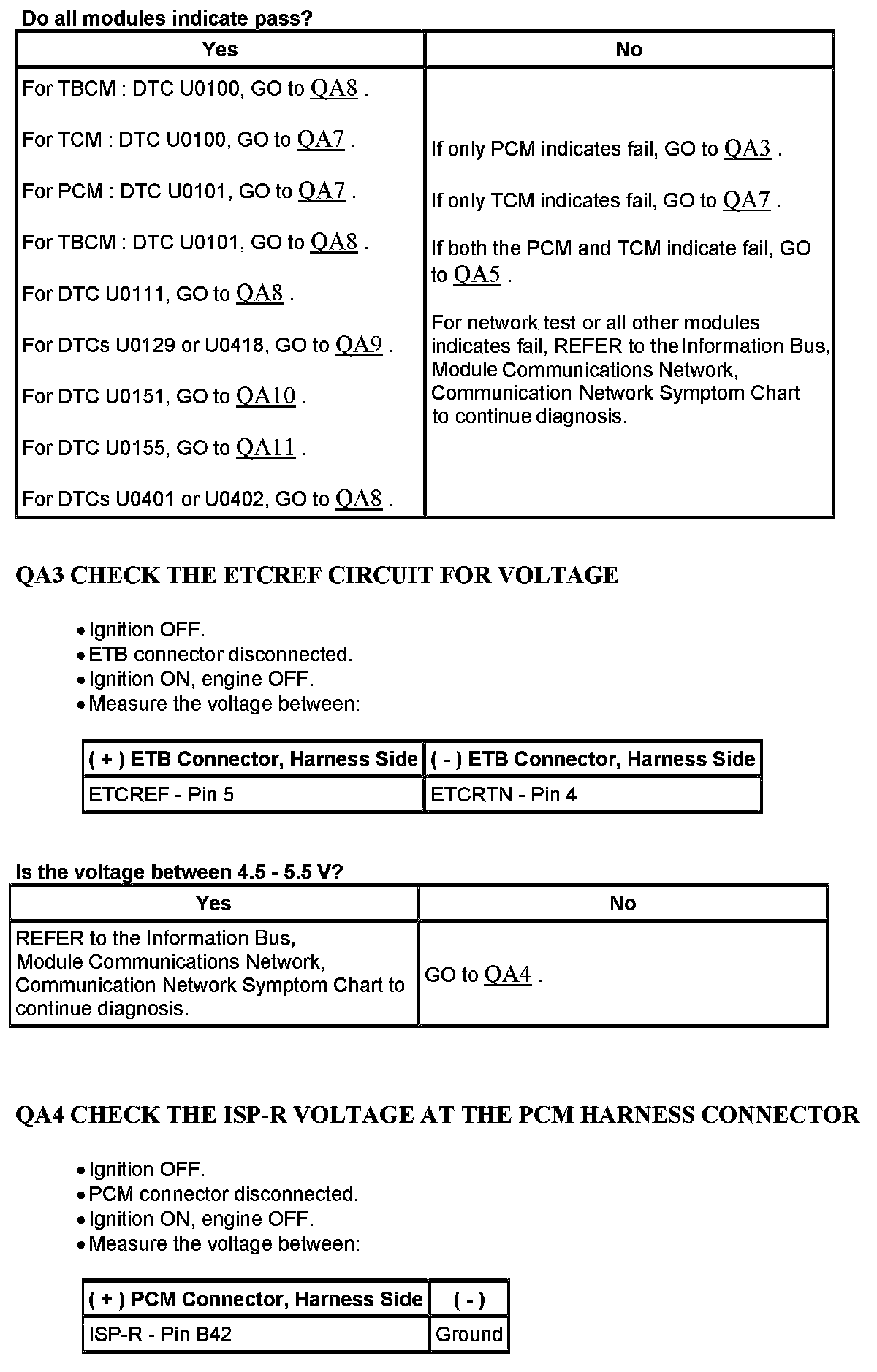

QA2-QA4:






QA4-QA6:

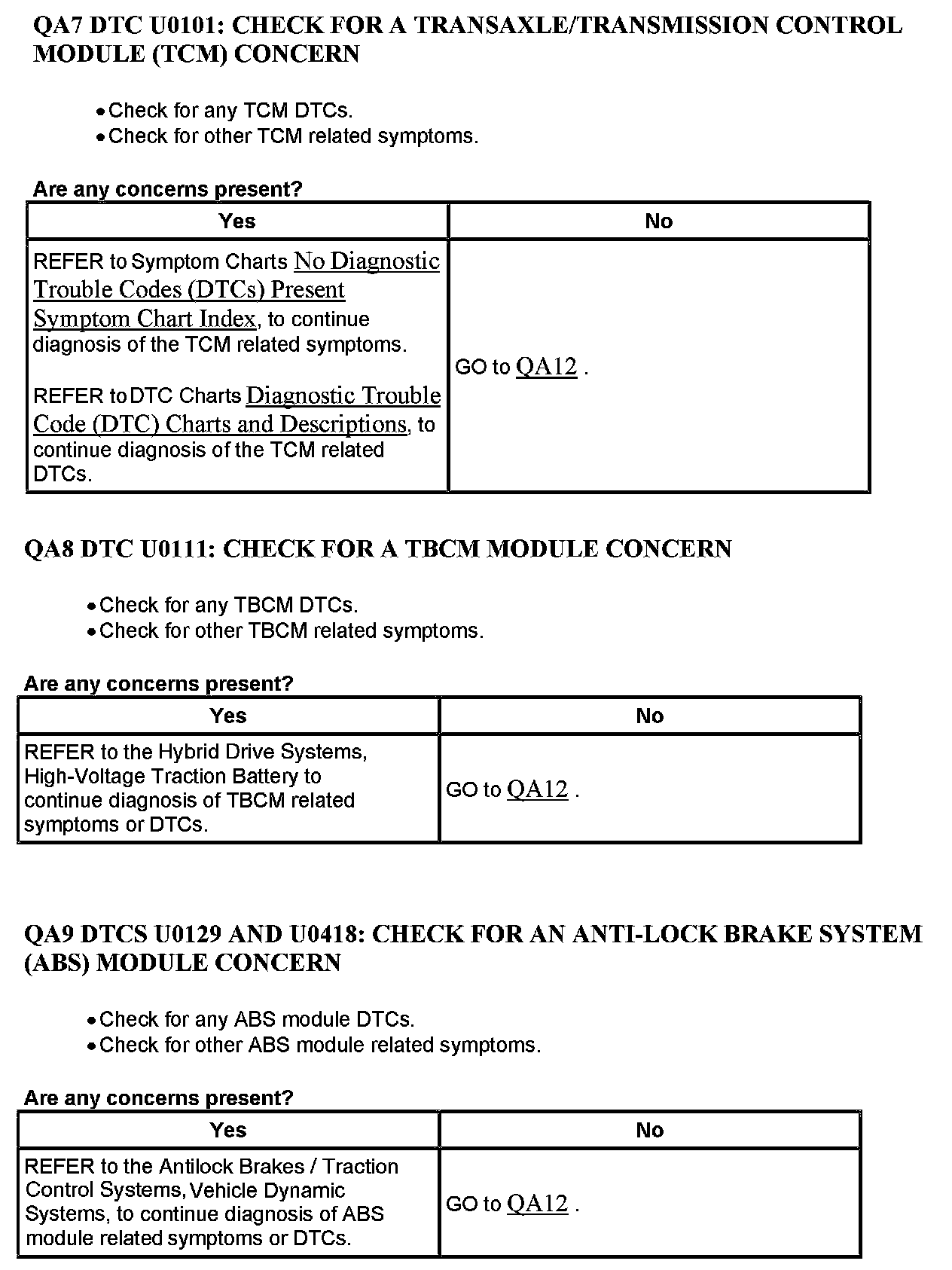

QA7-QA9:

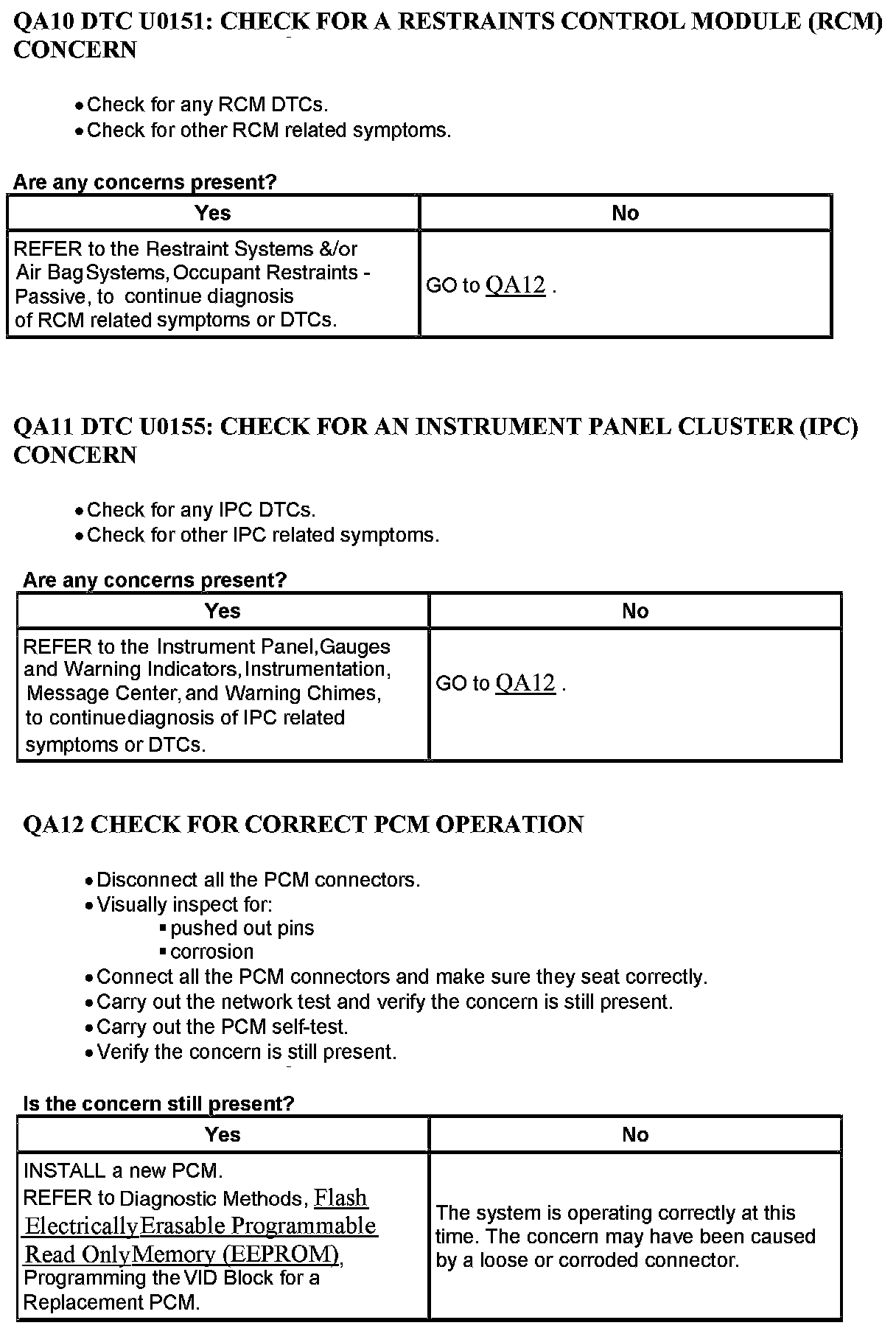

QA10-QA12:
