Test TM: Traction Motor Over Temperature

PINPOINT TEST TM: TRACTION MOTOR OVER TEMPERATURE

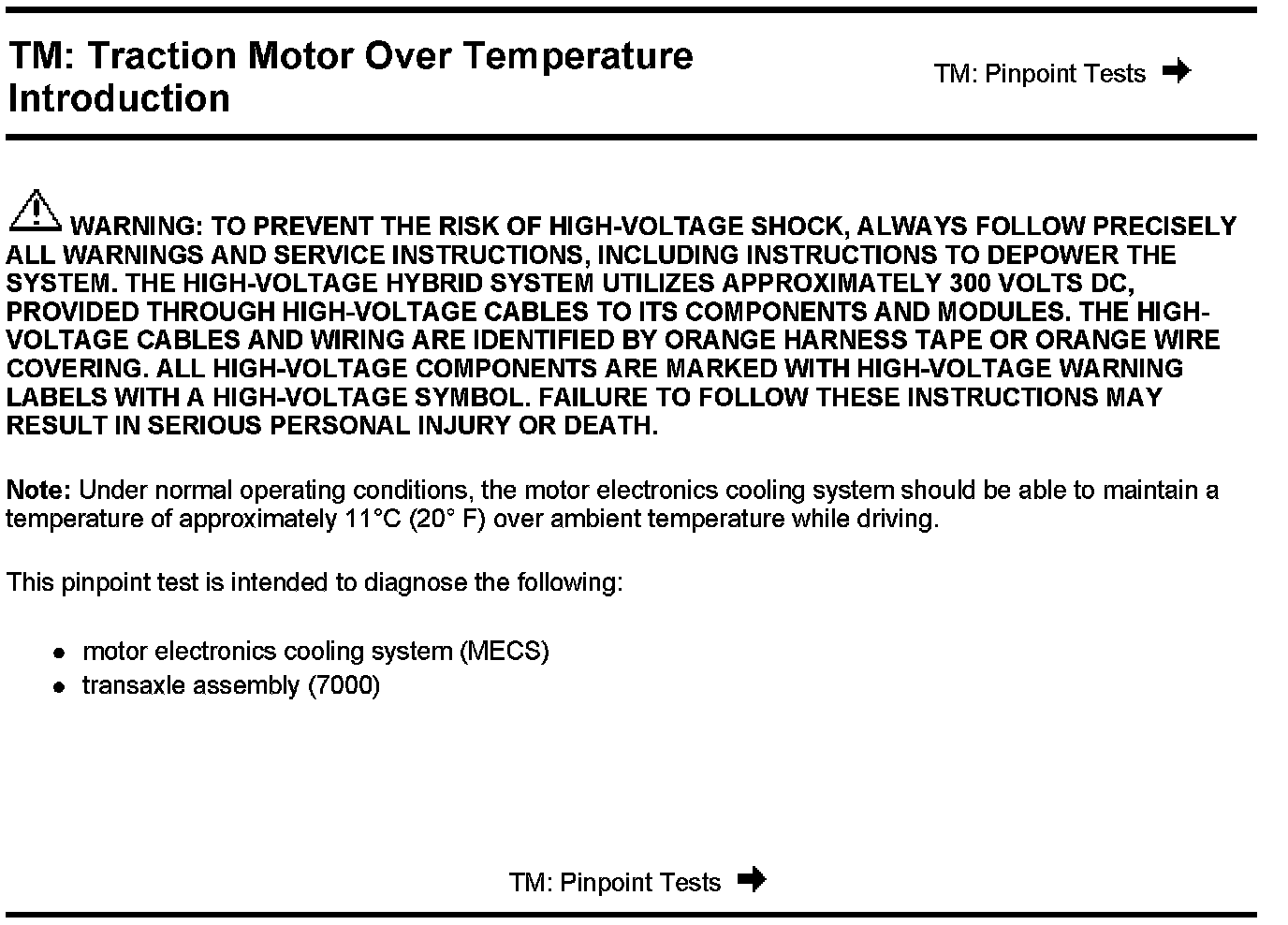

Warning And Note:

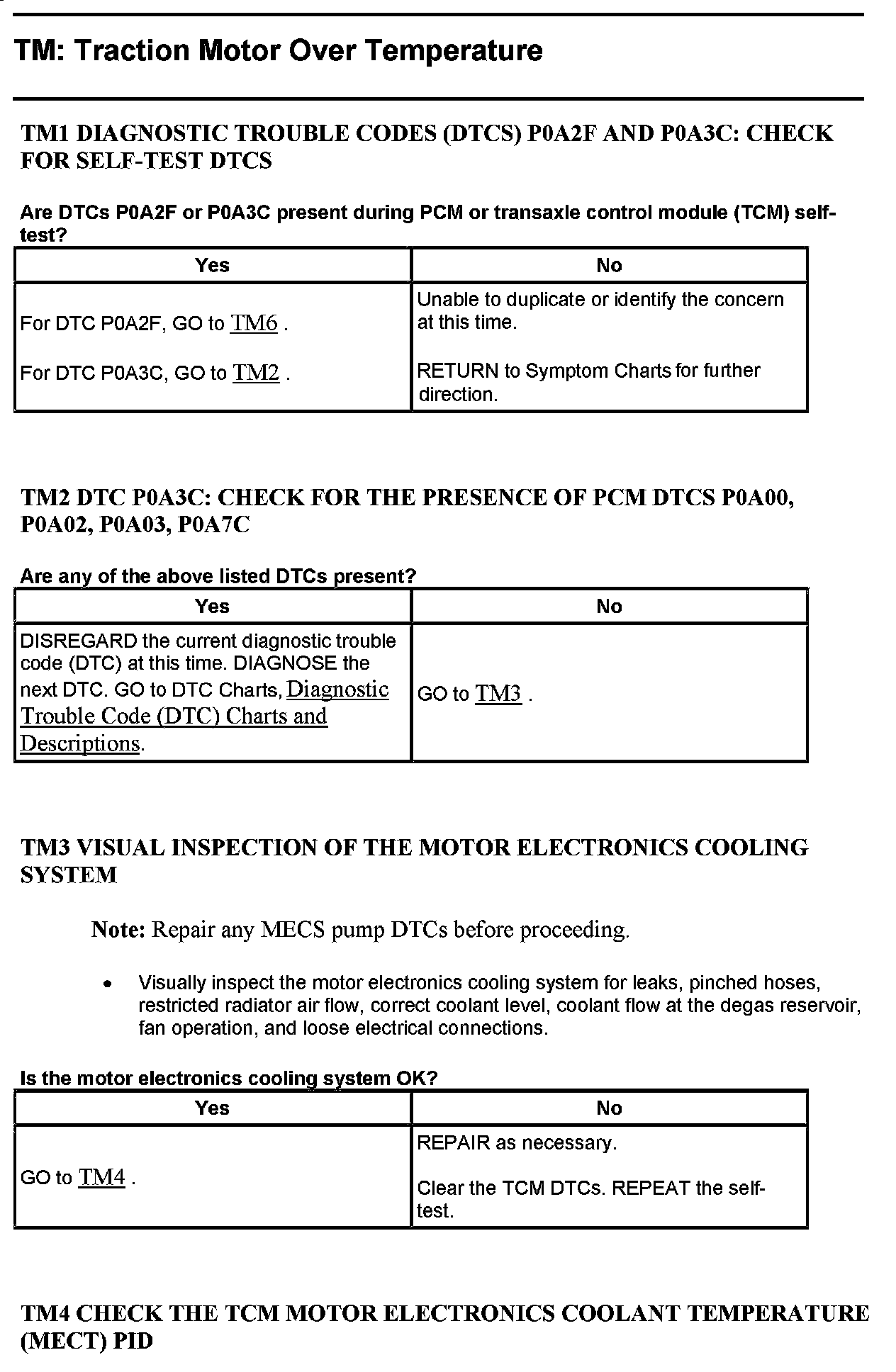

TM1-TM4:

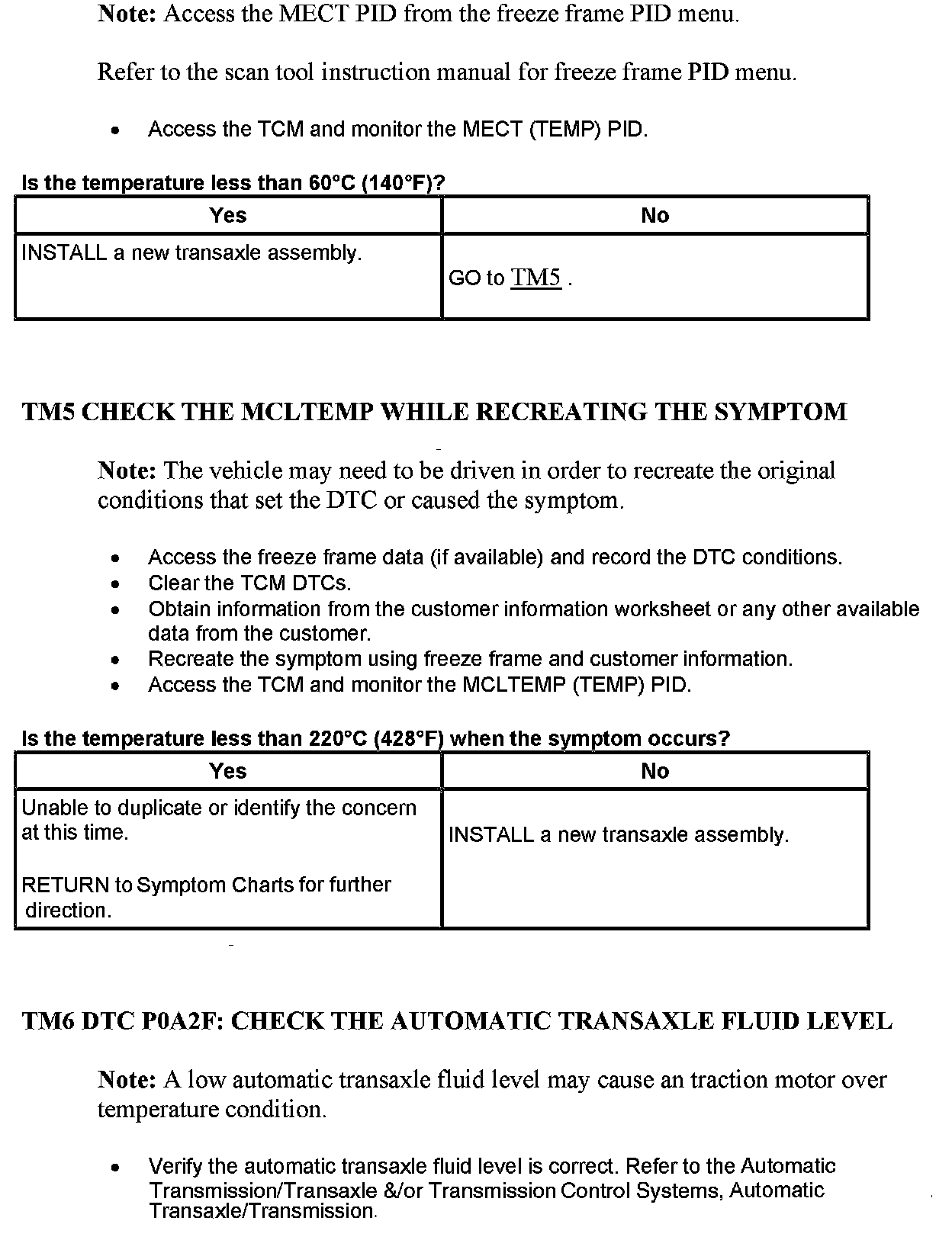

TM4-TM6:

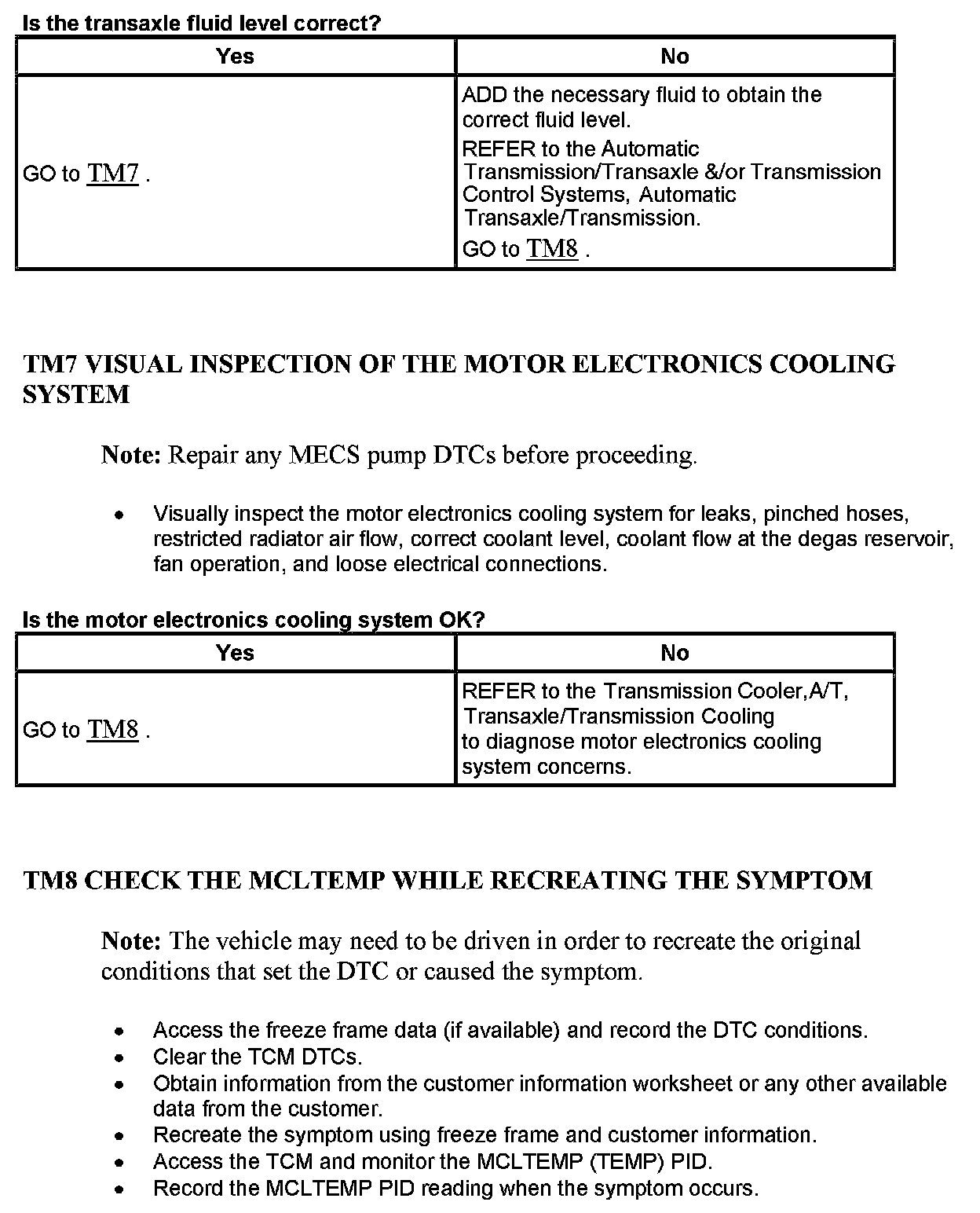

TM6-TM8:

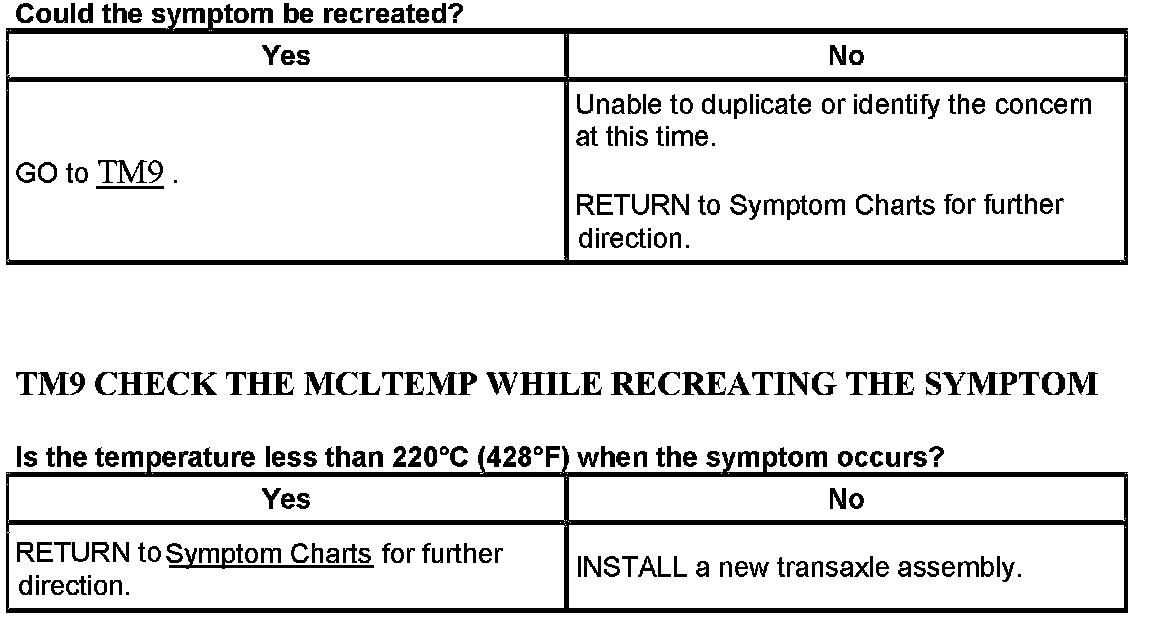

TM8-TM9:
