Test TY: Transmission Range Signal
PINPOINT TEST TY: TRANSMISSION RANGE SIGNAL

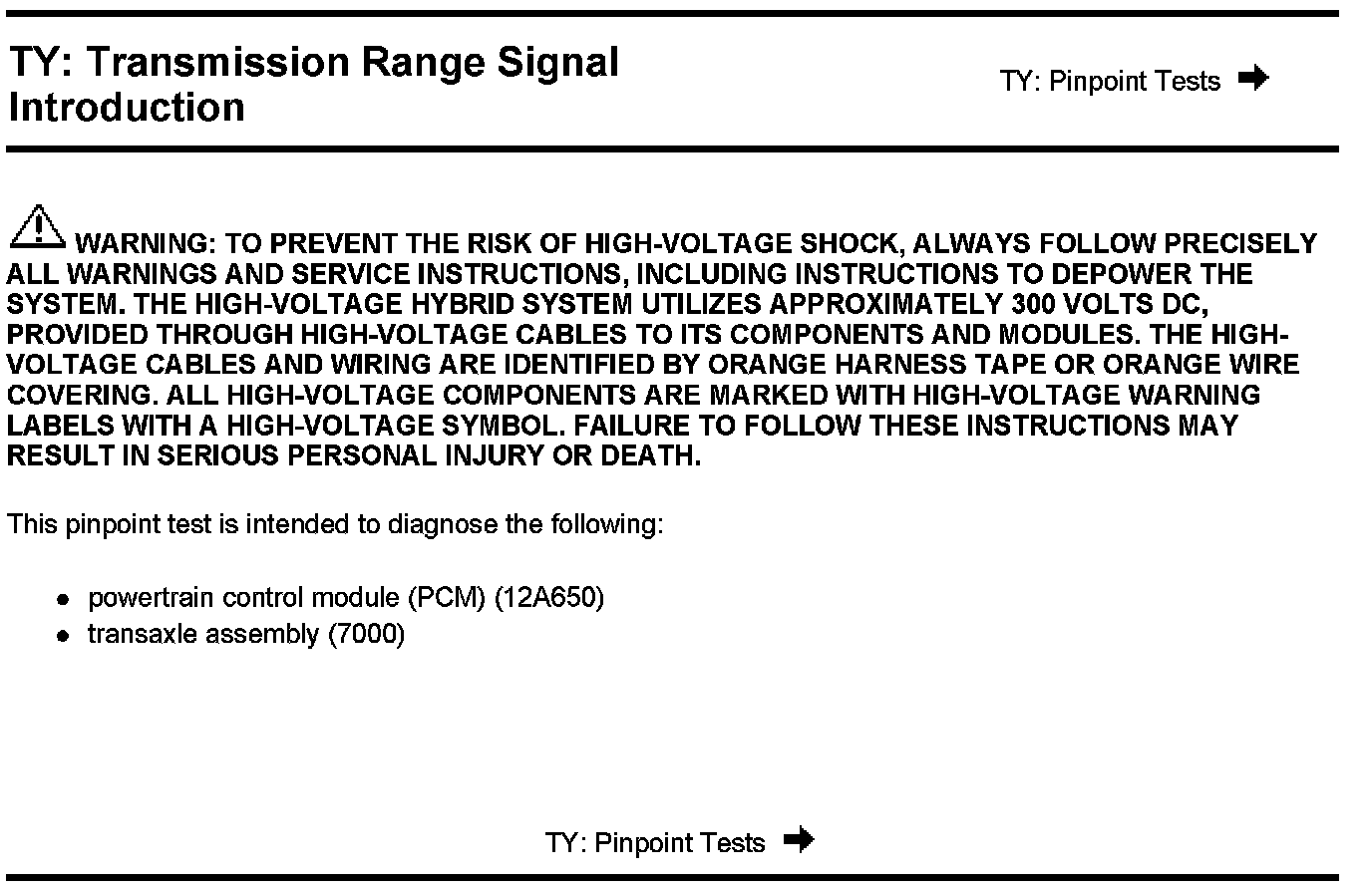

Warning:

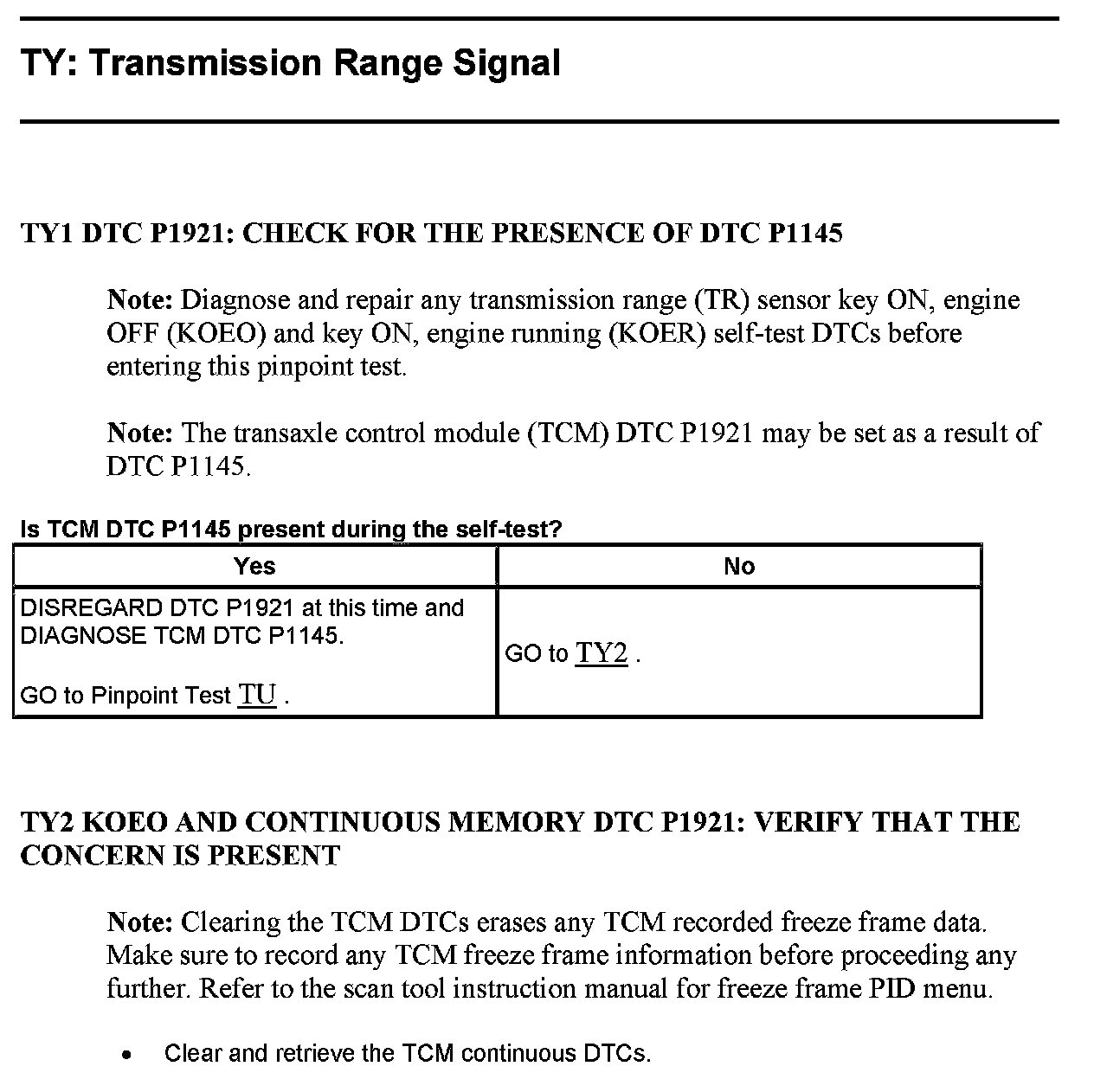

TY1-TY2:

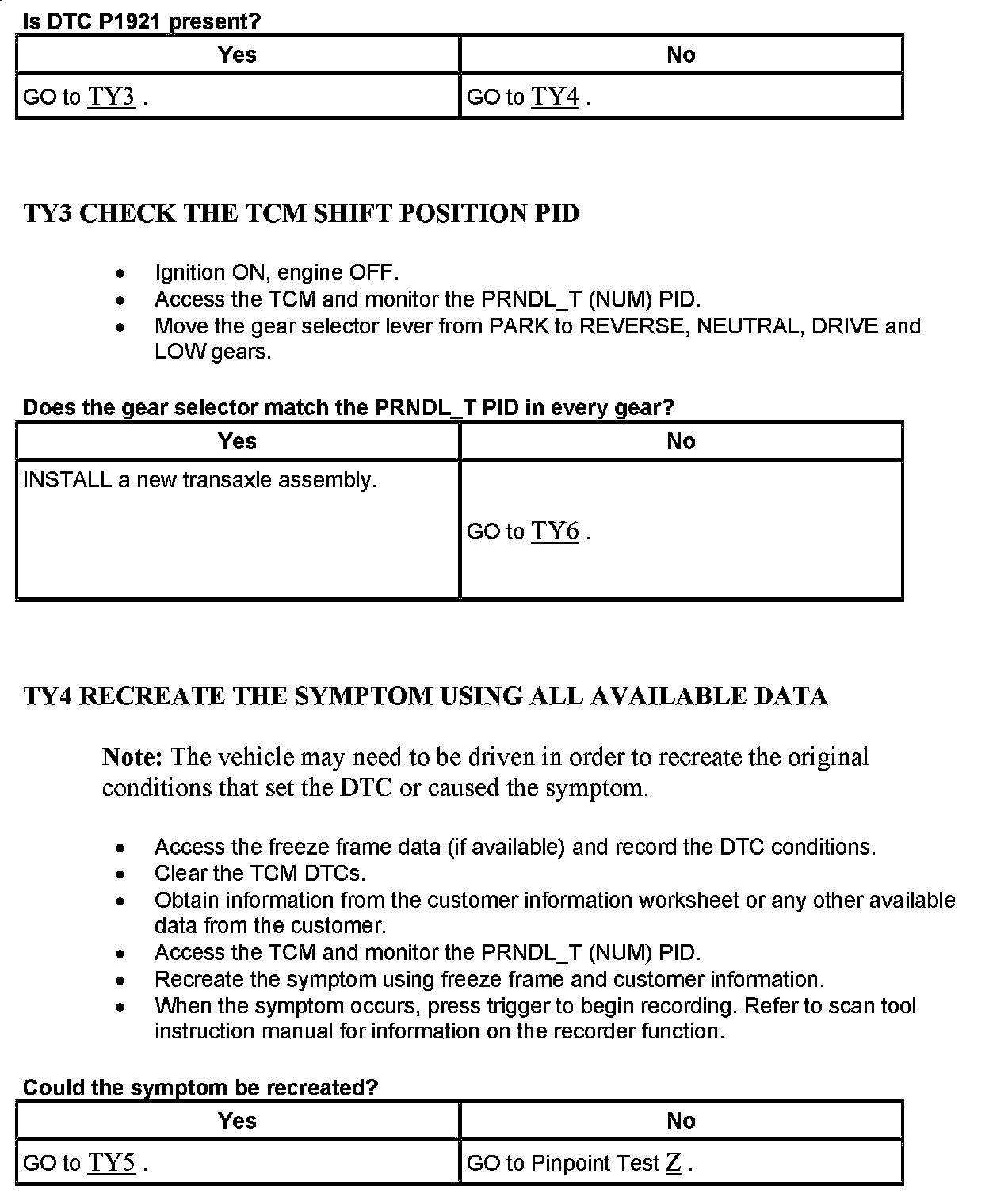

TY2-TY4:

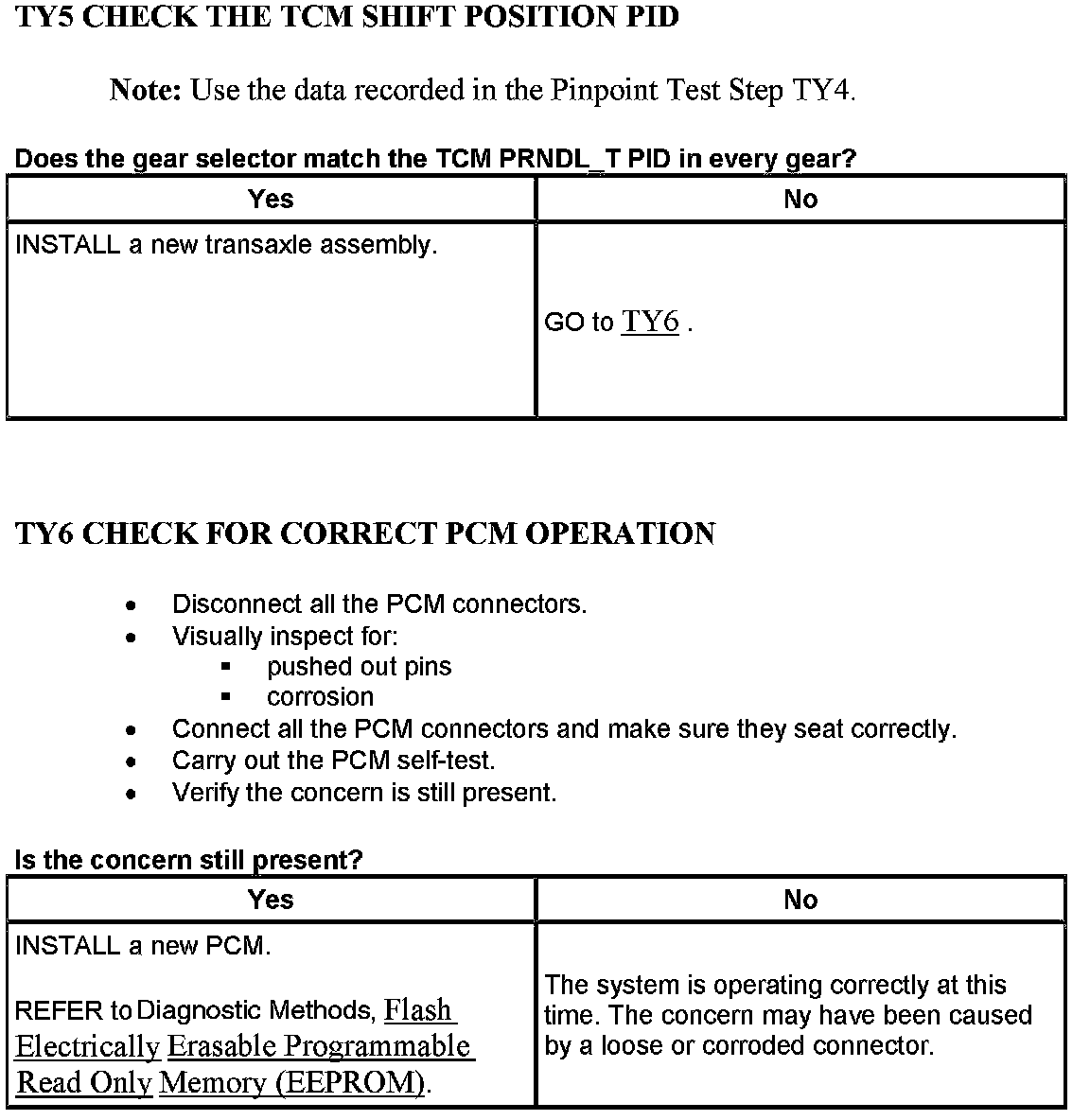

TY5-TY6:
