HVAC Module DTC Chart

Climate Control System

DTC Charts

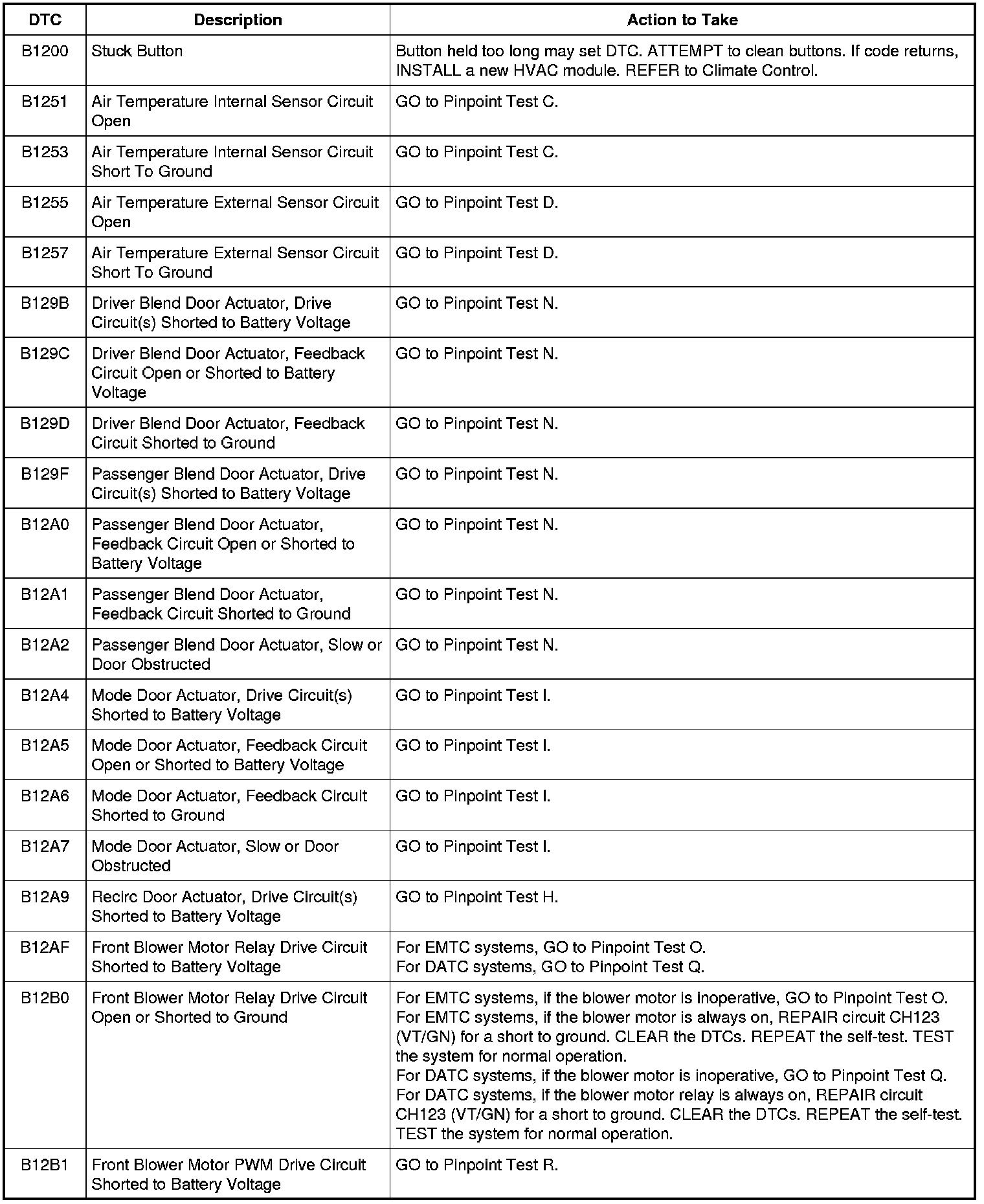

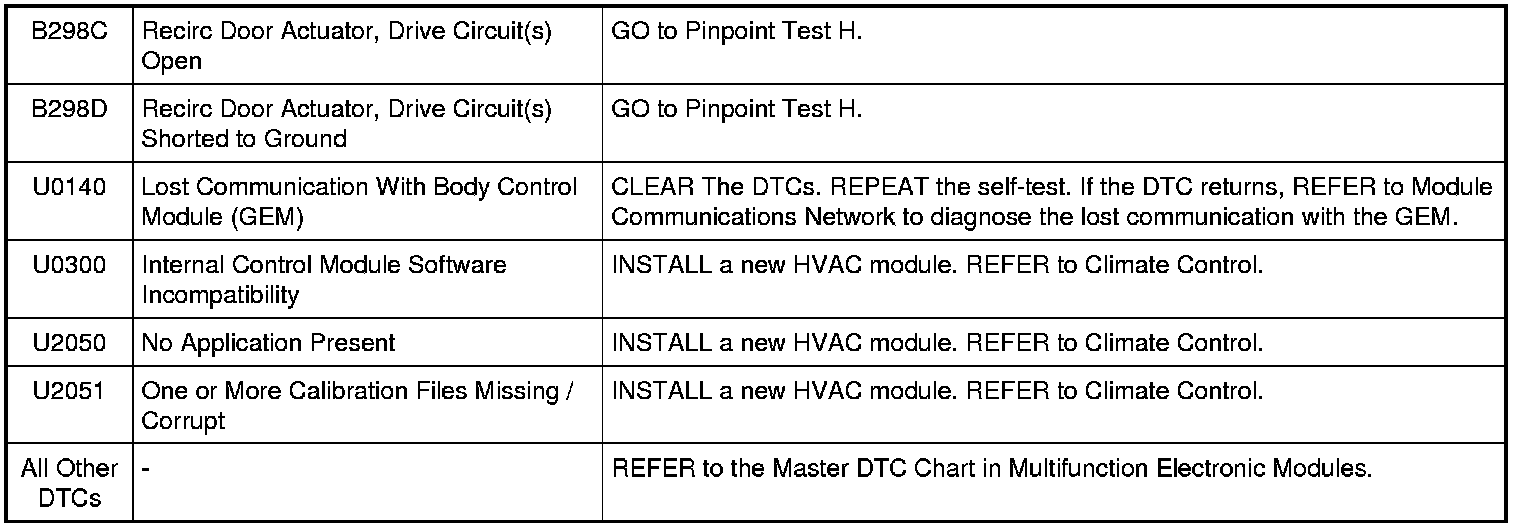

HVAC Module DTC Chart

NOTE: Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those first. Refer to the PCM DTC Chart. PCM DTC Chart
