Interior Lighting Module: Service and Repair

Ambient Lighting Module









Removal and Installation

Vehicles with a manual transaxle

1. Depress the parking brake pedal.

2. Shift the transmission into NEUTRAL (N).

Vehicles with an automatic transaxle

3. Remove the selector lever trim ring.

Vehicles with a manual transaxle

4. Disengage the gearshift boot trim ring.

All vehicles

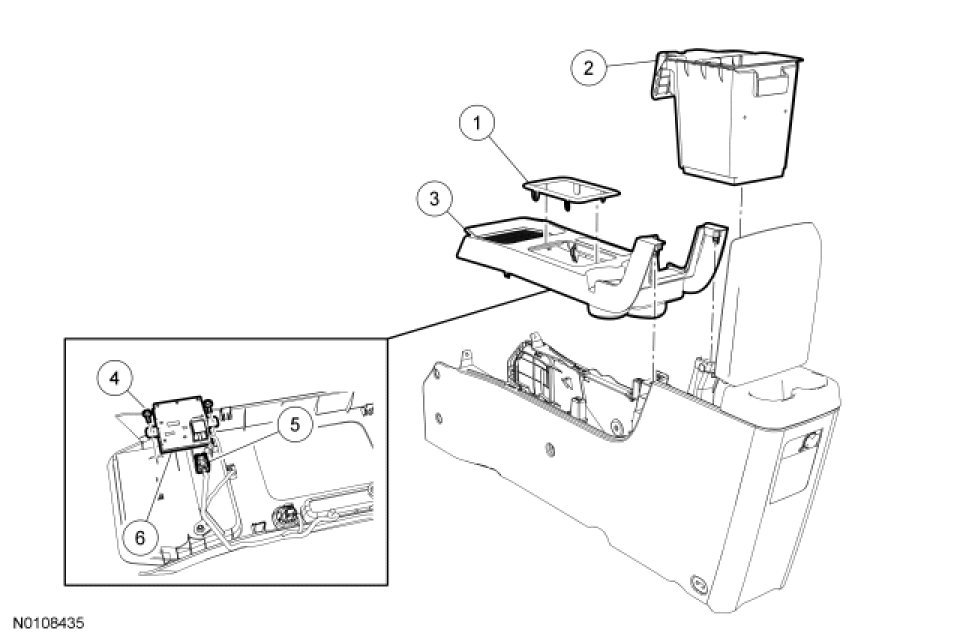

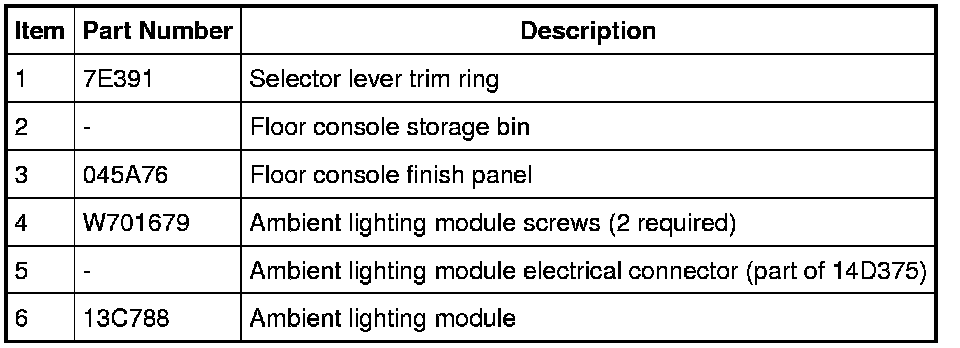

5. Remove the floor console storage bin.

6. Remove the floor console finish panel.
- Disconnect the electrical connectors.

7. Remove the 2 screws and the ambient lighting module.
- Disconnect the electrical connector.

8. To install, reverse the removal procedure.
- Make sure to align the trim panel retaining clips to the retaining clip holes in the floor console.
