Connector Locations

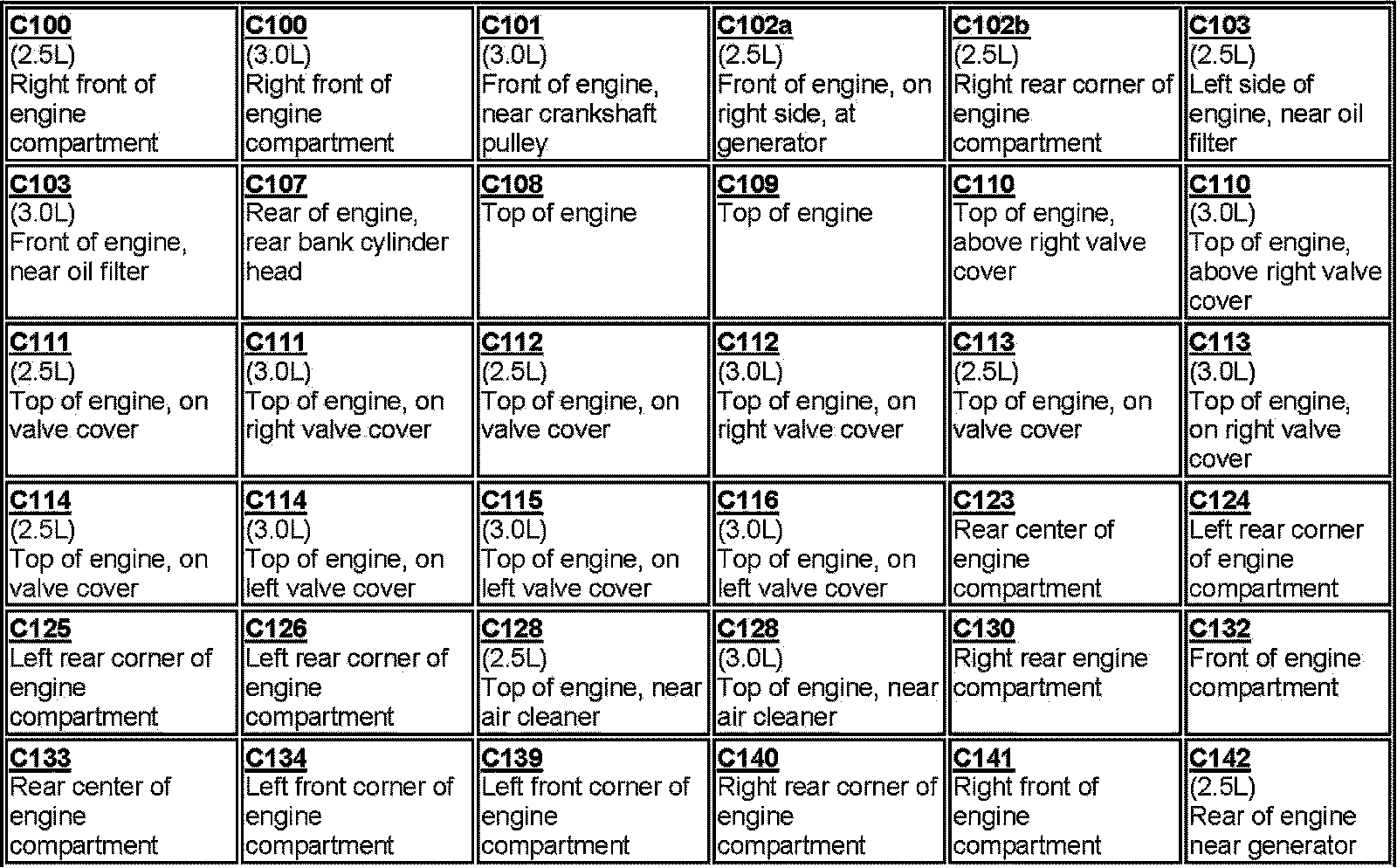

C100-C142:

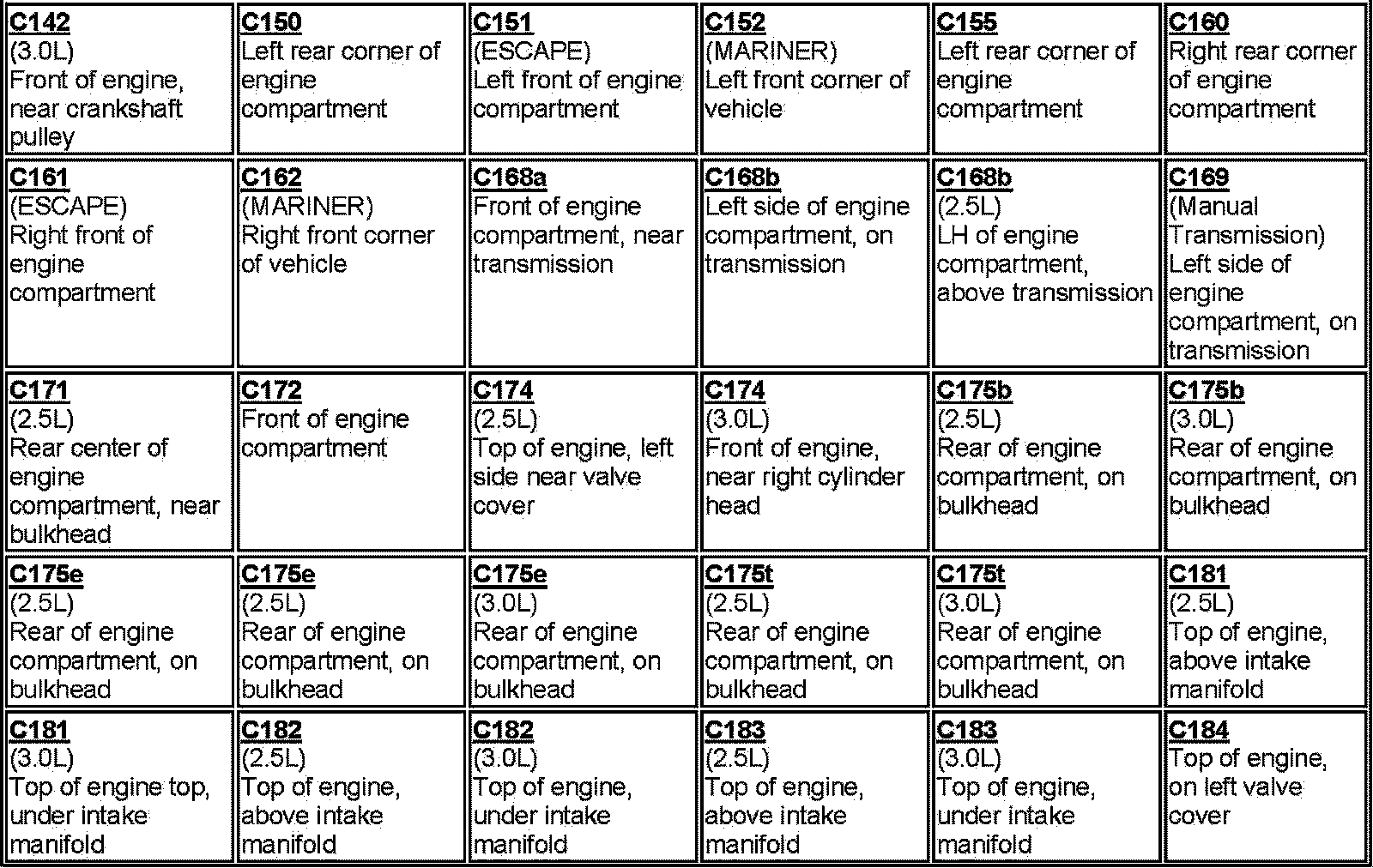

C142-C184:

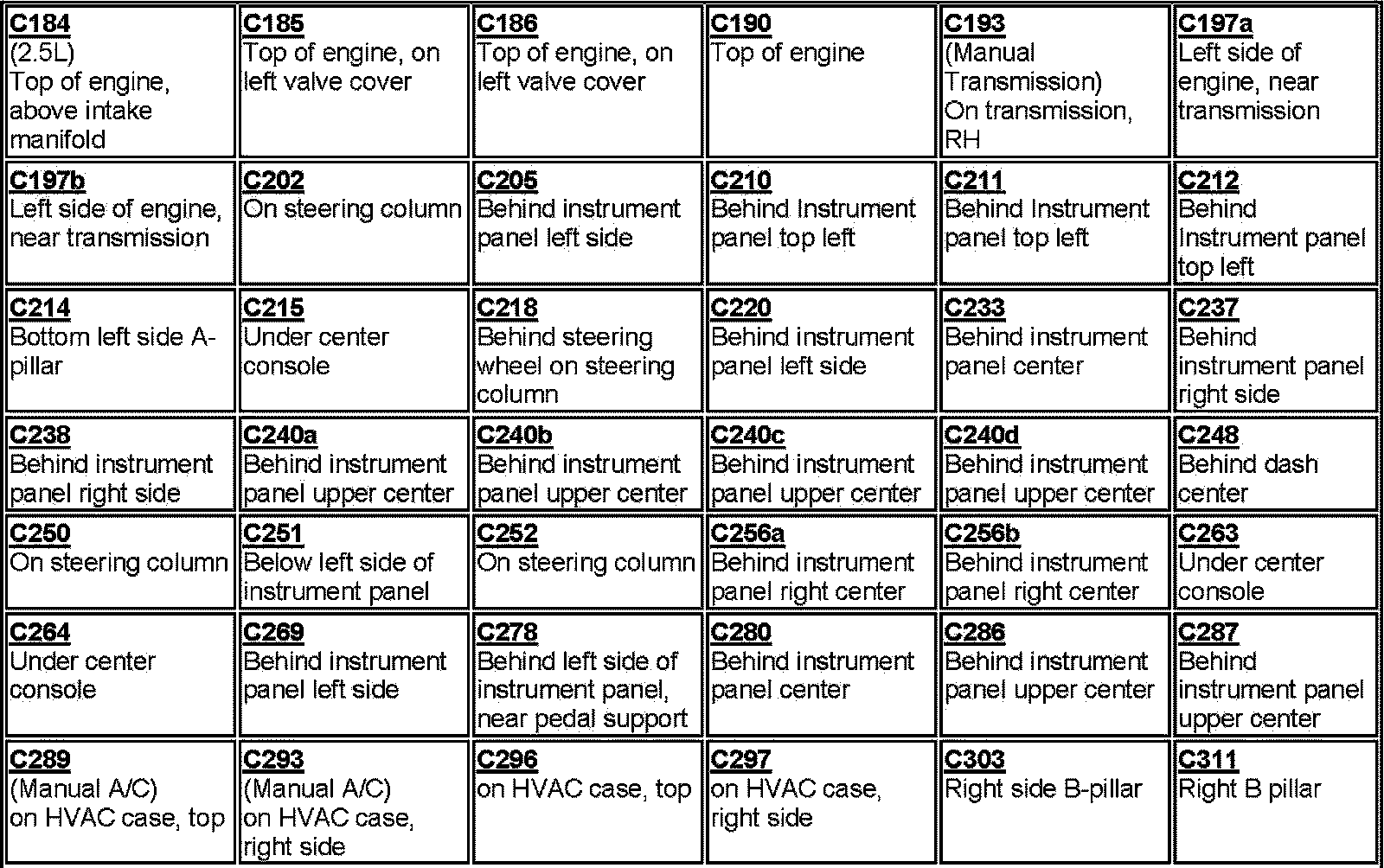

C184-C311:

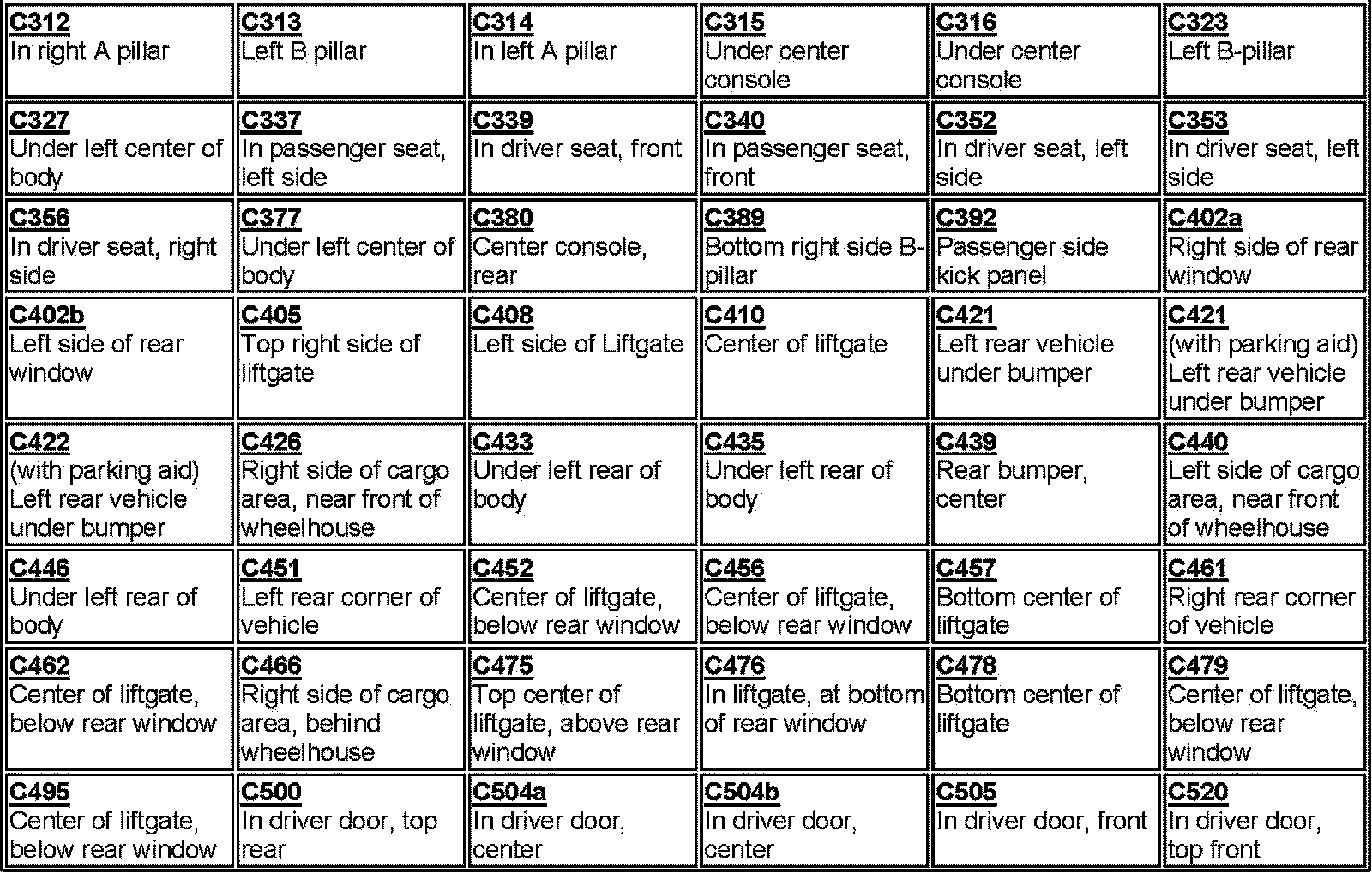

C312-C520:

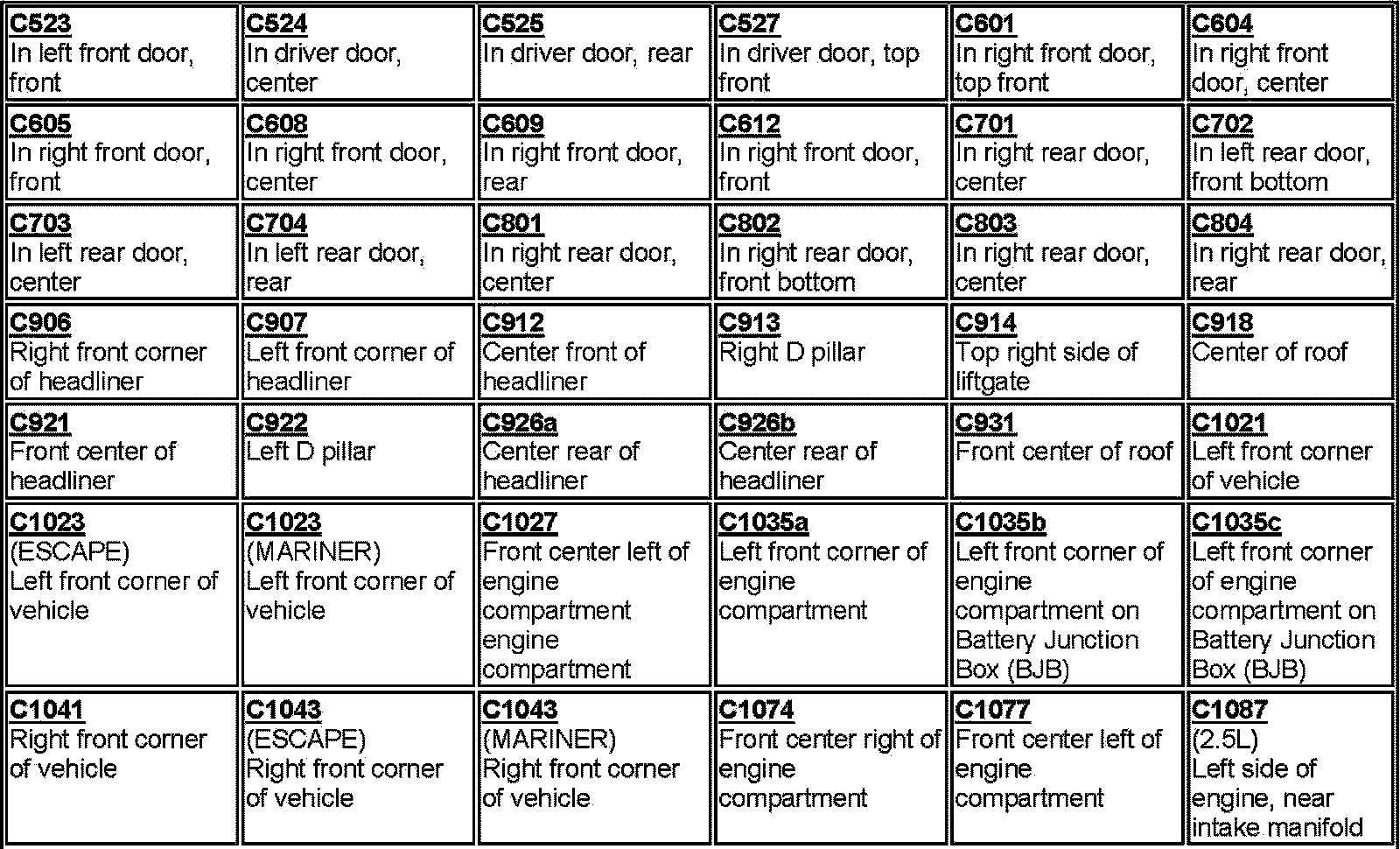

C523-C1087:

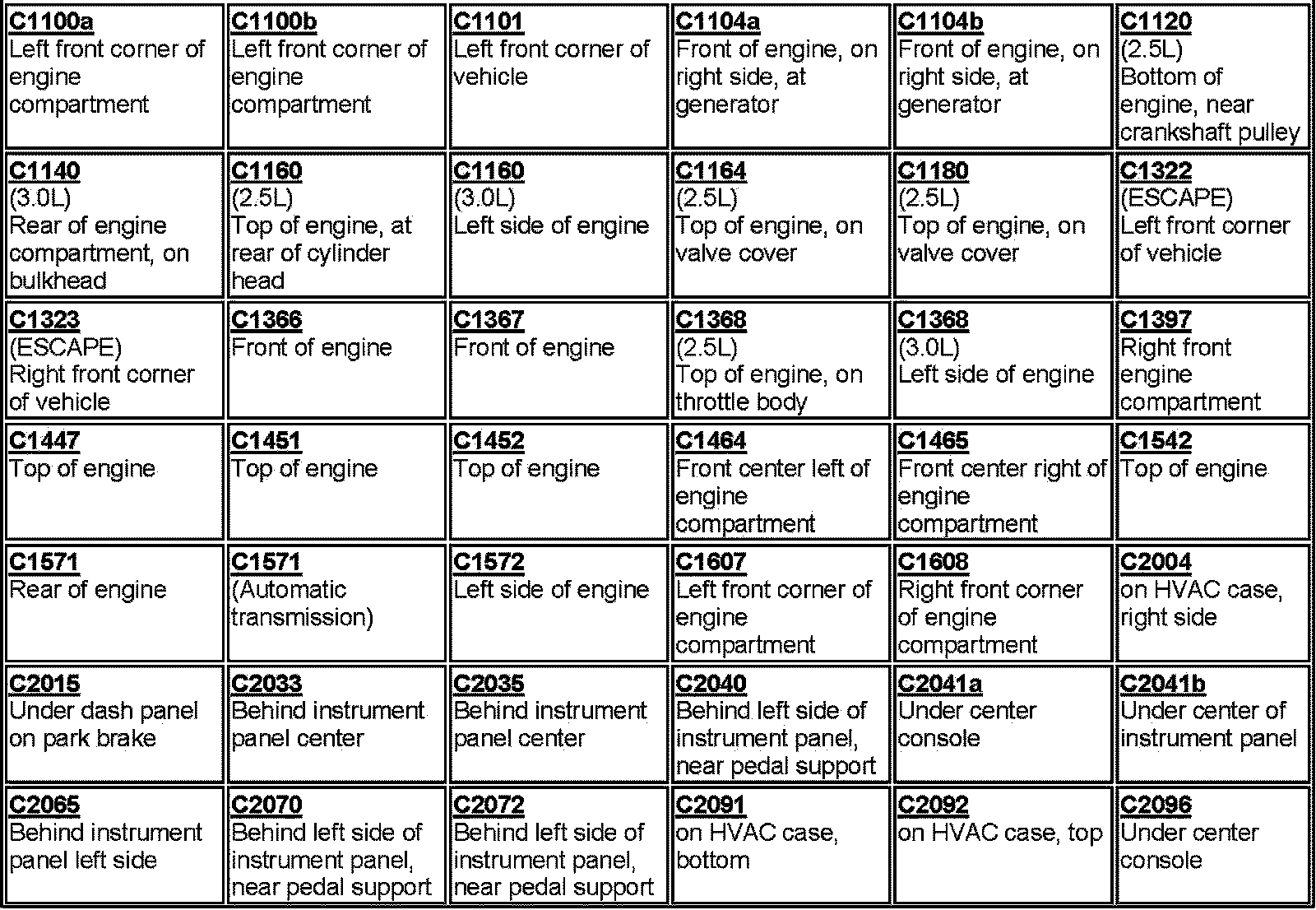

C1100a-C2096:

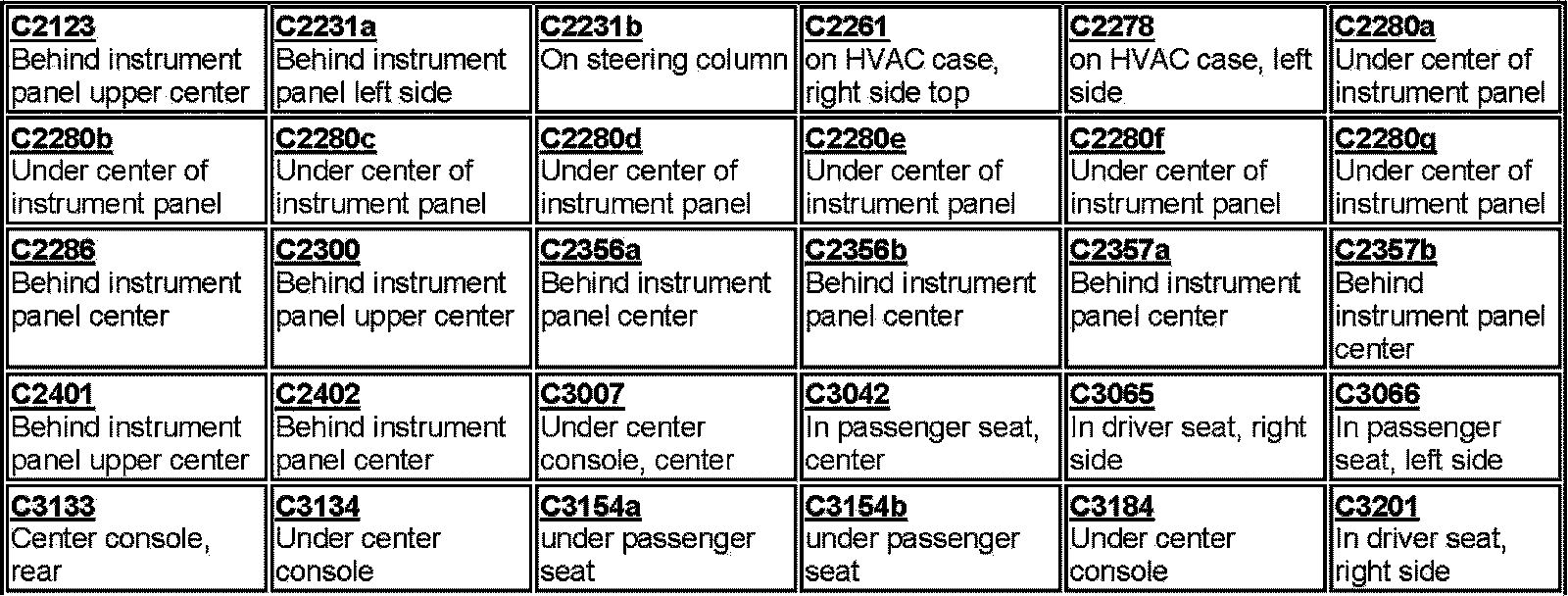

C2123-C3201:

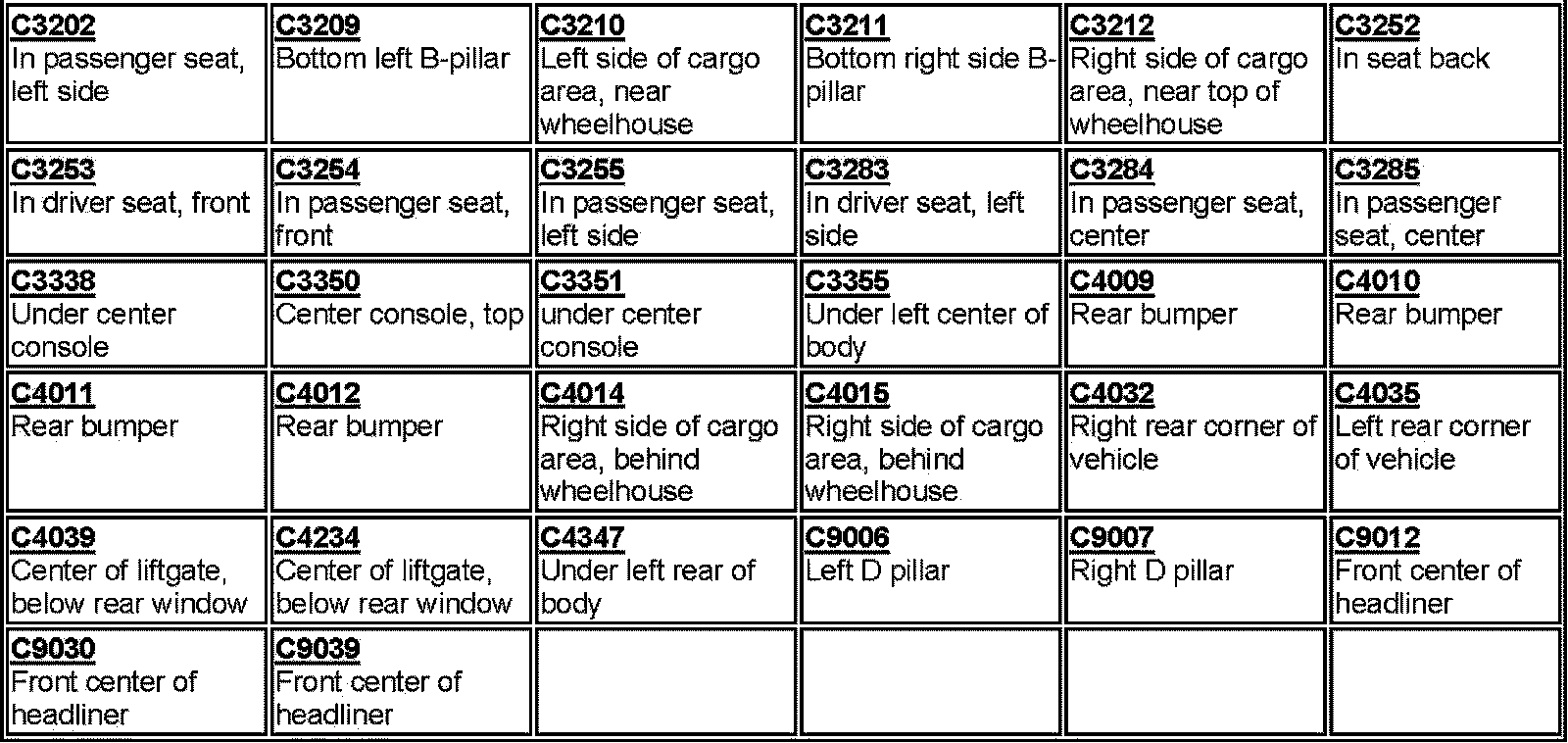

C3202-C9039:
