Power Window Switch: Service and Repair

Window Control Switch









Removal and Installation

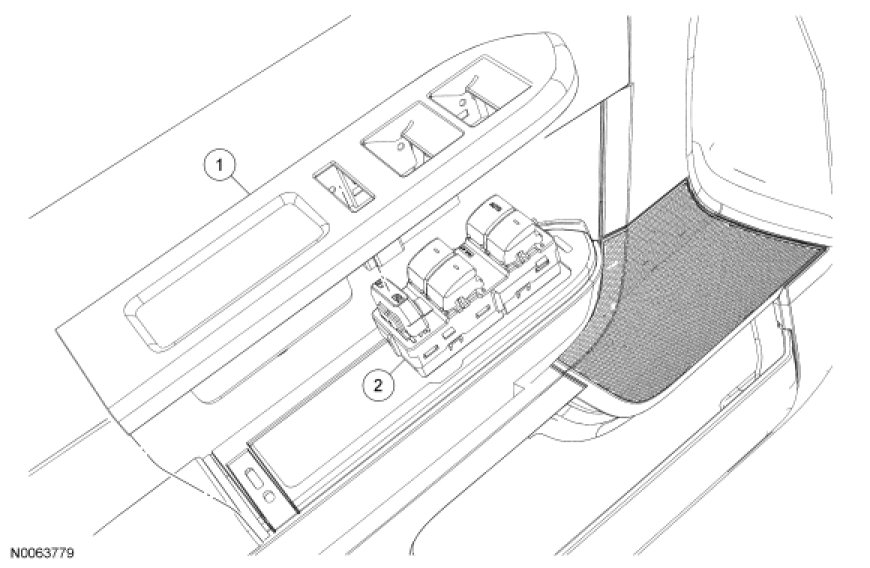

NOTE: LH front window control switch shown, all others similar.

NOTE: The removal and installation procedures for all window control switches are similar.

1. Remove the front door trim panel or the rear door trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

2. Release the window control switch bezel from the door trim panel.

3. Release the locking tabs and remove the window control switch from the bezel.

4. To install, reverse the removal procedure.
