Test A: Engine No Start

PINPOINT TEST A: ENGINE NO START

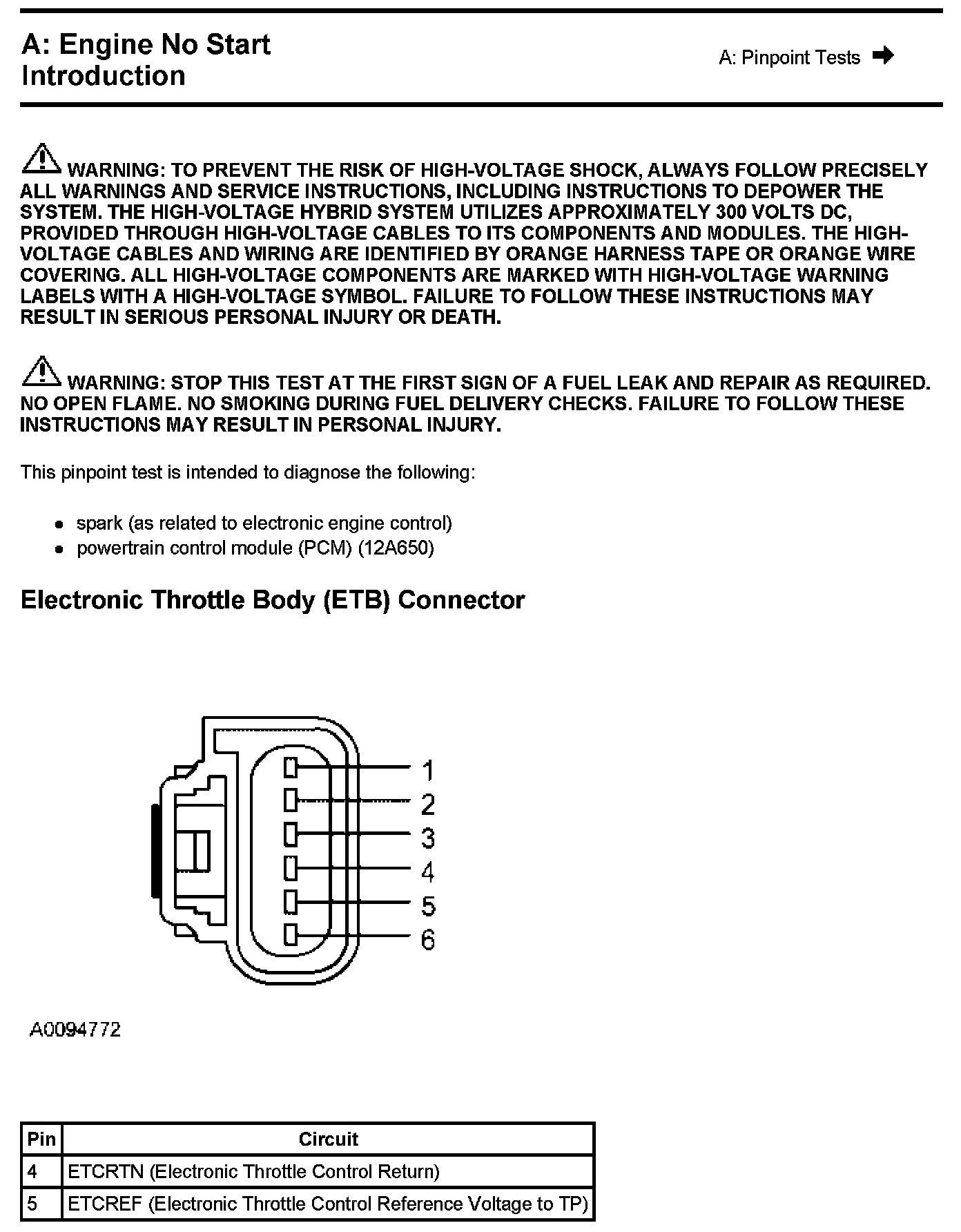

Warnings And Electronic Throttle Body (ETB) Connector:

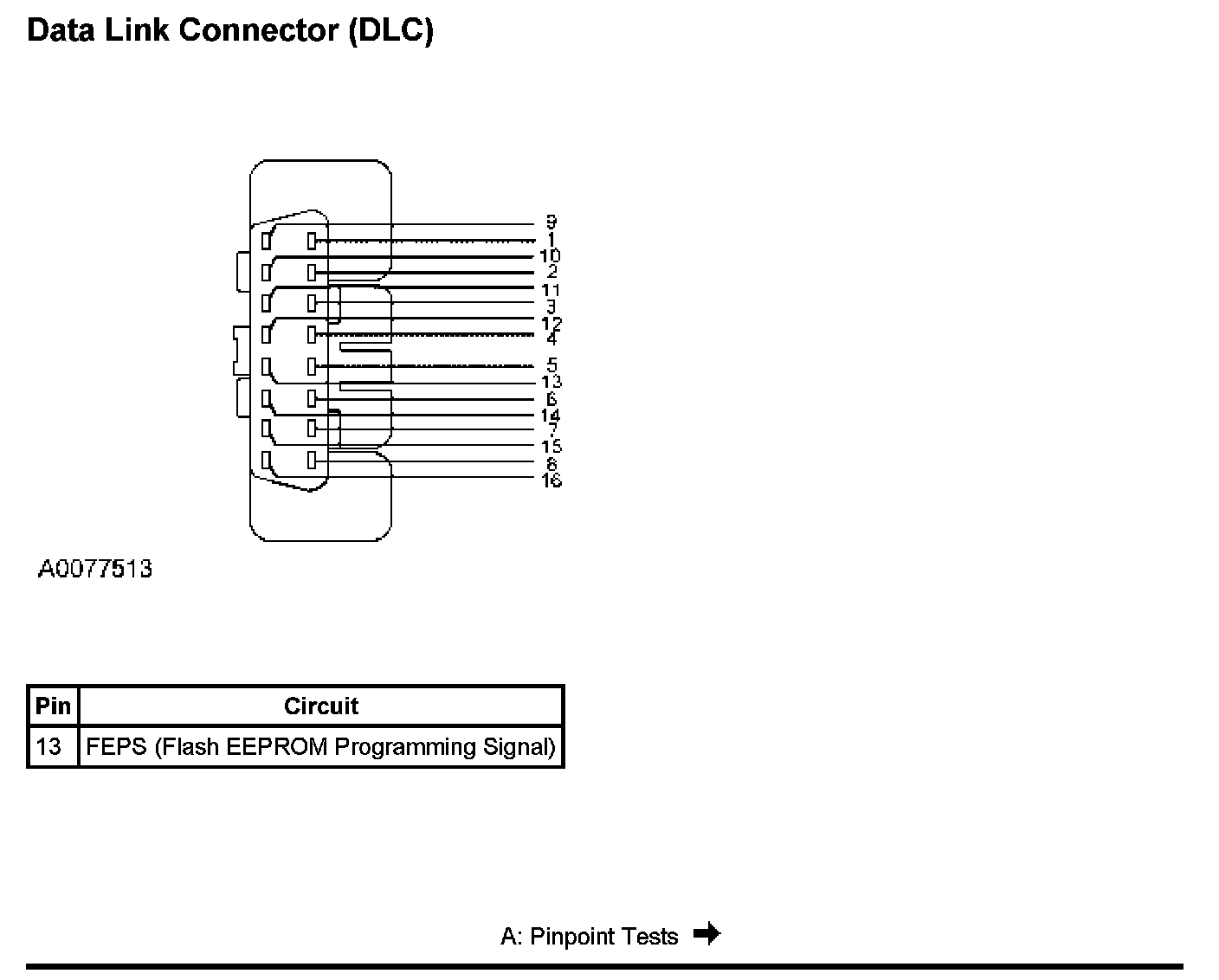

Data Link Connector (DLC):

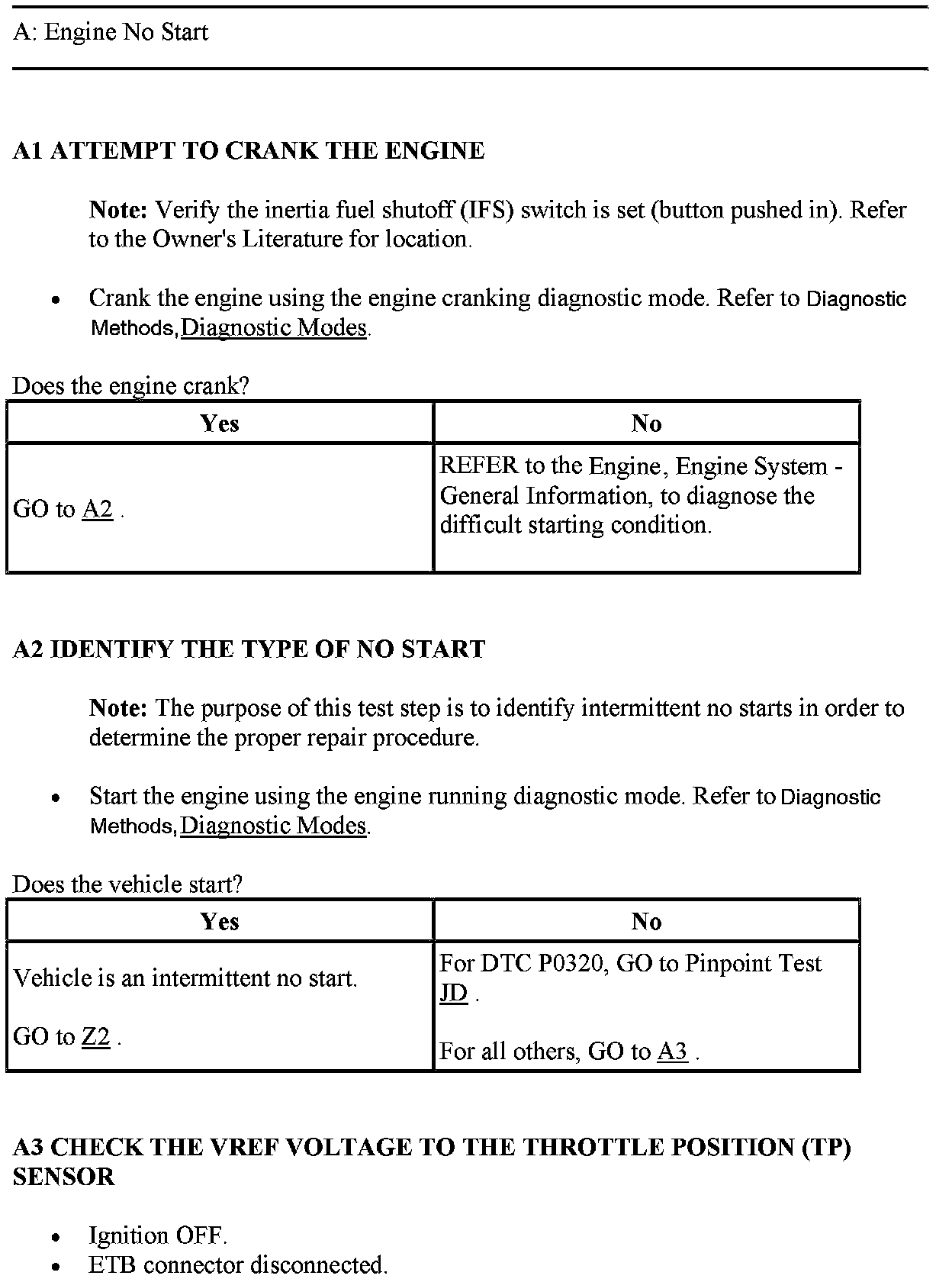

A1-A3:

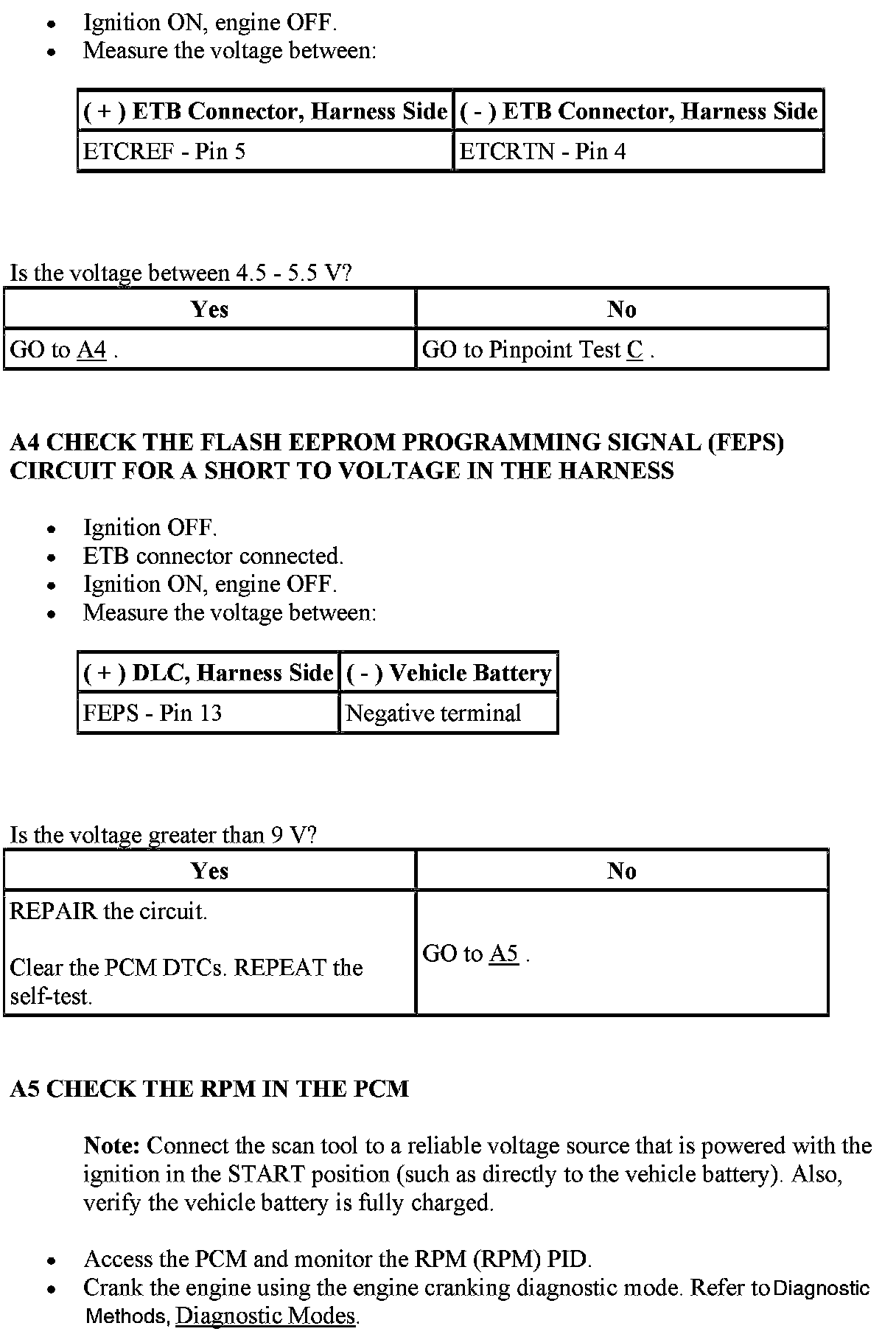

A3-A5:

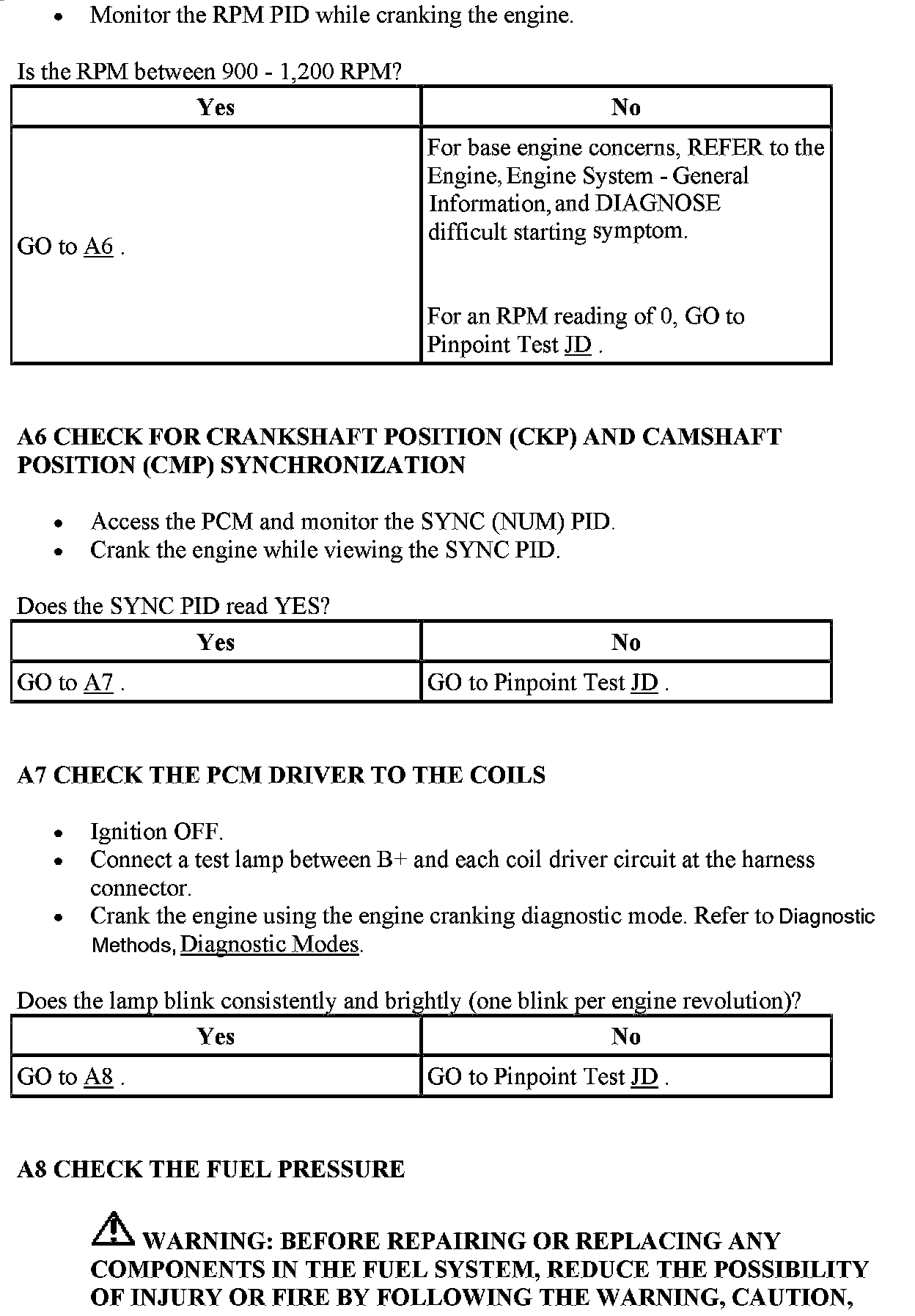

A5-A8:

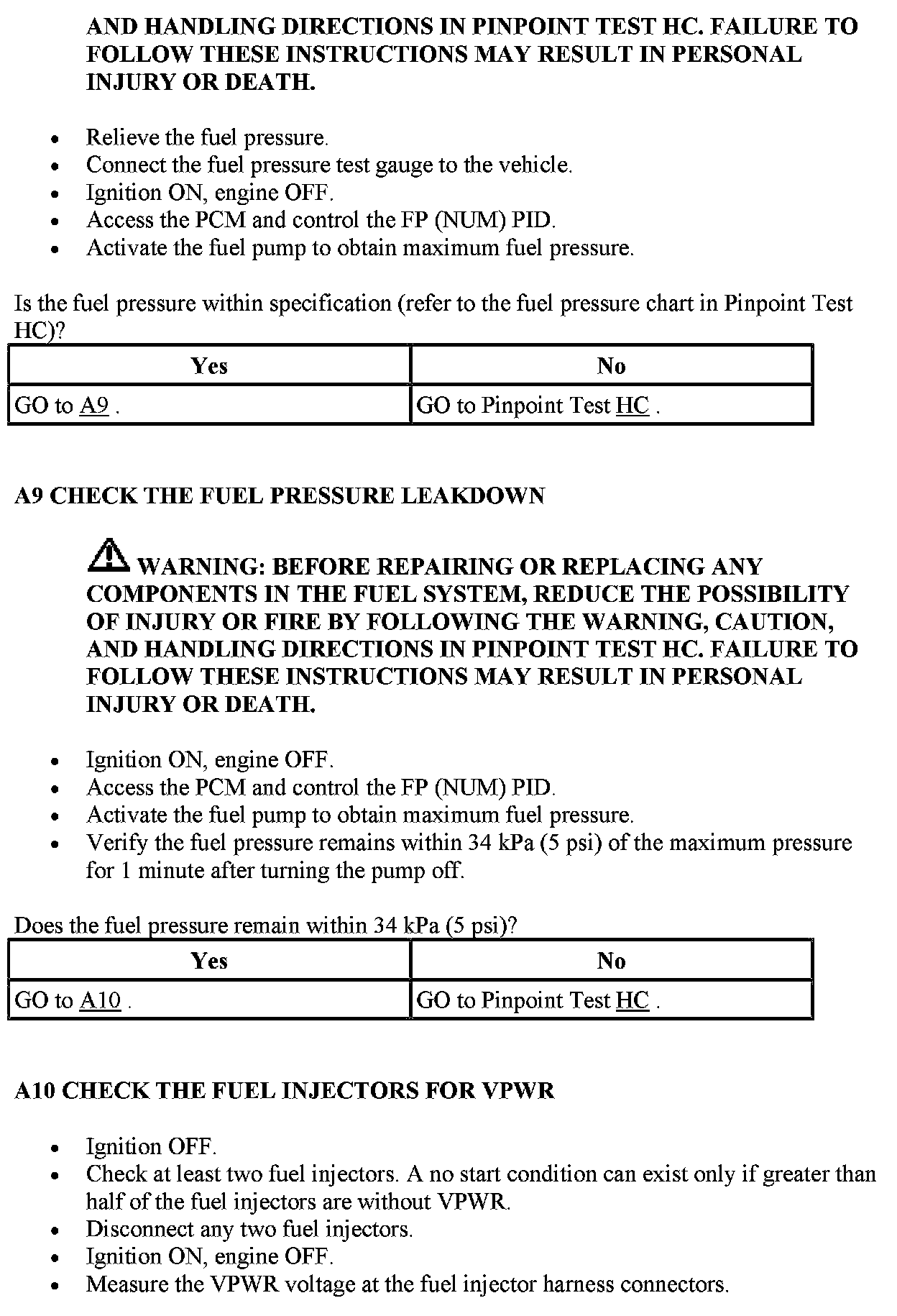

A8-A10:

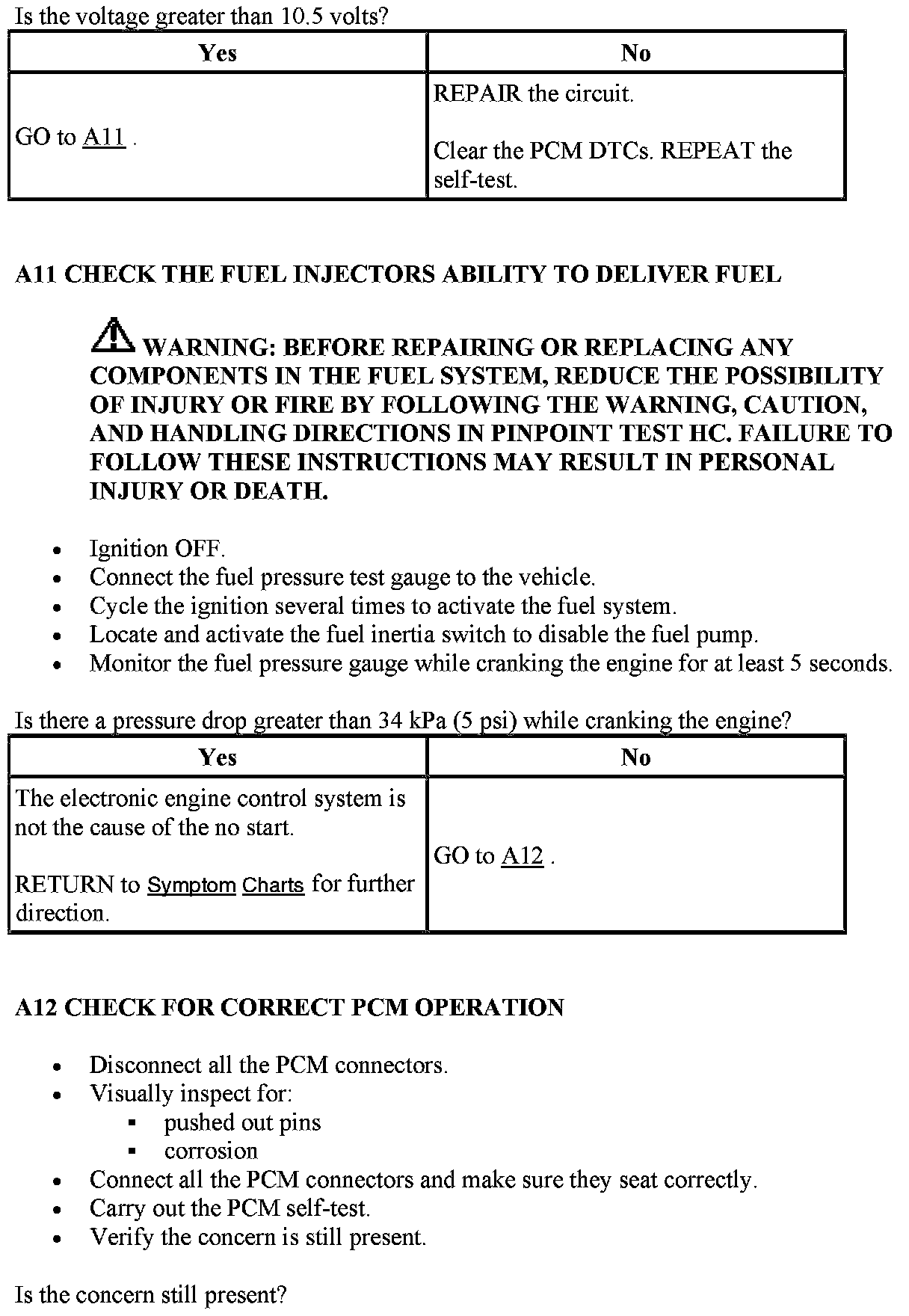

A10-A12:

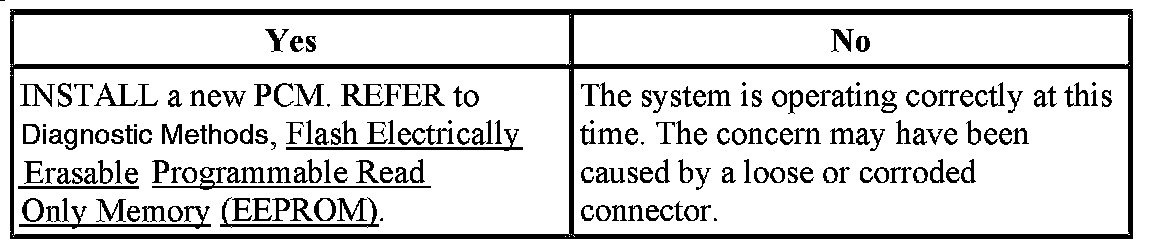

A12 Continued:
