Test DM: Manifold Absolute Pressure (MAP) Sensor
PINPOINT TEST DM: MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

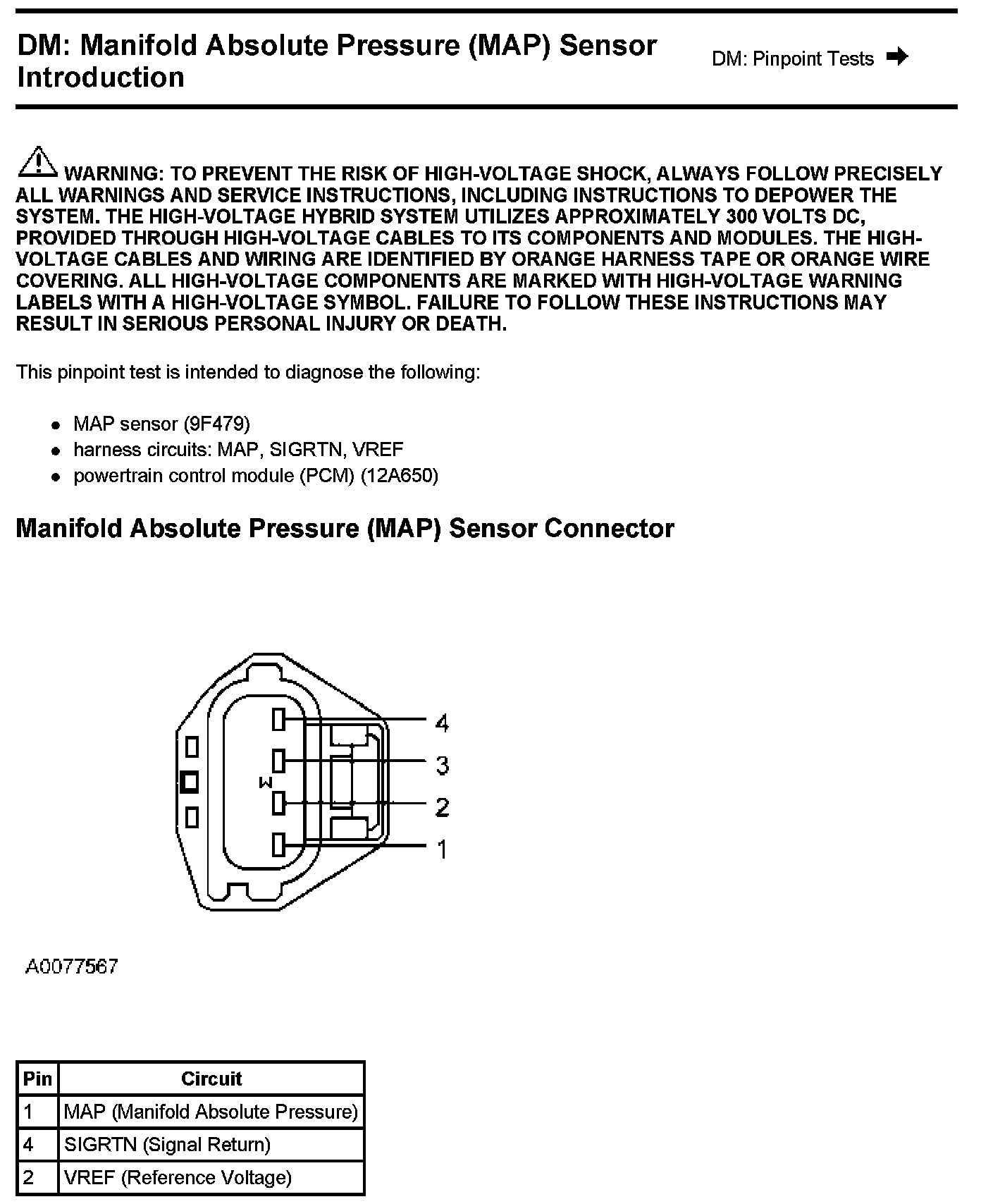

Warning And Manifold Absolute Pressure (MAP) Sensor Connector:

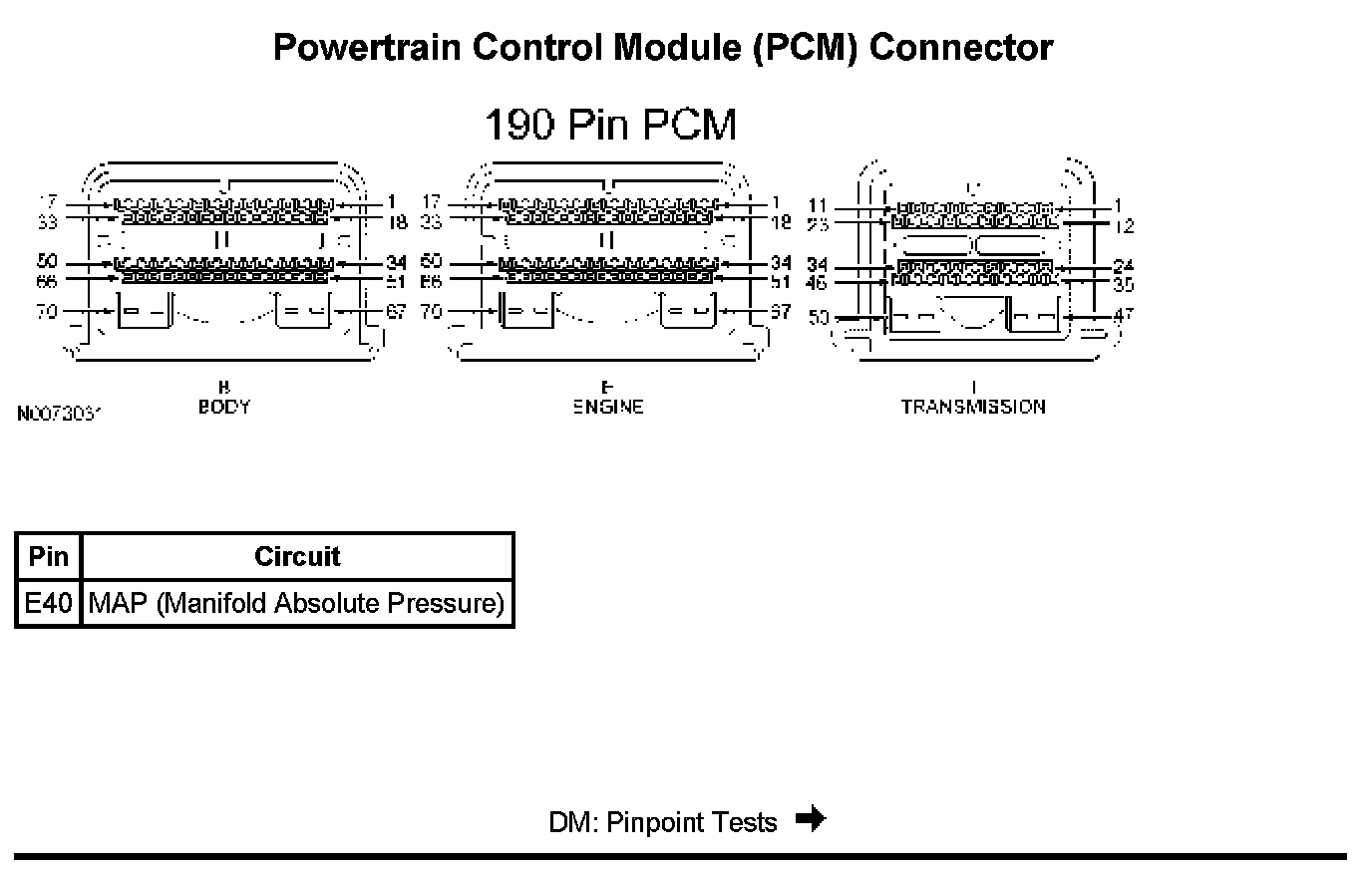

Powertrain Control Module (PCM) Connector:

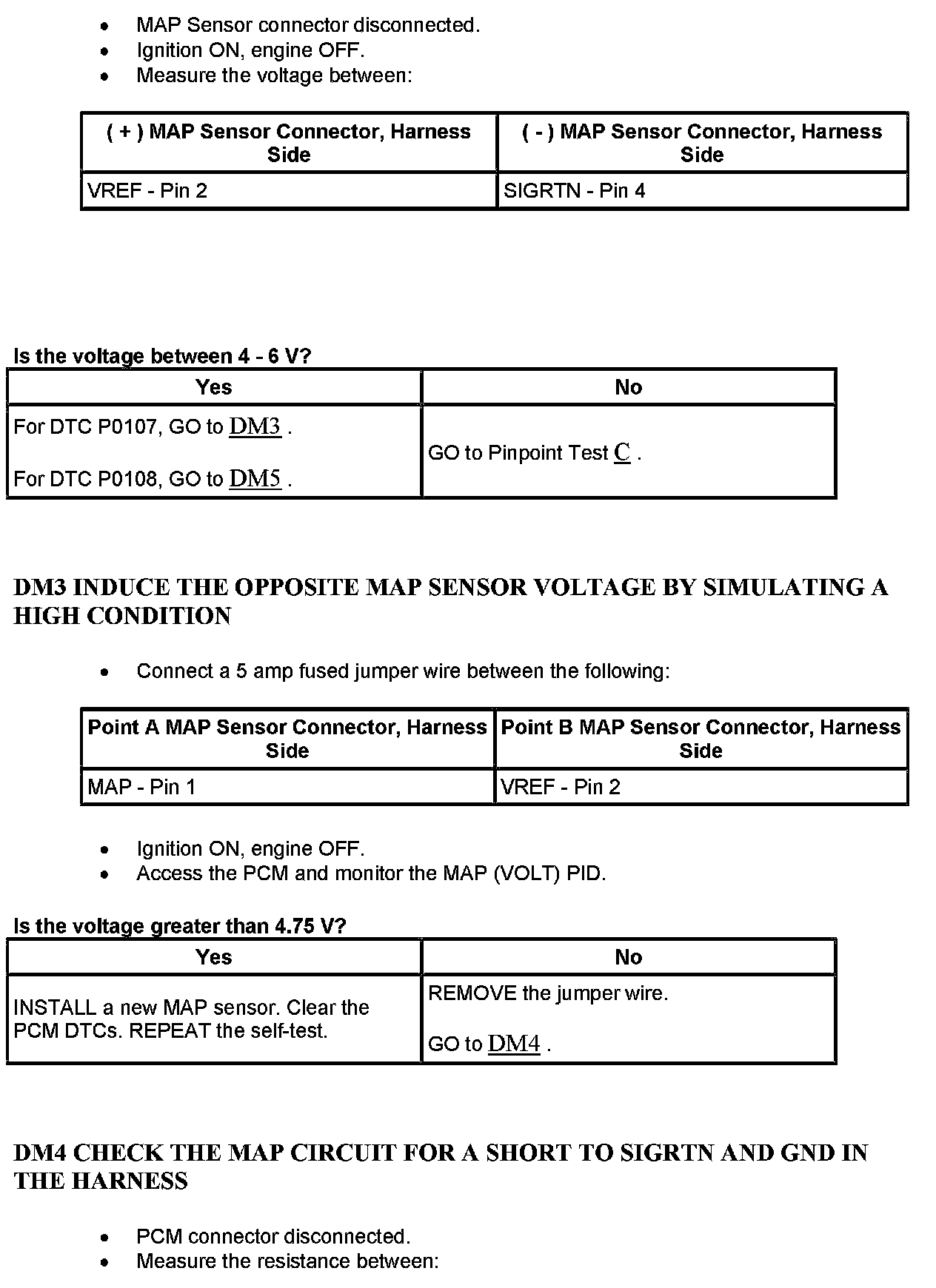

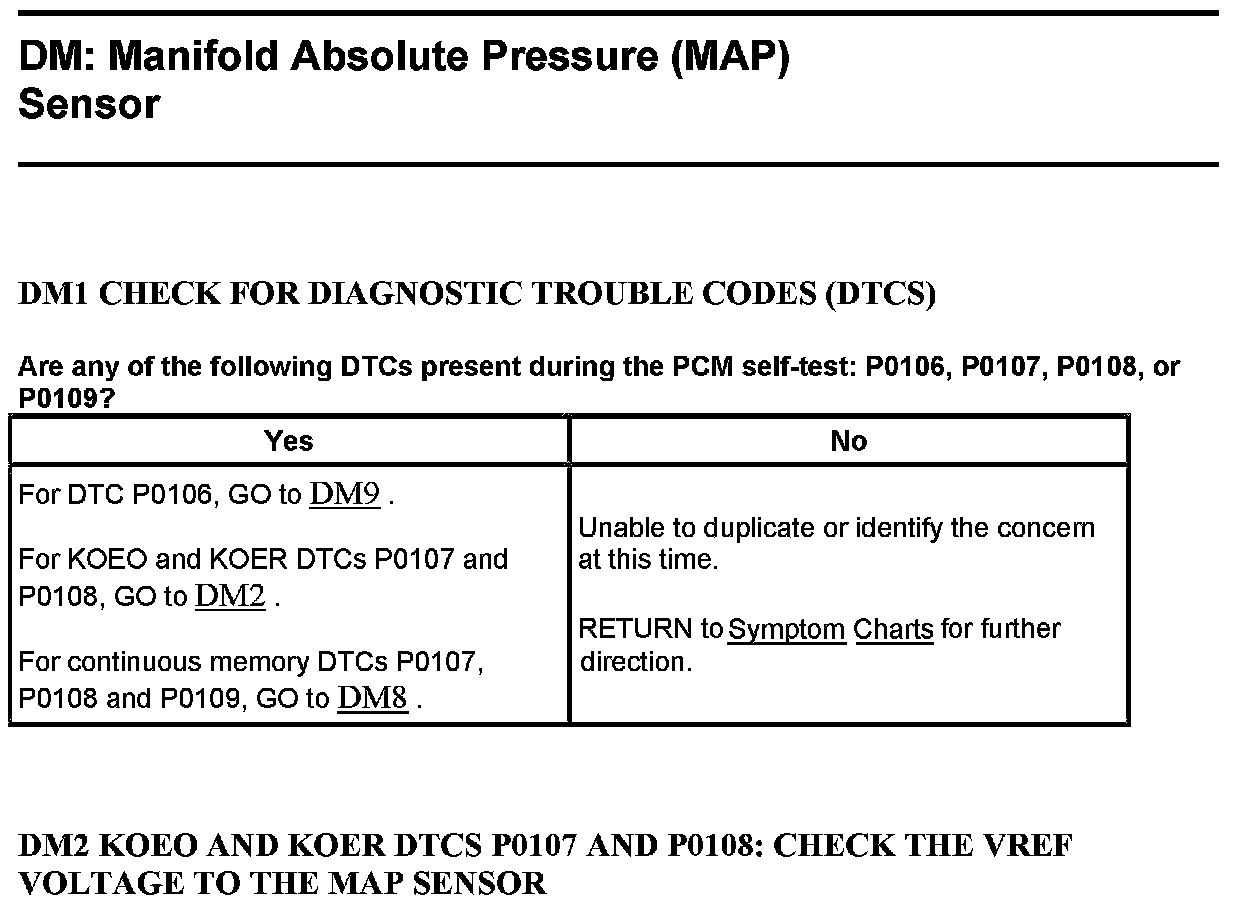

DM1-DM2:
DM2-DM4:

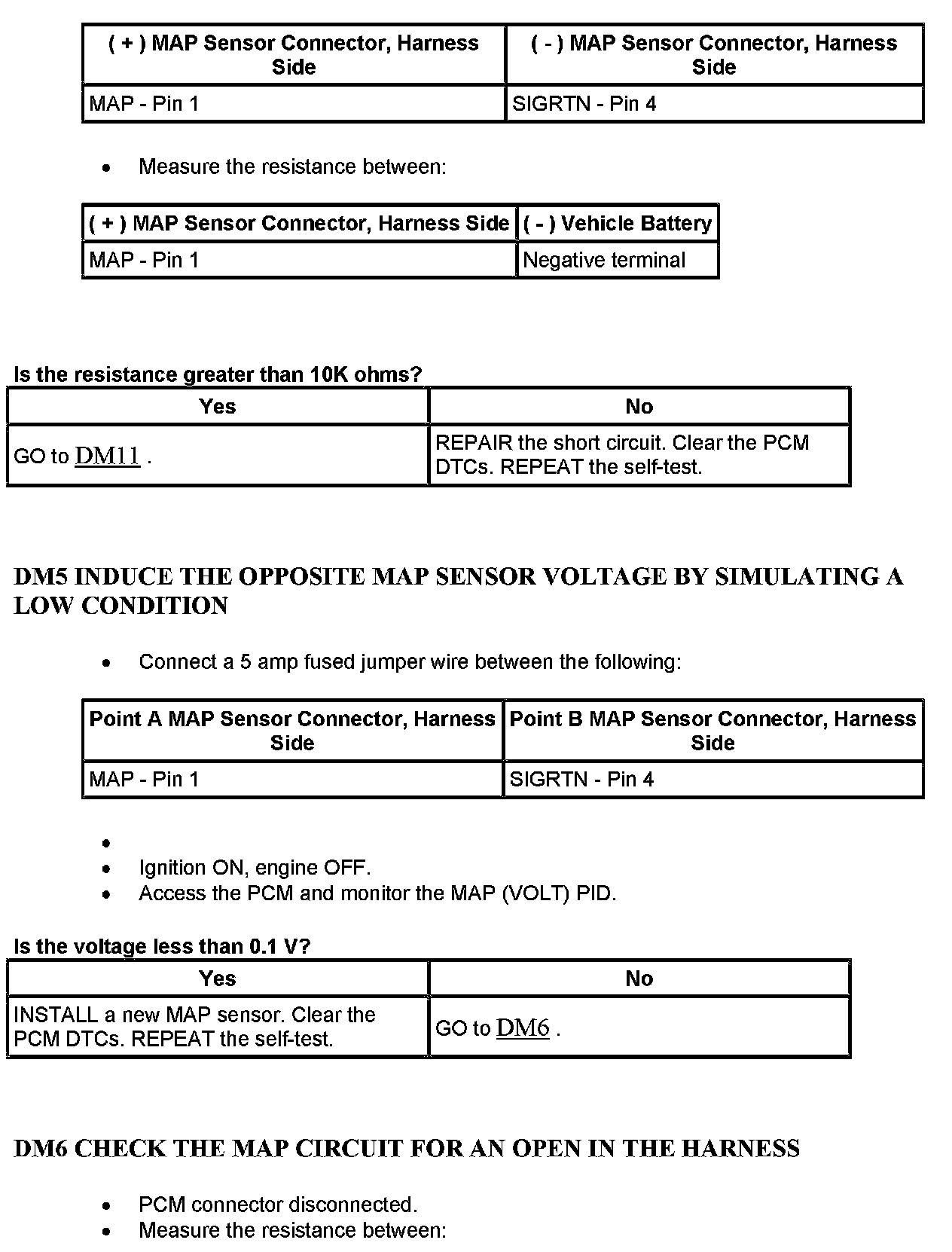

DM4-DM6:

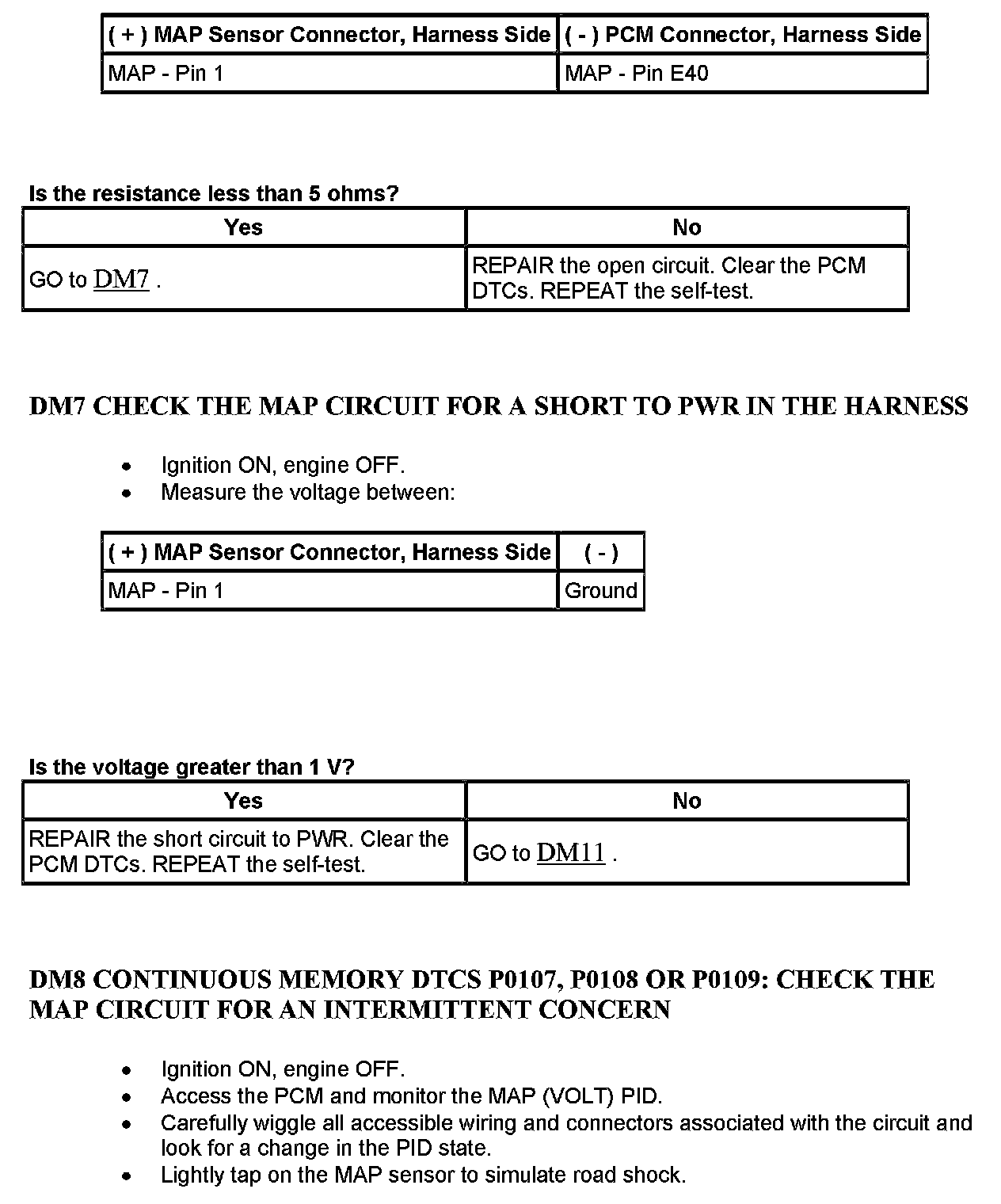

DM6-DM8:

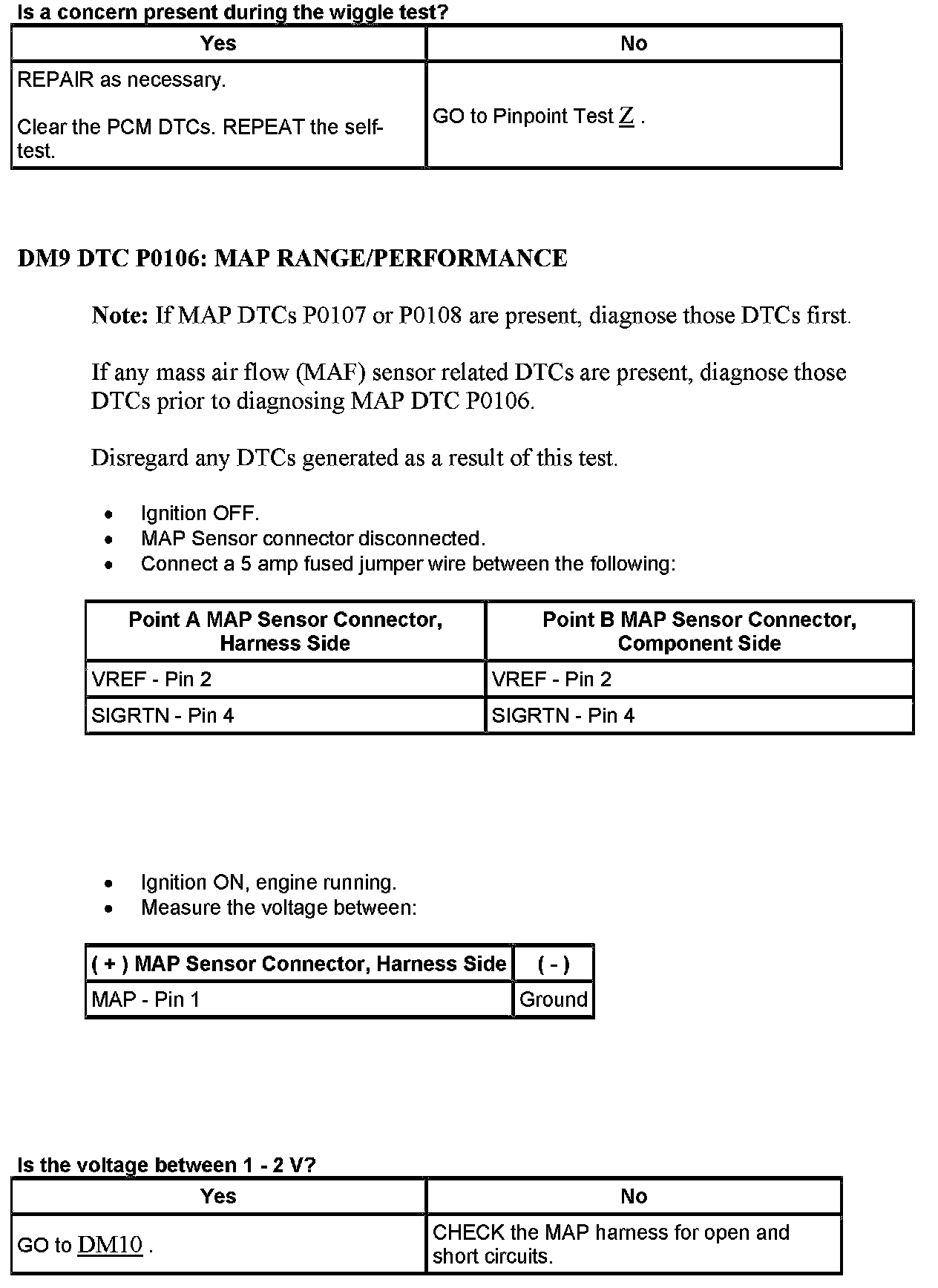

DM8-DM9:

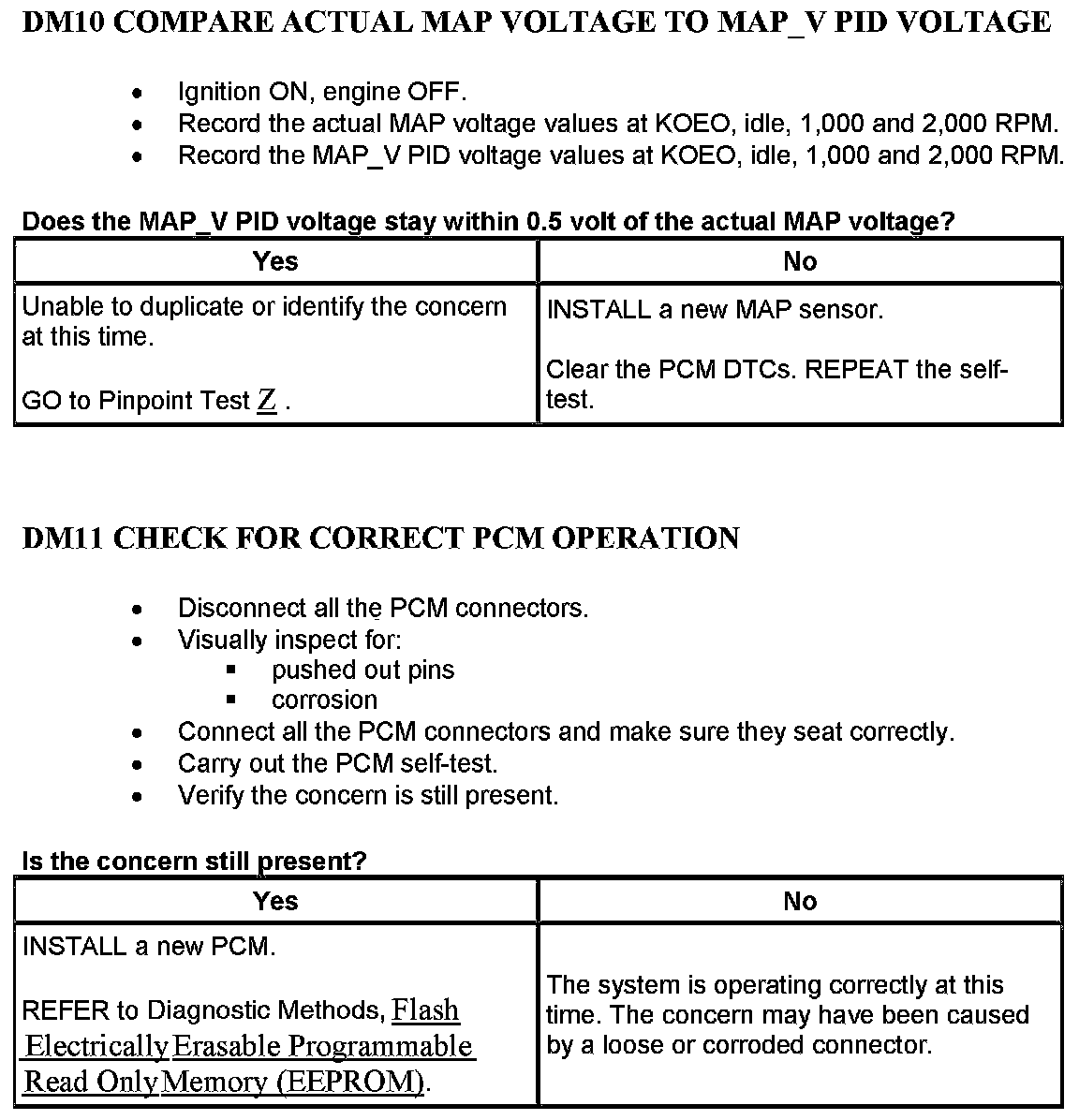

DM10-DM11:
