Test TF: Generator Shutdown

PINPOINT TEST TF: GENERATOR SHUTDOWN

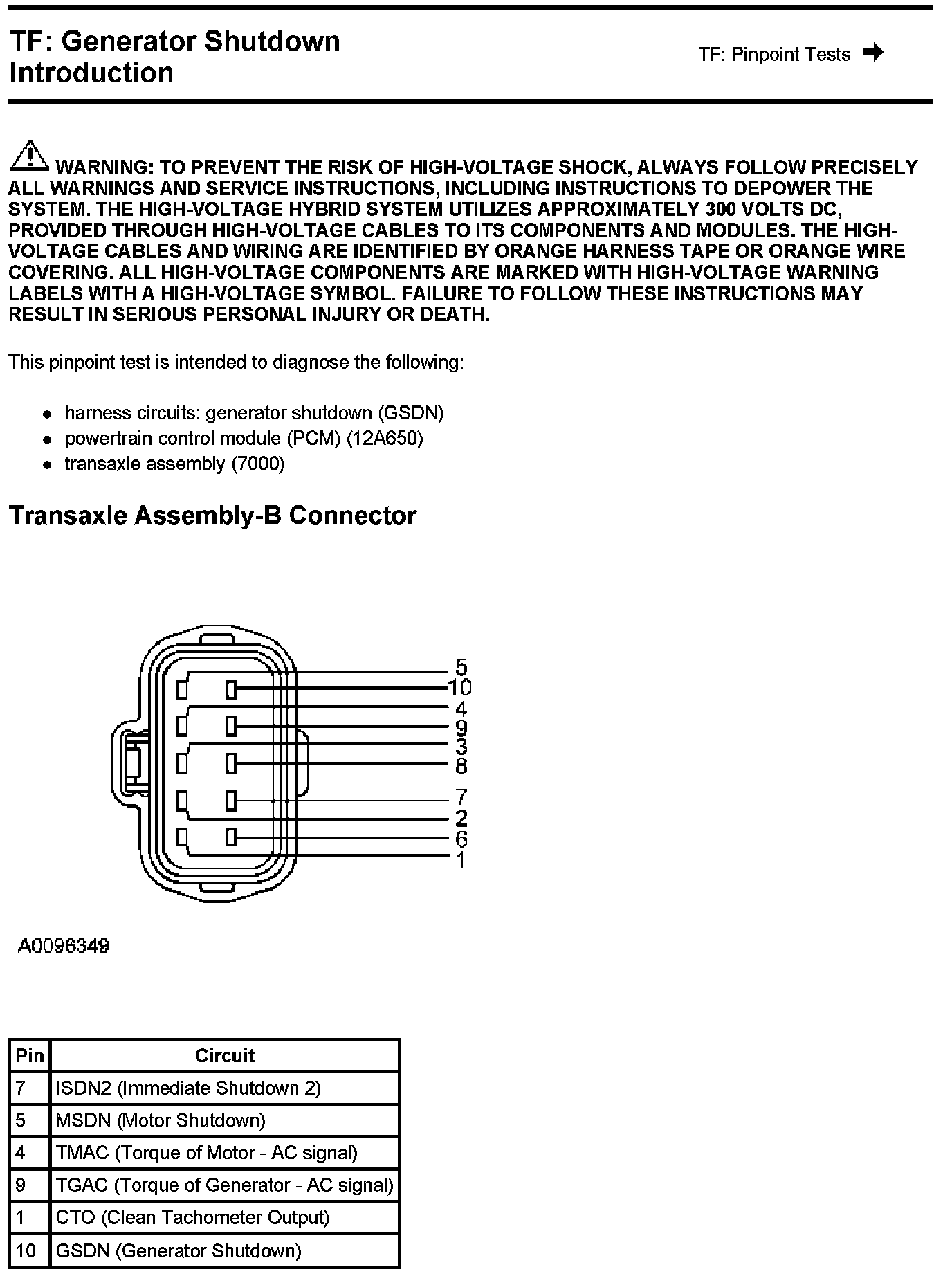

Warning And Transaxle Assembly-B Connector:

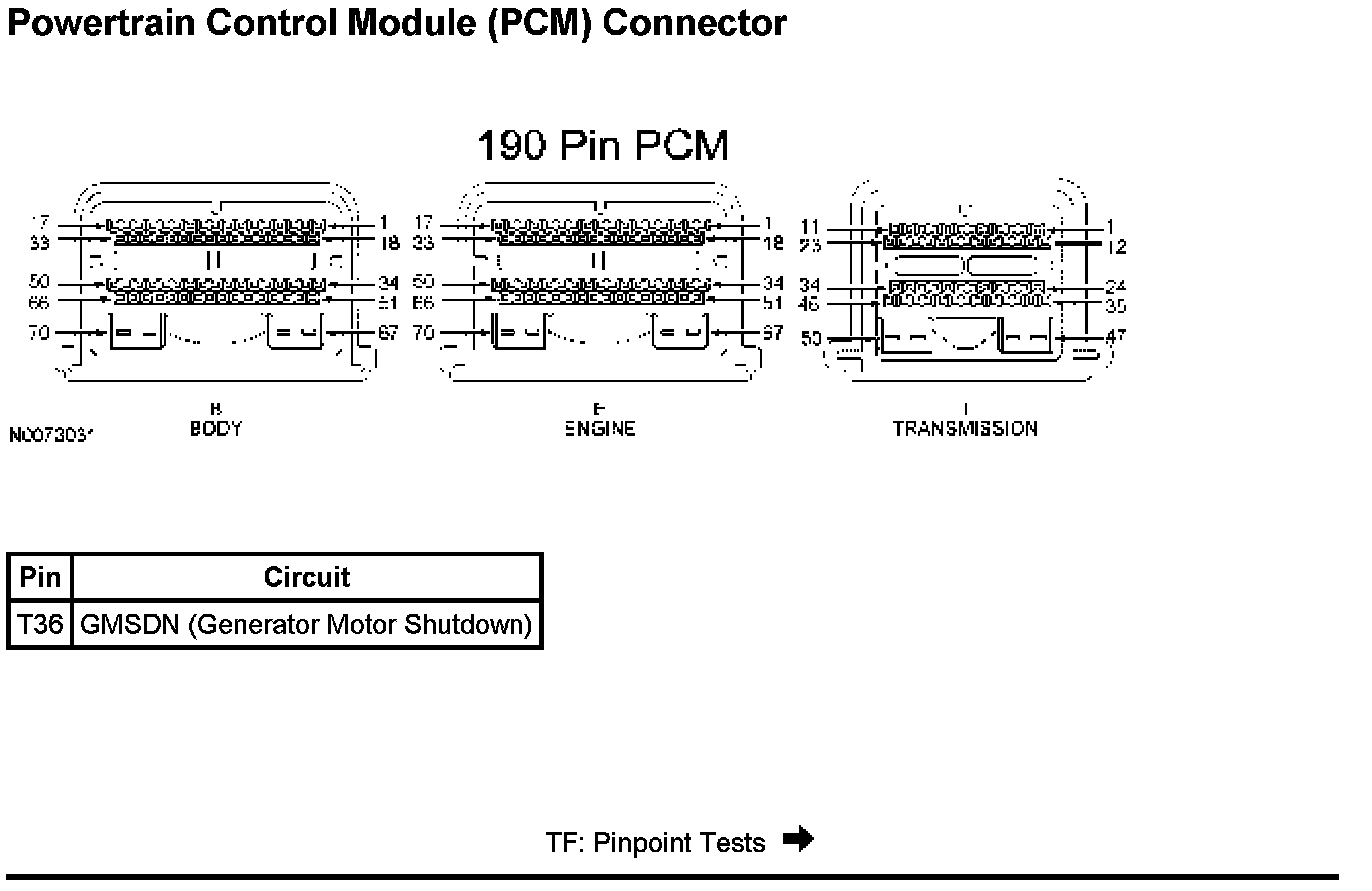

Powertrain Control Module (PCM) Connector:

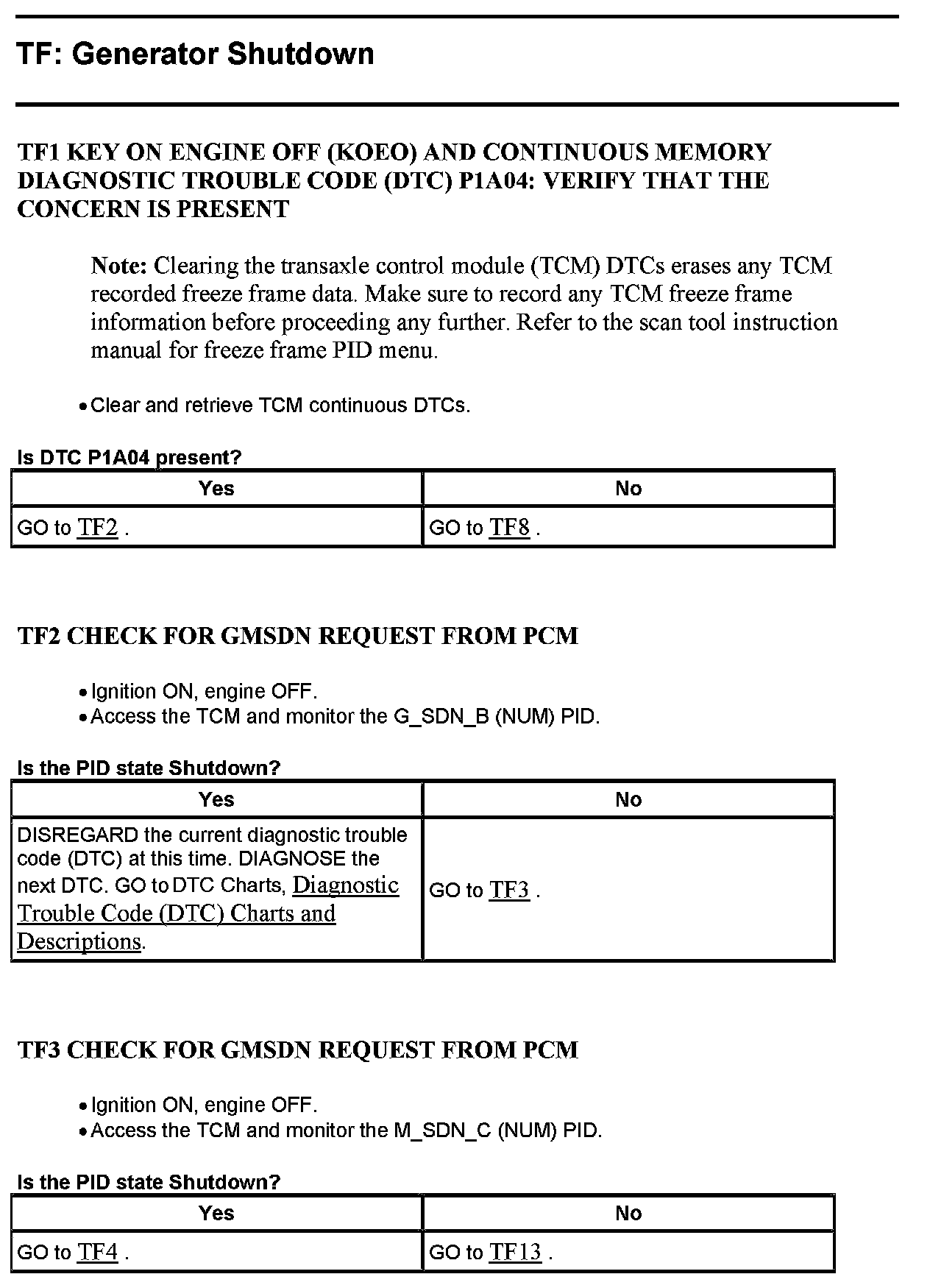

TF1-TF3:

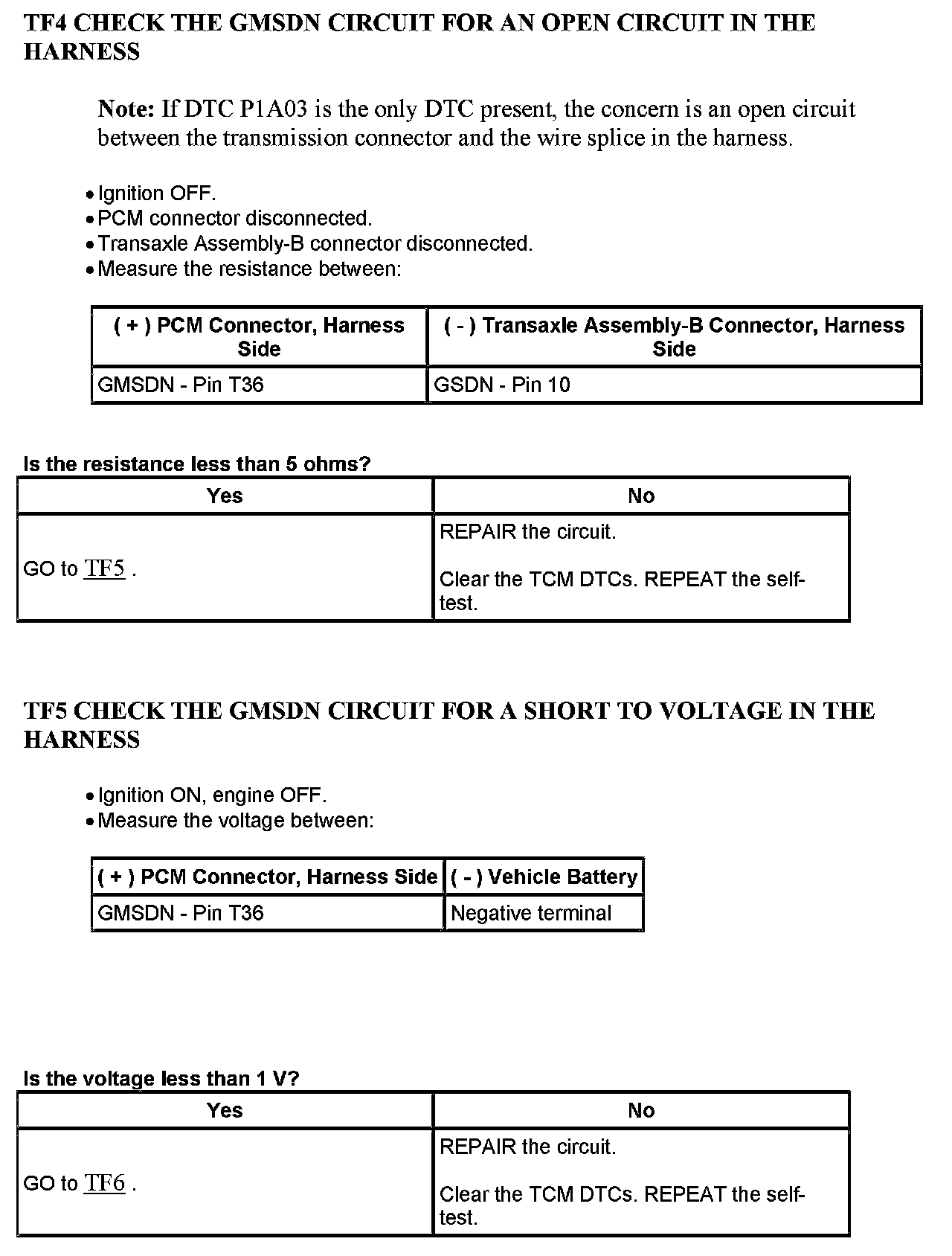

TF4-TF5:

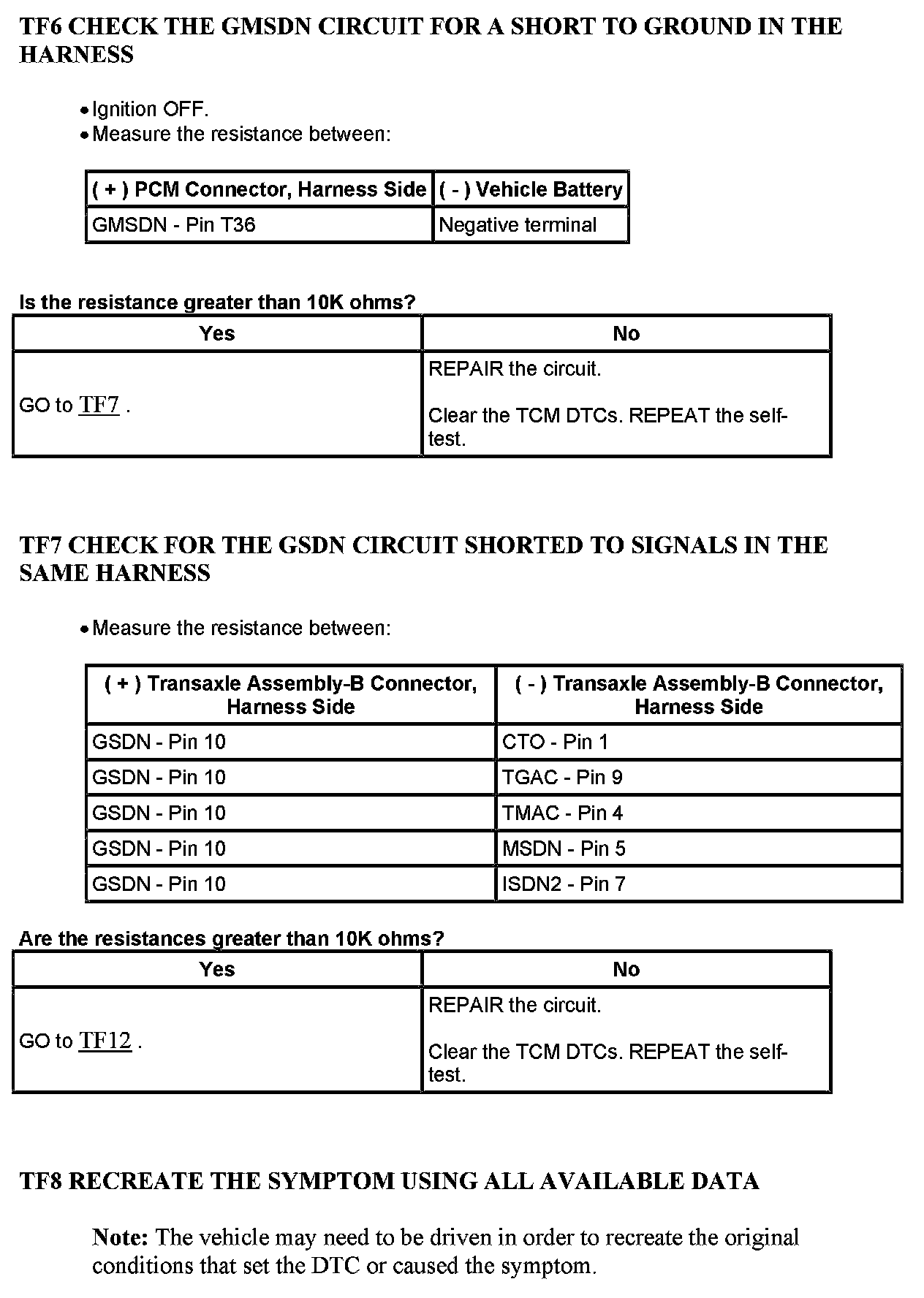

TF6-TF8:

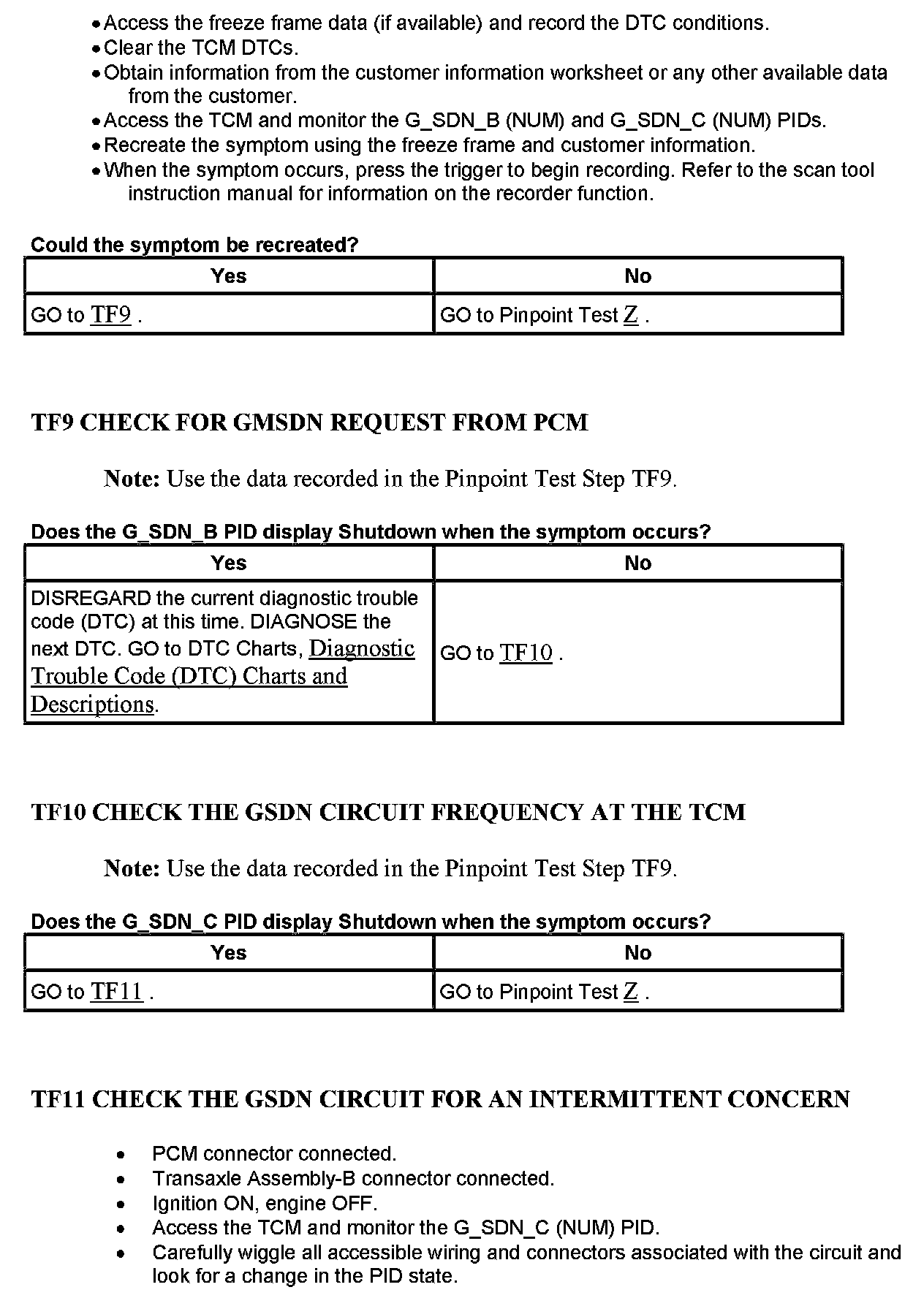

TF8-TF11:

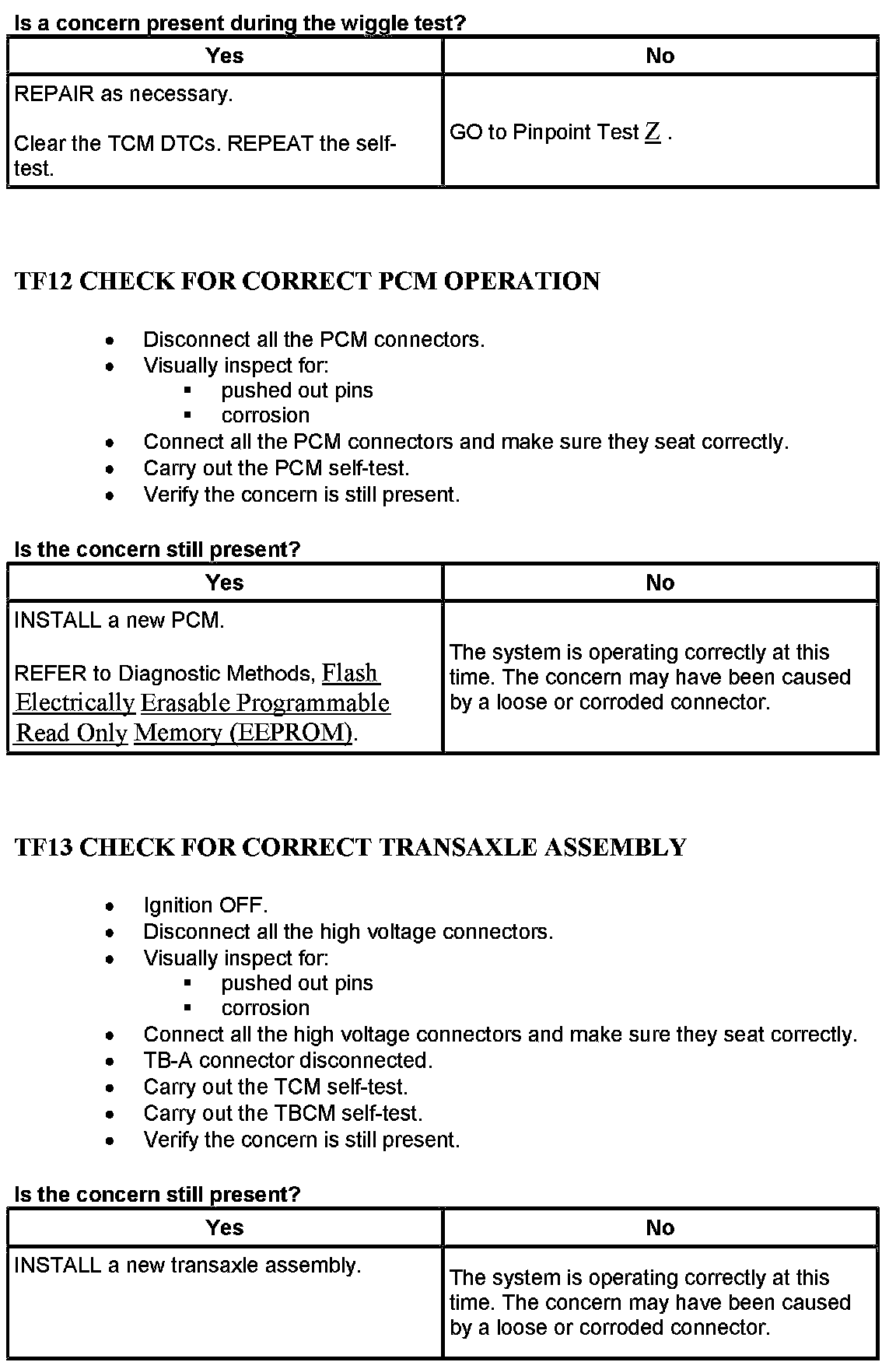

TF11-TF13:
