System Diagram

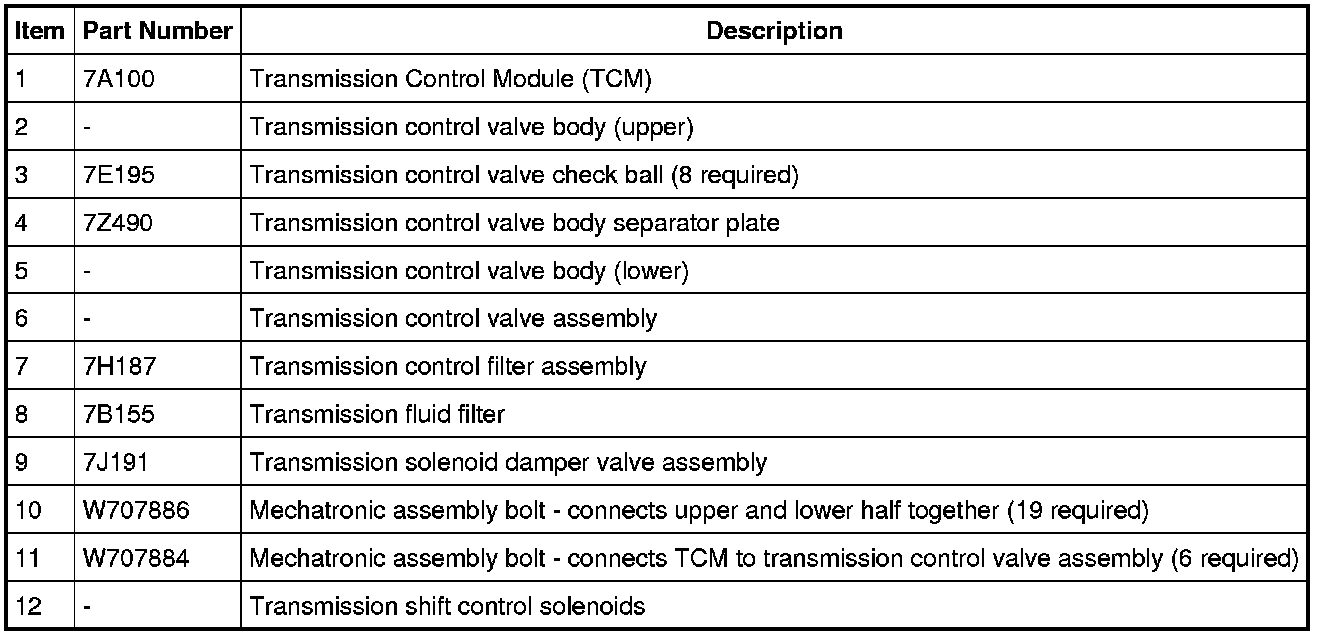

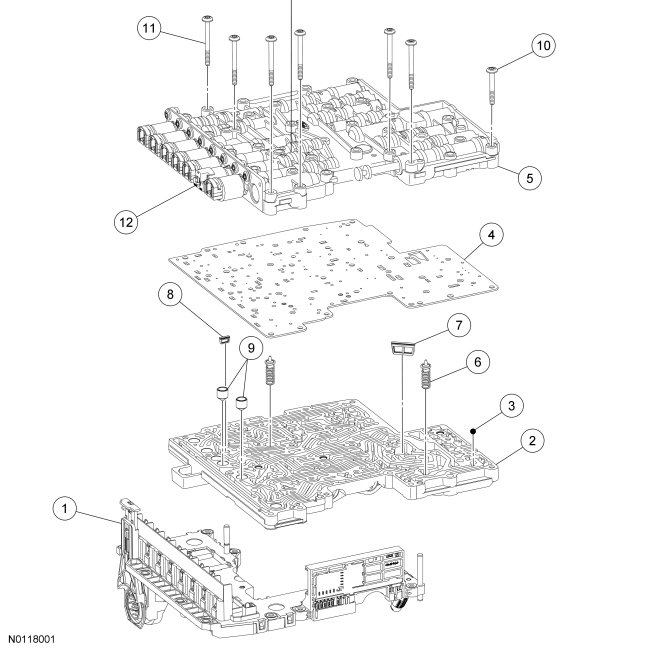

Mechatronic Assembly



Mechatronic

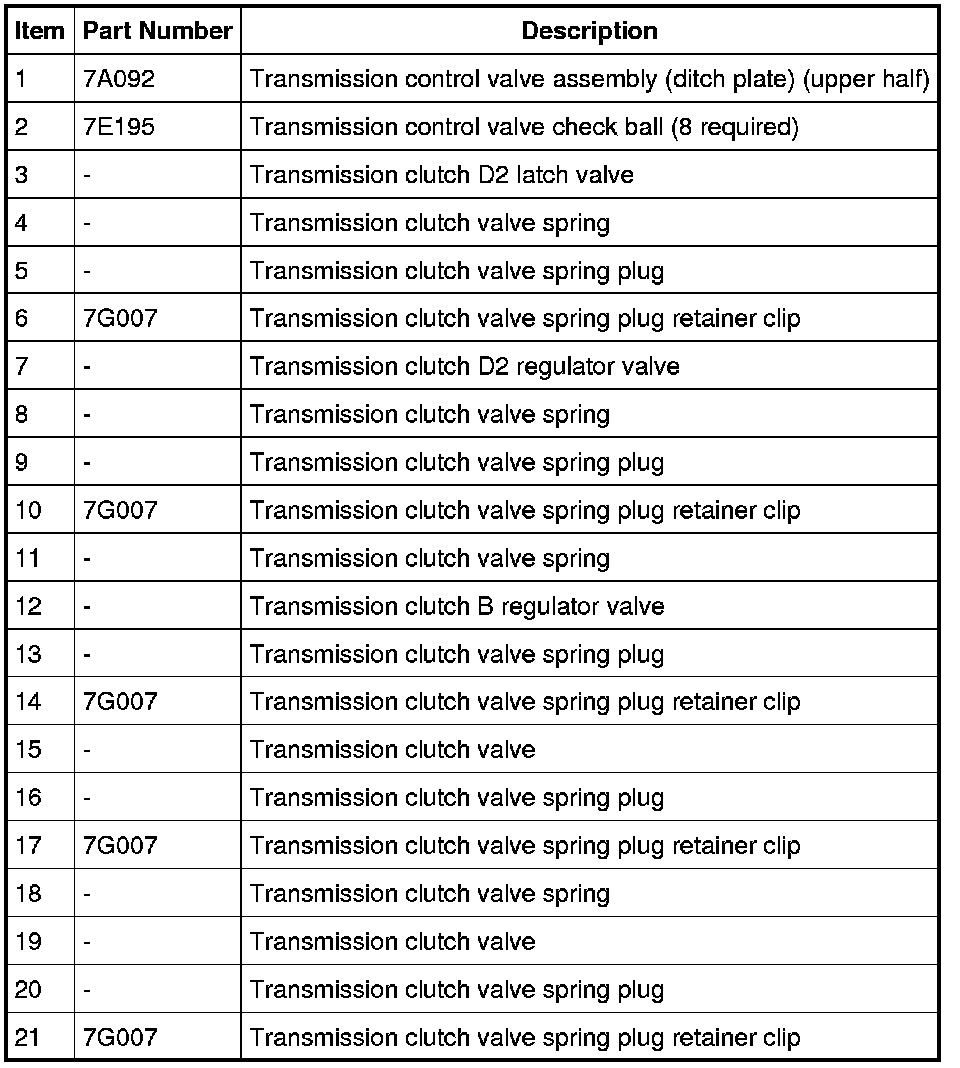

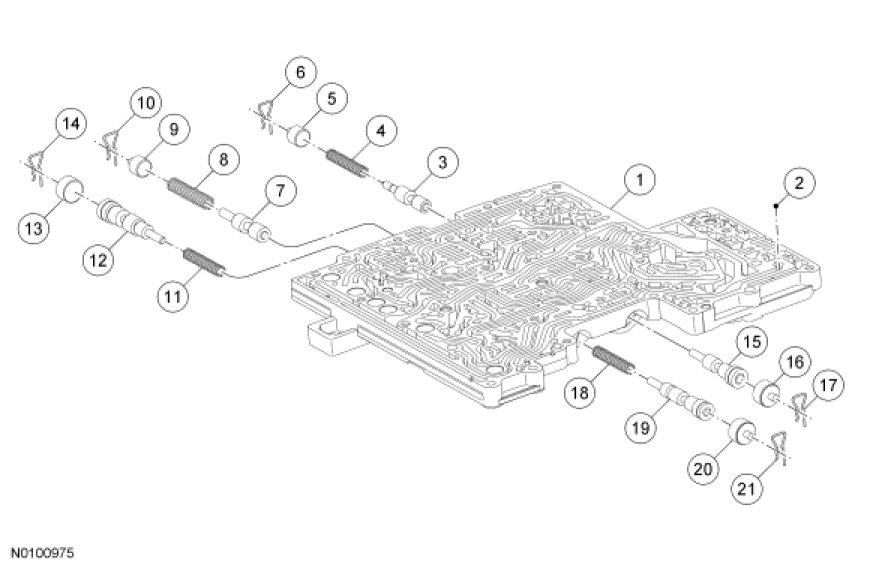

Mechatronic Upper Half

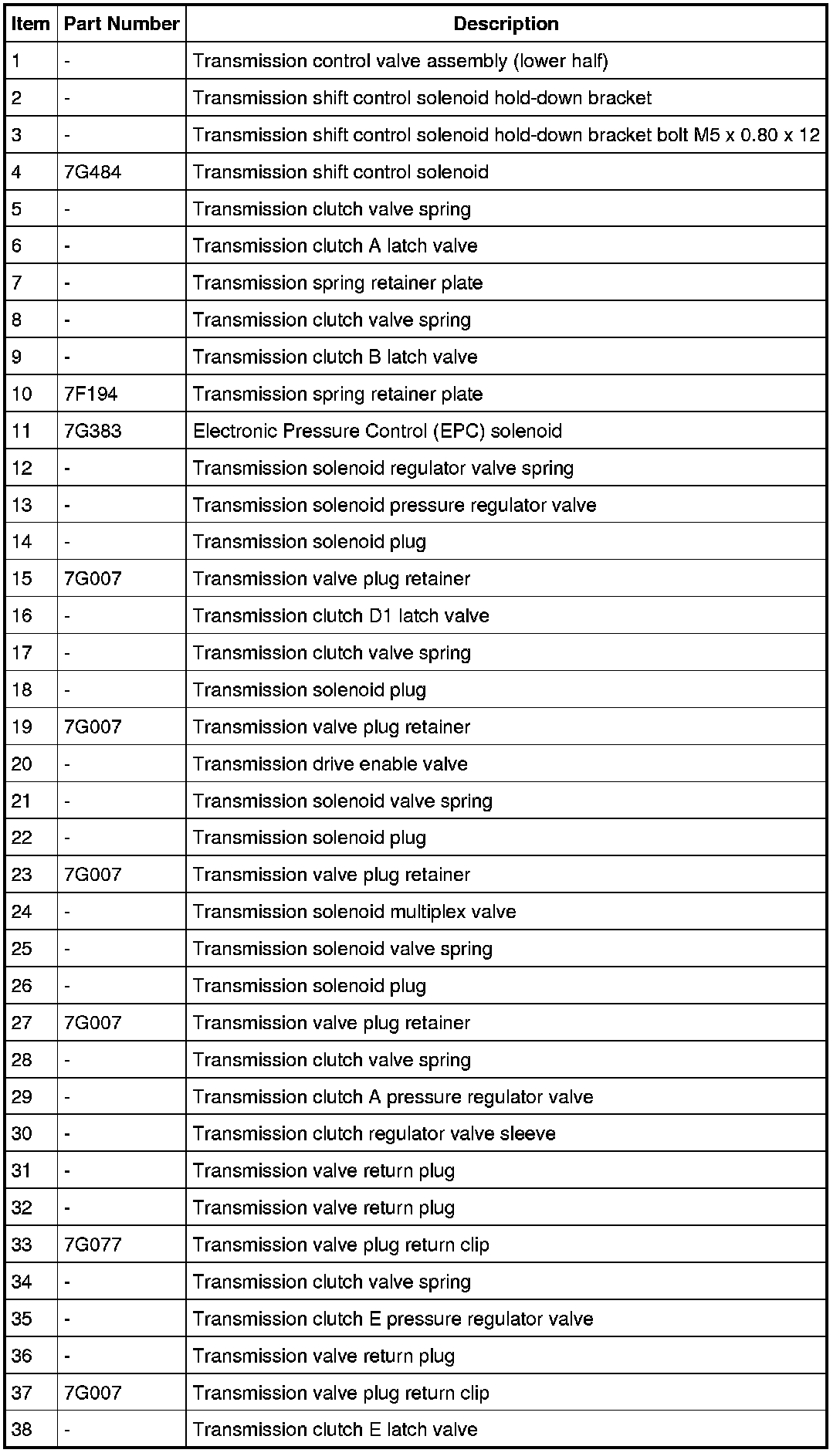

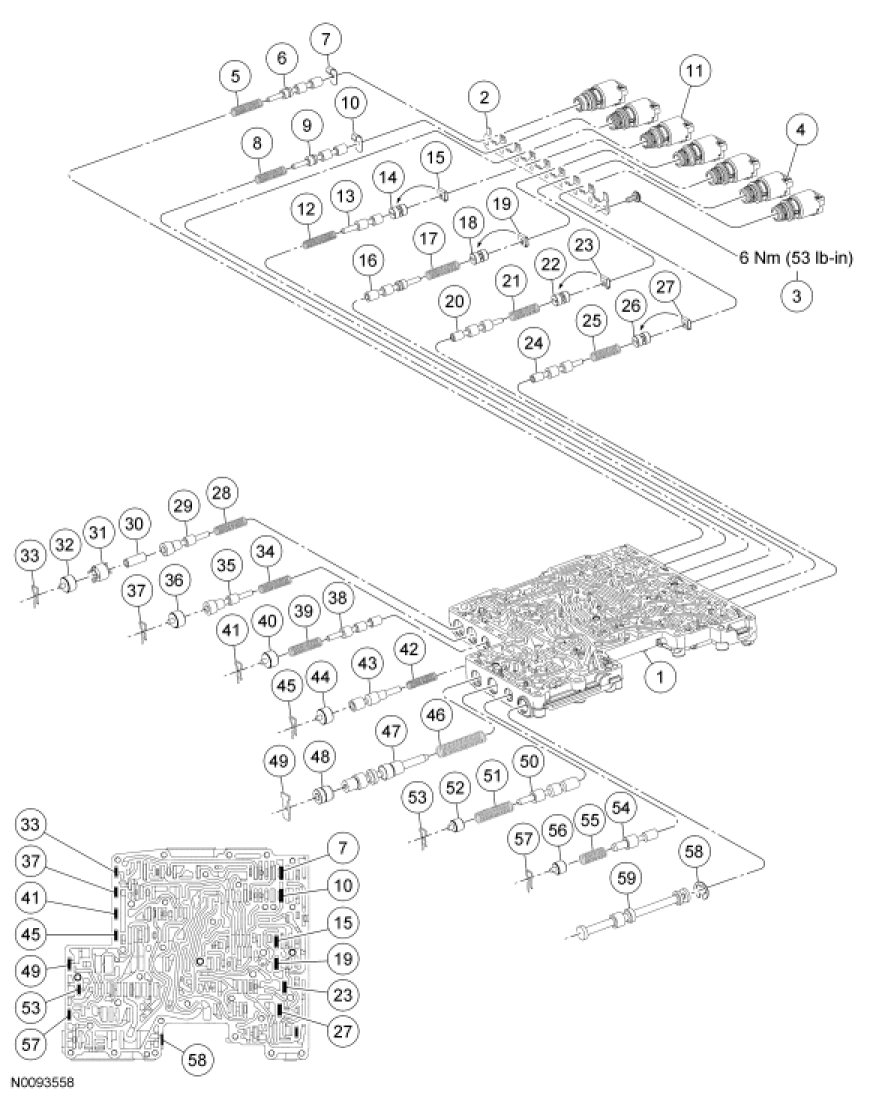

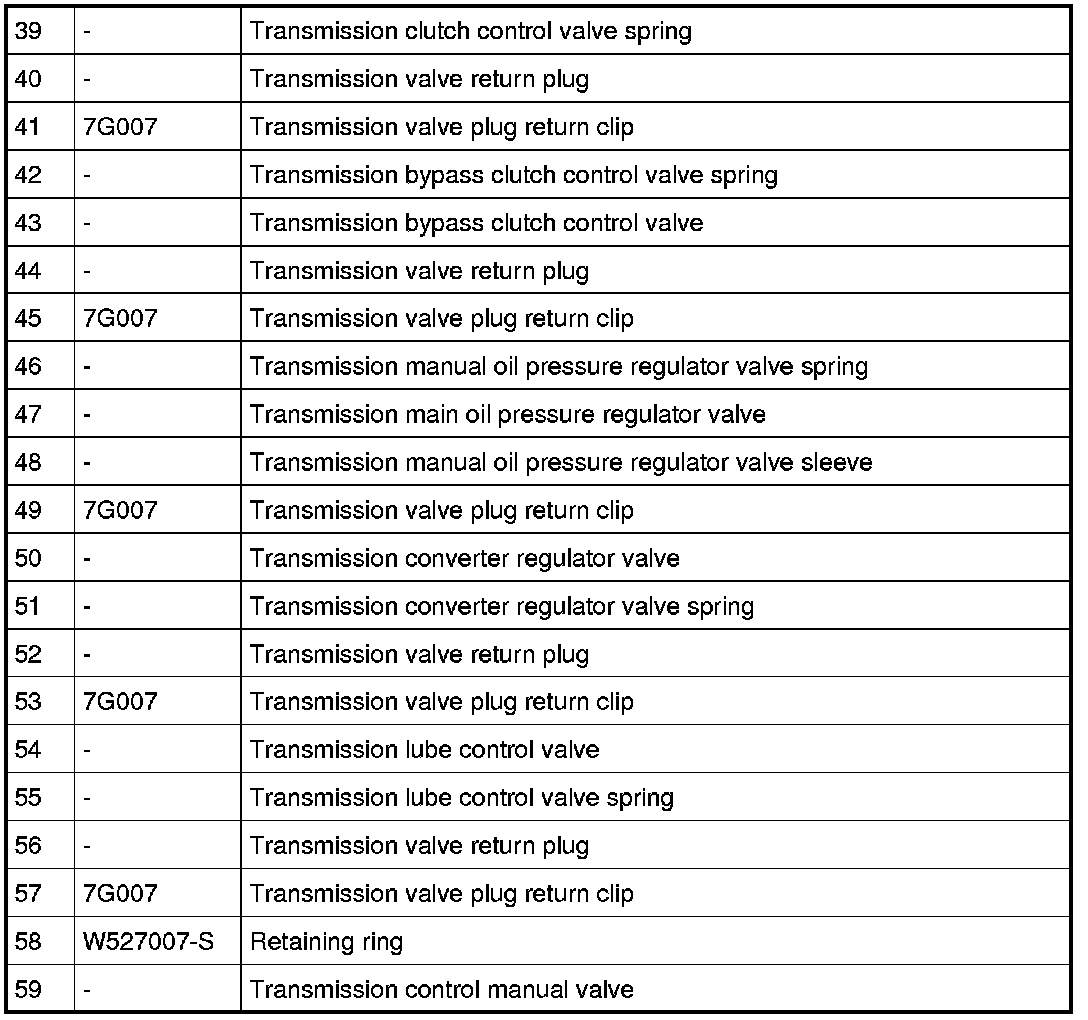

Mechatronic Lower Half

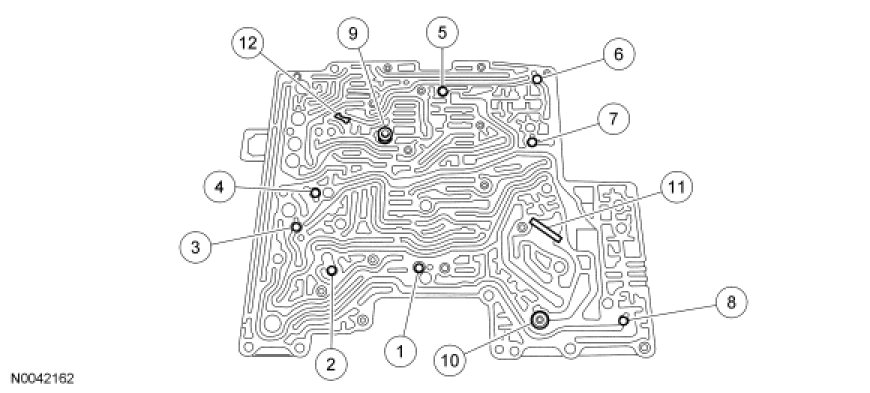

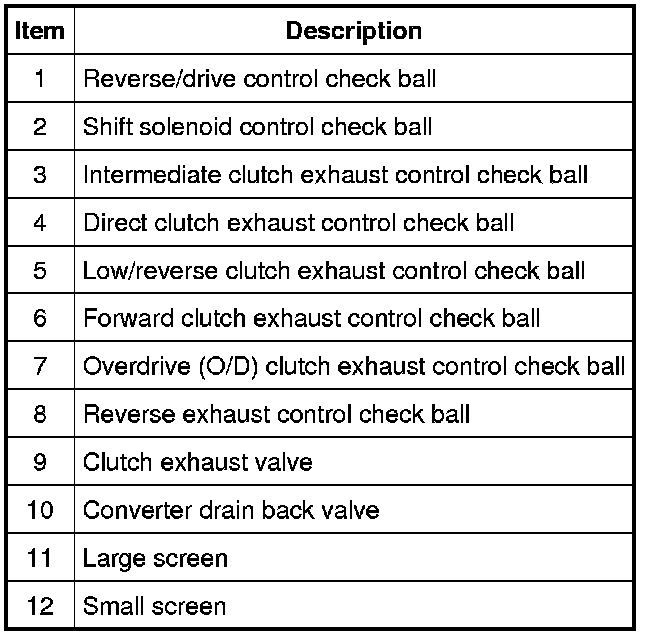

Check Ball Location
