Evaporative Emission (EVAP) System Components - Exploded View




Evaporative Emission (EVAP) System Components - Exploded View

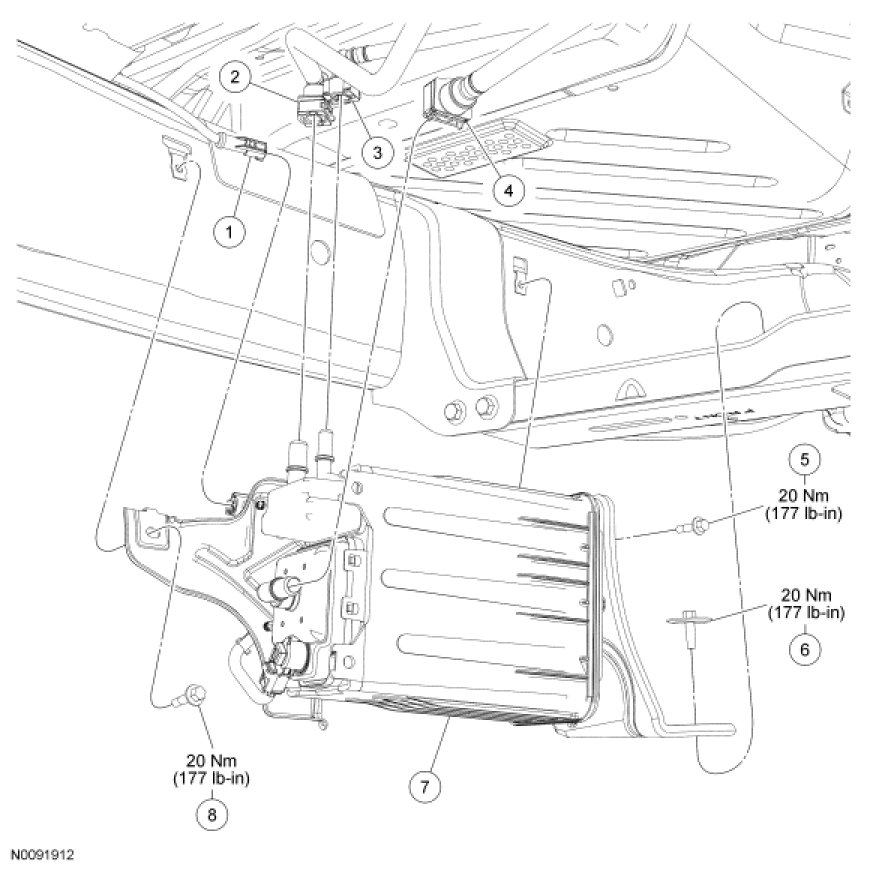

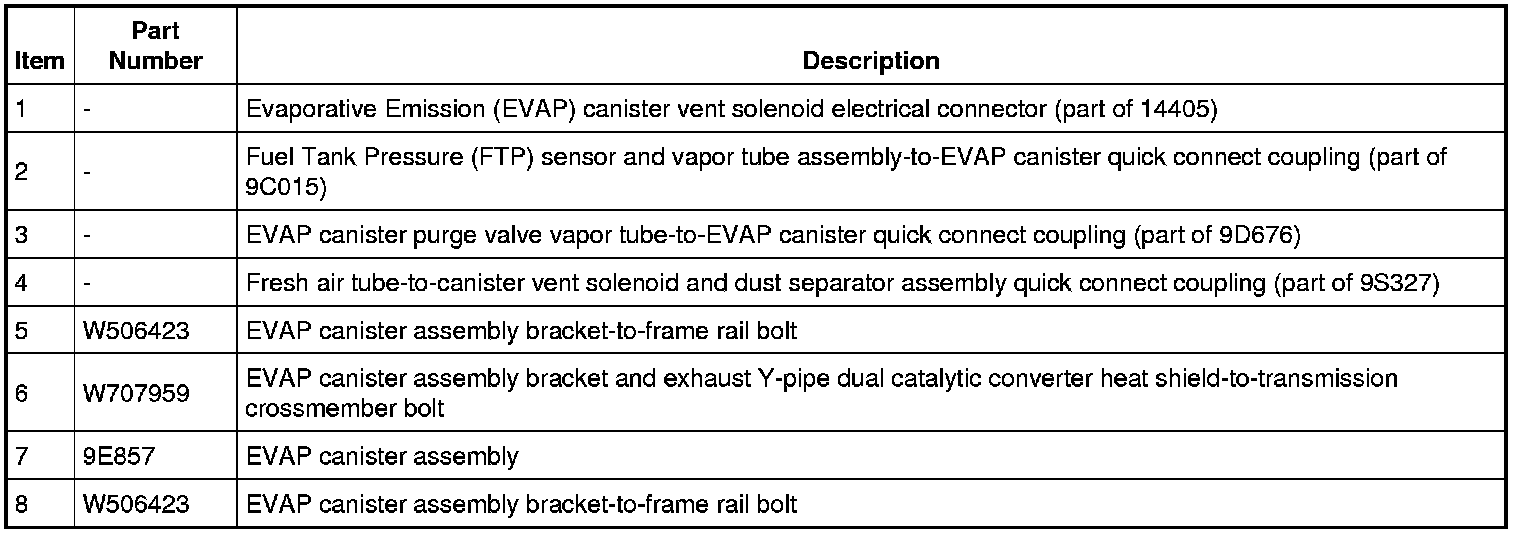

Evaporative Emission (EVAP) Canister Assembly

NOTE: 106L (28 gal) fuel tank vapor tubes shown, 127L (33.5 gal) similar.

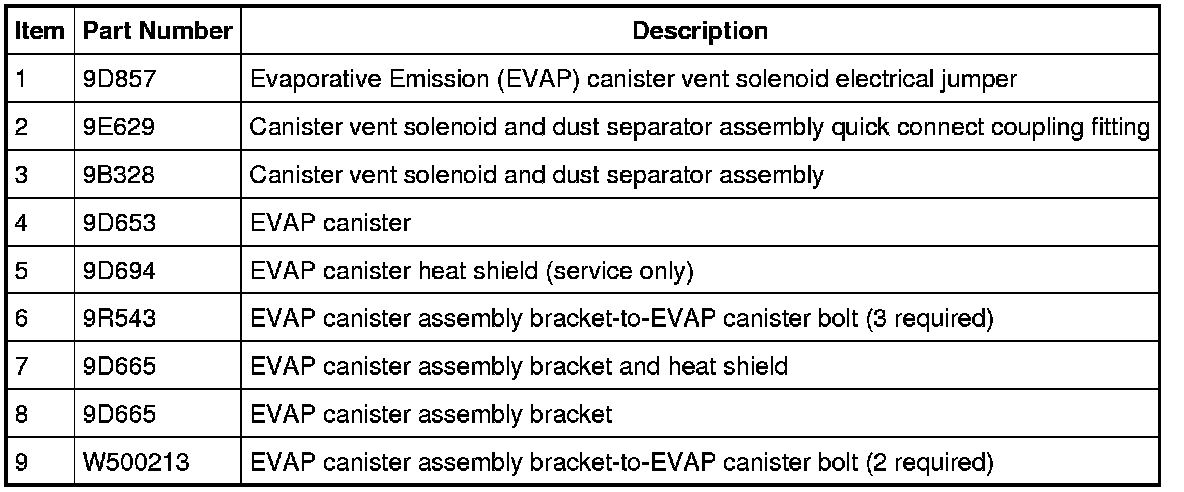

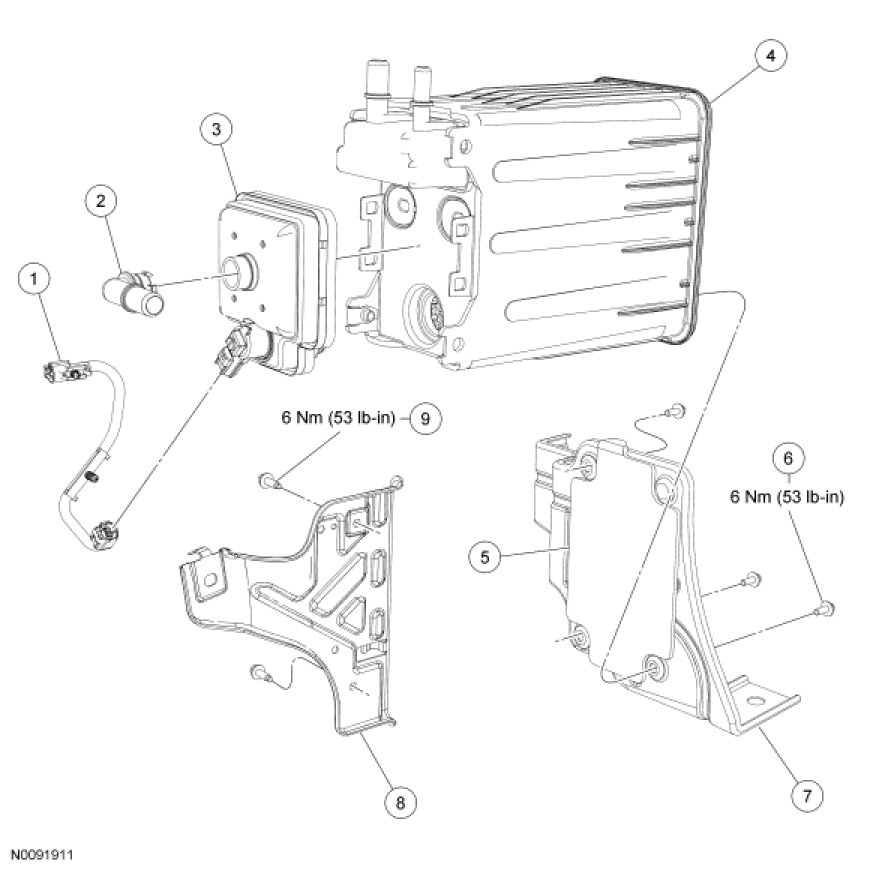

EVAP Canister, Vent Solenoid and Dust Separator and Brackets
