6R80

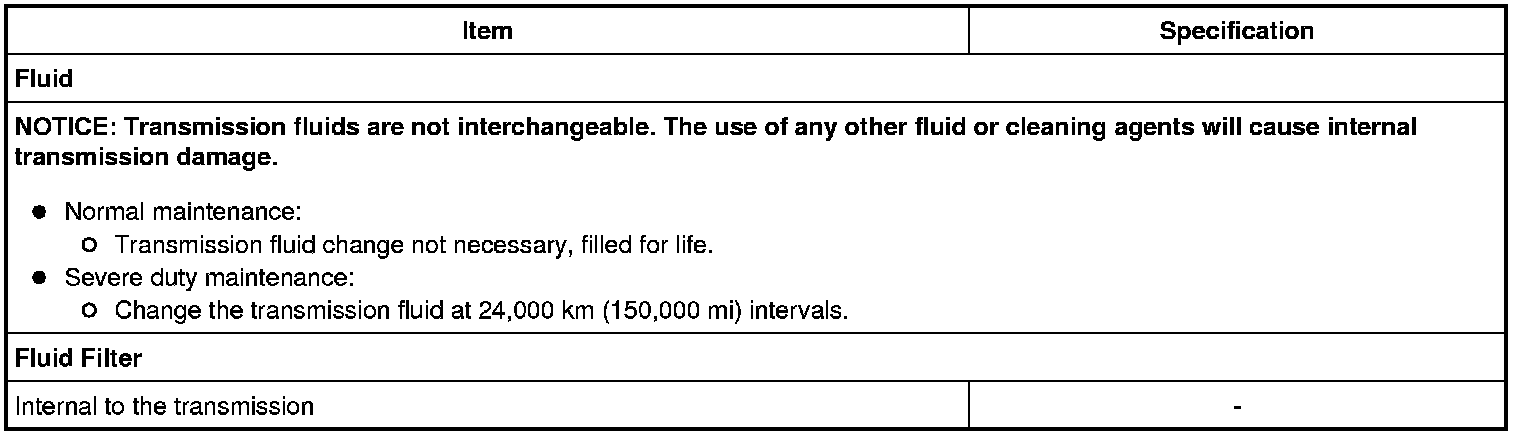

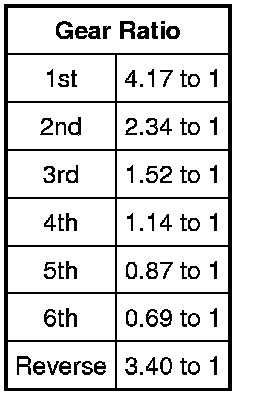

General Specifications

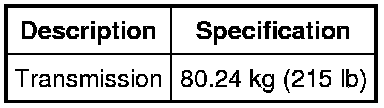

Assembly Weight

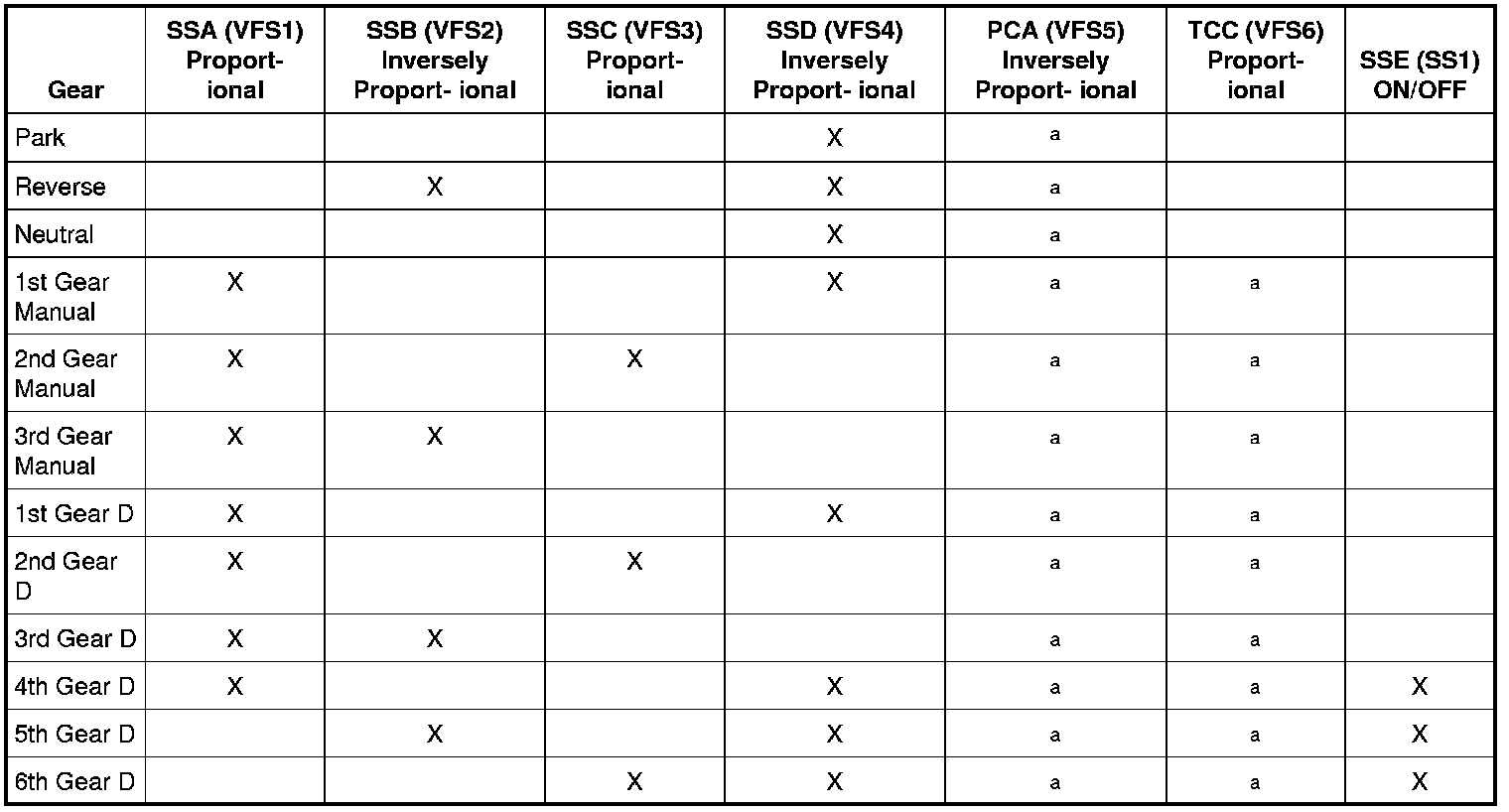

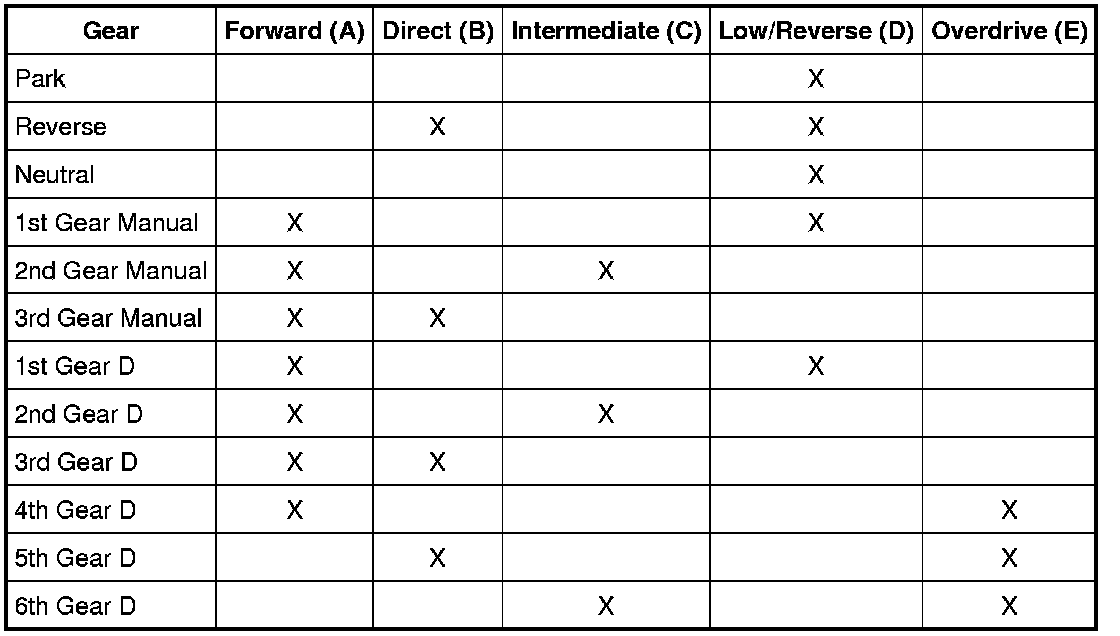

Clutch Application Chart

a Transmission control module (TCM) controlled

Stall Speed

End Play

NOTE: All friction and steel plates use a wave design plate.

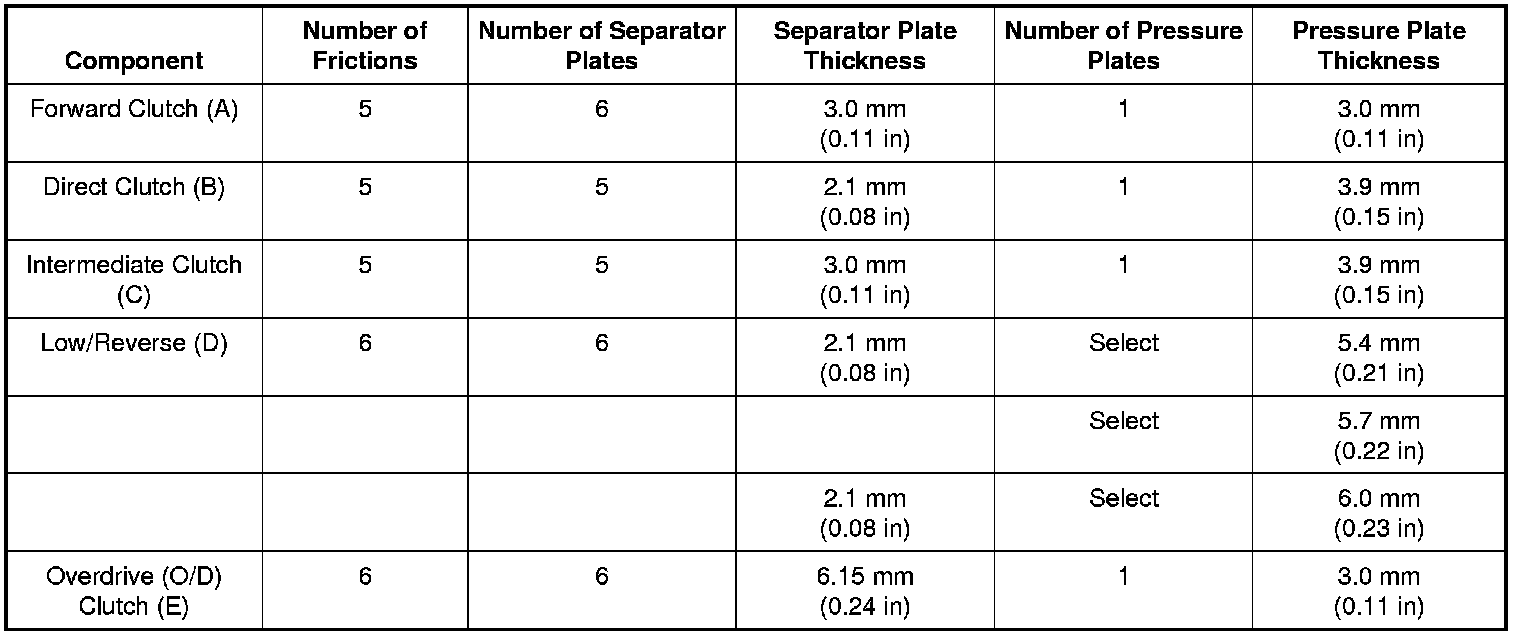

Clutch Plate Quantity

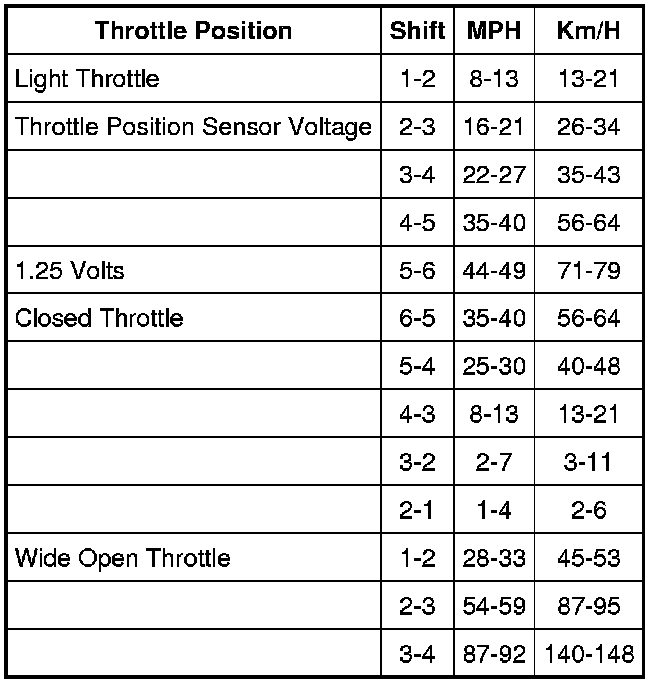

Shift Speeds

NOTE: Shift speed ranges are approximate for all applications. For specific applications (engine, axle ratio, tire size and application), refer to the Automatic Transmission Specification booklet.
Always drive the vehicle in a safe manner according to driving conditions and obey all traffic laws.

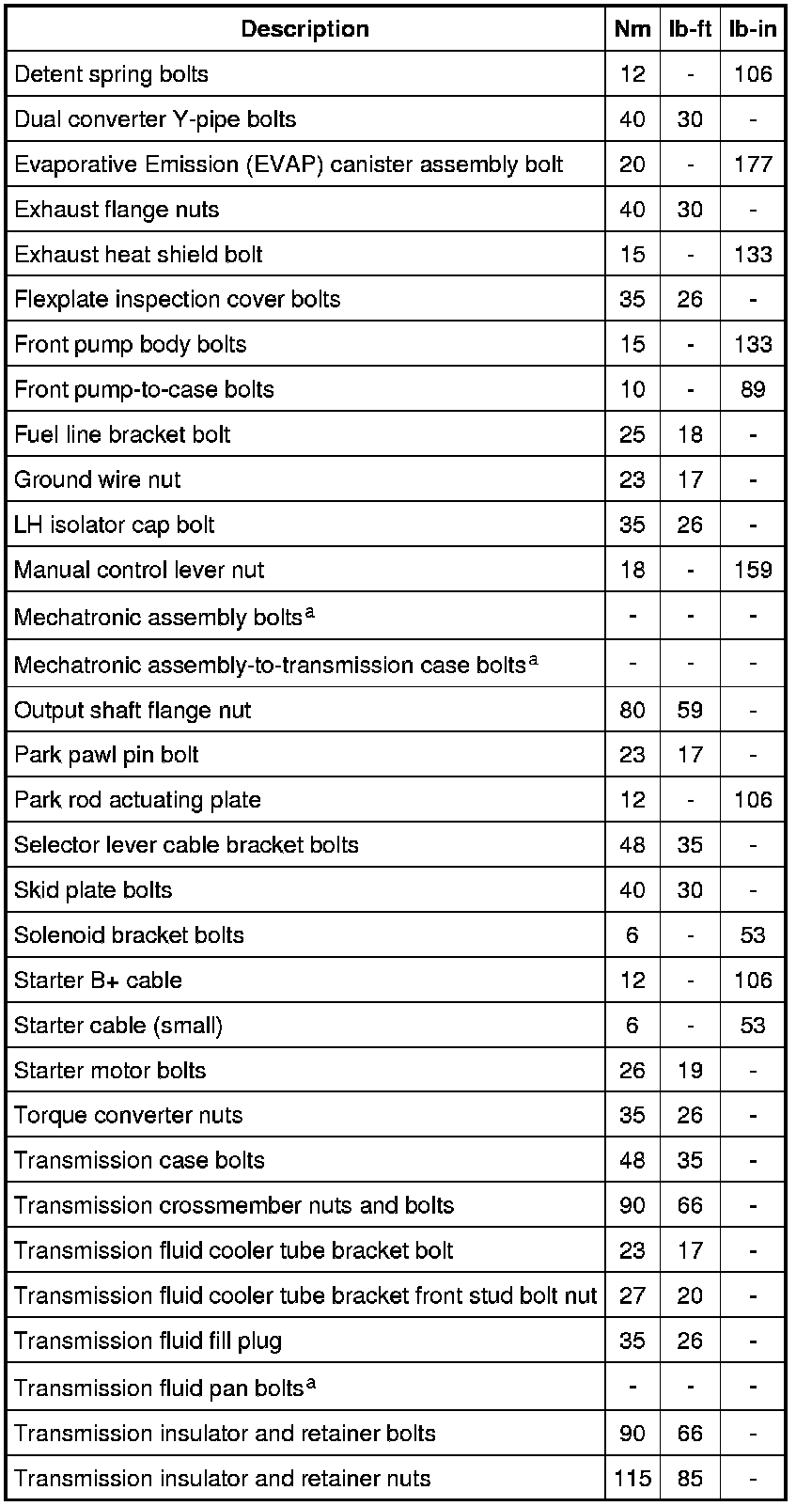

Torque Specifications

a Refer to the procedure.
