Exploded Views
Wiper and Washer System - Exploded View

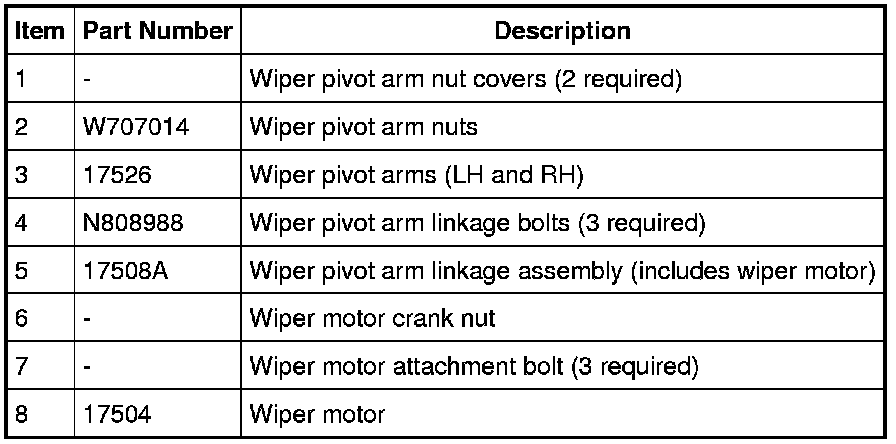

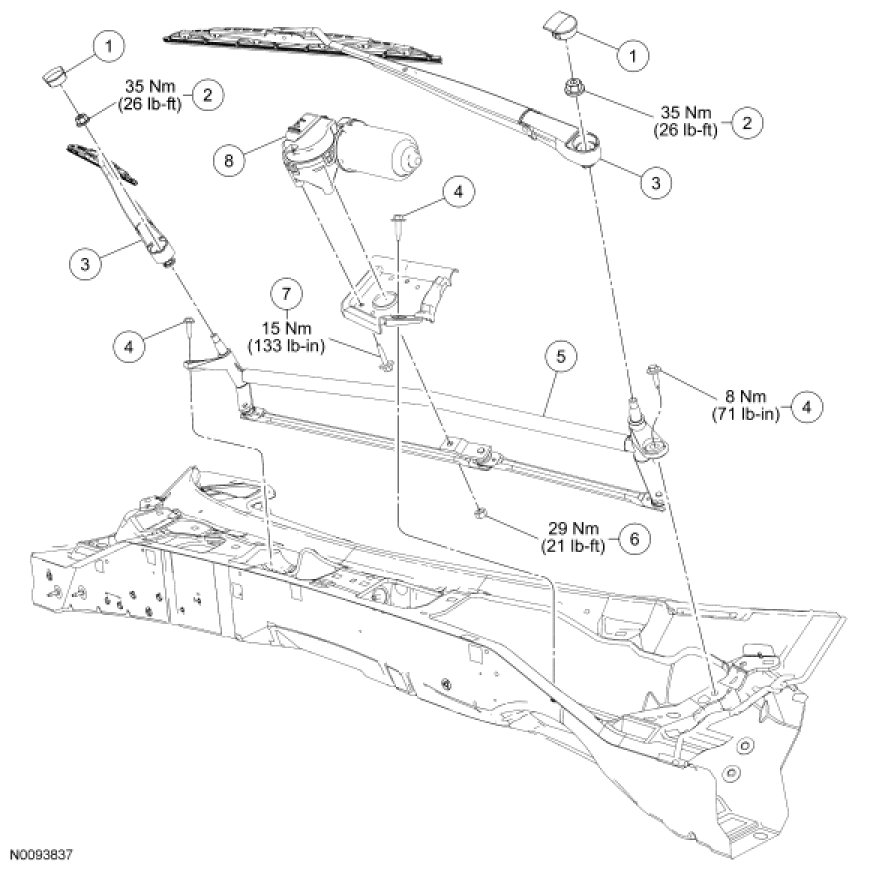

Front Wiper System

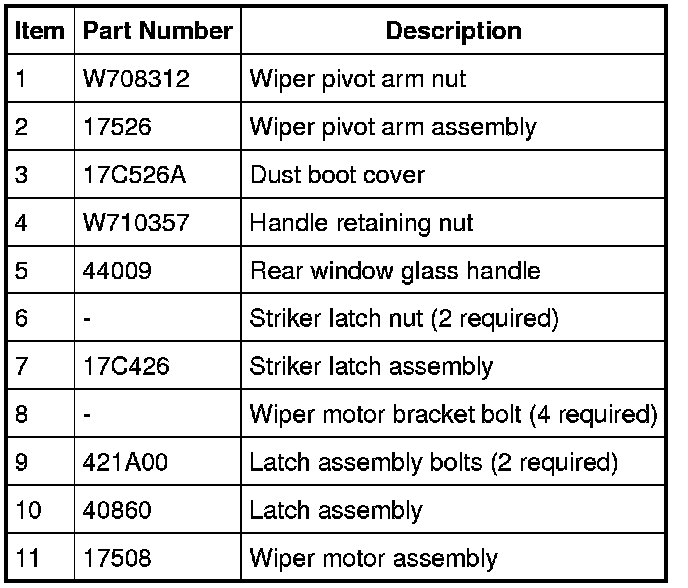

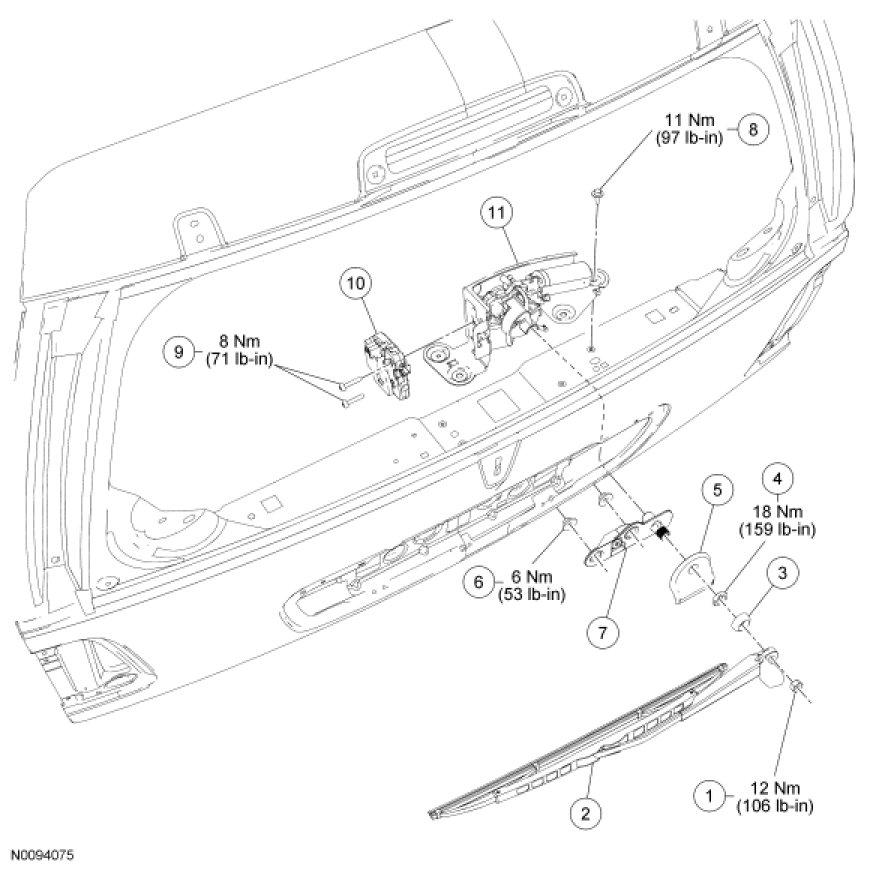

Rear Wiper System

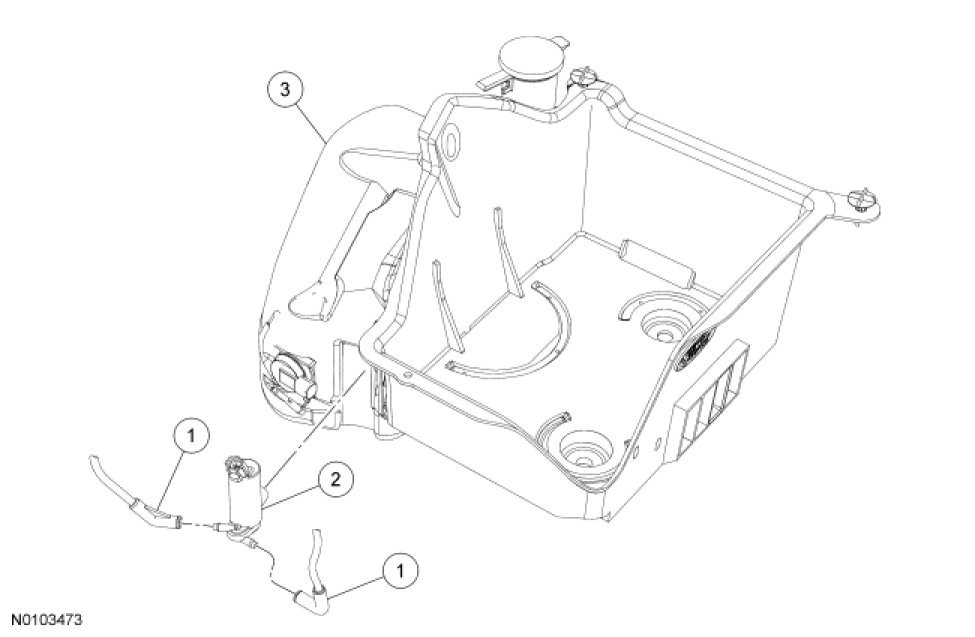

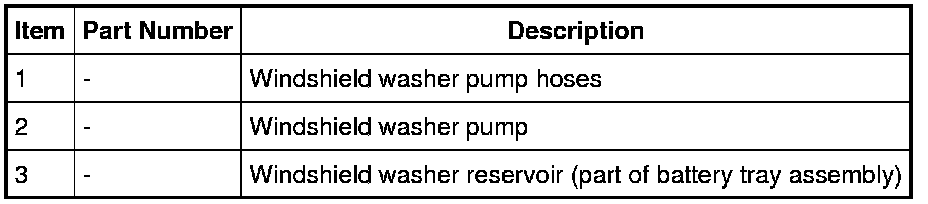

Washer System
