Battery and Battery Tray - Exploded View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

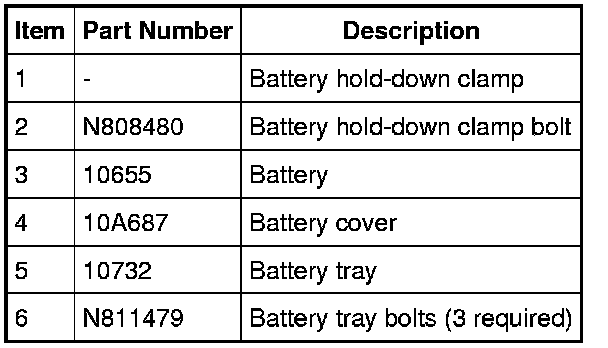

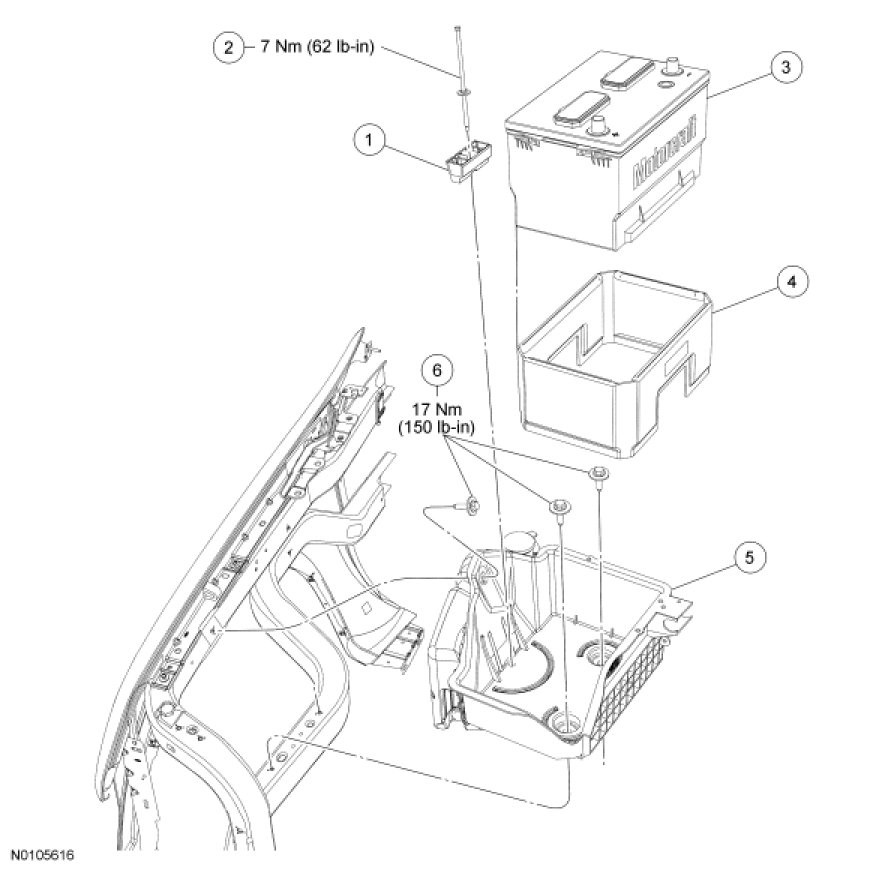

Battery and Battery Tray - Exploded View
Battery and Battery Tray - Exploded View
