Component Location Views: Notes

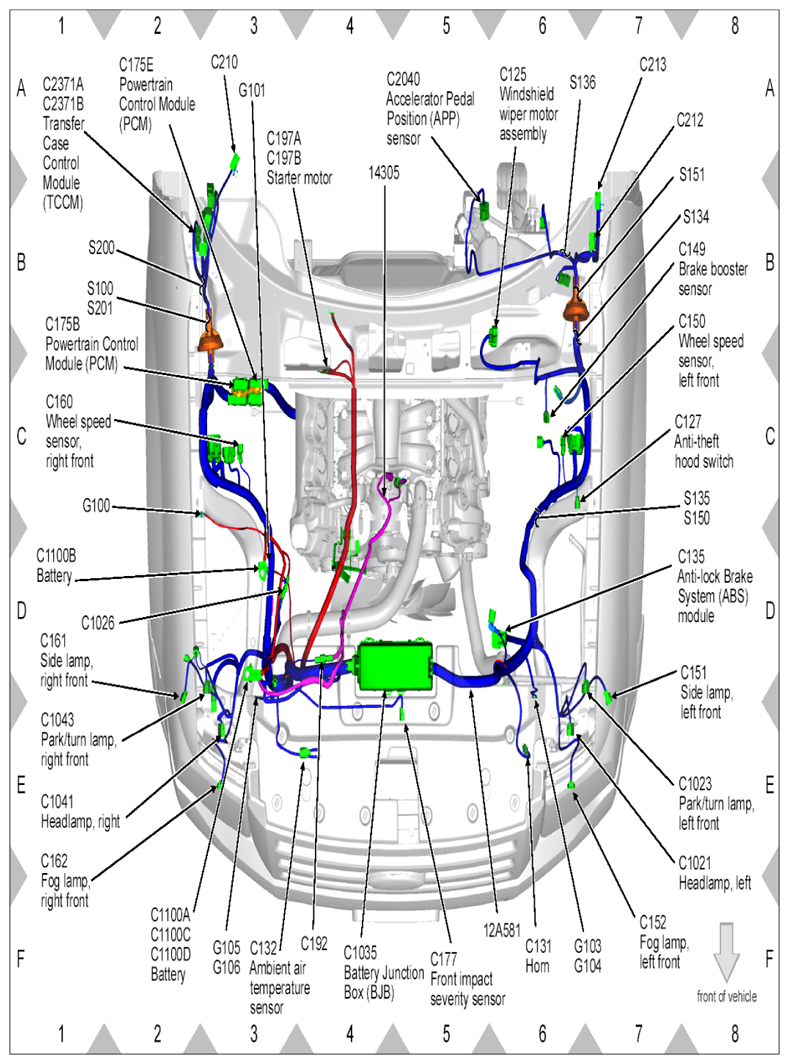

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)

G07856512

Courtesy of FORD MOTOR CO.

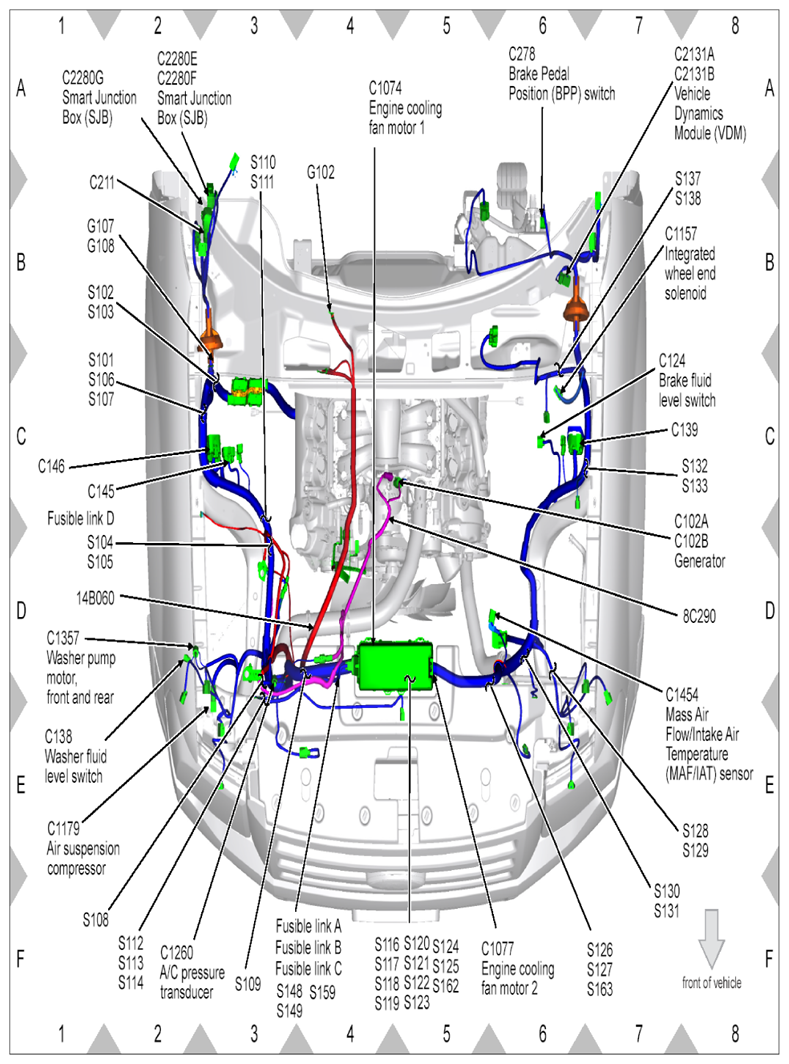

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)

G07856513

Courtesy of FORD MOTOR CO.

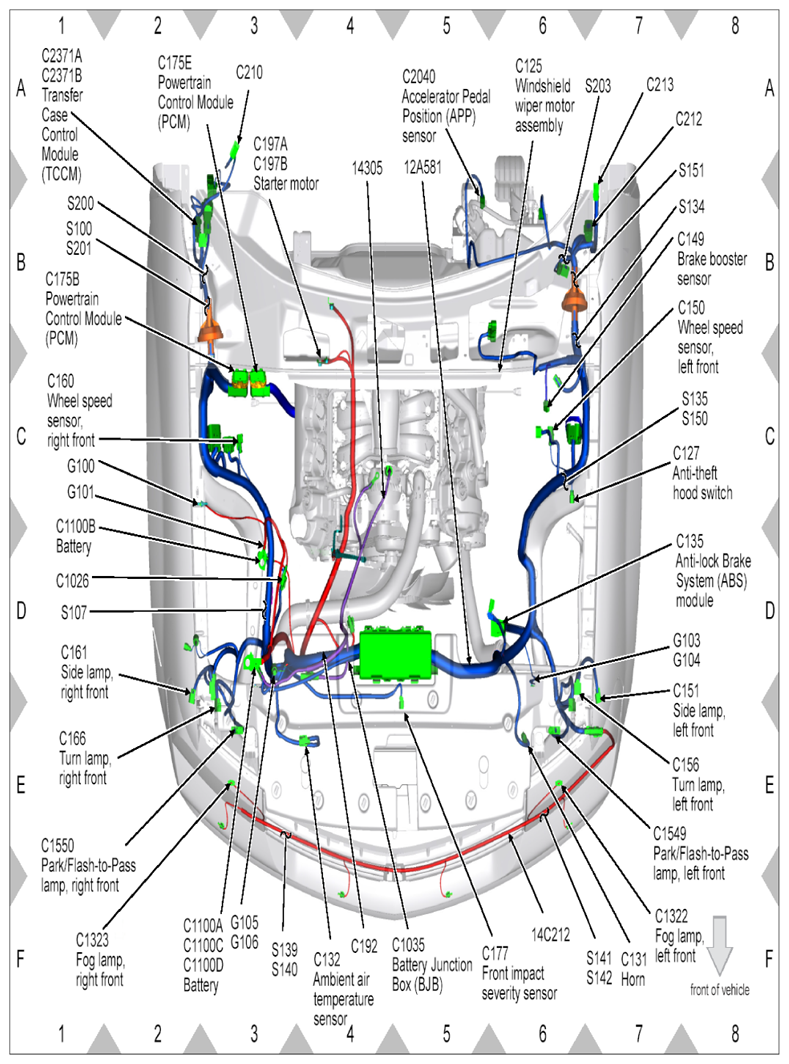

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)

G07856514

Courtesy of FORD MOTOR CO.

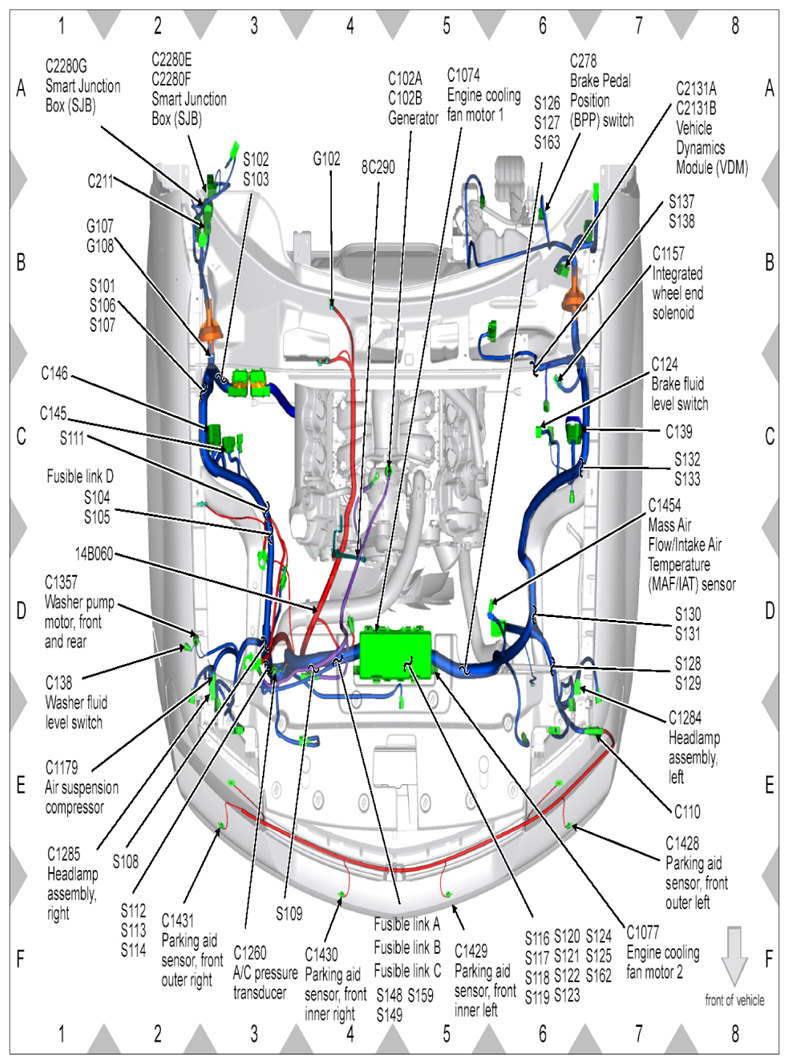

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)

G07856515

Courtesy of FORD MOTOR CO.

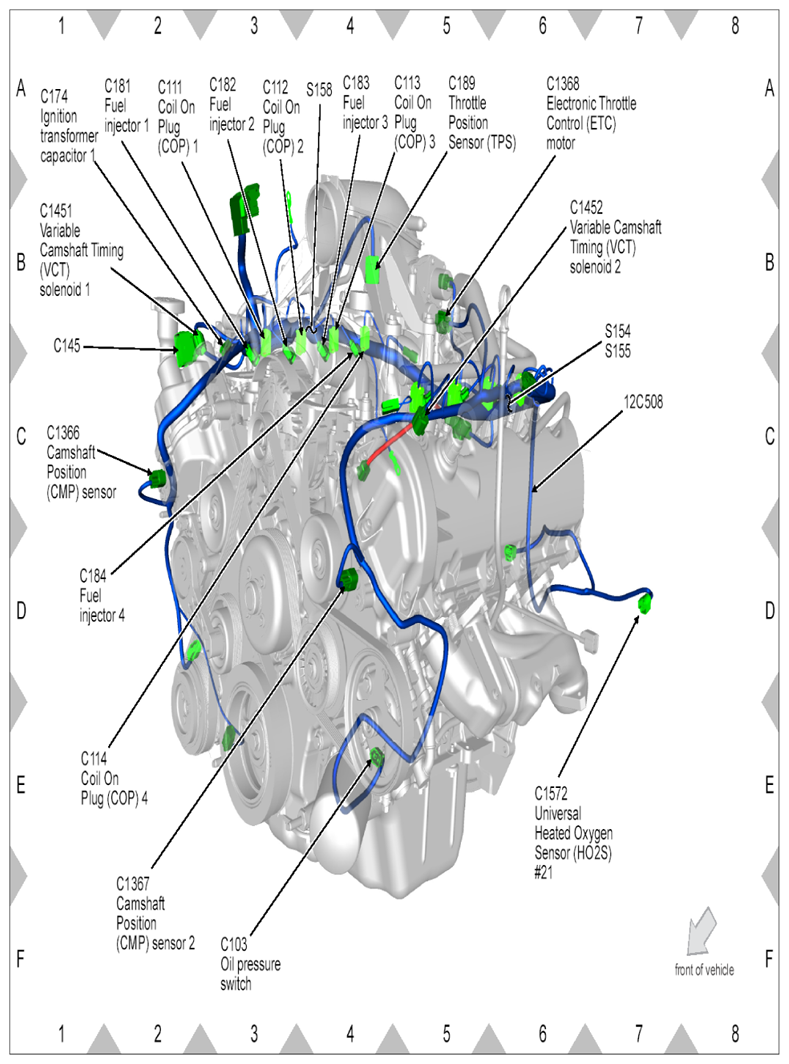

Fig 5: Engine Wiring Harness Connectors Location (1 Of 2)

G07856516

Courtesy of FORD MOTOR CO.

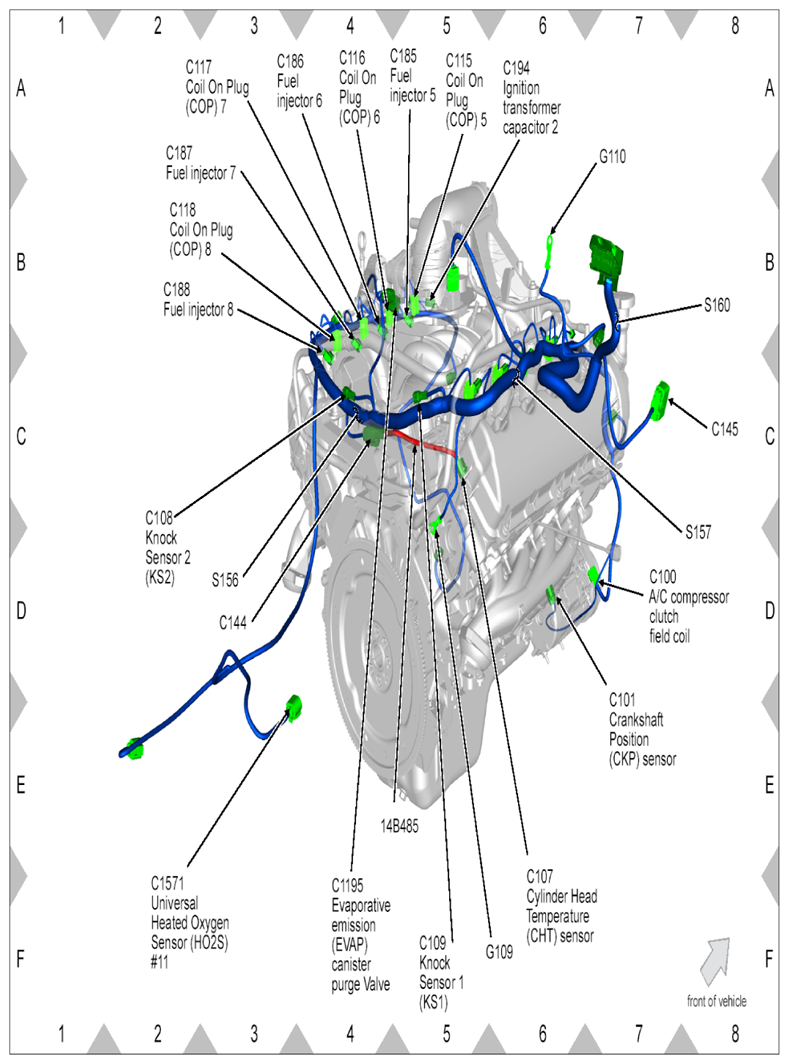

Fig 6: Engine Wiring Harness Connectors Location (2 Of 2)

G07856517

Courtesy of FORD MOTOR CO.

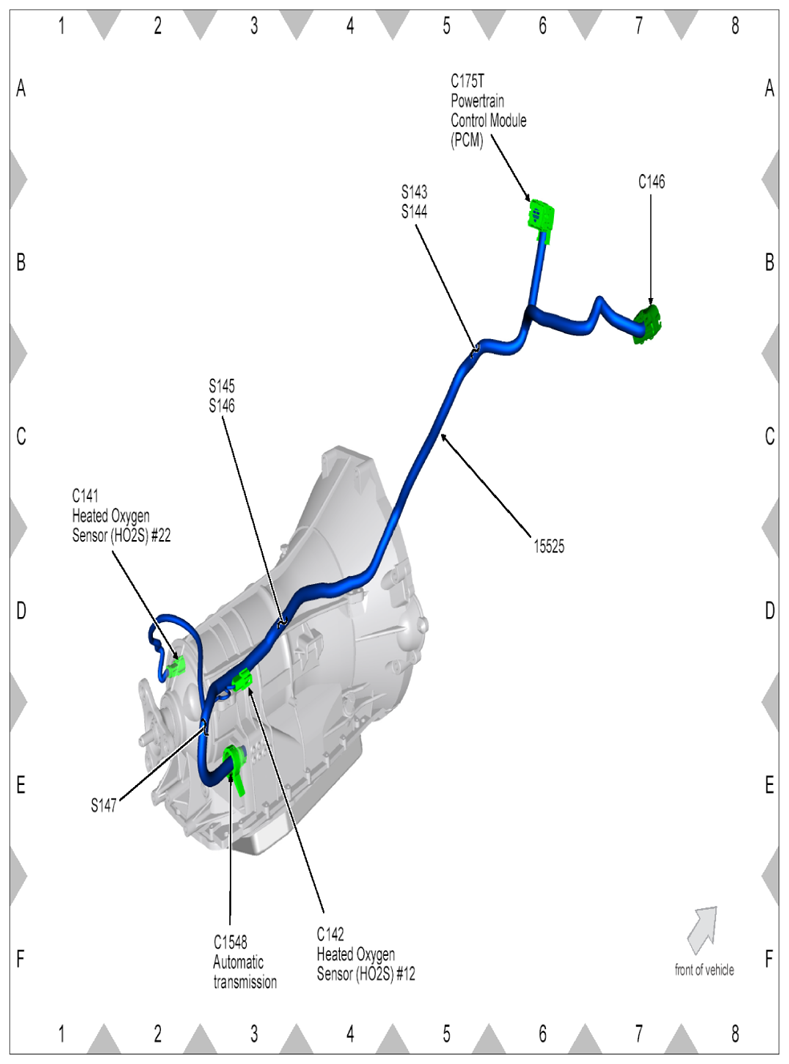

Fig 7: Automatic Transmission Wiring Harness Connectors Location (1 Of 2)

G07856518

Courtesy of FORD MOTOR CO.

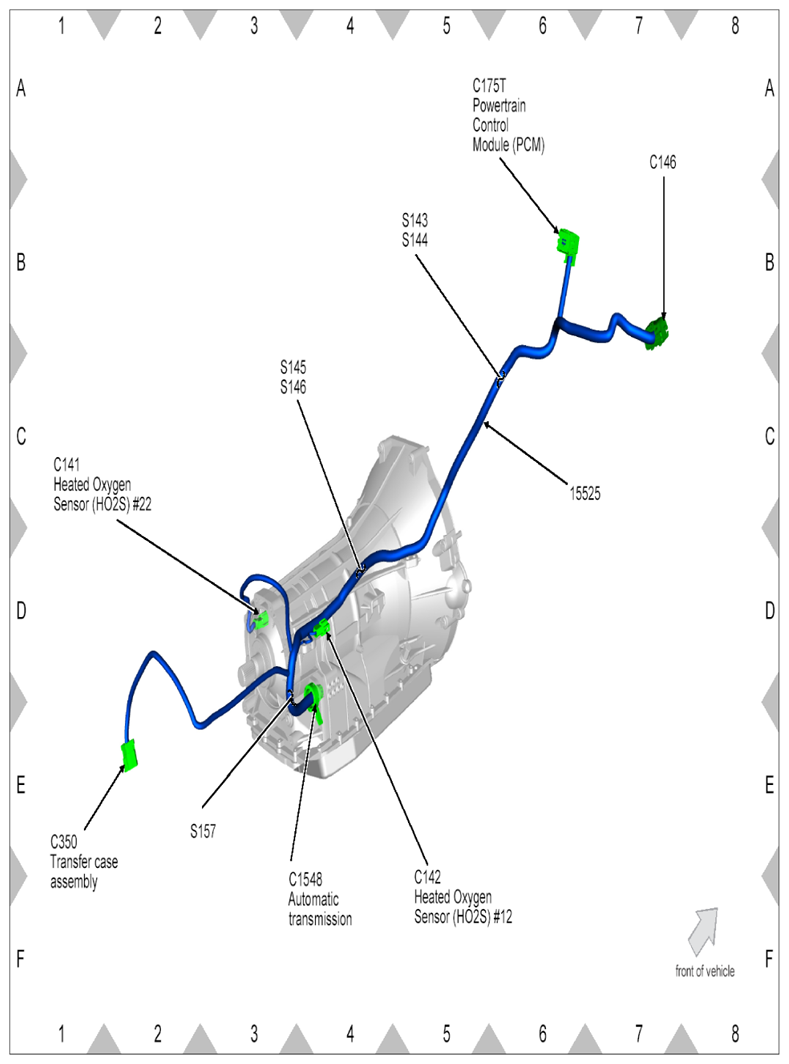

Fig 8: Automatic Transmission Wiring Harness Connectors Location (2 Of 2)

G07856519

Courtesy of FORD MOTOR CO.

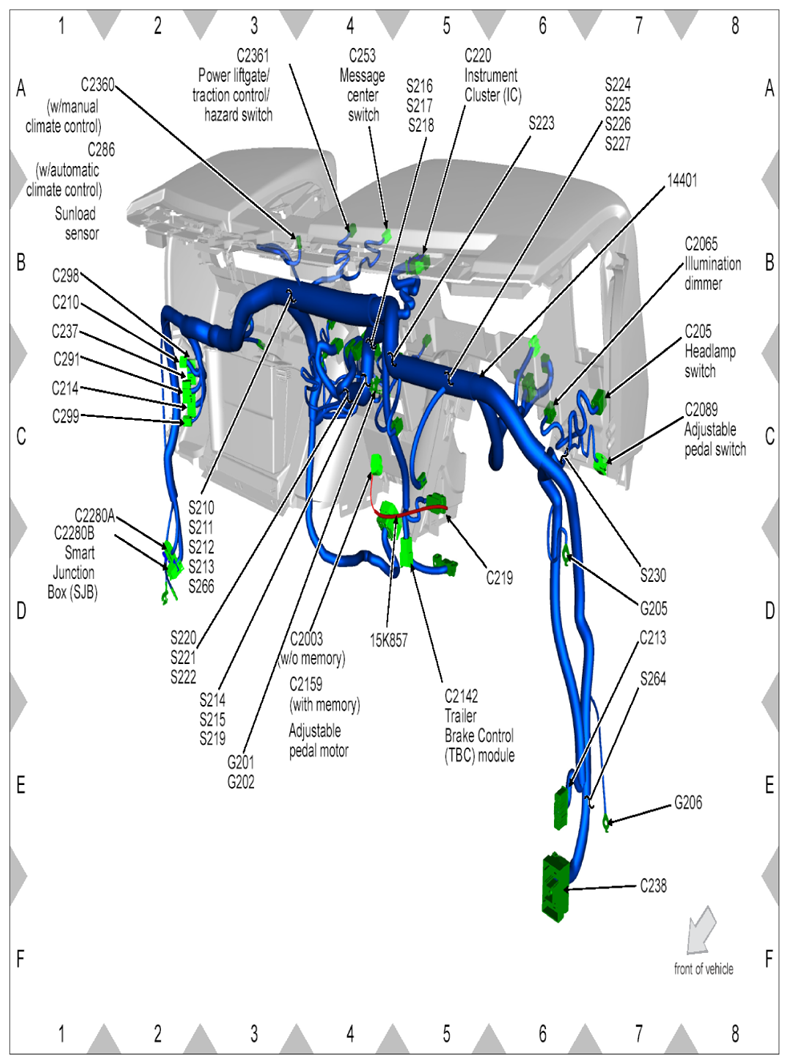

Fig 9: Dash Board Wiring Harness Connectors Location (1 Of 4)

G07856520

Courtesy of FORD MOTOR CO.

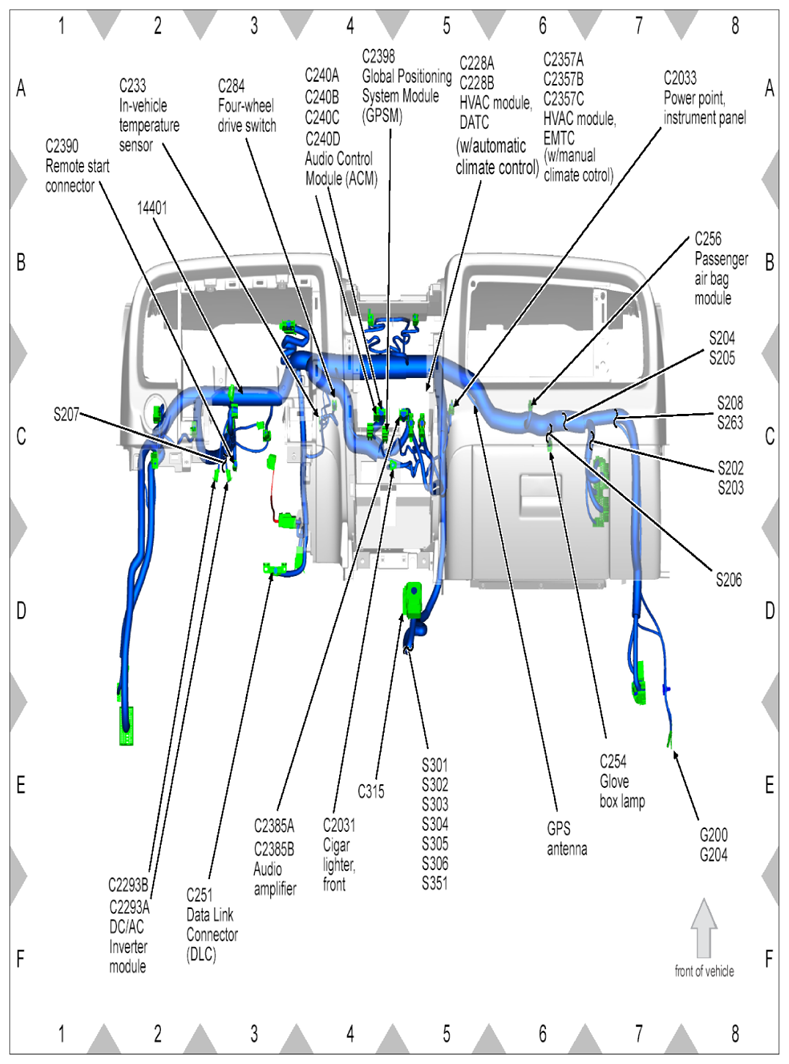

Fig 10: Dash Board Wiring Harness Connectors Location (2 Of 4)

G07856521

Courtesy of FORD MOTOR CO.

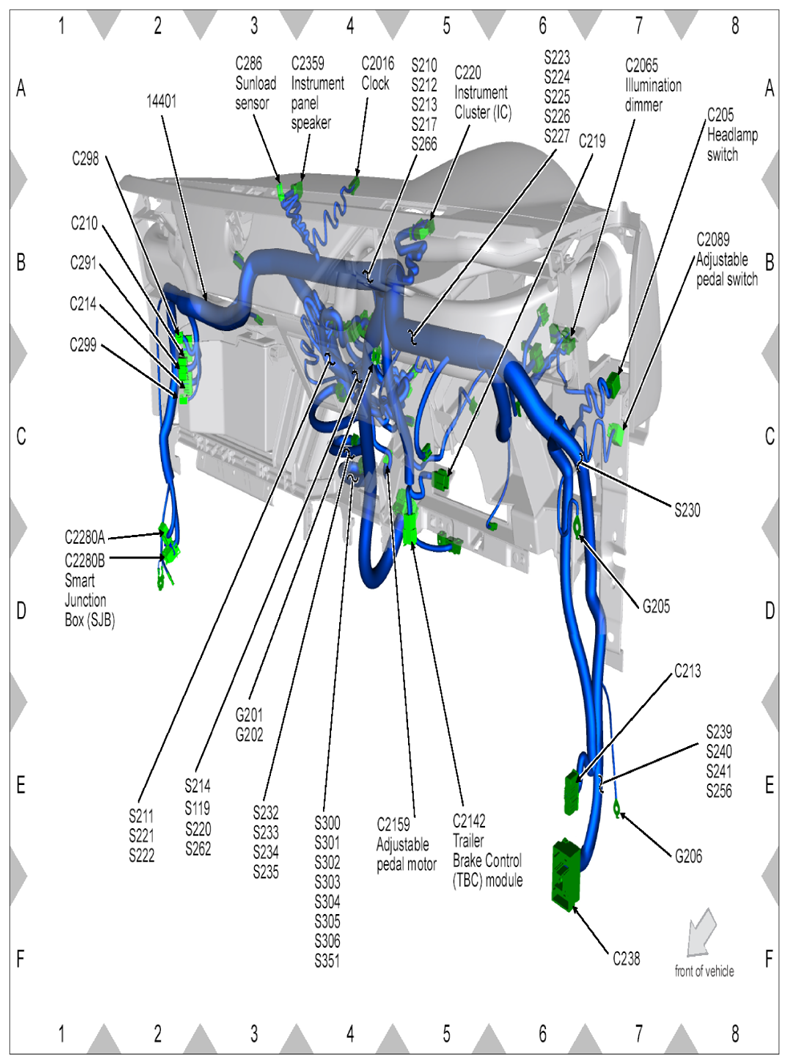

Fig 11: Dash Board Wiring Harness Connectors Location (3 Of 4)

G07856522

Courtesy of FORD MOTOR CO.

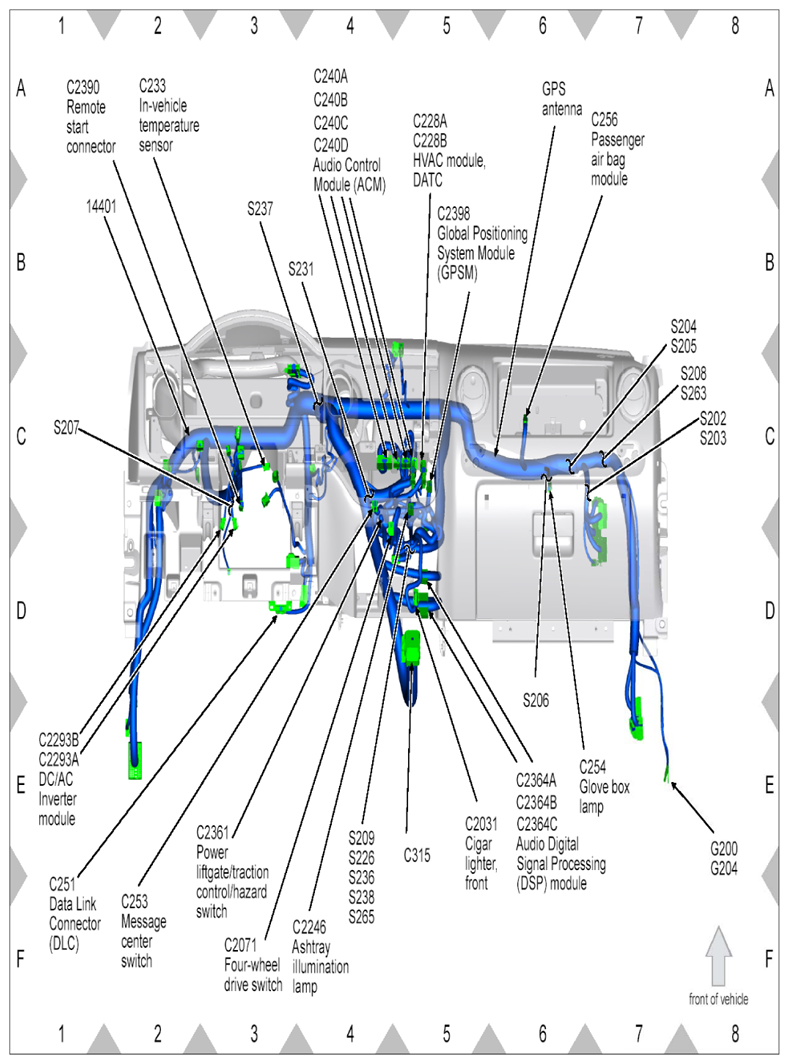

Fig 12: Dash Board Wiring Harness Connectors Location (4 Of 4)

G07856523

Courtesy of FORD MOTOR CO.

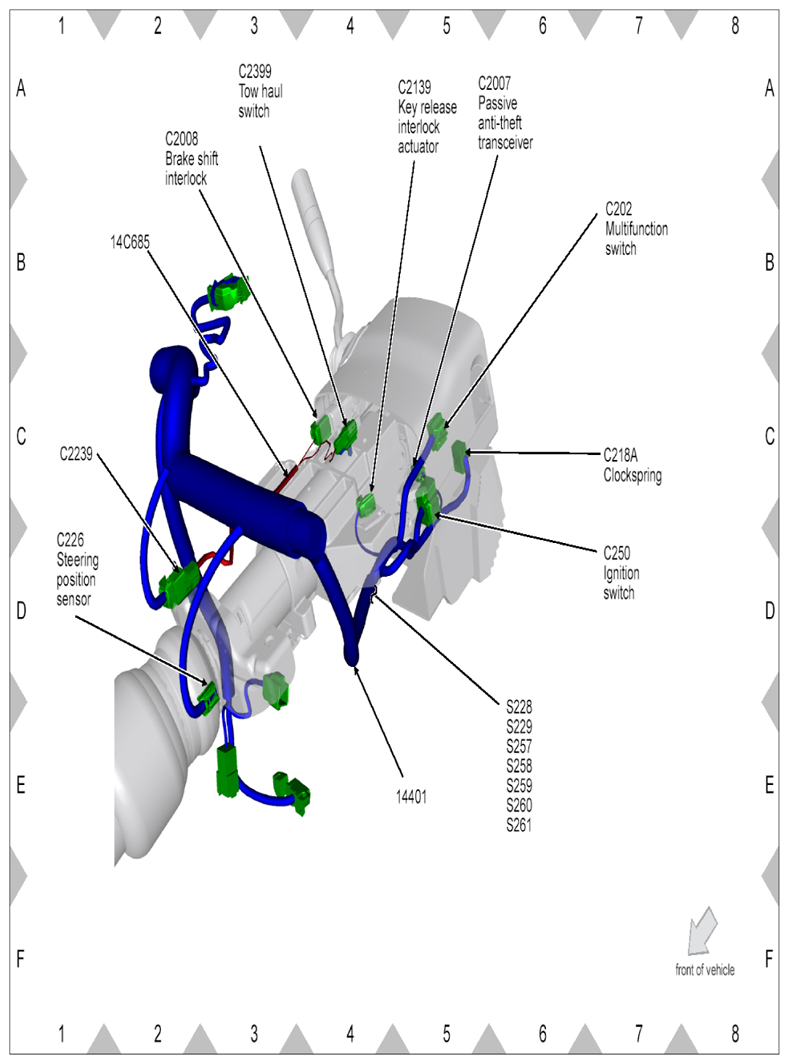

Fig 13: Steering Column Wiring Harness Connectors Location (1 Of 2)

G07856524

Courtesy of FORD MOTOR CO.

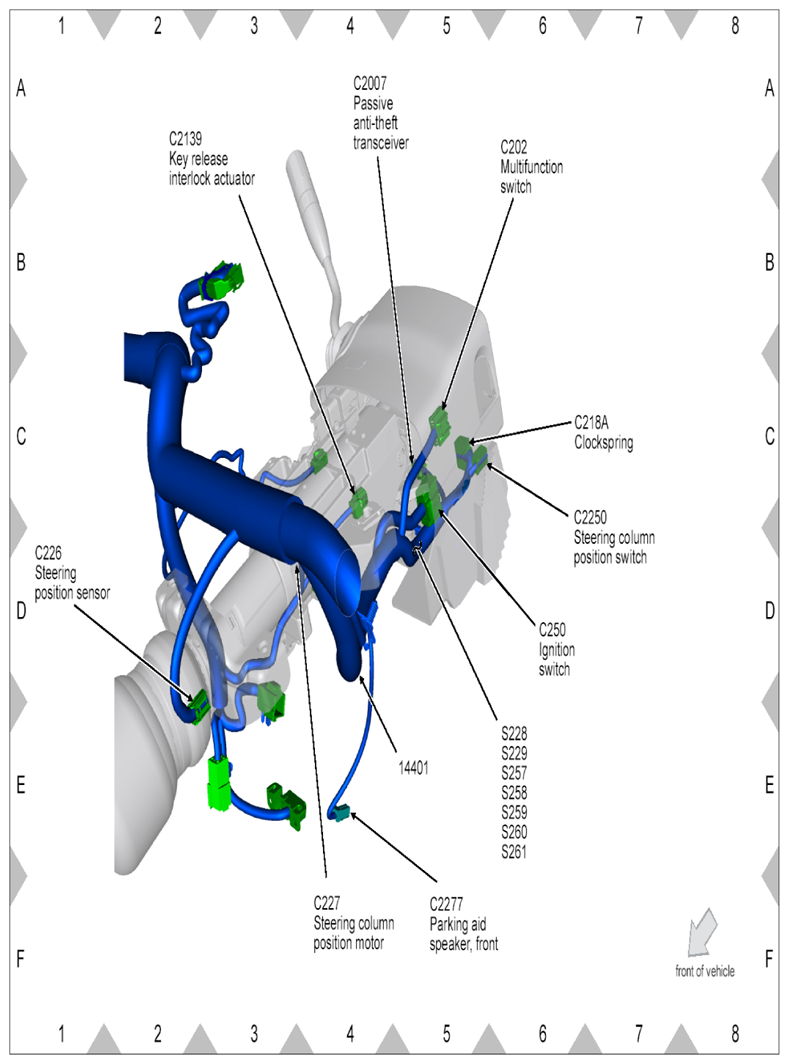

Fig 14: Steering Column Wiring Harness Connectors Location (2 Of 2)

G07856525

Courtesy of FORD MOTOR CO.

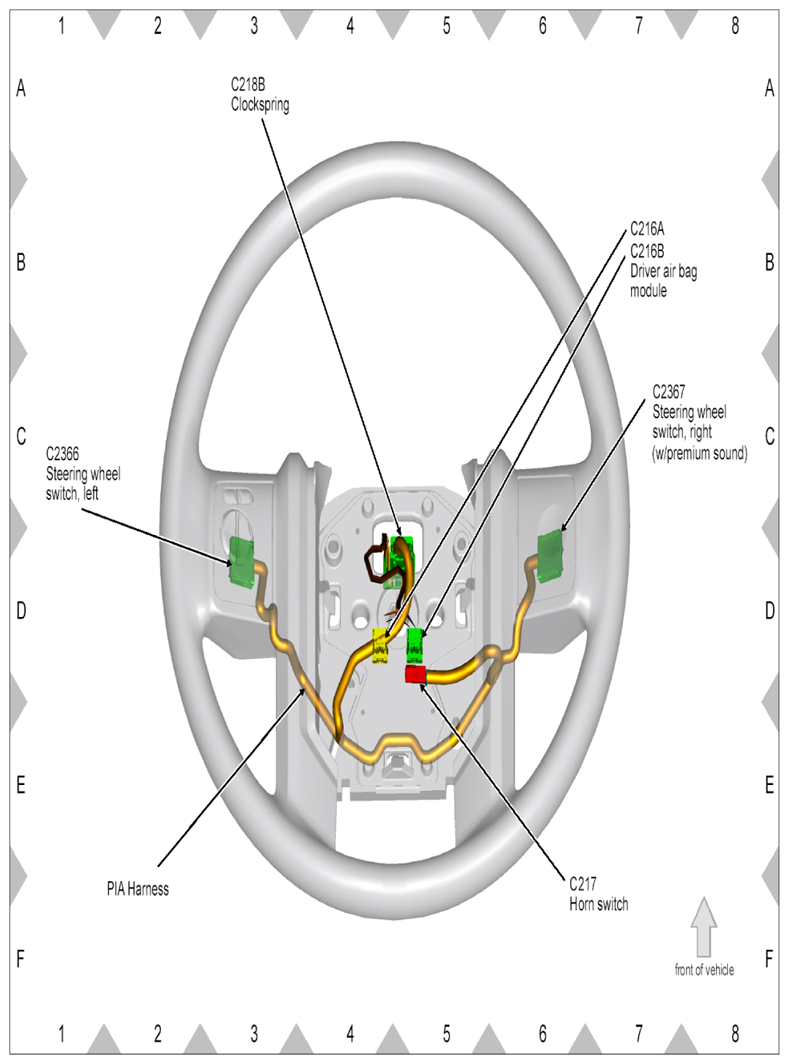

Fig 15: Steering Wiring Harness Connectors Location (1 Of 2)

G07856526

Courtesy of FORD MOTOR CO.

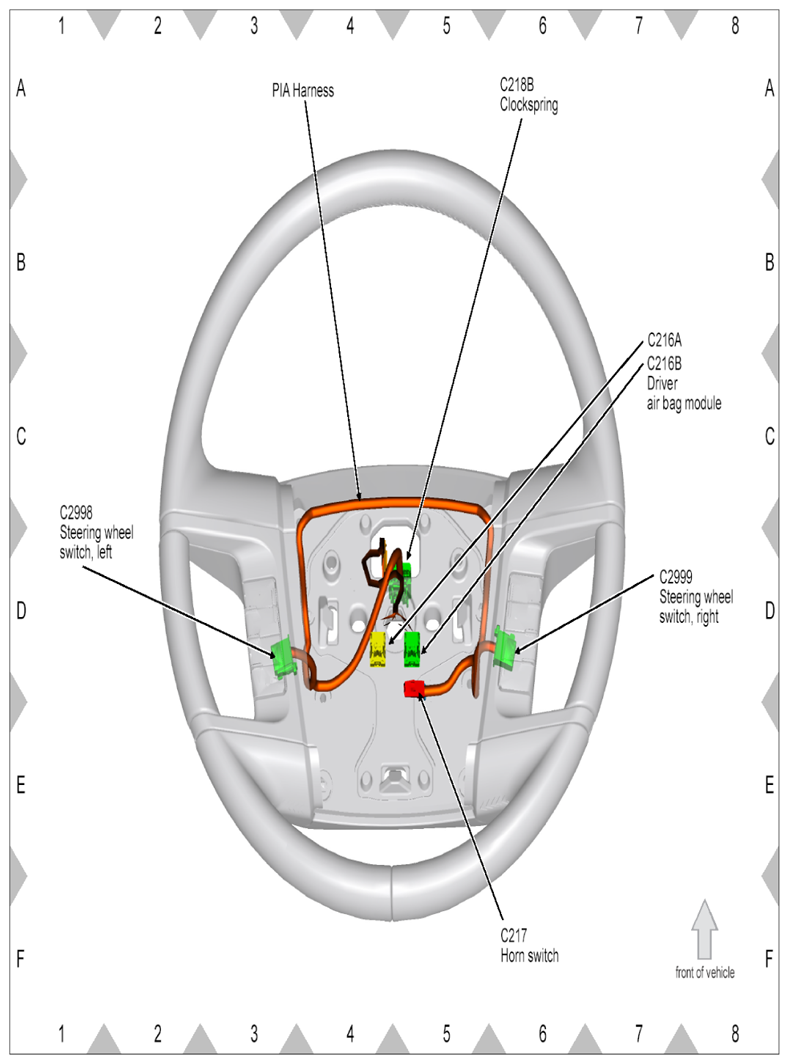

Fig 16: Steering Wiring Harness Connectors Location (2 Of 2)

G07856527

Courtesy of FORD MOTOR CO.

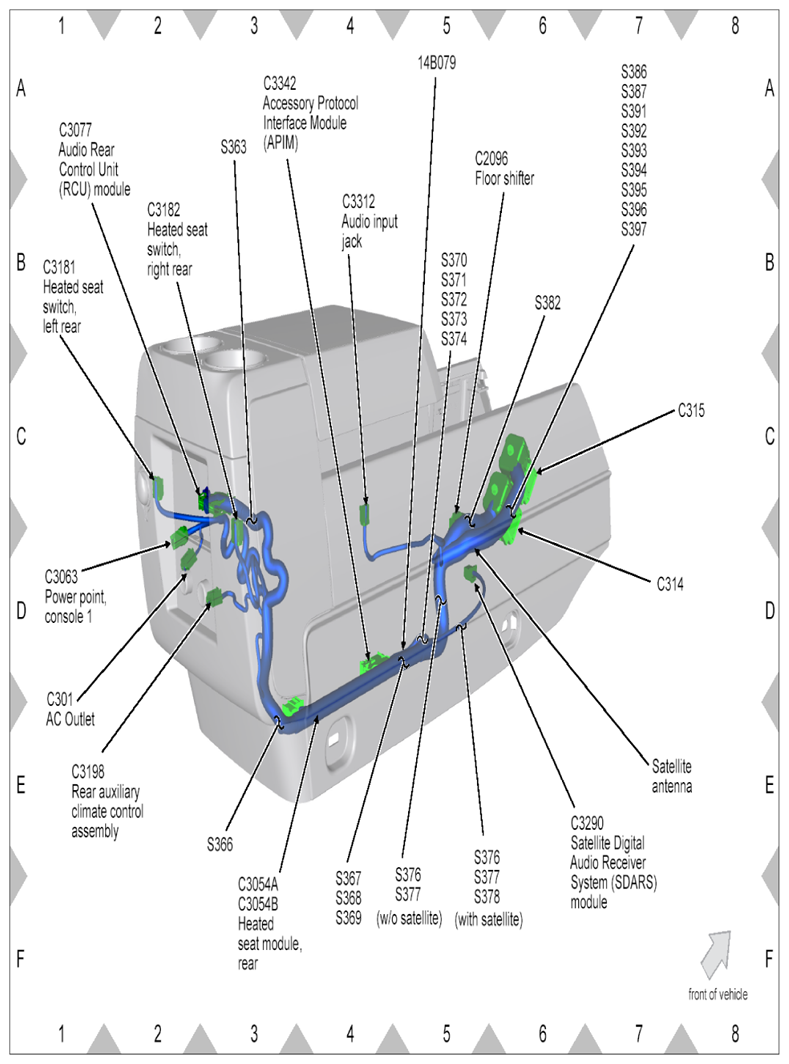

Fig 17: Center Console Wiring Harness Connectors Location (1 Of 2)

G07856528

Courtesy of FORD MOTOR CO.

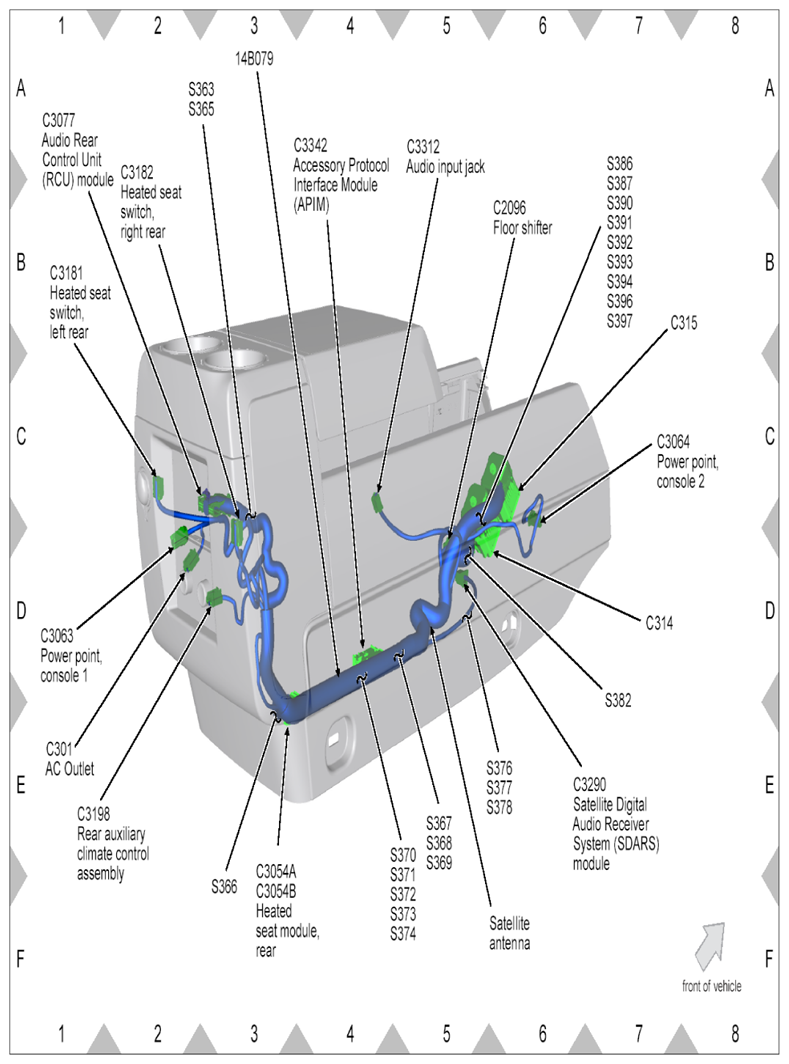

Fig 18: Center Console Wiring Harness Connectors Location (2 Of 2)

G07856529

Courtesy of FORD MOTOR CO.

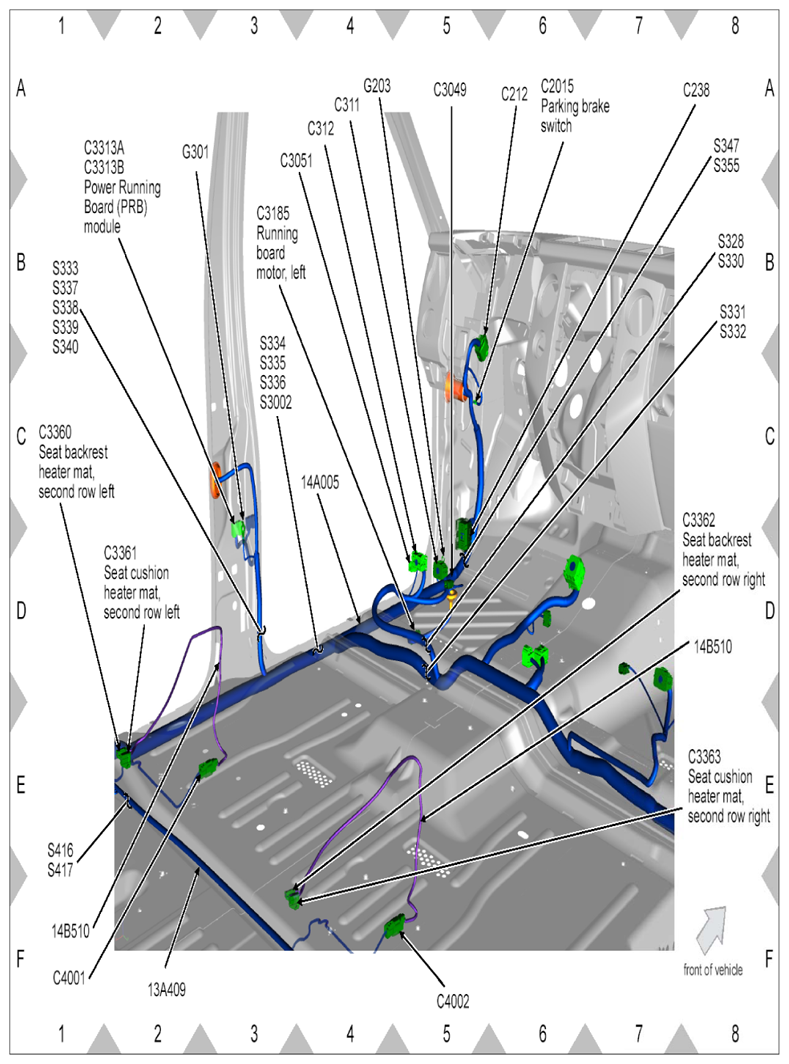

Fig 19: LH Front Compartment Wiring Harness Connectors Location

G07856530

Courtesy of FORD MOTOR CO.

Fig 20: RH Front Compartment Wiring Harness Connectors Location

G07856531

Courtesy of FORD MOTOR CO.

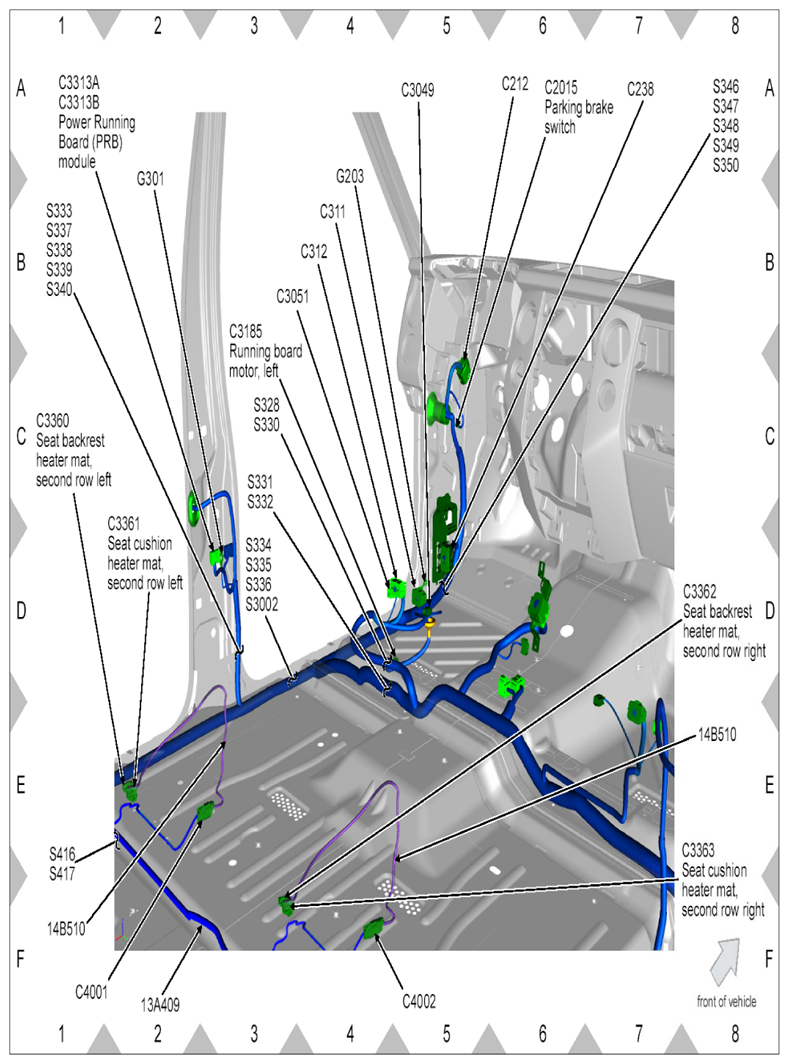

Fig 21: LH Front Compartment Wiring Harness Connectors Location

G07856532

Courtesy of FORD MOTOR CO.

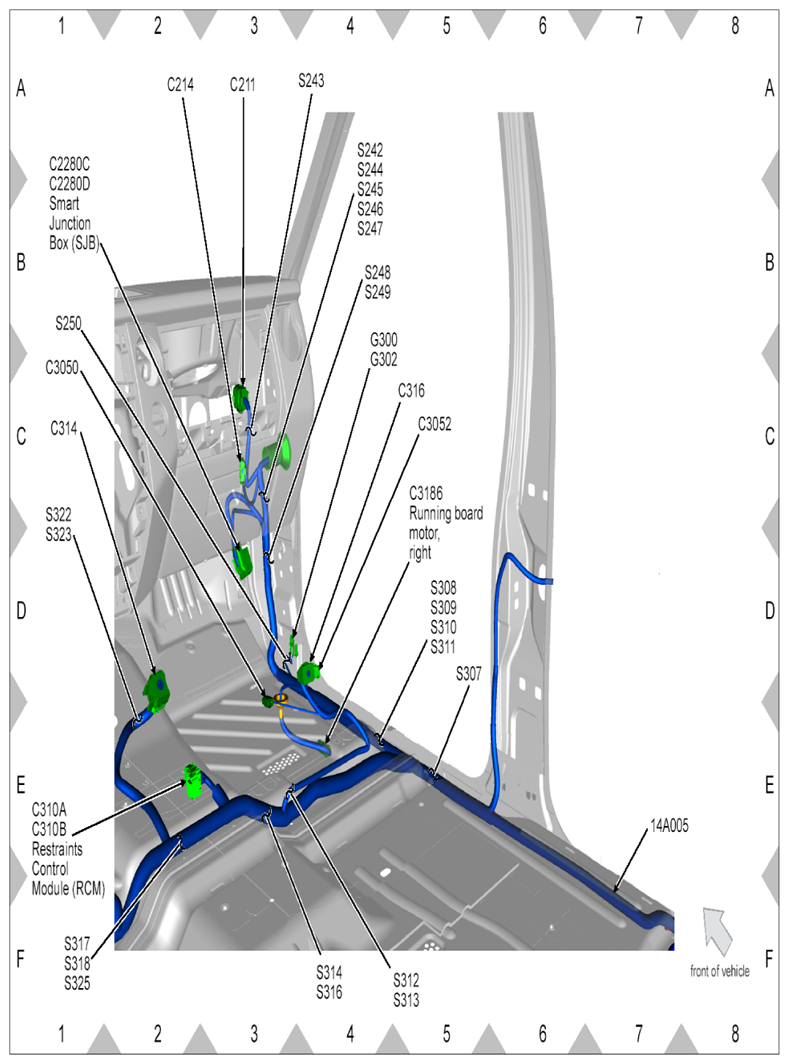

Fig 22: RH Front Compartment Wiring Harness Connectors Location

G07856533

Courtesy of FORD MOTOR CO.

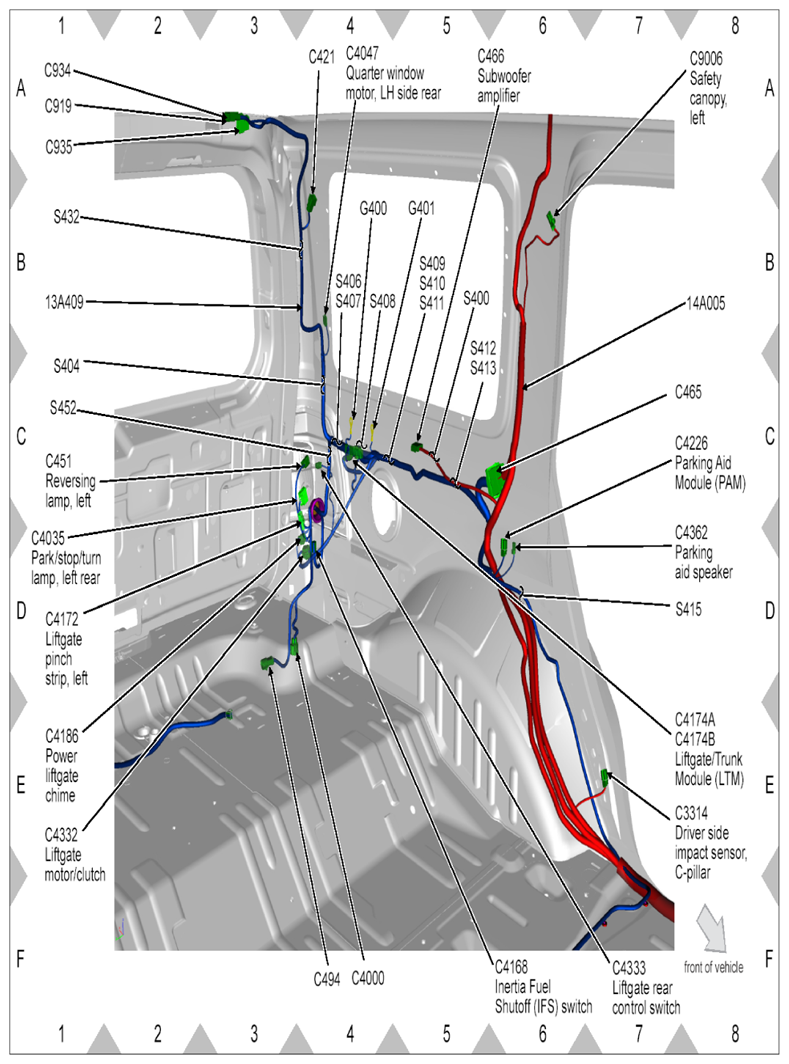

Fig 23: LH Rear Compartment Wiring Harness Connectors Location

G07856534

Courtesy of FORD MOTOR CO.

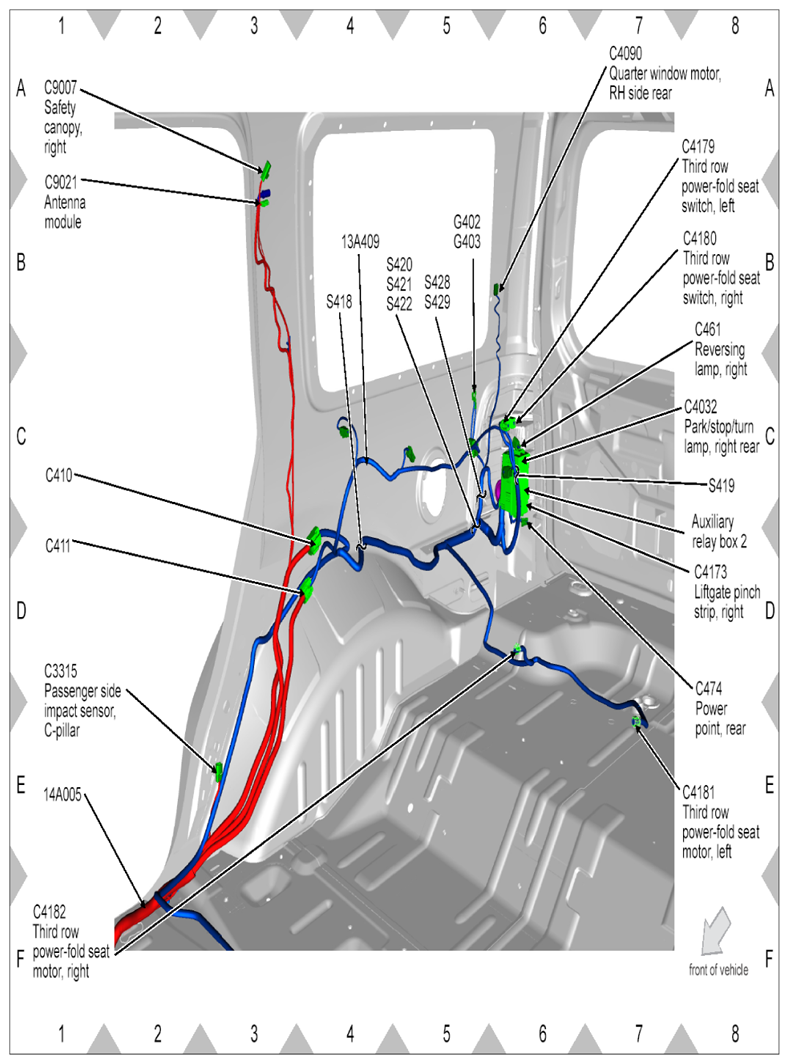

Fig 24: RH Rear Compartment Wiring Harness Connectors Location

G07856535

Courtesy of FORD MOTOR CO.

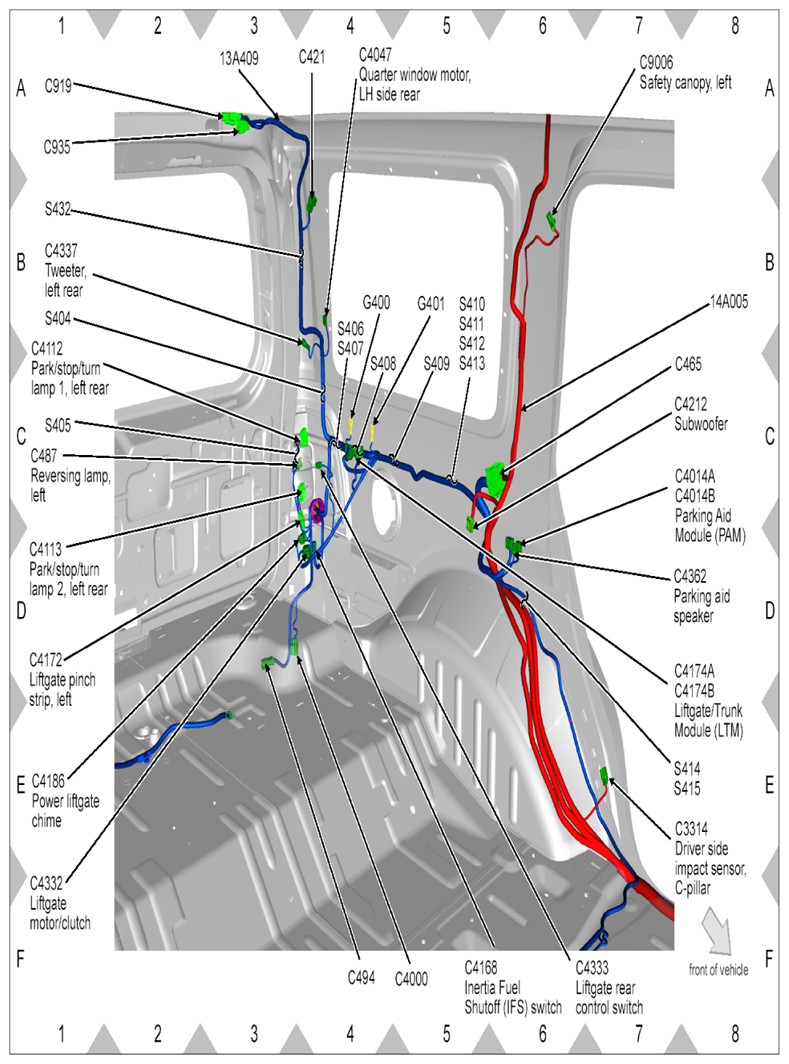

Fig 25: LH Rear Compartment Wiring Harness Connectors Location

G07856536

Courtesy of FORD MOTOR CO.

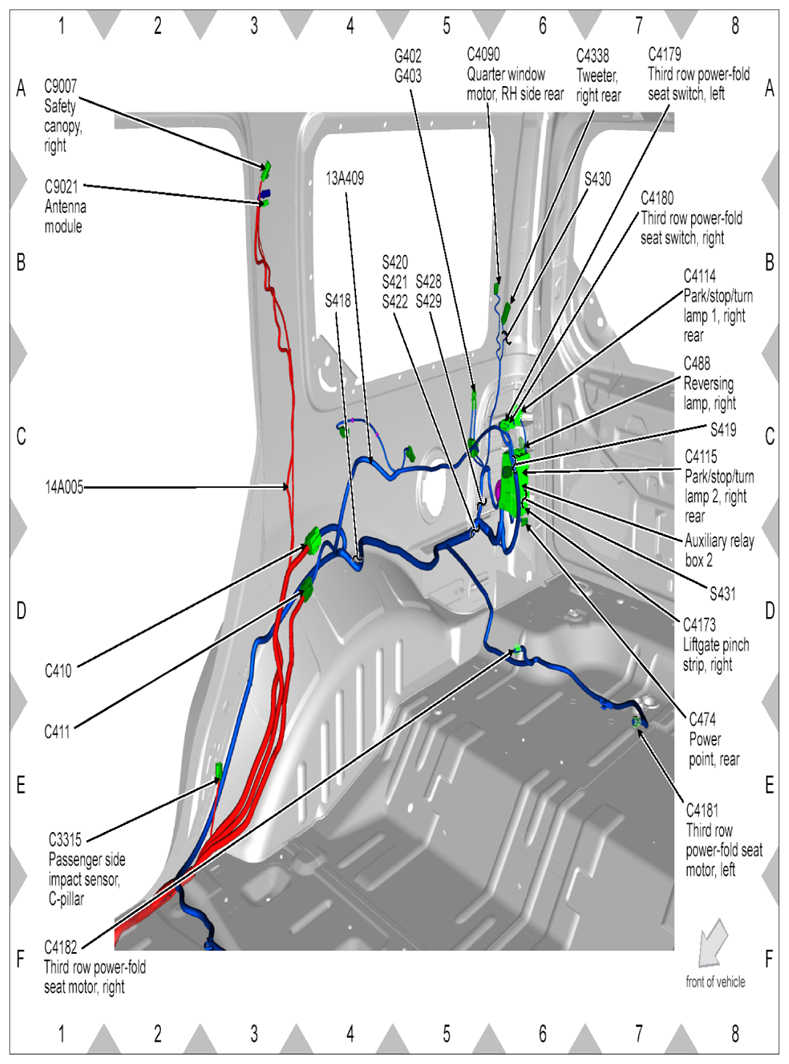

Fig 26: RH Rear Compartment Wiring Harness Connectors Location

G07856537

Courtesy of FORD MOTOR CO.

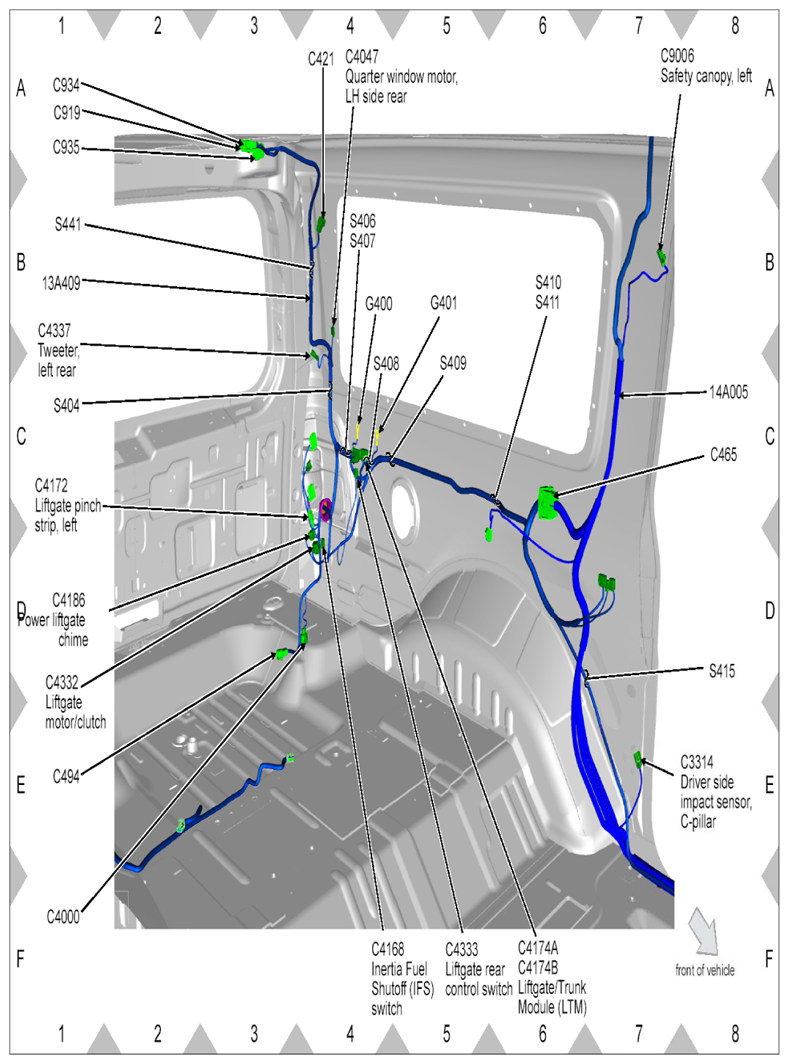

Fig 27: LH Rear Compartment Wiring Harness Connectors Location

G07856538

Courtesy of FORD MOTOR CO.

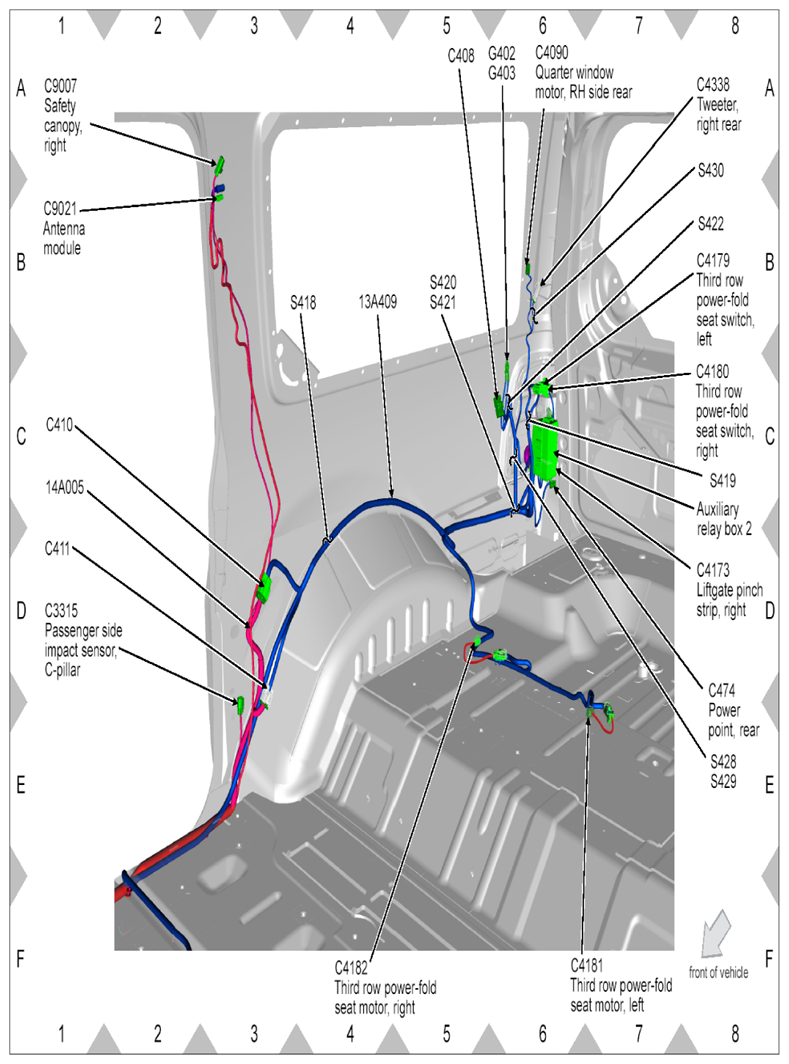

Fig 28: RH Rear Compartment Wiring Harness Connectors Location

G07856539

Courtesy of FORD MOTOR CO.

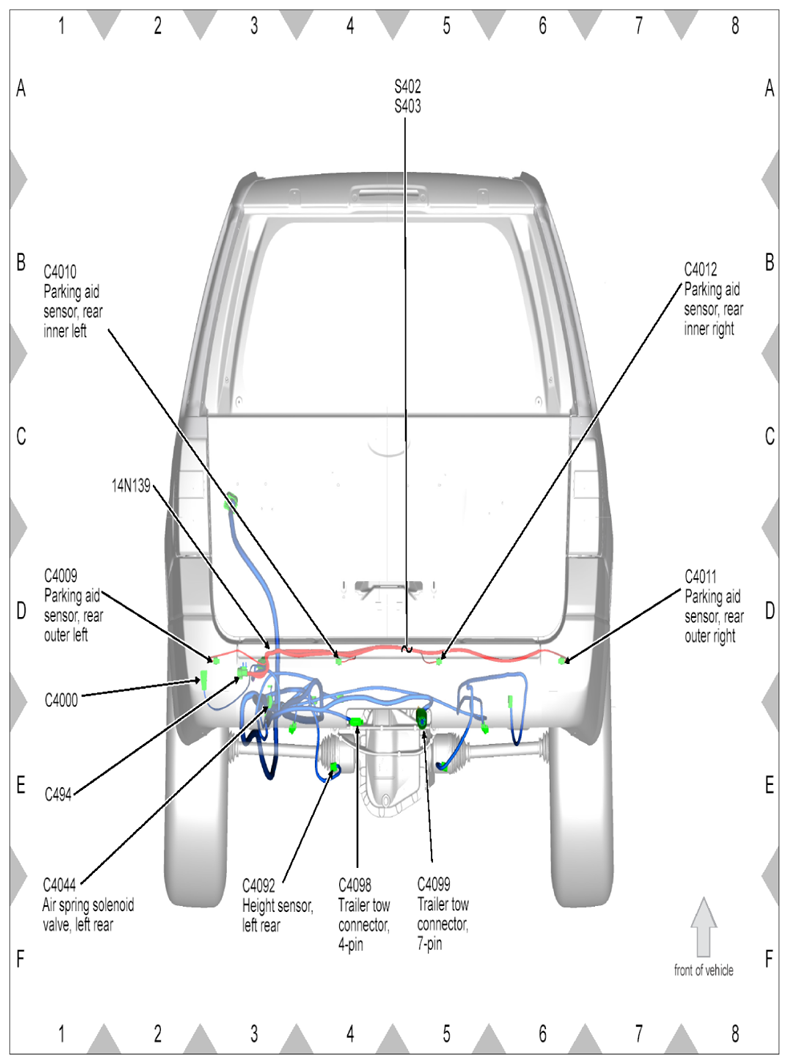

Fig 29: Parking Aid Sensor Wiring Harness Connectors Location

G07856540

Courtesy of FORD MOTOR CO.

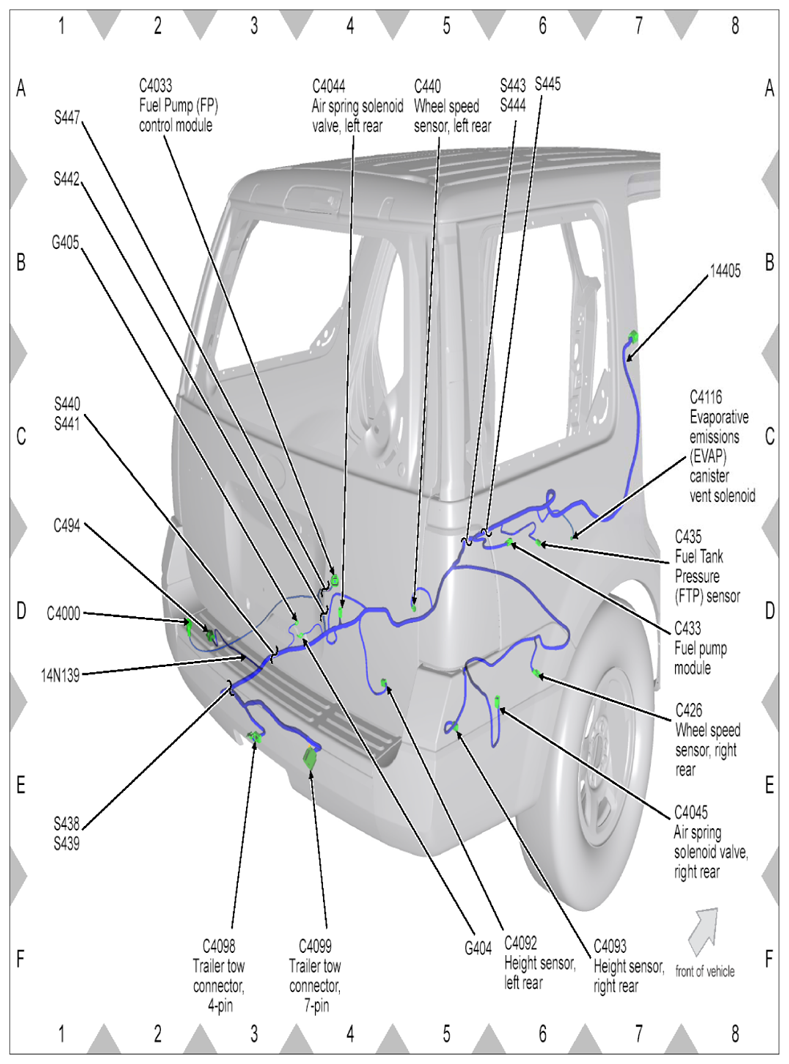

Fig 30: Fuel Pump Control Module Wiring Harness Connectors Location (1 Of 2)

G07856541

Courtesy of FORD MOTOR CO.

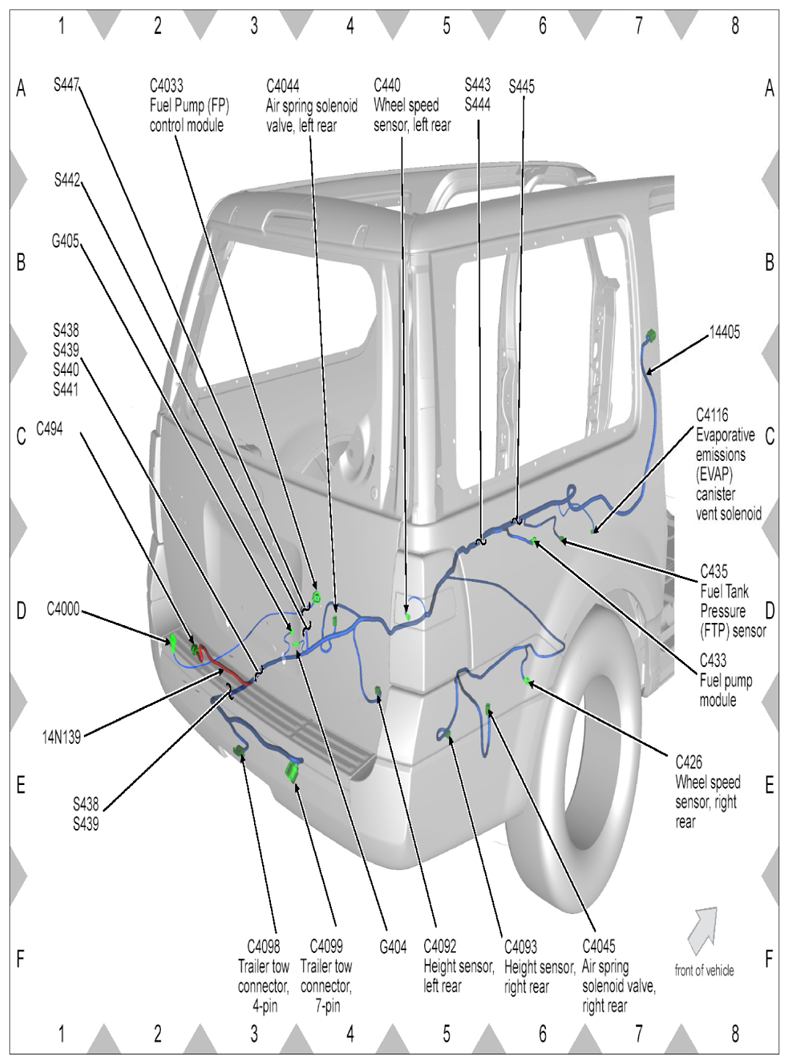

Fig 31: Fuel Pump Control Module Wiring Harness Connectors Location (2 Of 2)

G07856542

Courtesy of FORD MOTOR CO.

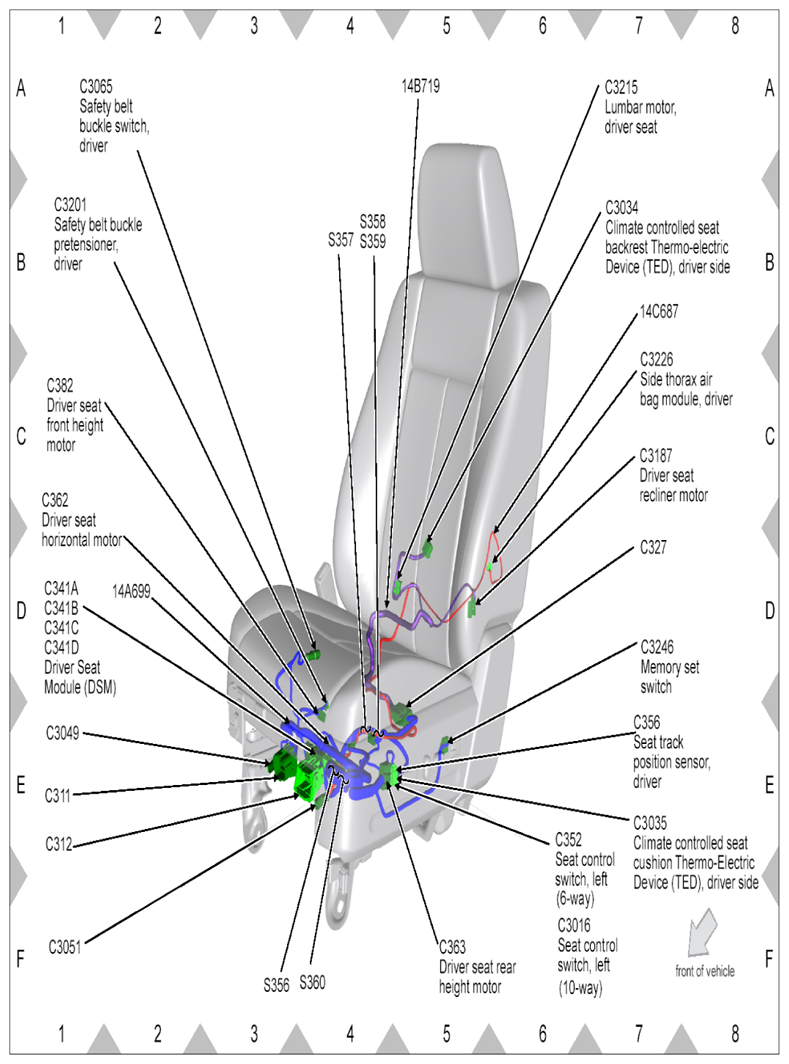

Fig 32: Driver Seat Wiring Harness Connectors Location

G07856543

Courtesy of FORD MOTOR CO.

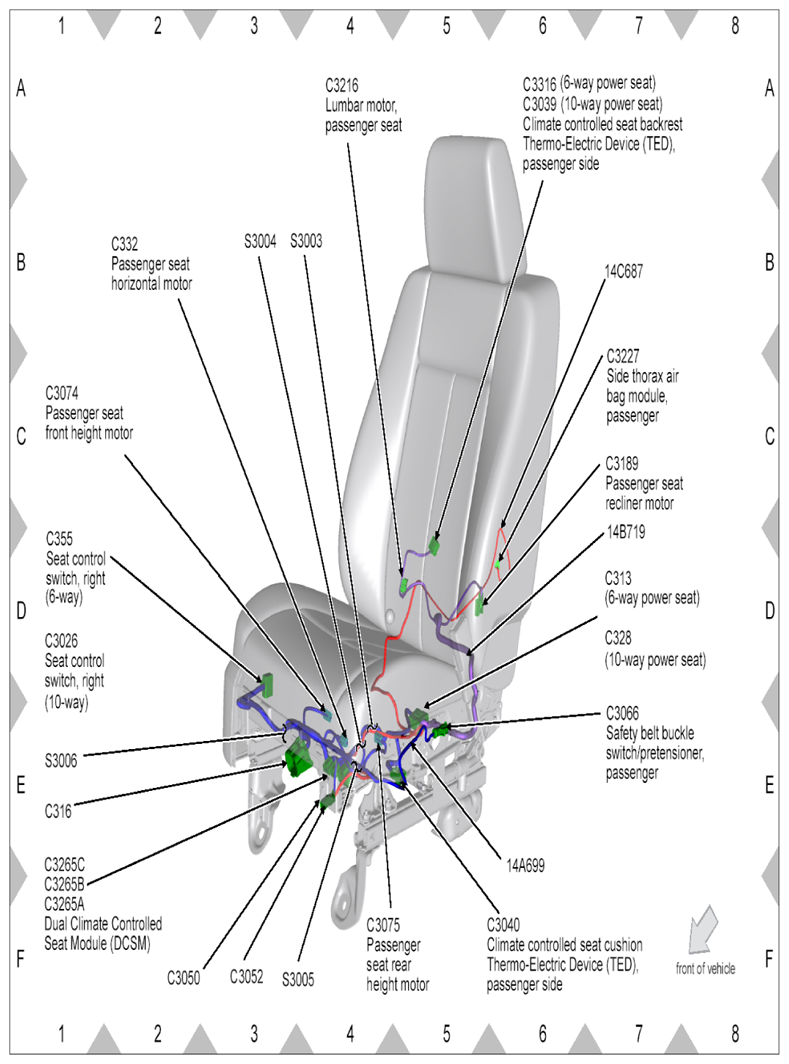

Fig 33: Passenger Seat Wiring Harness Connectors Location

G07856544

Courtesy of FORD MOTOR CO.

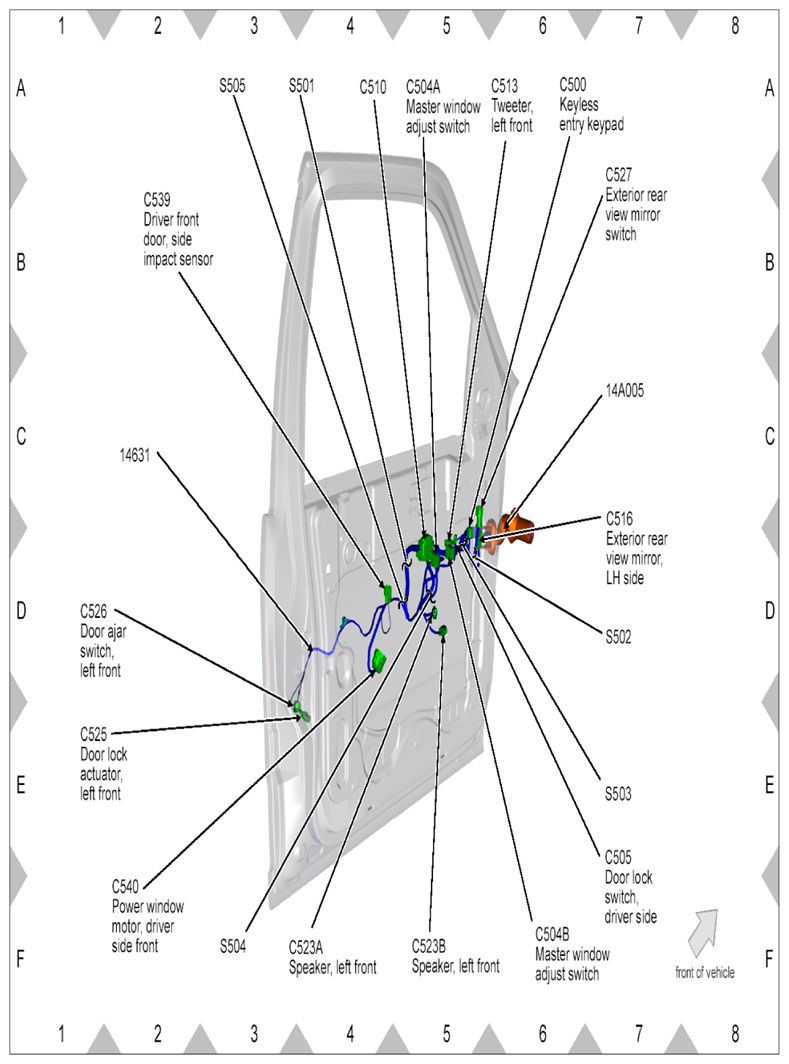

Fig 34: LH Driver Front Door Side Wiring Harness Connectors Location

G07856545

Courtesy of FORD MOTOR CO.

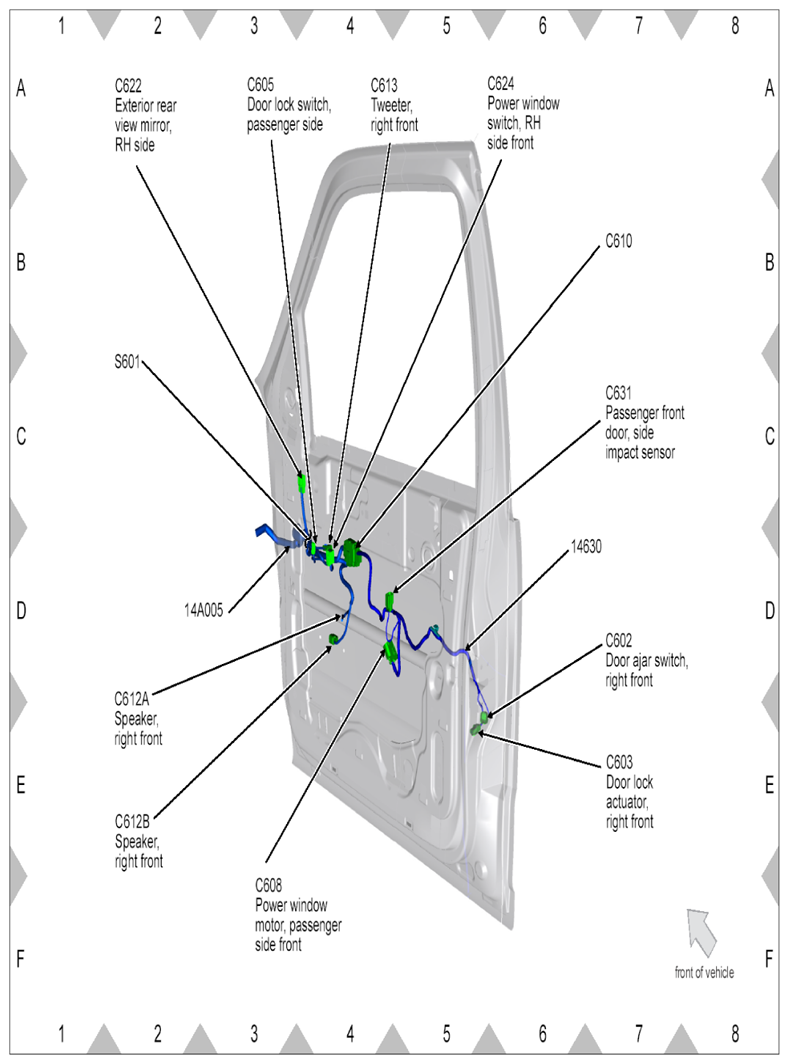

Fig 35: RH Passenger Front Door Side Wiring Harness Connectors Location

G07856546

Courtesy of FORD MOTOR CO.

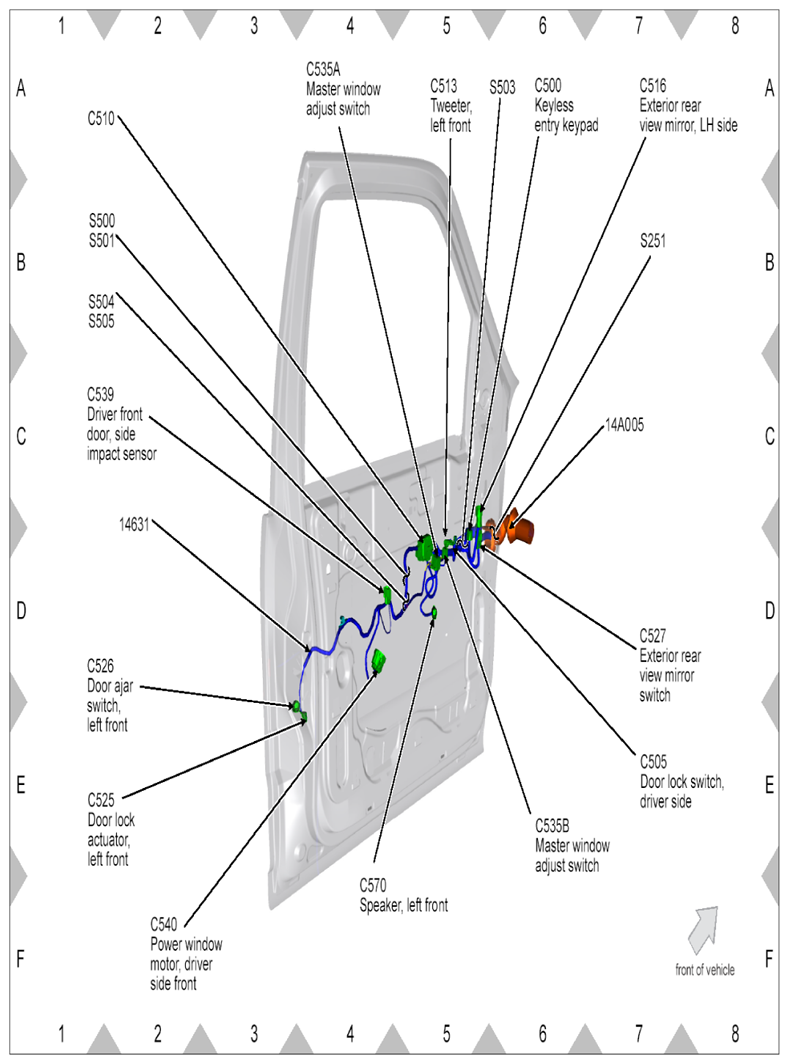

Fig 36: LH Driver Front Door Side Wiring Harness Connectors Location

G07856547

Courtesy of FORD MOTOR CO.

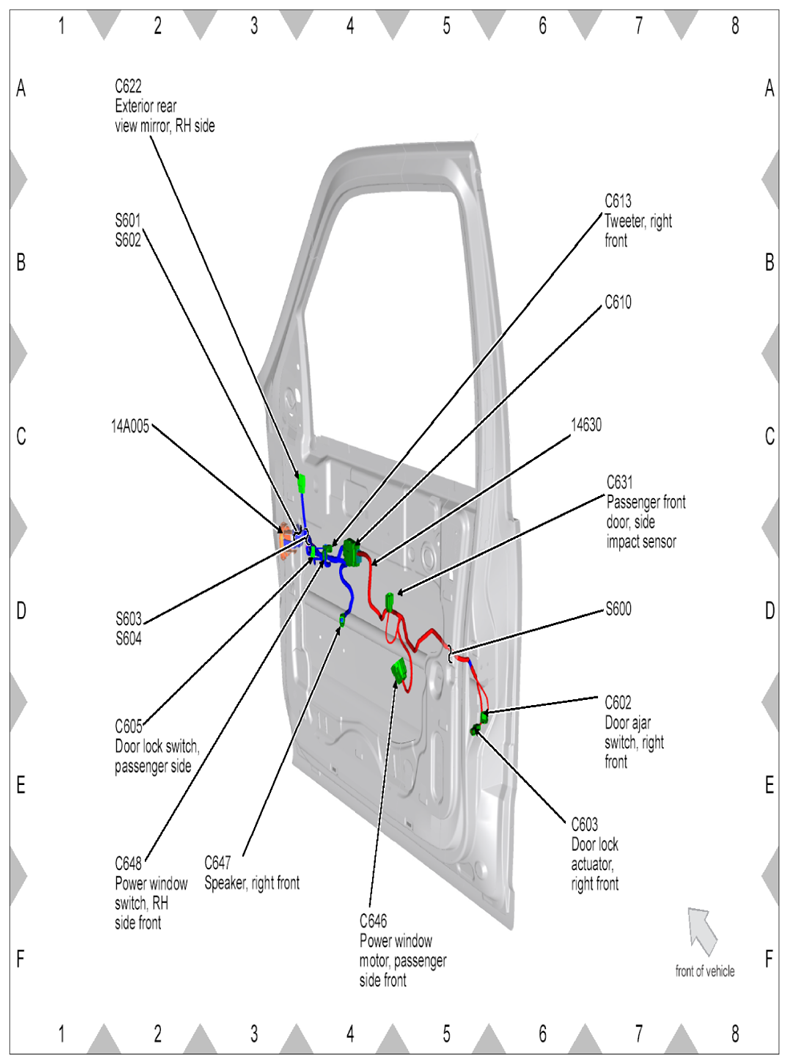

Fig 37: RH Passenger Front Door Side Wiring Harness Connectors Location

G07856548

Courtesy of FORD MOTOR CO.

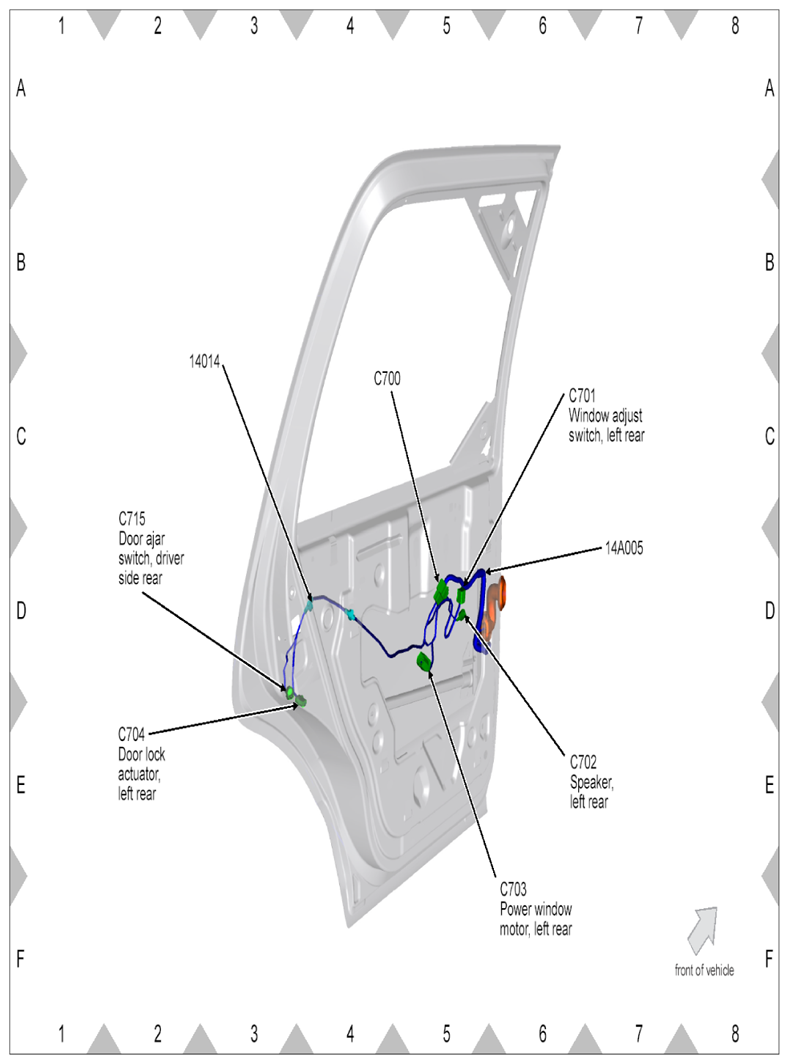

Fig 38: LH Driver Rear Door Side Wiring Harness Connectors Location

G07856549

Courtesy of FORD MOTOR CO.

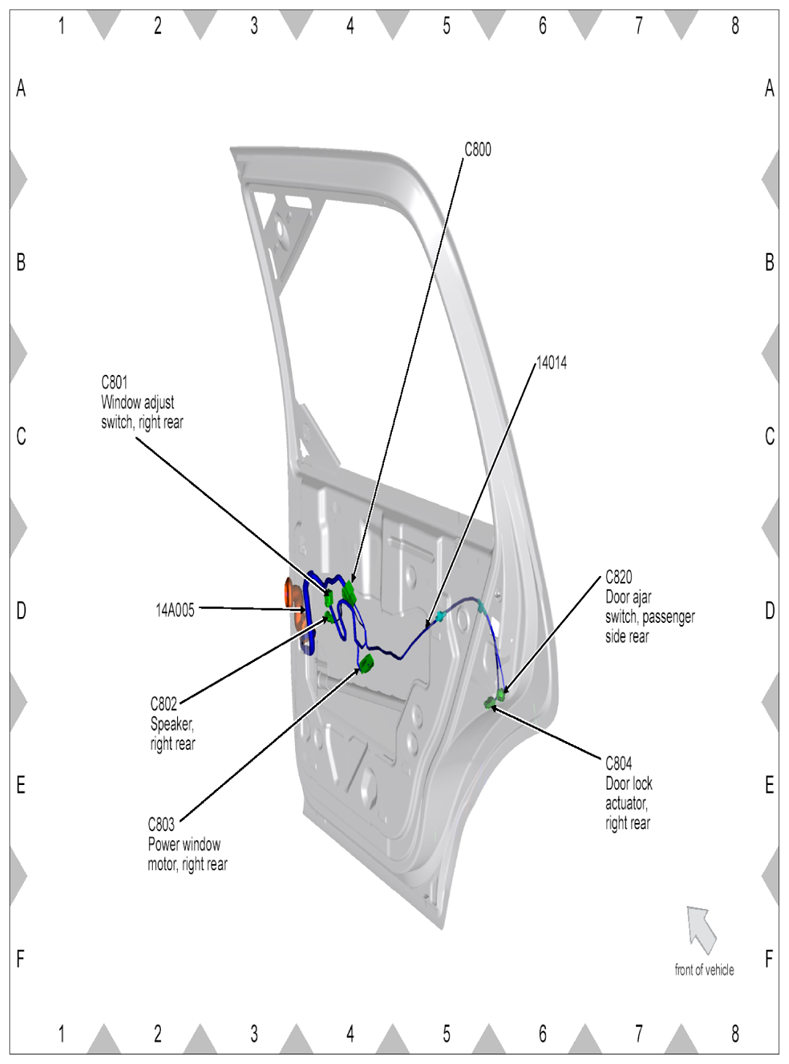

Fig 39: RH Passenger Rear Door Side Wiring Harness Connectors Location

G07856550

Courtesy of FORD MOTOR CO.

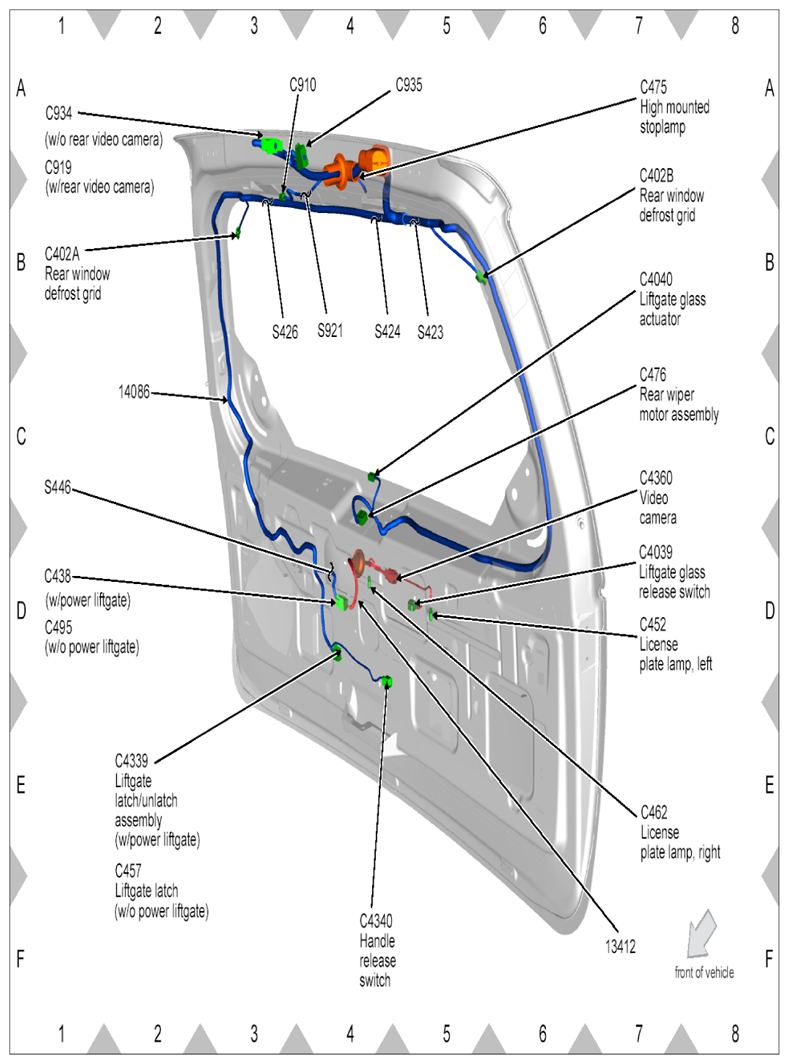

Fig 40: Rear Wiper Motor Assembly Wiring Harness Connectors Location (1 Of 2)

G07856551

Courtesy of FORD MOTOR CO.

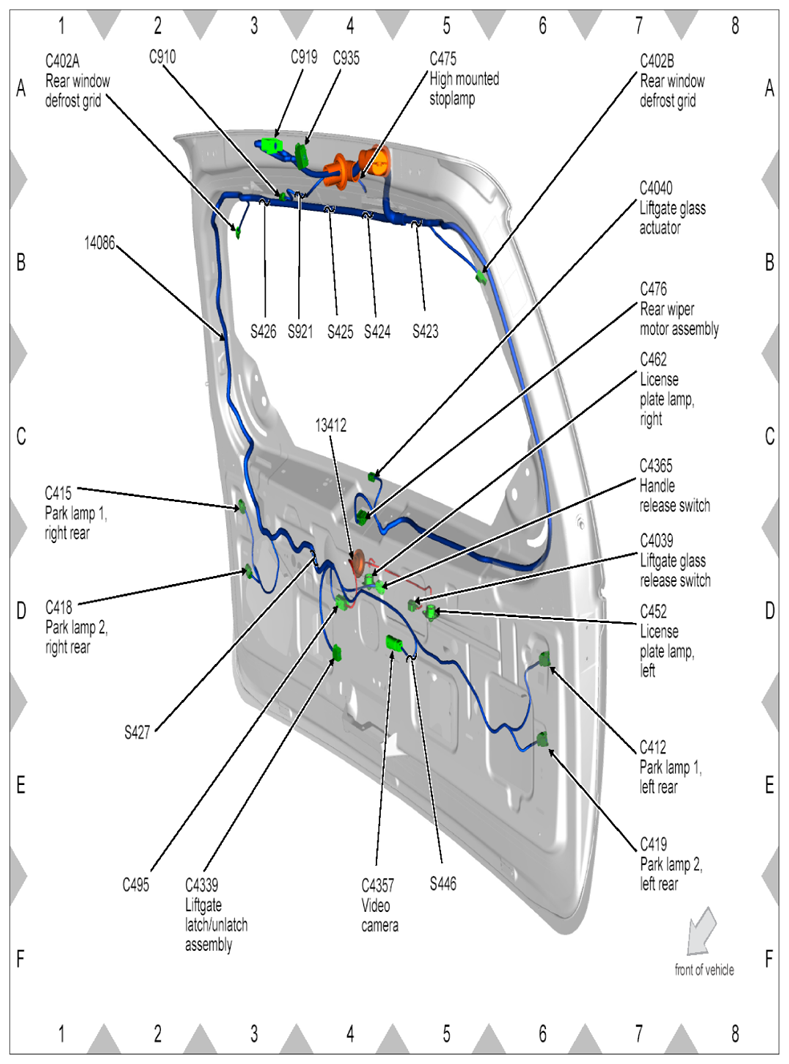

Fig 41: Rear Wiper Motor Assembly Wiring Harness Connectors Location (2 Of 2)

G07856552

Courtesy of FORD MOTOR CO.

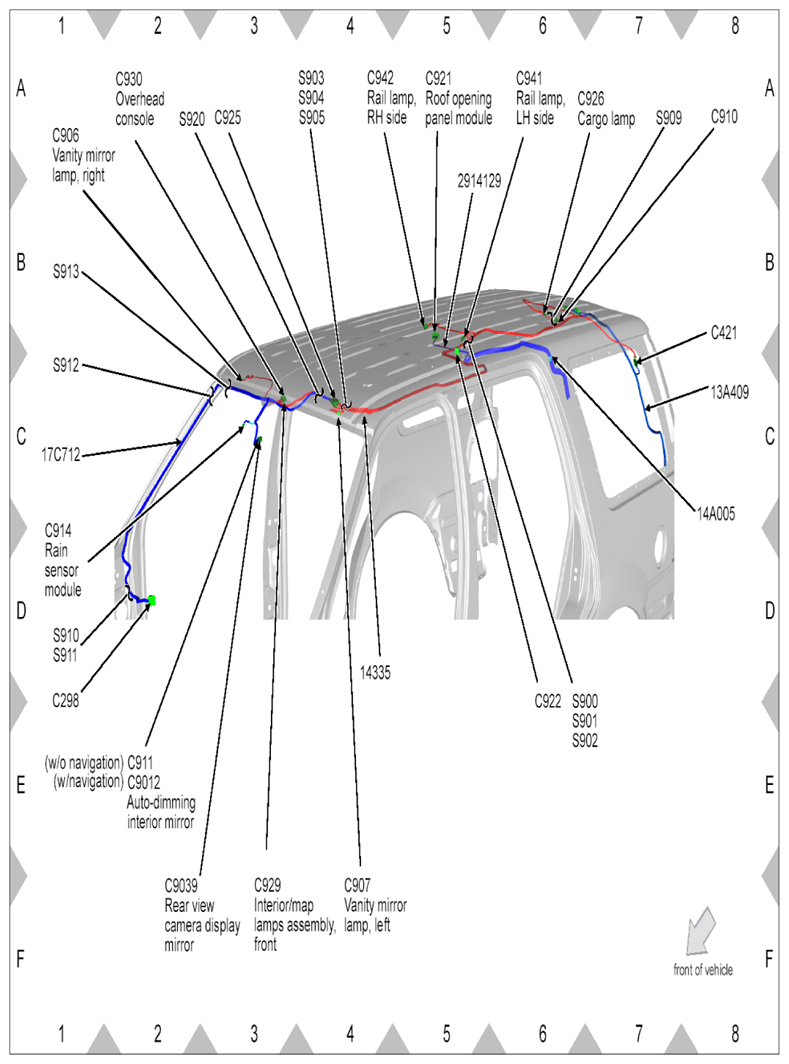

Fig 42: Roof Opening Panel Module Wiring Harness Connectors Location (1 Of 2)

G07856553

Courtesy of FORD MOTOR CO.

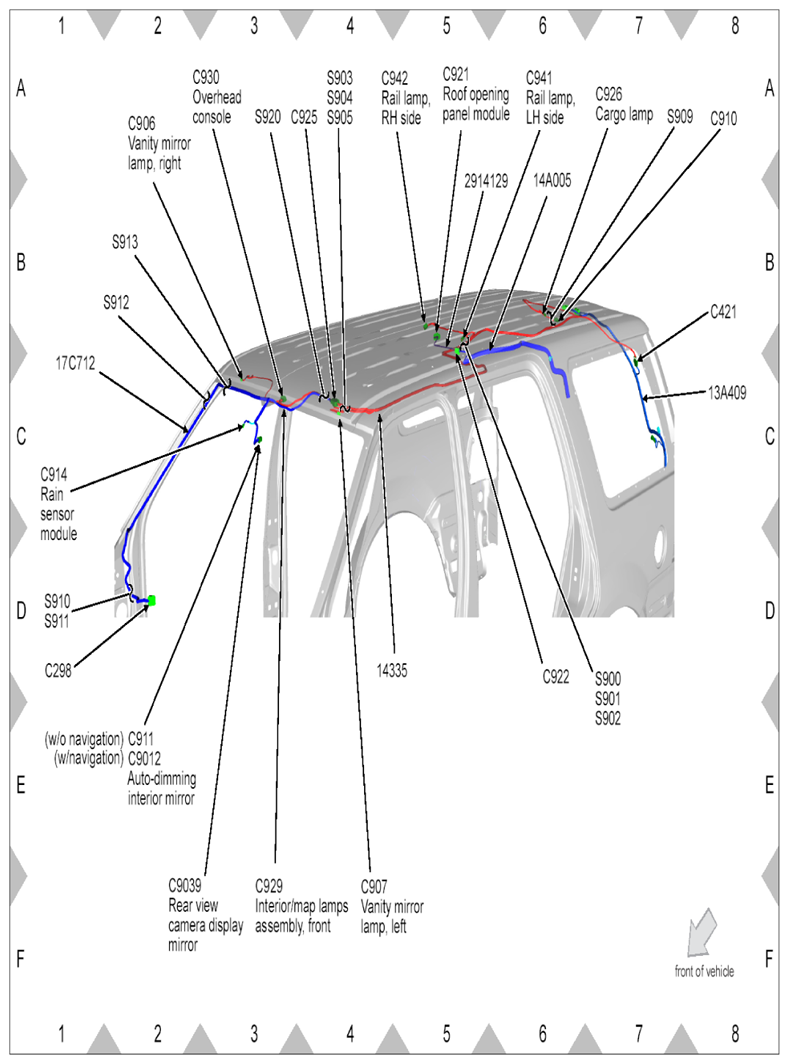

Fig 43: Roof Opening Panel Module Wiring Harness Connectors Location (2 Of 2)

G07856554

Courtesy of FORD MOTOR CO.

Fig 44: Blower Motor Wiring Harness Connectors Location (1 Of 2)

G07856555

Courtesy of FORD MOTOR CO.

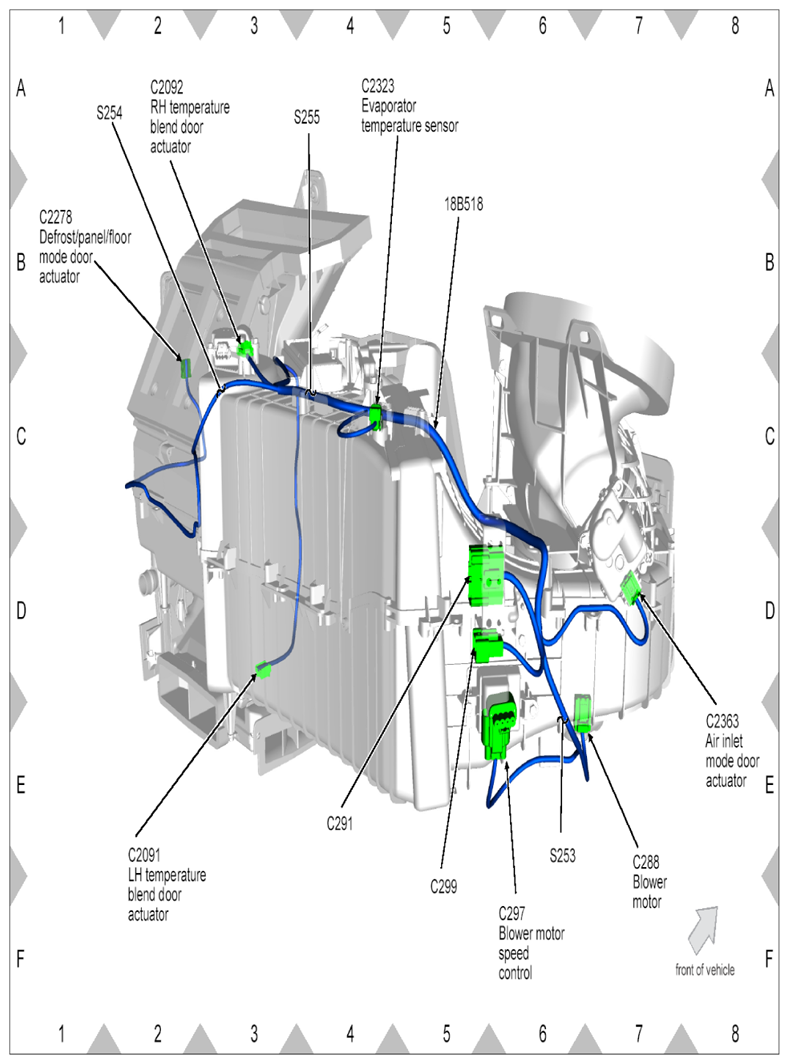

Fig 45: Blower Motor Wiring Harness Connectors Location (2 Of 2)

G07856556

Courtesy of FORD MOTOR CO.

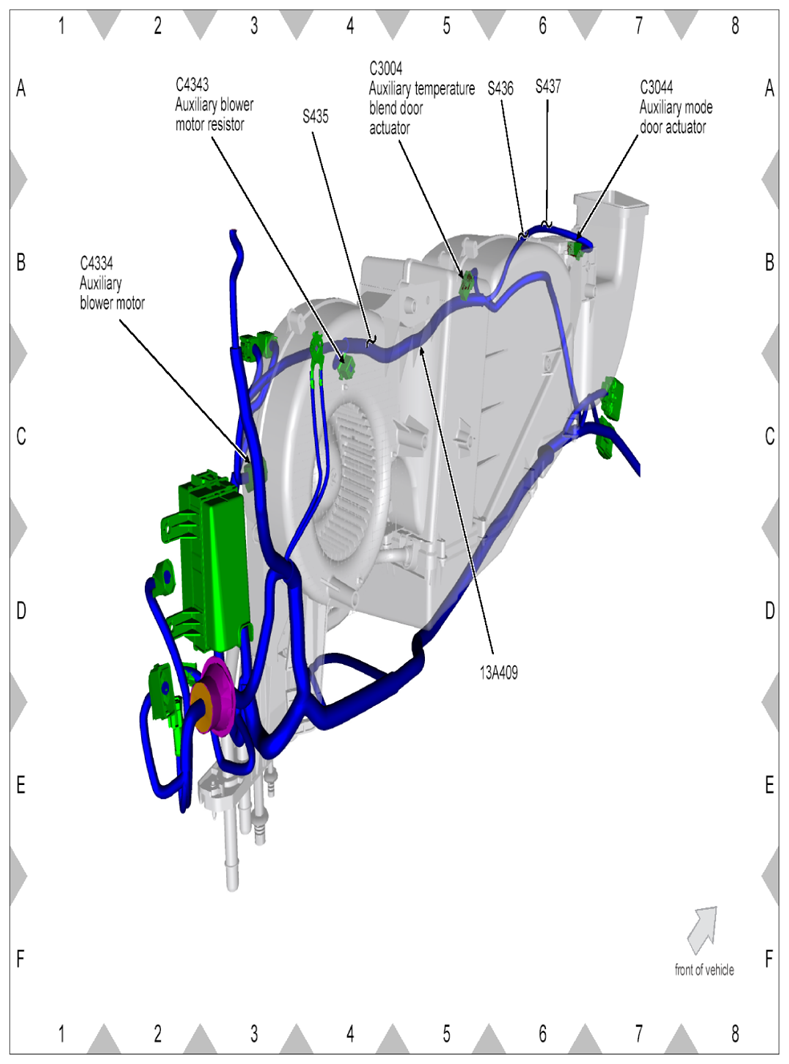

Fig 46: Auxiliary Blower Motor Wiring Harness Connectors Location (1 Of 2)

G07856557

Courtesy of FORD MOTOR CO.

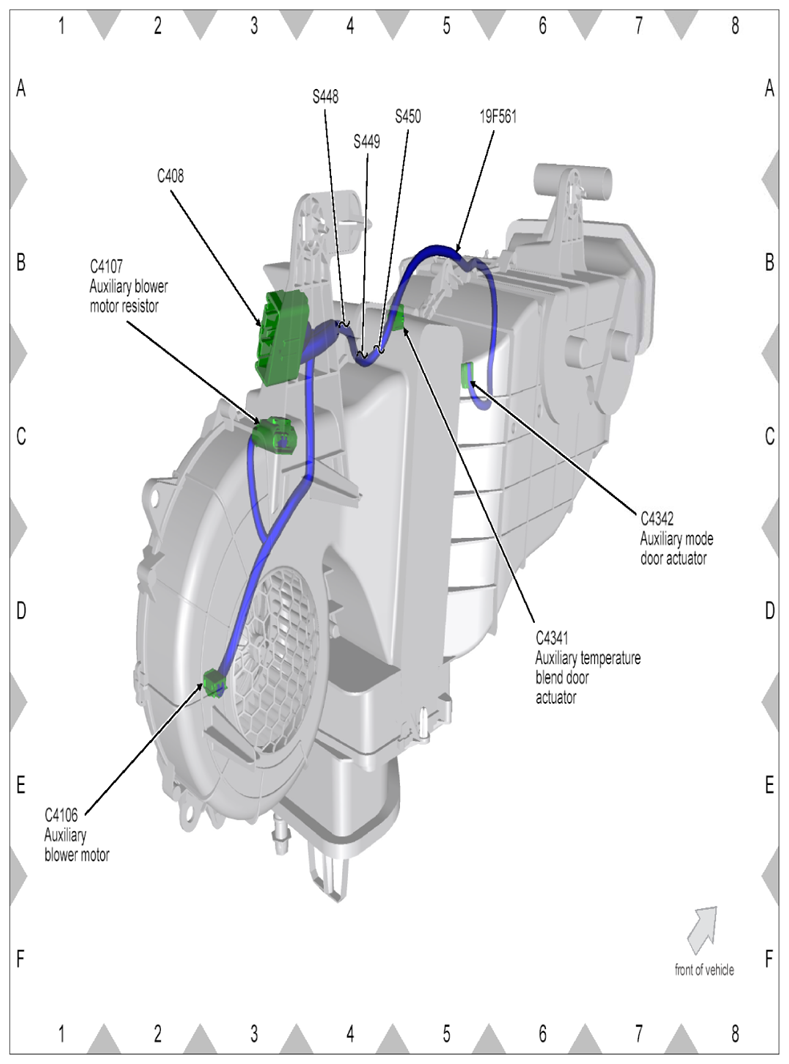

Fig 47: Auxiliary Blower Motor Wiring Harness Connectors Location (2 Of 2)

G07856558

Courtesy of FORD MOTOR CO.
