Selector Lever Bezel: Removal

Expedition

1. Remove the selector lever trim ring, console tray and cup holder insert.

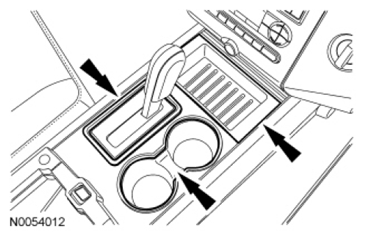

   Fig 1: Locating Selector Lever Trim Ring, Console Tray And Cup Holder Insert

   Courtesy of FORD MOTOR CO.
2. Remove the screw and the console upper trim.

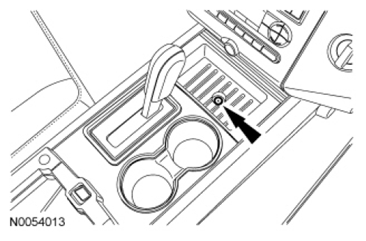

   Fig 2: Locating Console Upper Trim Screw

   Courtesy of FORD MOTOR CO.

   Navigator

3. Remove the selector lever trim ring.

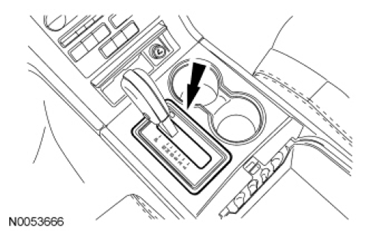

   Fig 3: Locating Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
NOTE: Using a suitable tool, lift and remove the floor console upper panel from the rear.

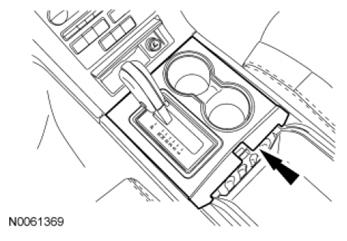

Fig 4: Locating Floor Console Upper Panel
Courtesy of FORD MOTOR CO.
4. Remove the floor console upper panel.

   All vehicles

5. Remove and discard the RH selector lever knob cover.
   1. Start at the bottom front only.
   2. Move towards the top front and remove the cover.

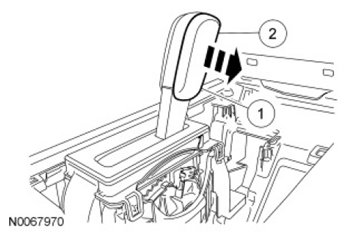

      Fig 5: Removing RH Selector Lever Knob Cover

      Courtesy of FORD MOTOR CO.
6. Remove and discard the LH selector lever knob cover.
   1. Start at the bottom front only.
   2. Move towards the top front and remove the cover.
      Fig 6: Removing LH Selector Lever Knob Cover

      Courtesy of FORD MOTOR CO.
7. Remove and discard the RH selector lever knob screw.

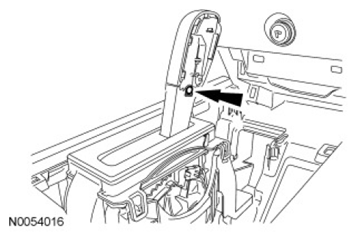

   Fig 7: Locating RH Selector Lever Knob Screw

   Courtesy of FORD MOTOR CO.
NOTE: Verify the LH and RH knob body towers are present and not damaged.

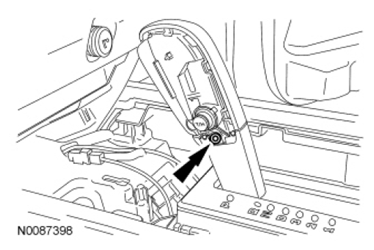

Fig 8: Locating LH Selector Lever Knob Screw
Courtesy of FORD MOTOR CO.
8. Remove and discard the LH selector lever knob screw.
9. Disconnect the tow/haul switch electrical connector and remove the selector lever knob.

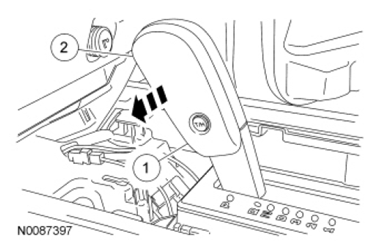

   Fig 9: Locating Tow/Haul Switch Electrical Connector

   Courtesy of FORD MOTOR CO.
10. Lift the tabs on the selector lever bezel and lift the bezel for access to the electrical harness.

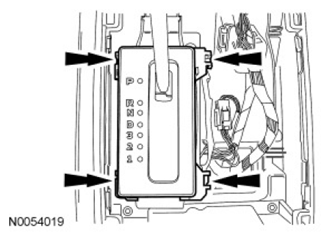

    Fig 10: Locating Selector Lever Bezel Tabs

    Courtesy of FORD MOTOR CO.

    Expedition

11. Disconnect the electrical harness from the bezel.

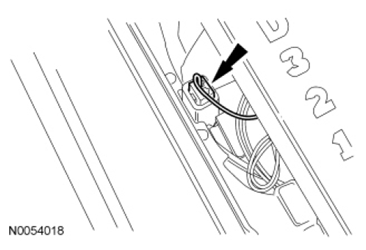

    Fig 11: Locating Bezel Electrical Harness

    Courtesy of FORD MOTOR CO.
