Seat control switch, 10-way - Left: Schematic

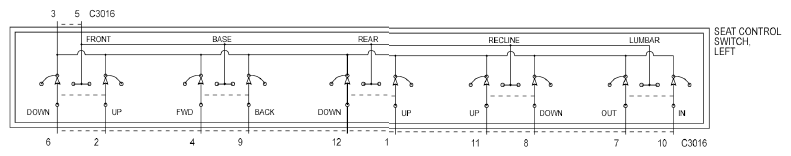

Fig 1: Seat Control Switch, 10-Way (Left) - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
