Selector Lever Bezel: Installation

Expedition

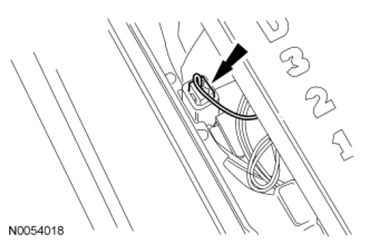

1. Connect the electrical harness onto the bezel.

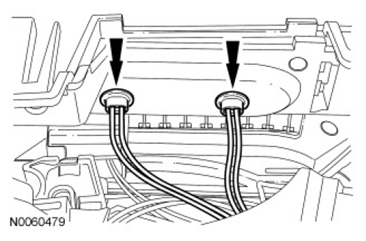

   Fig 1: Locating Bezel Electrical Harness

   Courtesy of FORD MOTOR CO.

   All vehicles

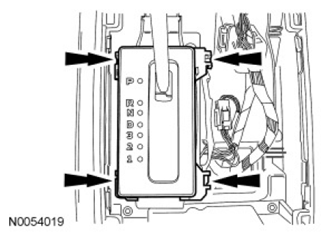

2. Install the selector lever bezel onto the selector lever housing.
   Fig 2: Locating Selector Lever Bezel Tabs

   Courtesy of FORD MOTOR CO.
3. Connect the tow/haul switch electrical connector and install the selector lever knob.
   Fig 3: Locating Tow/Haul Switch Electrical Connector

   Courtesy of FORD MOTOR CO.

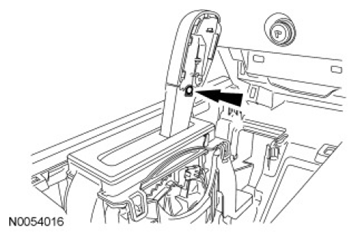

4. Install a new LH selector lever knob screw.
   • Tighten to 2 Nm (18 lb-in).
     Fig 4: Locating LH Selector Lever Knob Screw

     Courtesy of FORD MOTOR CO.

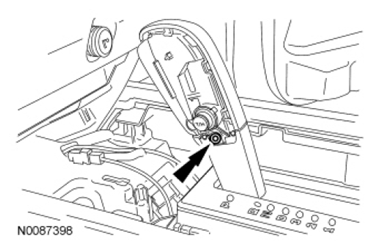

5. Install a new RH selector lever knob screw.
   • Tighten to 2 Nm (18 lb-in).
     Fig 5: Locating RH Selector Lever Knob Screw

     Courtesy of FORD MOTOR CO.

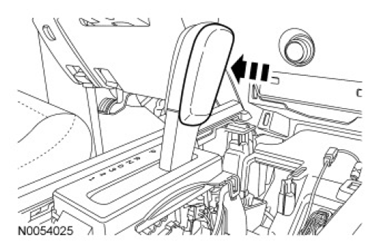

6. Install a new LH selector lever knob cover.
   Fig 6: Installing LH Selector Lever Knob Cover

   Courtesy of FORD MOTOR CO.

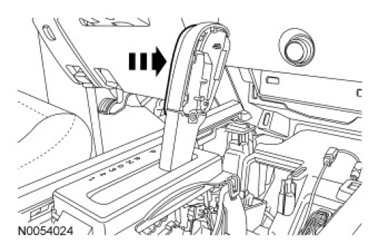

7. Install a new RH selector lever knob cover.
   Fig 7: Installing RH Selector Lever Knob Cover

   Courtesy of FORD MOTOR CO.

   Expedition

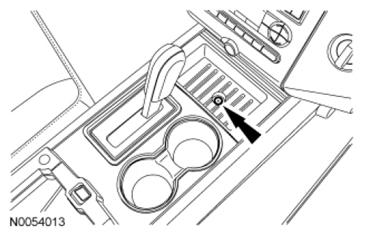

8. Install the console upper trim and the screw.
   Fig 8: Locating Console Upper Trim Screw

   Courtesy of FORD MOTOR CO.
9. Install the selector lever trim ring, console tray and cup holder insert.

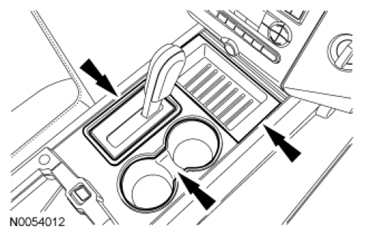

   Fig 9: Locating Selector Lever Trim Ring, Console Tray And Cup Holder Insert

   Courtesy of FORD MOTOR CO.

   Navigator

10. Install the floor console upper panel.

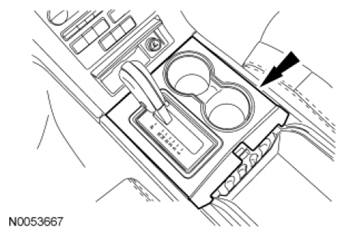

    Fig 10: Locating Floor Console Upper Panel

    Courtesy of FORD MOTOR CO.

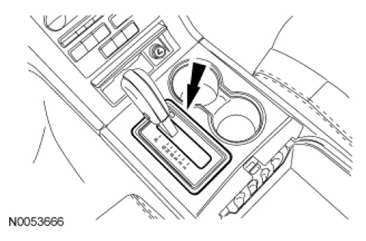

11. Install the selector lever trim ring.
    Fig 11: Locating Selector Lever Trim Ring

    Courtesy of FORD MOTOR CO.
